CELESTION / Truvox 1525 8ohm

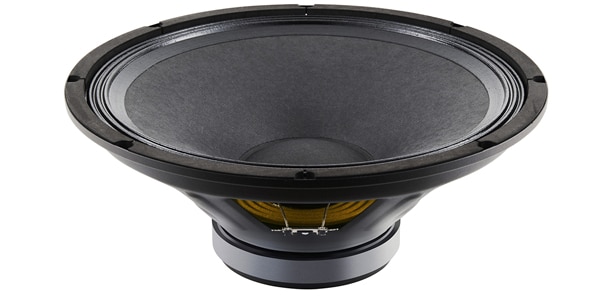

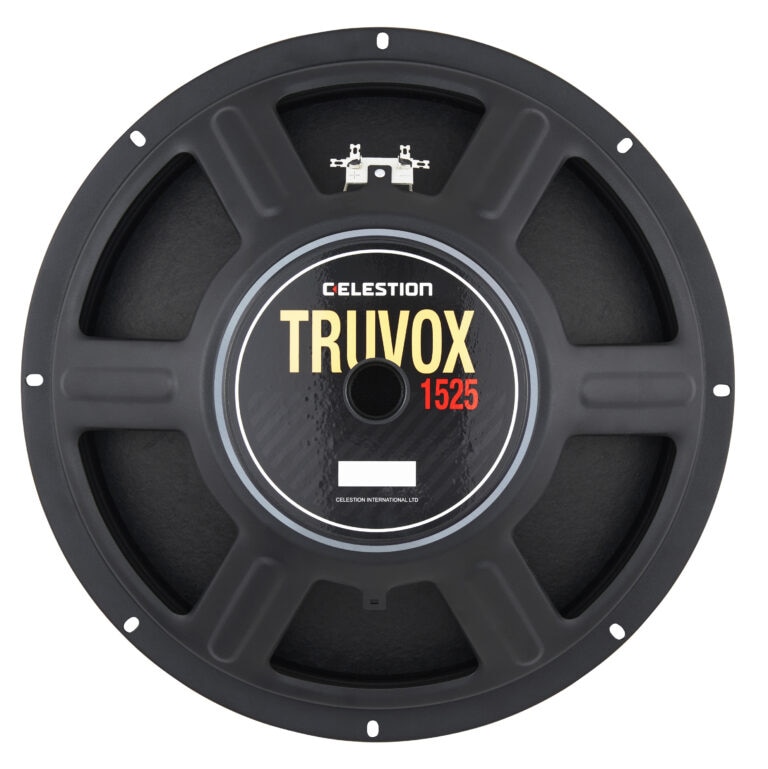

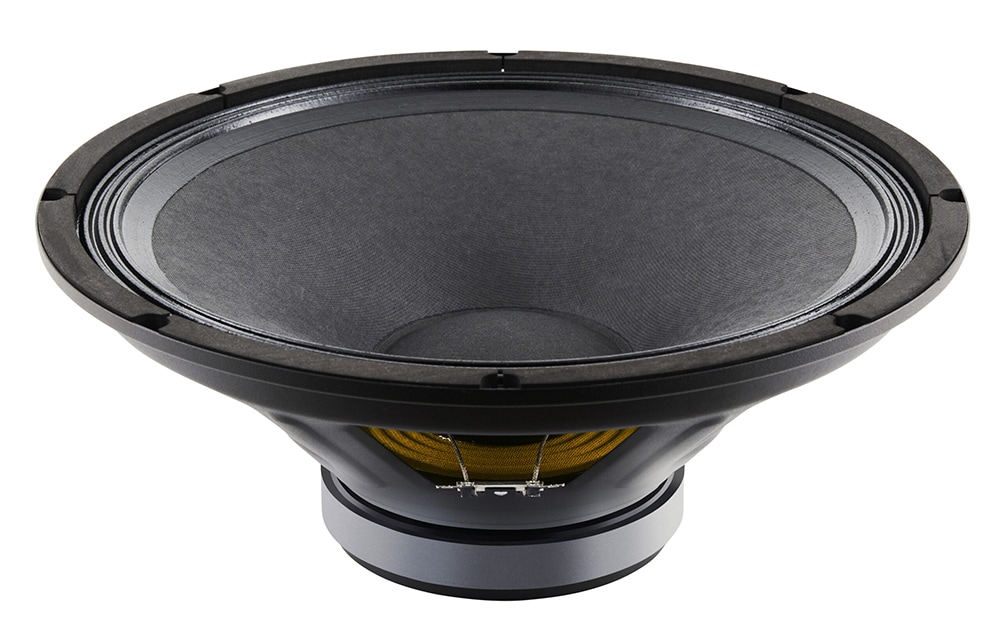

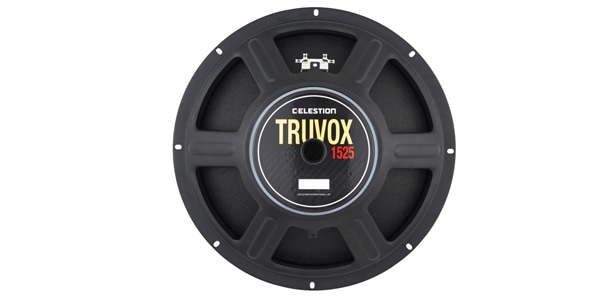

Truvox 1525 8ohm is a 15 inch ferrite magnet driver.

■Aperture: 15""
■Impedance: 8Ω
■Allowable input: 800W
■Frequency range: 40-4000Hz
■Sensitivity (1W/1m): 96 dB
■Magnet: Ferrite
■Size: 384mm x 384mm x 151.7mm
■Weight: 4.67kg
■Others:
■Voice coil: 2.5 inches
■Magnet weight: 1.42kg
■Chassis: Pressed steel
■Voice coil: Copper clad aluminum
■Former: Polyimide
■Cone: Glass loaded cellulose
■Surround: Triple roll, cloth sealed
■Suspension: Single
■Baffle diameter: 352mm
■Screw hole size: 9.2mm x 6.2mm
■Number of screw holes: 8
■Diameter between mounting screw holes: 366-372mm Mounting PCD range

■15 inch mid-low range i woofer
■Magnet assembly optimized by FEA
■Excellent performance with triple roll surround
■Glass fiber reinforced cone for increased durability
■Rugged pressed steel chassis with front and rear mounting gaskets

*When we provide repair/support, we generally do not provide replacement devices. In the event of a problem, please return it to us and we or the manufacturer will take care of it according to our support regulations.
