LYNX STUDIO TECHNOLOGY / Hilo 2 TB3 オーディオインターフェイス

Hilo 2 is a converter/interface for professionals who want the purest audio quality. Model with LT-TB3 pre-installed.

■Audio interface
■LT-TB3 pre-installed model
*The image is for illustrative purposes only. Hilo 2 is available only in black color.

Hilo 2 is for professionals who want the purest audio quality. Designed as a true all-in-one device, Hilo offers best-in-class AD/DA, built-in metering and analysis, multiple inputs and outputs, highly flexible routing and monitoring controls, and the ability to easily save and recall any task with a touchscreen.

■Main features
・Completely independent 2-in/6-out, A/D D/A conversion with digital expansion up to 16x16

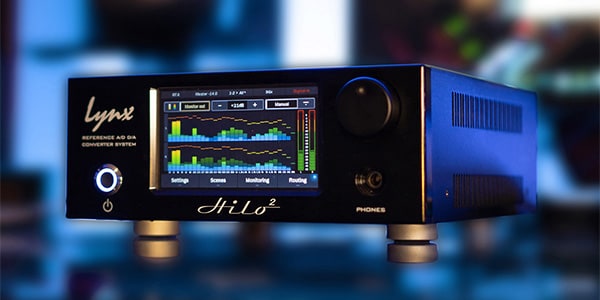

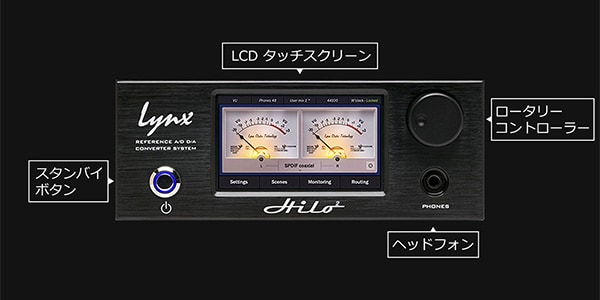

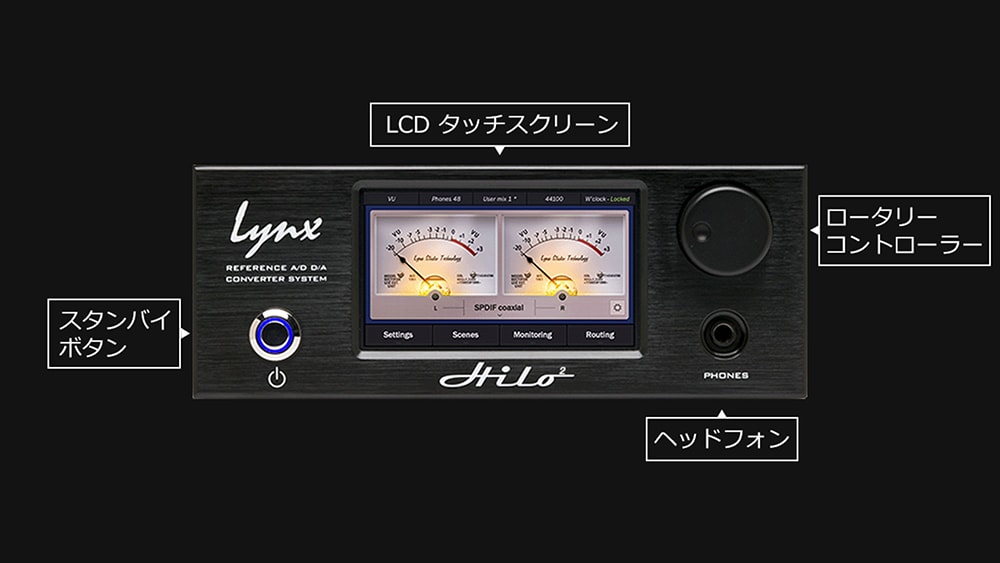

・Unique touch screen interface
・Permanent updates via firmware updates
・Future-proofed LSlot interface design - supports Thunderbolt, USB, and Dante connectivity

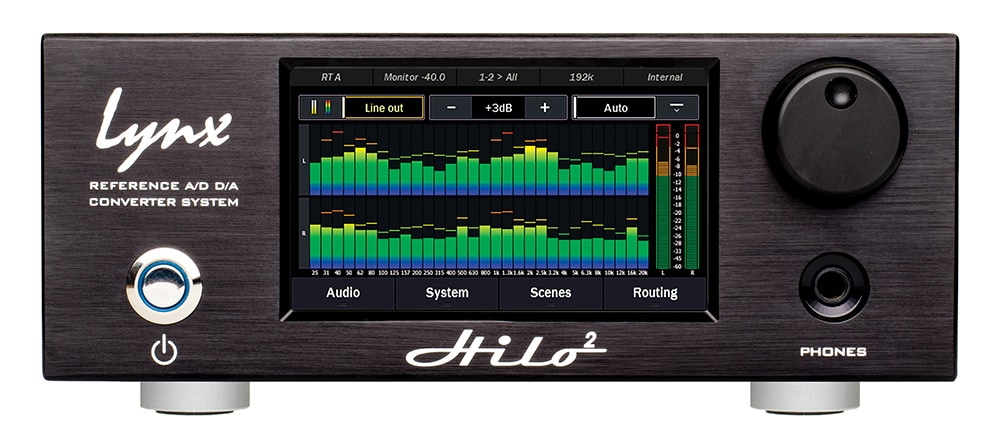

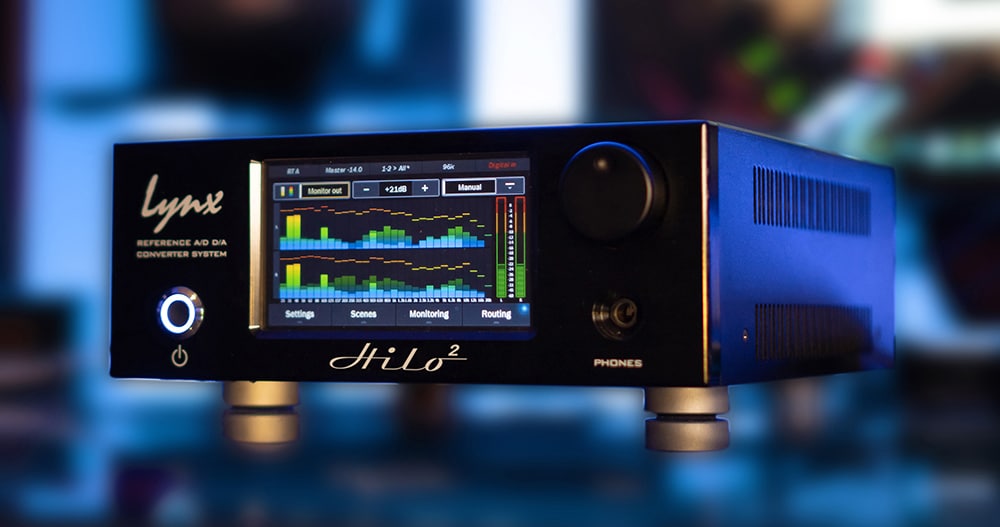

・Real-time meter display and analysis tools
・Flexible routing and monitor control
・High quality headphone amplifier
- Compatible with field recording - can be powered by a 9-18v DC battery pack in addition to regular AC power
・Lynx's best-in-class pure audio quality
・Demonstrate transparent performance with upgraded conversion technology
- SynchroLock 2 sample clock provides high-speed synchronization of external clocks and excellent tracking with 7ppm absolute accuracy.
- In-plane switching LCD with capacitive touch significantly improves brightness. Off-axis display is now more uniform and touch responsiveness has also been improved.
- Upgrade path to higher sample rates of 192 kHz or higher and DSD input/output.
・Linear and minimum phase filters can be selected with line I/O.

■Dedicated application ""Hilo Remote""
Hilo Remote is a free application that allows you to operate Hilo and visualize its sections on a Mac or Windows computer.
An Apple iPad version of Hilo Remote is also available, which allows you to use Hilo in wired mode with a USB connection between Hilo and iPad via the Apple Camera Connection Kit (sold separately), or in Wi-Fi mode to remotely control Hilo (USB or Thunderbolt models) connected to a computer via the free dedicated desktop application ""Lynx Redirector"".

■Product specifications
・Sample rate
Supports common sample rates up to 192 kHz, high-precision processing with SynchroLock sample clock generator

・Clock synchronization source
Internal
External word clock: 75ohm TTL signal BNC connector, AES/EBU or S/PDIF input

・LCD display
480 x 272 LCD touch screen

・Computer connection
Windows: Lynx shared 64-bit driver
Macintosh: Apple shared macOS USB driver or Lynx shared Macintosh macOS Thunderbolt driver

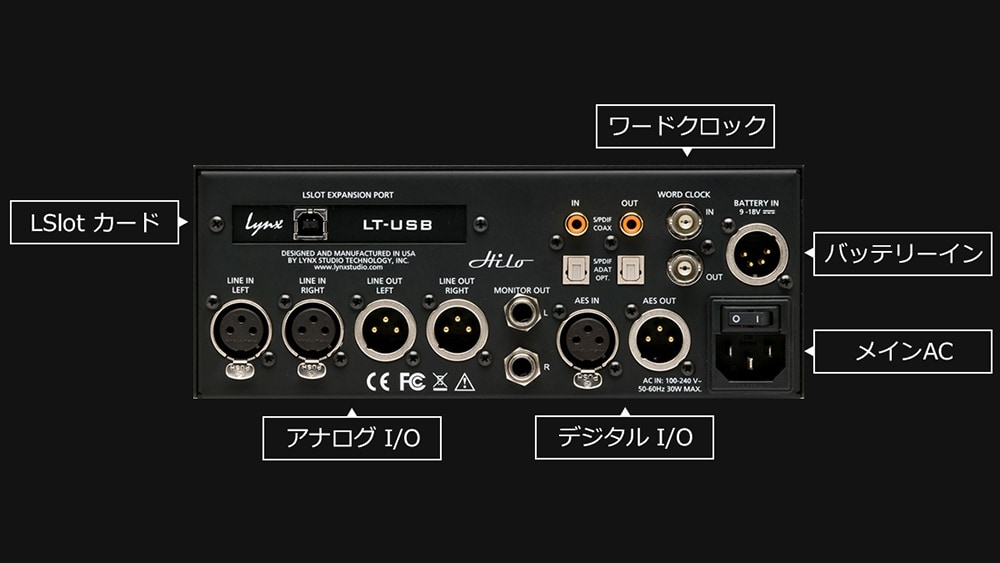

・LSlot? Expansion port
Supports Lynx LSlot expansion card with maximum simultaneous input/output of 16 channels

*For the latest operating environment for each LSlot, please refer to manufacturer site product page .
