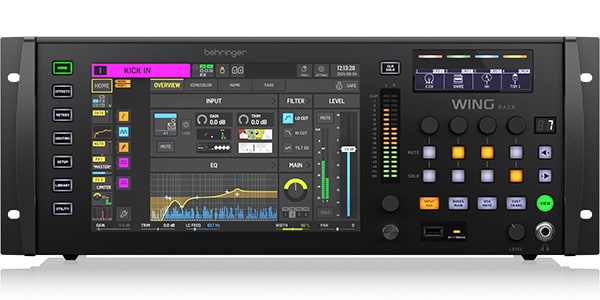

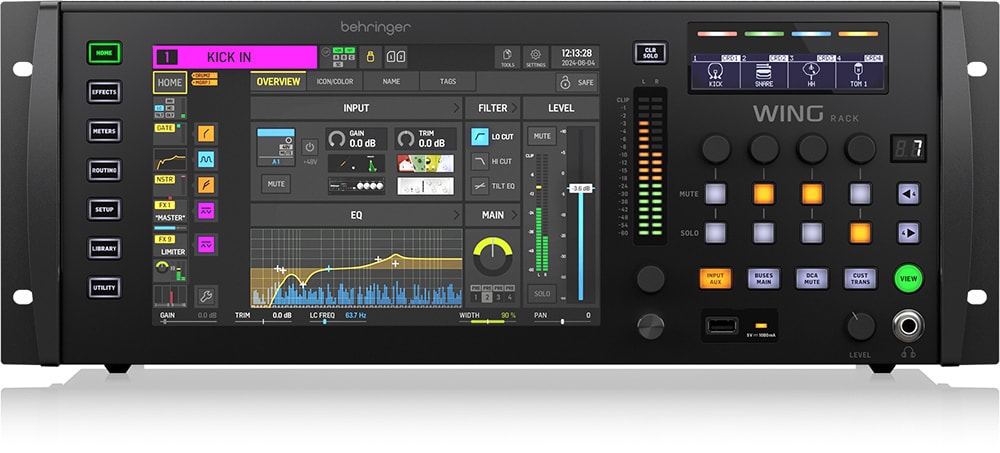

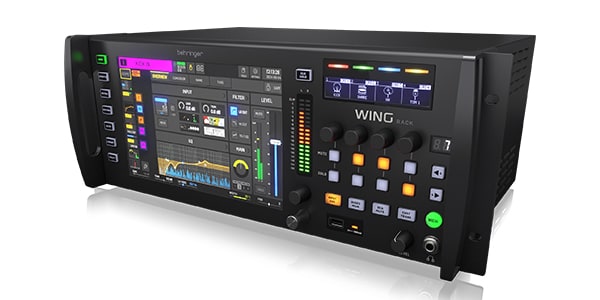

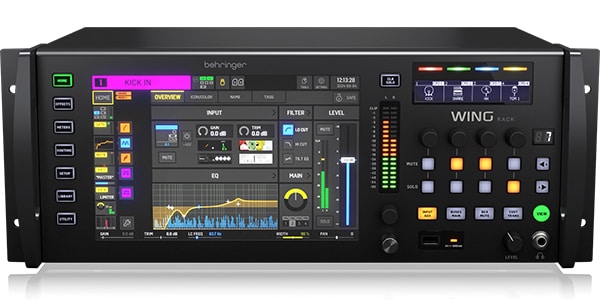

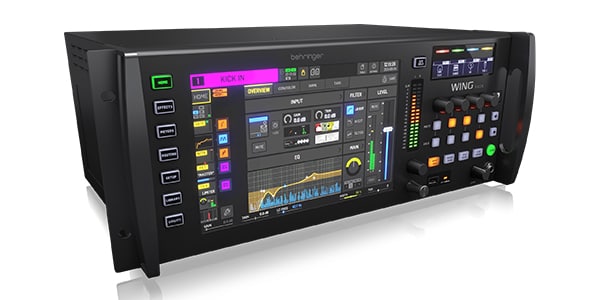

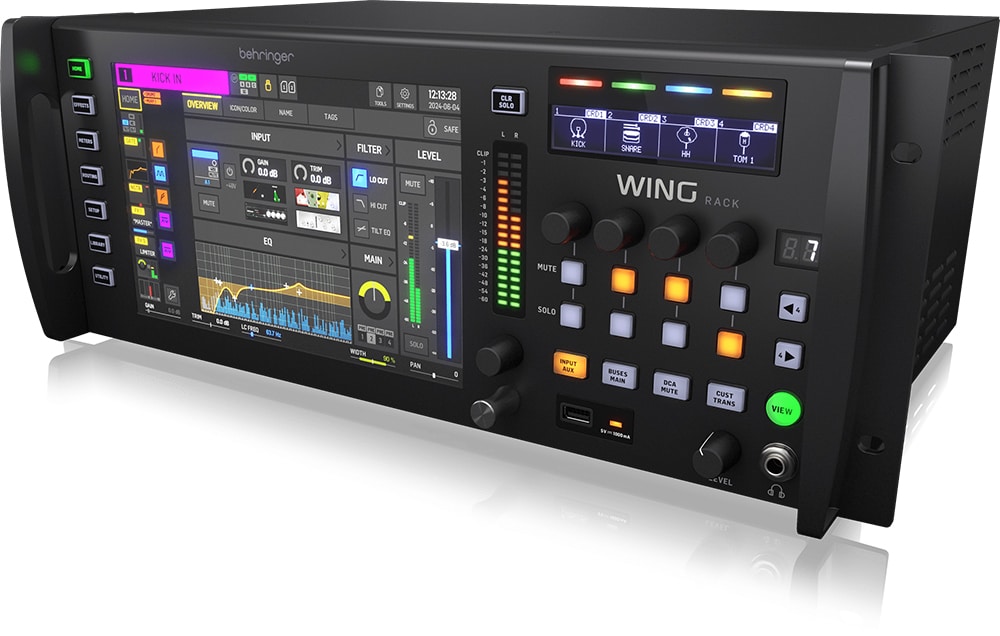

BEHRINGER / WING RACK

BEHRINGER / WING RACK is a rack-mount digital mixer that condenses the functions of WING. The 16-channel faderless design allows for space-saving operation. High scalability and flexible routing make it ideal for live and facility applications.

Rackmount 48 channel, 28 bus, full stereo digital mixing engine
24 Midas PRO preamps, 8 Midas PRO outputs
10.1 inch touch screen

■24 Midas PRO mic preamps and 8 outputs deliver industry-standard sound quality

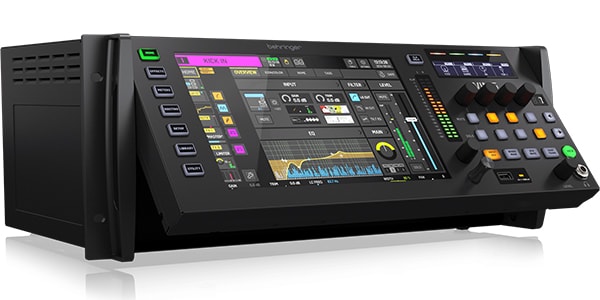

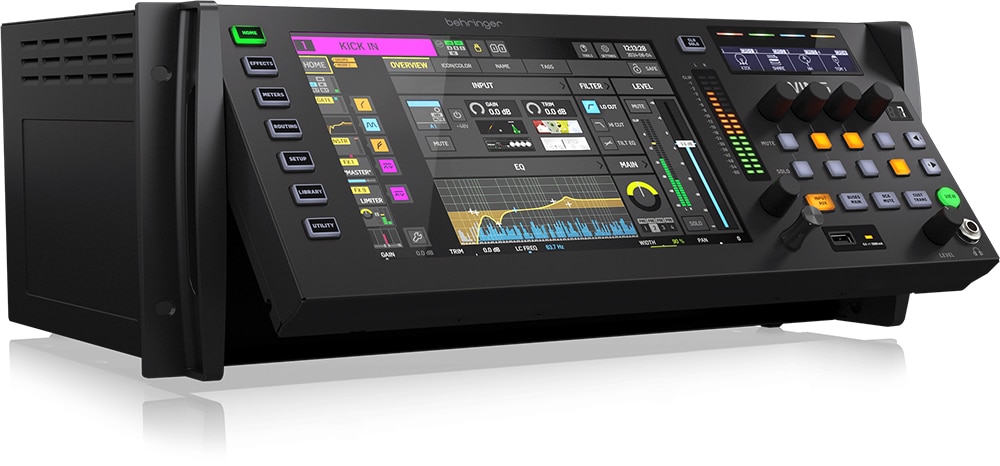

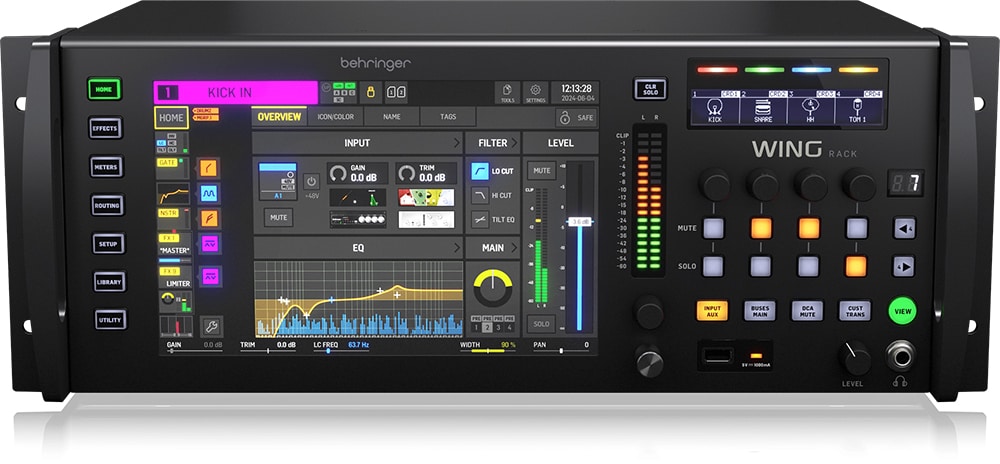

■Continuously adjustable front panel for a comfortable mixing experience when mounted in a rack

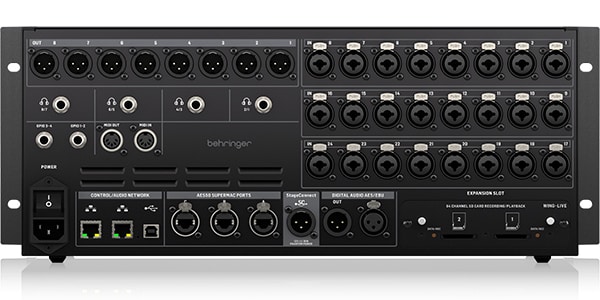

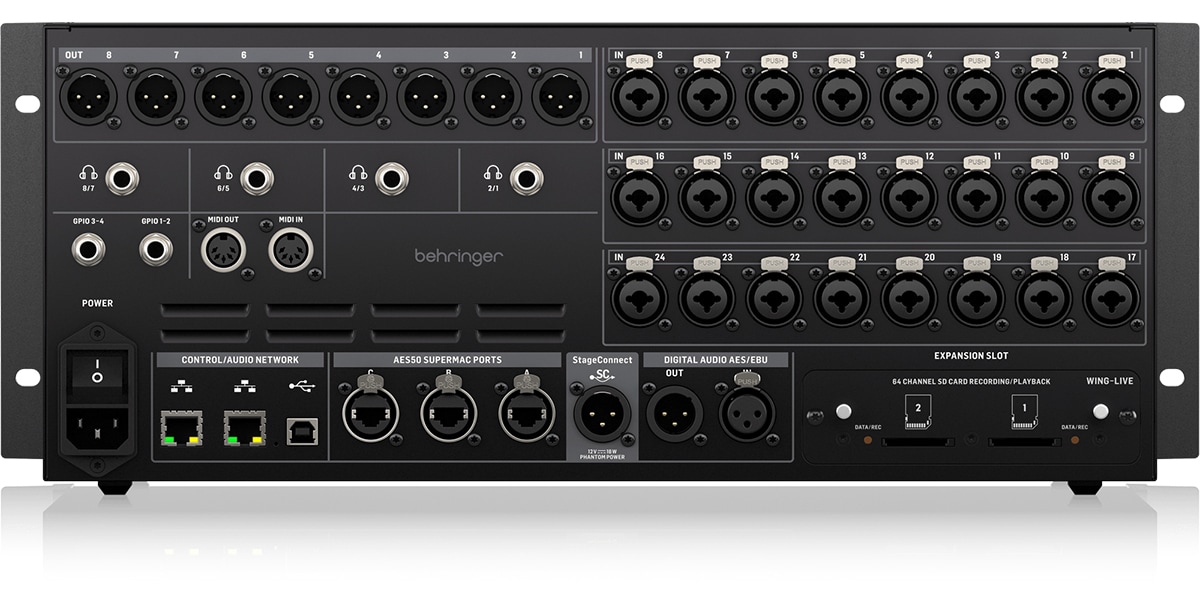

■3 AES50 ports, SuperMac CAT5 connectivity with ultra-low jitter and 6 sample latency for a total of 144 input/output signals

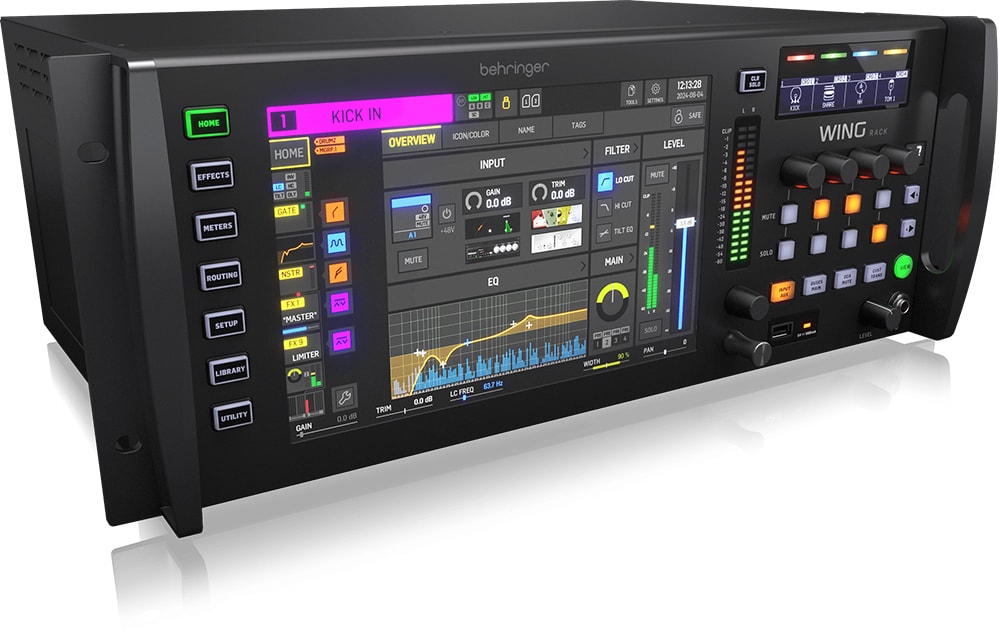

■10.1-inch main display with multi-touch screen and adjustable rotation function
■Eight buttons and four encoders for standard mixing and transport functions, or use custom controls to turn WING RACK into your personal console.
■Integrated USB audio/MIDI interface with 48 audio channel inputs and outputs
■Dual SD card drive recorder/player with up to 64 tracks and markers to identify song positions
■Internal AoIP module can upgrade the Ethernet port with optional 64-channel audio input/output to Audinate Dante and Waves SoundGrid networks.
■16 true stereo effect processing engines, over 80 world-class algorithms
■Each channel has three plug-in slots for gate, dynamics, and EQ. without sacrificing headroom for additional effects processing.
■4 mains, 8 matrices, 16 auxiliary stereo busses, dual inserts, 8-band parametric EQ, stereo imager, and full dynamics processing all in one effects chain
■40 stereo input channels with 5 variable plug-in processing slots each
■8 stereo aux input channels, single FX insert slot, expander/limiter, 4-band parametric EQ
■8 mute groups and 8 DCAs for grouping and merging tracks
■Two Ethernet ports with integrated switch for network remote control and optional AoIP via Waves SoundGrid and DanteR
■The expansion slot on the back panel allows you to install an optional 64-channel audio interface and network expansion card (Dante, WSG, MADI, etc.).
■ StageConnect host interface for sharing up to 32 channels in both directions via a single XLR connection
■4 additional headphone outputs with high-performance headphone amplifiers for IEM applications
■4-channel GPIO that allows you to control almost anything with WING
■5-pin MIDI input/output for control and synchronization with external devices
■DAW remote control is compatible with Mackie Control Universal (MCU) and includes presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, and Studio One.
■Offline editing and remote control with WING-CoPilot, WING-Q, and WING-Edit software for desktop and mobile
■19-inch rack mountable, 4HU form factor
