ATV / EXS-5 SH Twin Pedal Set

This special Sound House set includes the xD3 sound module, which produces high-resolution, realistic drum sounds, a hat stand, twin pedals, and a saddle-type throne. This popular model features mesh heads on all pads, including the kick drum.

■Electronic Drum Set

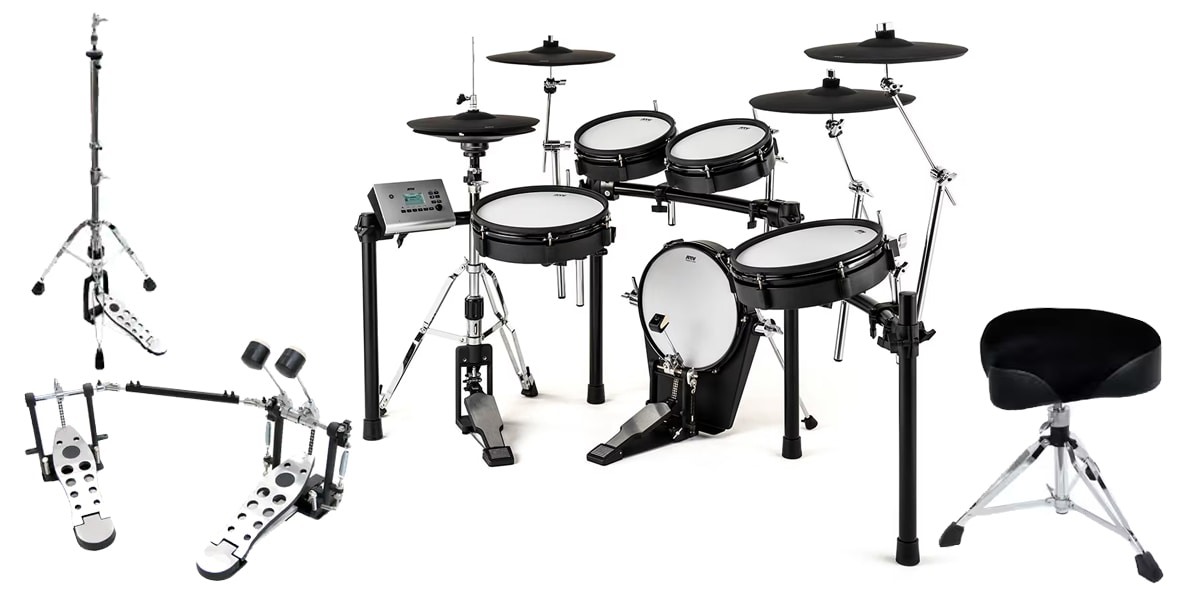

■Set Contents
Sound Module: xD3
Kick Drum: 13""
Snare Drum: 13""
Tom: 10"" x2
Floor Tom: 13""
Hi-Hat: 14""
Cymbal for Crash: 14"" x2
Cymbal for Ride: 16""
Drum Key
Twin Pedal: PLAYTECH/DBP6100WX
Hi-Hat Stand: PLAYTECH/DHH6500X
Throne: PLAYTECH/DDT3000X

[Two Types of EXS Available]
The ""EXS-5"" follows the traditional acoustic drum size and consists of a 14"" hi-hat, 13"" snare, and 13"" floor tom.
The ""EXS-3"" is slightly smaller than the EXS-5, with each drum measuring 10"" each. This compact model consists of 12"" and 14"" drum pads and 12"" and 14"" cymbals.

~EXS-5 Feature Introduction~
●More freedom with cymbals
EXS series cymbals are free of cumbersome parts like rotation stoppers, allowing for full playability. A newly designed pivot ensures natural omnidirectional movement, and careful consideration has been given to the overall deflection of the cymbal when striking the edge and the thickness of the tip, resulting in a natural playing feel despite the silent silicone material.

●Precise pedalwork detection
The hi-hat is the most delicately controlled element in drum performance. Conventional electronic hi-hats often use contact sensors, which have limitations in their detection accuracy and tracking. The EXS The hi-hats in the series feature contactless sensors for high-precision sensing without delay, even when opening and closing quickly.

●Newly developed sensors and two-layer drum heads
All drums feature two-layer mesh heads. The more power you apply to your shots, the smoother the sound. Additionally, the snare drum and toms feature three-point multi-sensors. This significantly reduces hot spots, accurately reproducing everything from big shots to delicate ghost notes.

●Kick drums that support the groove
The kick drum, which is the backbone of your performance, requires stability and high-speed response. Our unique cushioning structure, which balances damping and sensing of the beater's impact, delivers both a solid feel and high-speed response. The 13"" or 10"" mesh head provides a comfortable feel for keeping the beat. Even with hard, rapid strikes using a twin pedal, it delivers stable sensing and playability.

～xD3 DRUMS SOUND MODULE ~
● Designing authentic drum sounds.
Our idea of ​​an authentic drum sound is not one that sounds the same no matter who plays it, but one that allows an experienced drummer to create the dynamics and groove they intend.

When developing the xD3, we didn't pursue a large number of sounds or add sound editing features that would degrade the quality of the original sound. This is because we believe that the authentic drum sound that drummers perceive lies on a different level than these spec competitions.

The ability to freely produce uncompressed instrument sounds that capture the large dynamics of a kick drum, the subtlety of a snare, and the natural resonance of a cymbal. The time it takes for the sound to reach the drummer's ear from the kick drum, and the position of the drummer's ear, are key factors in determining the sound. We focused on achieving a realistic, drum-like sound that drummers perceive, including careful miking, room reverberation, and stereo positioning.

● Sound generation performance that brings out the drummer's groove
The xD3 developed a high-speed triggering analysis and low-latency sound generation process to bring out the differences in the drummer's groove and ensure a seamless, comfortable performance. This unique technology generates sound from uncompressed audio data with a massive amount of information the instant it is struck, clearly expressing the drummer's individuality.

● The true dynamic range of drums
The xD3 features a dedicated drum sound engine that can reproduce the full dynamics of notes, from delicate pianissimo (ppp) to powerful fortississimo (fff).

Recorded notes from ppp to fff The xD3 accurately reproduces sound material ranging from the original to the fullest, responding to the strength of the drummer's strike. This sound source also reproduces natural transitions between rolls, without the sound sounding mechanical.

● Cymbal sounds with natural reverberation, just like the original sound. Take your time to enjoy the cymbal sounds of the xD3. You'll hear the realistic reverberation of a real cymbal. This is because the xD3 records the decay of the cymbal sound until it completely disappears in uncompressed stereo, reproducing it exactly as it is. The sound is well-positioned and has a long enough reverberation. The natural reverberation creates a rich sound even in delicate pieces that emphasize rests, or in small-scale performances.

● Realistic performance with high-resolution sound
Vintage instruments in perfect condition, tuning that brings out their charm, drummers who know the instruments inside and out, the best studios and equipment, and unique sampling technology and know-how. The sound sources included on the xD3 are all recorded in stereo and high-resolution, taking advantage of these favorable conditions to capture the original sound and atmosphere of the instruments in full. These high-quality instrument sounds are reproduced without compromising the original sound. The xD3 contains uncompressed audio data with only the minimum necessary adjustments.

● Setup function for playing comfort

The xD3 allows you to set up the xD3 to suit your individual playing style. Adjust the sensor sensitivity for a comfortable feel and eliminate crosstalk, and you can also configure snare rim shot settings. You can also set the output volume for each pad individually at the instrument level. This setup information can be saved internally or on an SD card.

● Training viewer function for visualizing dynamics and timing

Practicing with the xD3's metronome function helps you identify rhythmic imperfections that may otherwise go unnoticed while playing. When you play with the metronome function on, the LCD screen displays the dynamics and timing of your shots (Training Viewer). This allows you to objectively analyze your performance while practicing basics every day. Detailed customization is also available for the metronome itself, including tone, volume, beat type, and crash start.
