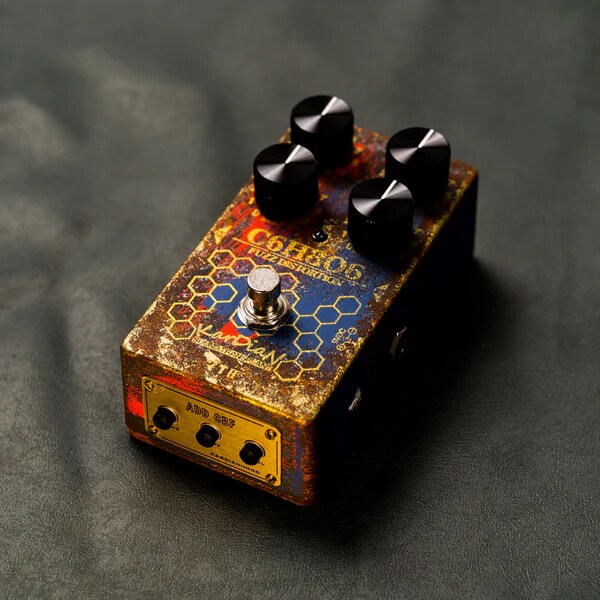

KarDiaN / Vitamin C Super Lucky 7 "ADD CBF"

A clean low-pass filter that doesn't just add one to the original sound.

A special modification of the pedal with Clean Blend & Clean LPF, which was specially made for a musician who ordered it only for those in the know. This is finally an official product. By blending a high-quality clean booster into the effect section, you can adjust the attenuation of the original sound that occurs when it passes through the effect. In addition, by adjusting the LPF (a mechanism that passes low and cuts high) installed on the clean side, it is possible to blend only the low components of the original sound. The low band, which controls the pitch and the core of the sound, can be used to create a clean original sound, and the mid to high components that best fit the effect can be created using the original effector sound. A feature of this ""ADD CBF"" module is that it uses LPF to achieve optimal sound communication without masking each other.

KarDiaN's new sound blend with Vitamin C Super Lucky 7 and ADD CBF allows you to musically add the original sound component that was previously lost when using effectors.

- SPECS -
- Input impedance: 1M
- Output impedance: 10kΩ
- Controls: Volume, Fuzz, Treble, Bass

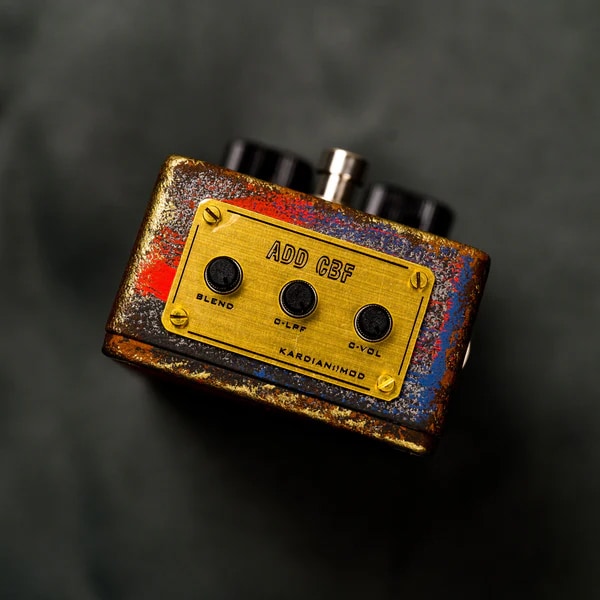

- Side control: Blend, Clean-LPF, Clean-Vol
- Switching method: True bypass
- Connection terminal: 1/4 inch standard phone jack x 2 (input, output)
- Power supply method: 9V center negative DC power supply (battery compatible 9V type 006P type)
- Current consumption: 4mA
- Dimensions: Width (W) 72 mm, Depth (D) 125 mm, Height (H) 55 mm (including protrusions such as foot switches and jacks)
- Weight: 326g
- JAN : 4589825520673
- Accessories: Warranty

- DISCLAIMER -
Specifications are subject to change without notice due to product improvements. Also, the image is a sample. Please note that the paint finish may vary slightly from piece to piece. Please note that the metal plate may have scratches due to manufacturing reasons, but this is a specification that occurs during processing. Due to the specifications of the metal knob, touch noise will occur only during operation. We recommend that you operate the string with the string grounded (with your fingers touching the string).
