QSC / LA108

The QSC/LA108 is an active line array speaker with an 8-inch woofer and 1.75-inch HF compression driver.

The LA108 is a next-generation intelligent active line array loudspeaker that combines cutting-edge innovation, sophisticated engineering, and unparalleled ease of use. Deliver an outstanding audio experience and superior performance in an easy-to-deploy package.

System intelligence and premium components make it easy to configure and operate in a wide range of applications, from simple portable plug-and-play setups to highly networked AV production and fixed installations. Solo performers, installers, and production companies will love the intuitive splay angle adjustment and array optimization features, as well as flexible interoperability with networked audio systems (Dante®).

There are a variety of installation options, including hanging installation using a dedicated array frame, ground stack configuration using the array frame and optional substack adapter, or speaker stand/pole mount installation. Furthermore, it is equipped with daisy chain connection for analog, digital audio, and AC power (PowerCON TRUE1).

■Features
-Specially designed lightweight neodymium 8-inch (203 mm) woofer and 1.75-inch (44 mm) HF compression driver delivers 134 dB maximum peak SPL without high distortion
・Energy-efficient Class D amplifier module with 1300 W peak output (equipped with Power Factor Correction function) with extremely low AC power consumption
Innovative QSC LEAF (Length-Equalized Acoustic Flare) waveguide provides defined uniform coverage (100° H x 15° V) and superior projection performance
Intuitive QSC RapidDeploy rigging technology allows for quick installation and deployment with short, medium and long range options without tools or additional hardware
QSC AWARE (Automatic Wireless Array Identification) system intelligence provides important configuration information to users through each speaker's rear user interface (RUI) or the QSC System Navigator app
Easily design, configure, control, monitor, and apply signal processing to individual speakers, entire arrays, or groups of them using the QSC SysNav (System Navigator) app. Place virtual speakers and arrays within your venue or installation space and visualize coverage using Array Installation Modeling (AIM) tools
・Acoustic Linear Phase (ALP) design provides high compatibility with QSC speakers within the same audio system, providing a uniform listening experience throughout the venue
・Compatible with digital audio-over-IP (DanteR), allowing interoperability with other audio devices. Additionally, provides seamless control and monitoring of the Q-SYS ecosystem

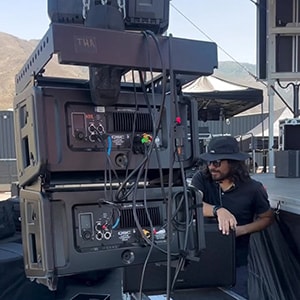

Installation options include hanging (using up to 6 array frames), ground stacking (up to 4 LA108s on one LS118 subwoofer), or speaker stand/pole mounting (up to 3 LA108s)

■Specifications
Configuration: Two-way active line array loudspeaker
LF Transducer: 203 mm (8-inch), cone
HF Transducer: 44 mm (1.75-inch), compression driver with Polyimide diaphragm
Frequency Response (-6 dB): 62 Hz - 20 kHz
Frequency Range (-10 dB): 57 Hz - 20 kHz
Nominal Coverage Angle: 100° H x 15° V
Maximum Rated SPL1 (peak): 134 dB @1 m
Amplifier (peak): Class D, LF 1000W / HF 300W
Cooling：Convection cooling
Controls:
　Rotary push encoder
　2 x Push buttons (Menu, ID)
Display Screen: 61 mm (2.4-inch) Full color display area (240 x 320 pixels)
Indicators:
Power LED
　Limiter active LED
　Standby active LED
　2 x Signal LED
Connectors：
　XLR Female (Analog In)
　XLR Male (Analog Thru)
　2 x RJ45 EtherCON (DanteR and QSC SysNav? In/Thru)
　2 x PowerCON TRUE1 (AC Power Inlet/Outlet)
AC Power Input：Universal power supply 100~240VAC, 50~60Hz
AC Power Consumption: 100VAC, 0.8A / 120VAC, 0.75A / 230VAC, 0.5A
Enclosure Material: Impact Resistant ABS
Attachment Points:
　QSC RapidDeploy? rigging system
　1x M10 (on rear panel for pull-back)
Color: Black (RAL 9011)
Grille: 18GA Powder coated steel
Dimensions (H × W × D): 272 x 519 x 374 mm
Net weight: 13.7 kg (30.1 lb)
Shipping Weight: 17.1 kg (37.6 lb)
Supplied Accessories: 1 x PowerCON TRUE1 power cable
Regulatory: UL, CE, FCC Class B
