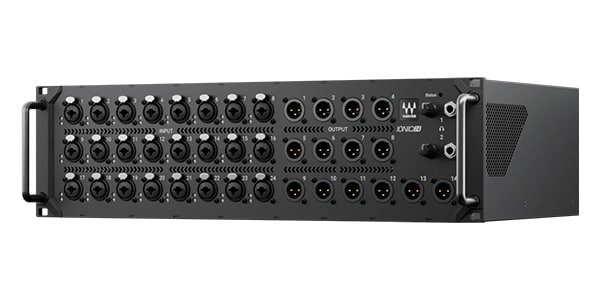

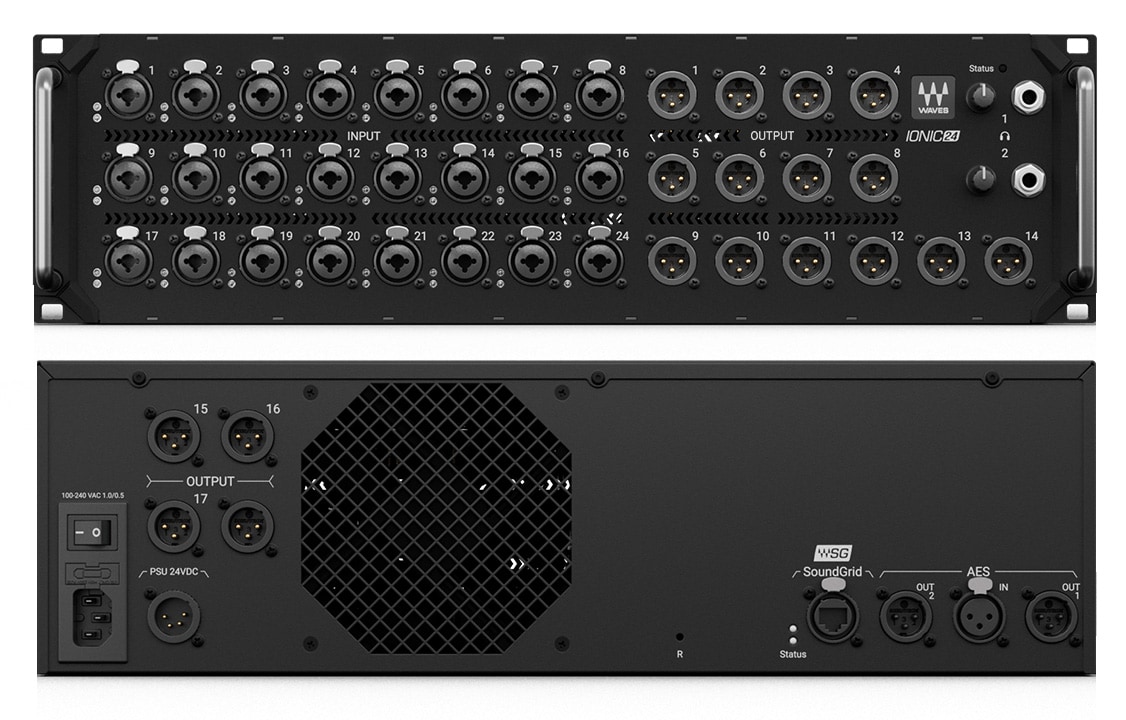

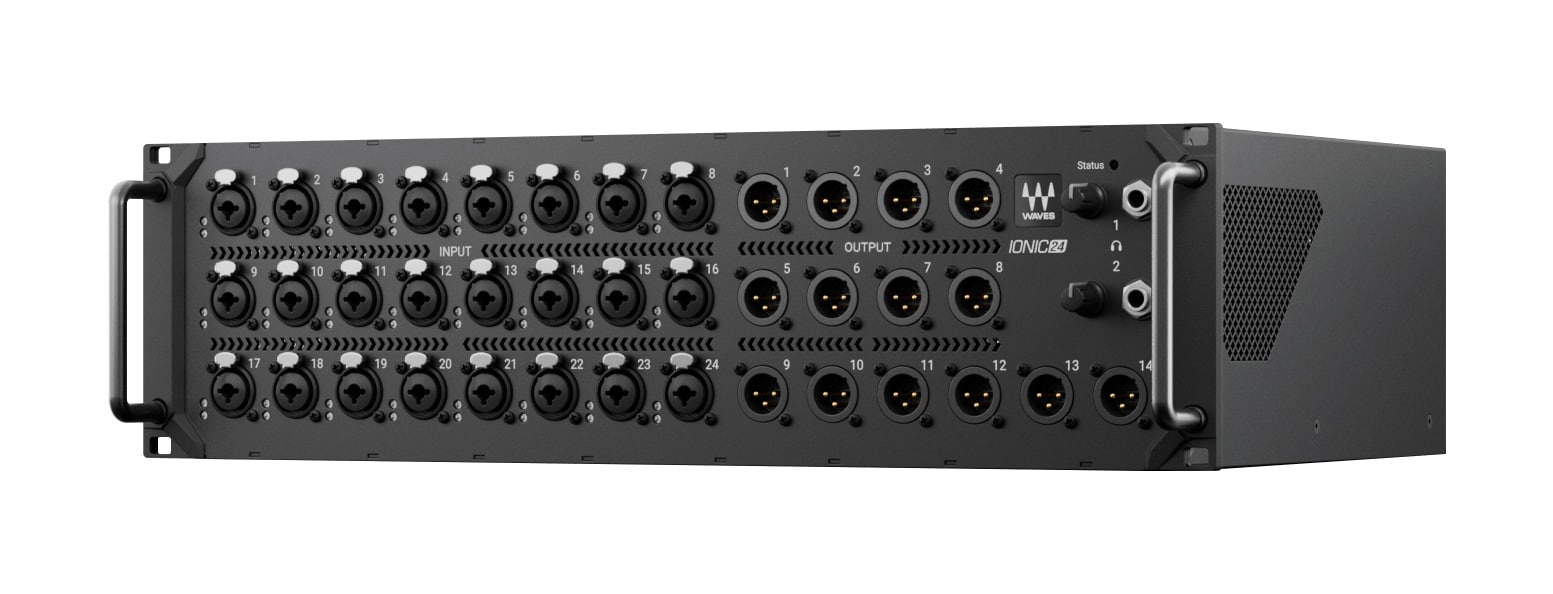

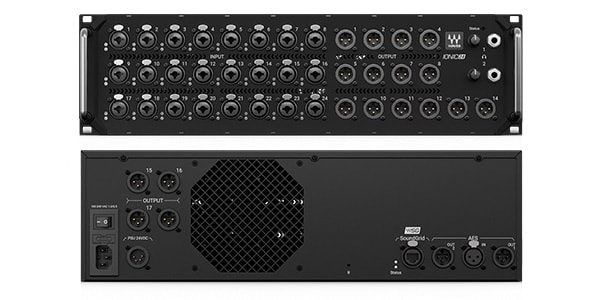

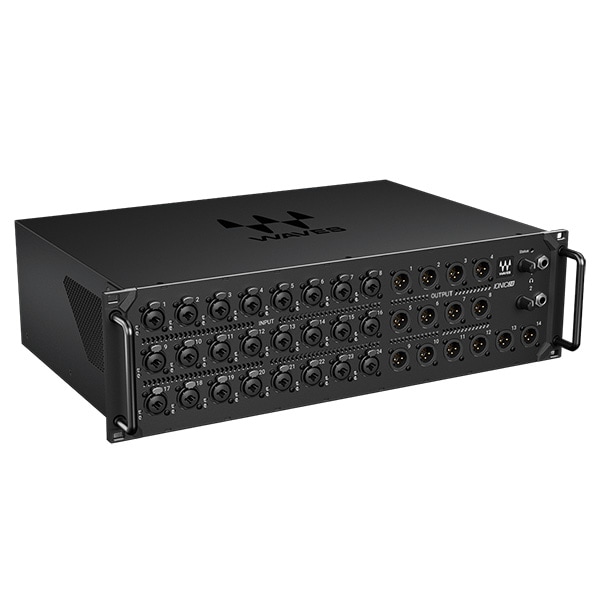

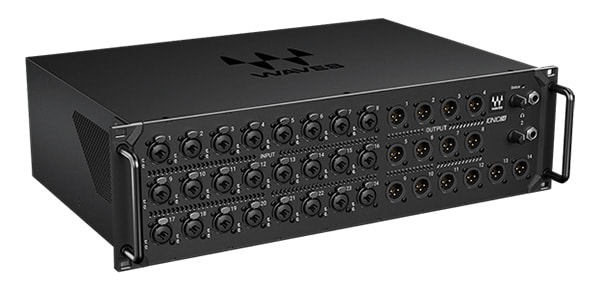

WAVES / IONIC 24

The Waves IONIC 24 is a 24-in, 18-out stage box that delivers superior sound with uncompromising punch and clarity in any live sound scenario.

■Stage Box, 24-in / 18-out
Waves IONIC 24 delivers superior sound with uncompromising punch and clarity in any live sound scenario. It is a stage box that can fully express the sound of the outstanding mixing engine of the Waves eMotion LV1 live mixer.

At the heart of IONIC 24 are the Waves Signature Preamps, original preamps designed exclusively by Waves with fully discrete analog circuitry. Maximum headroom, fast transient response, amazingly low noise floor, plus you can choose between pure preamp sound and rich harmonic enhancement with the plug-in for each input.

High quality 24 in / 18 out SoundGrid stage box
24 mic/line inputs with custom Waves Signature Preamps
1 Stereo AES input / 2 outputs
Harmonic enhancement with analog modeling
Analog input impedance selection: classic 2kΩ / modern 7kΩ
Seamless integration with eMotion LV1 live mixer
18 line outputs with clear sound (18/24 dBu output level switchable)
2 independent headphone outputs
Sample rate: 44.1, 48, 88.2 and 96 kHz
Rack mount in 3U chassis
