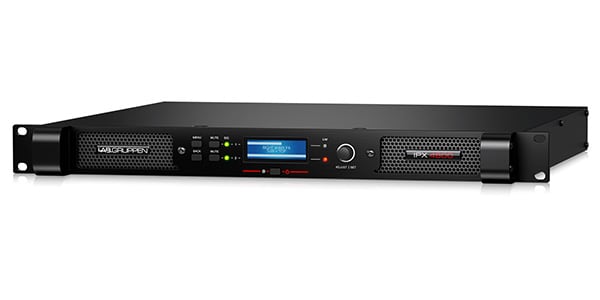

LABGRUPPEN / IPX4800

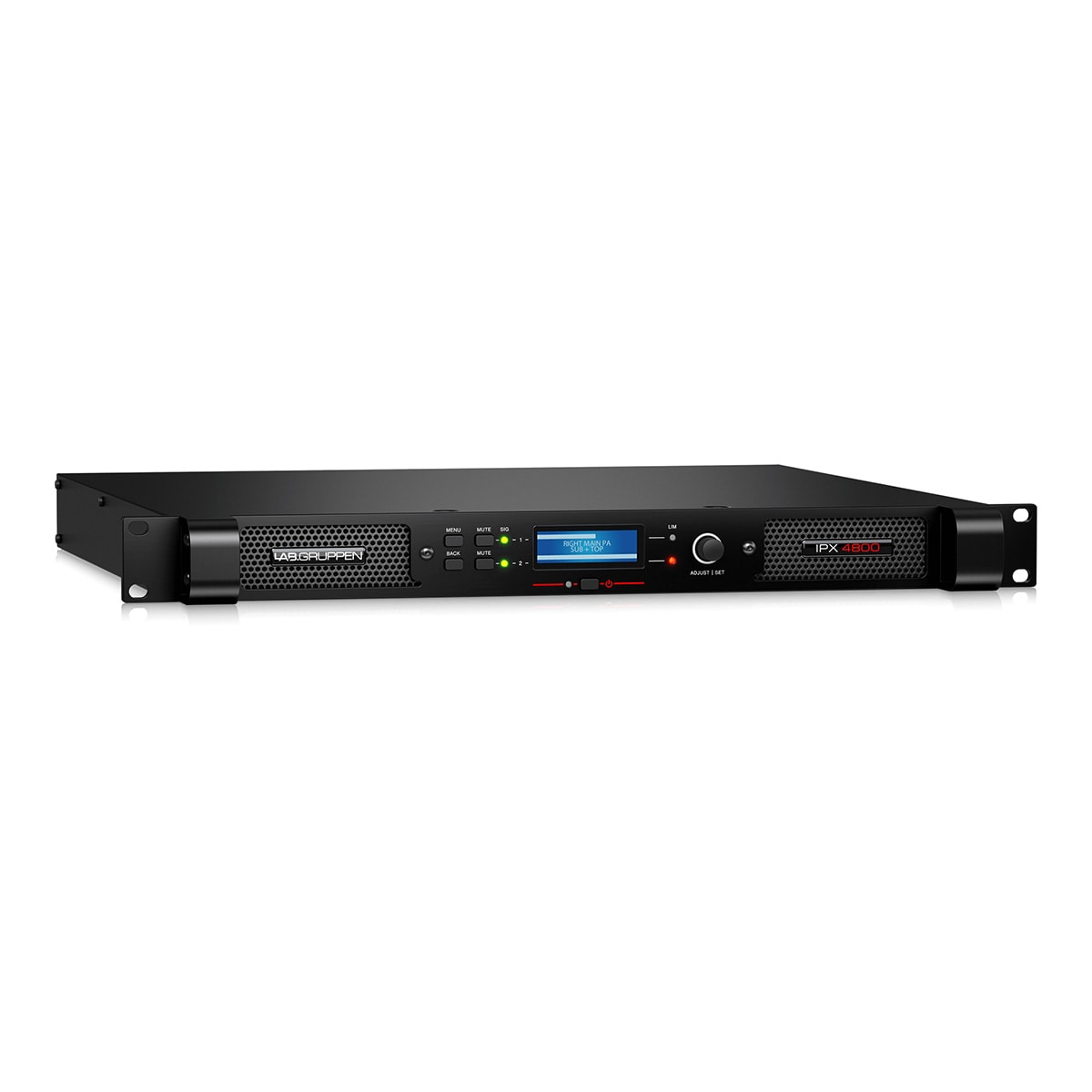

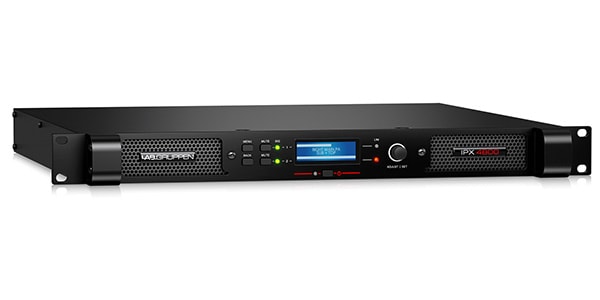

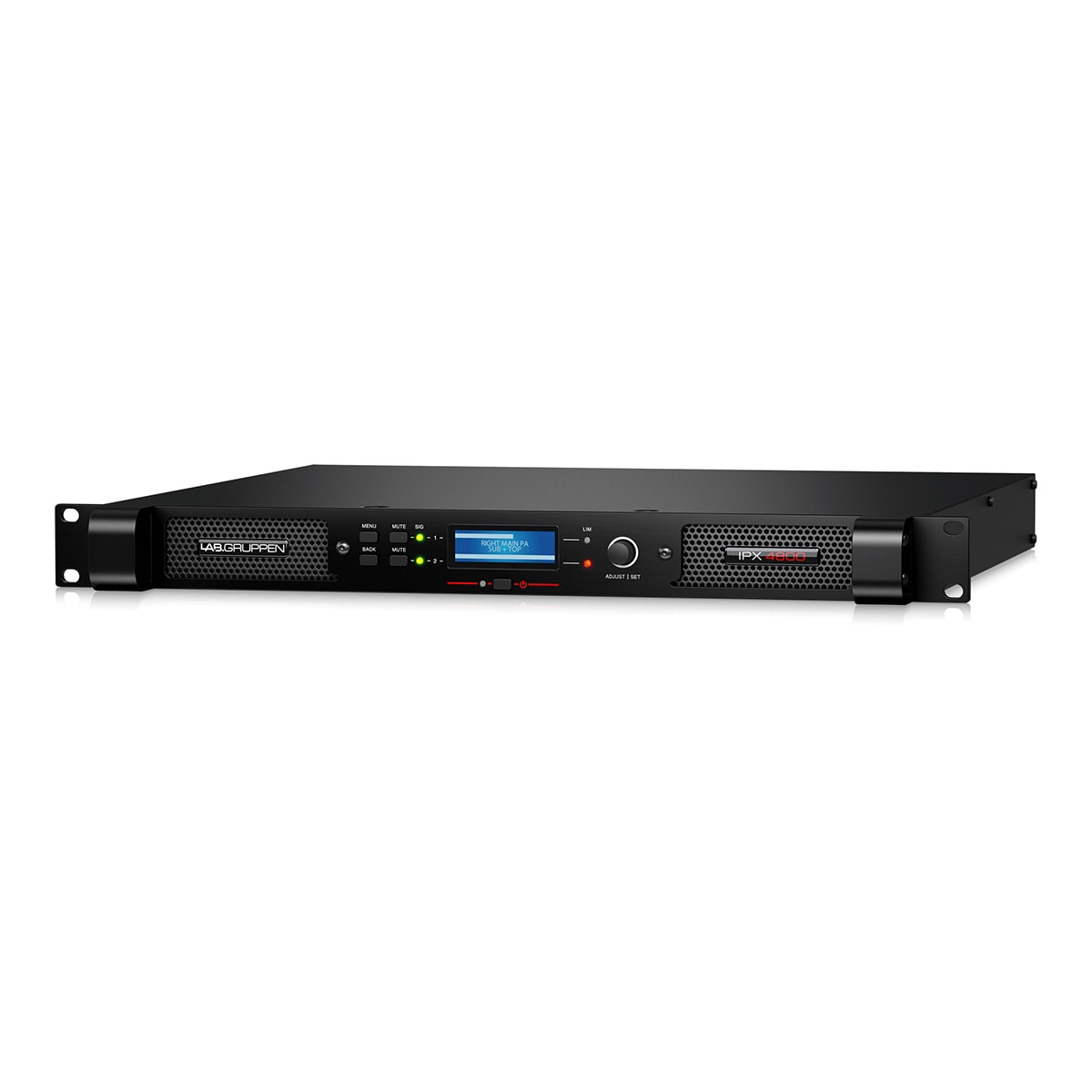

LABGRUPPEN / IPX4800 is a 1U sized power amplifier. It achieves low power consumption of the main power supply by using IDEEA (IntelliDrive Energy Efficient Amplifier) ​​technology to reduce power consumption.

■4800W 1U 2-channel DSP-equipped power amplifier
■Maximum output (each channel)
2 Ω / 2400 W
4 Ω / 2400 W
8 Ω / 1200 W

Lightweight design, 4800W, 1U size 2-channel power amplifier with built-in DSP
IDEEA (IntelliDrive Energy Efficient Amplifier) ​​technology reduces power consumption, realizing low power consumption of the main power supply
2 x 2400 W (2Ω) / 2 x 2400 W (4Ω) / 2 x 1200 W (8Ω)
Touchscreen user interface for network control
8 filter types including parametric EQ
High-quality DSP with FIR and 10 bands for each channel input and output (40 bands in total), HPF and LPF for output
10 crossover filters
Input and output delays up to 2000ms
4-channel input mixer for multi-input mixing and switching
50 user presets for system configuration and setup

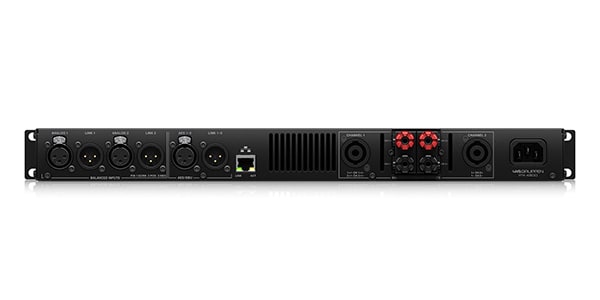

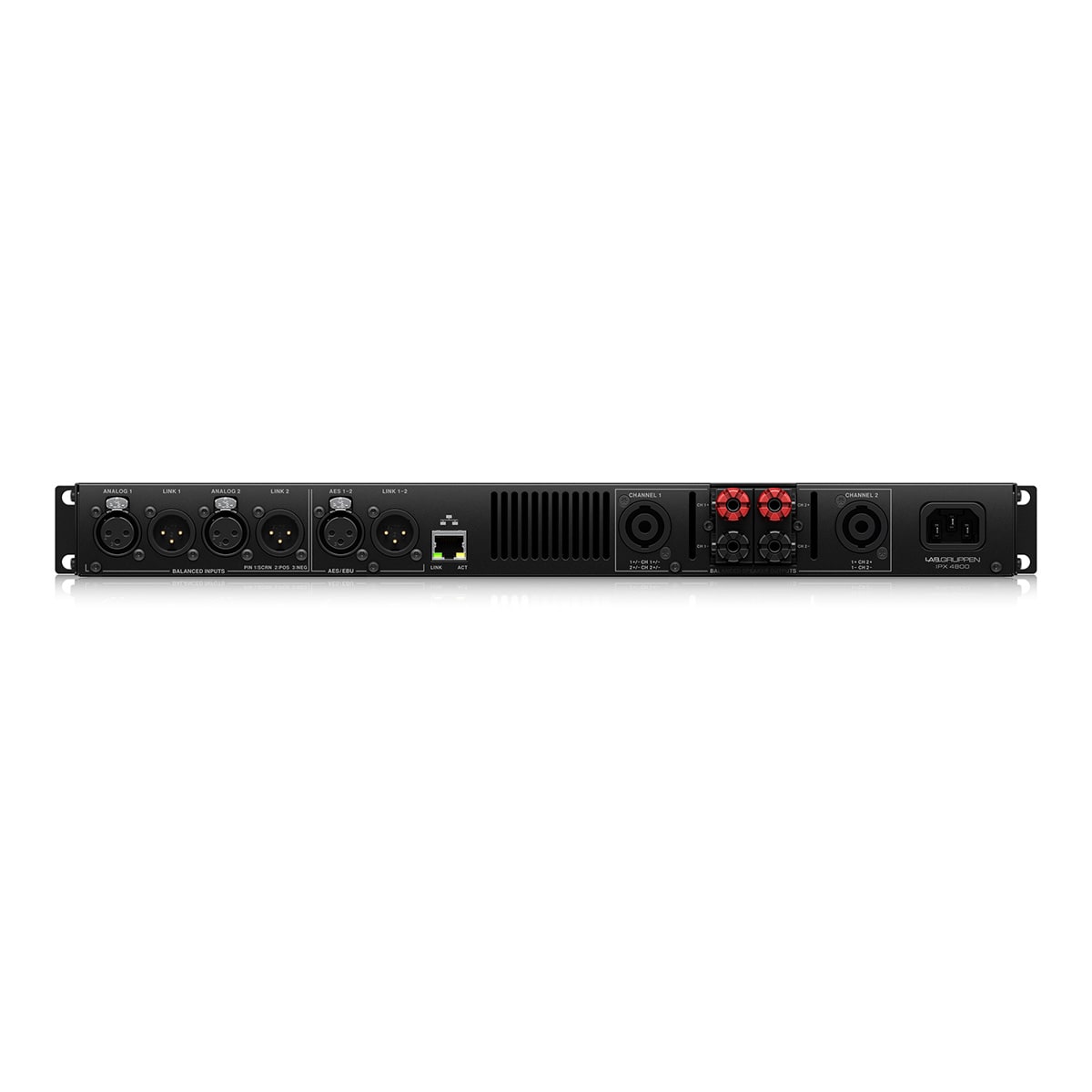

AES3 and analog inputs (with redundant failover)
Proven Speaker Protect Limiter (maxSPL) for optimal speaker matching and protection

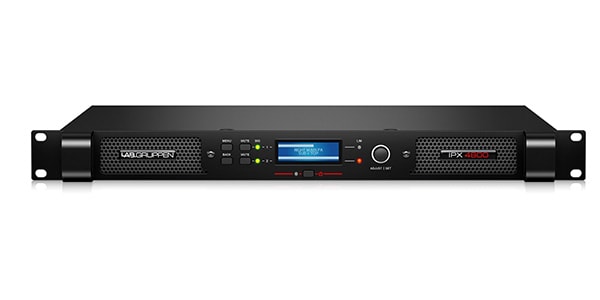

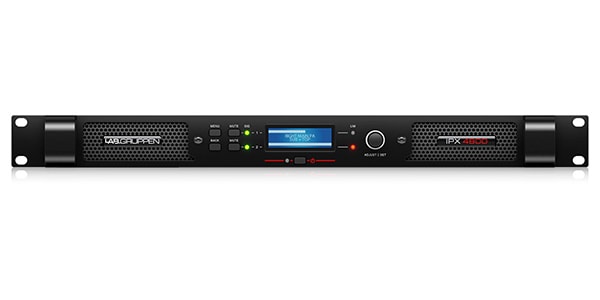

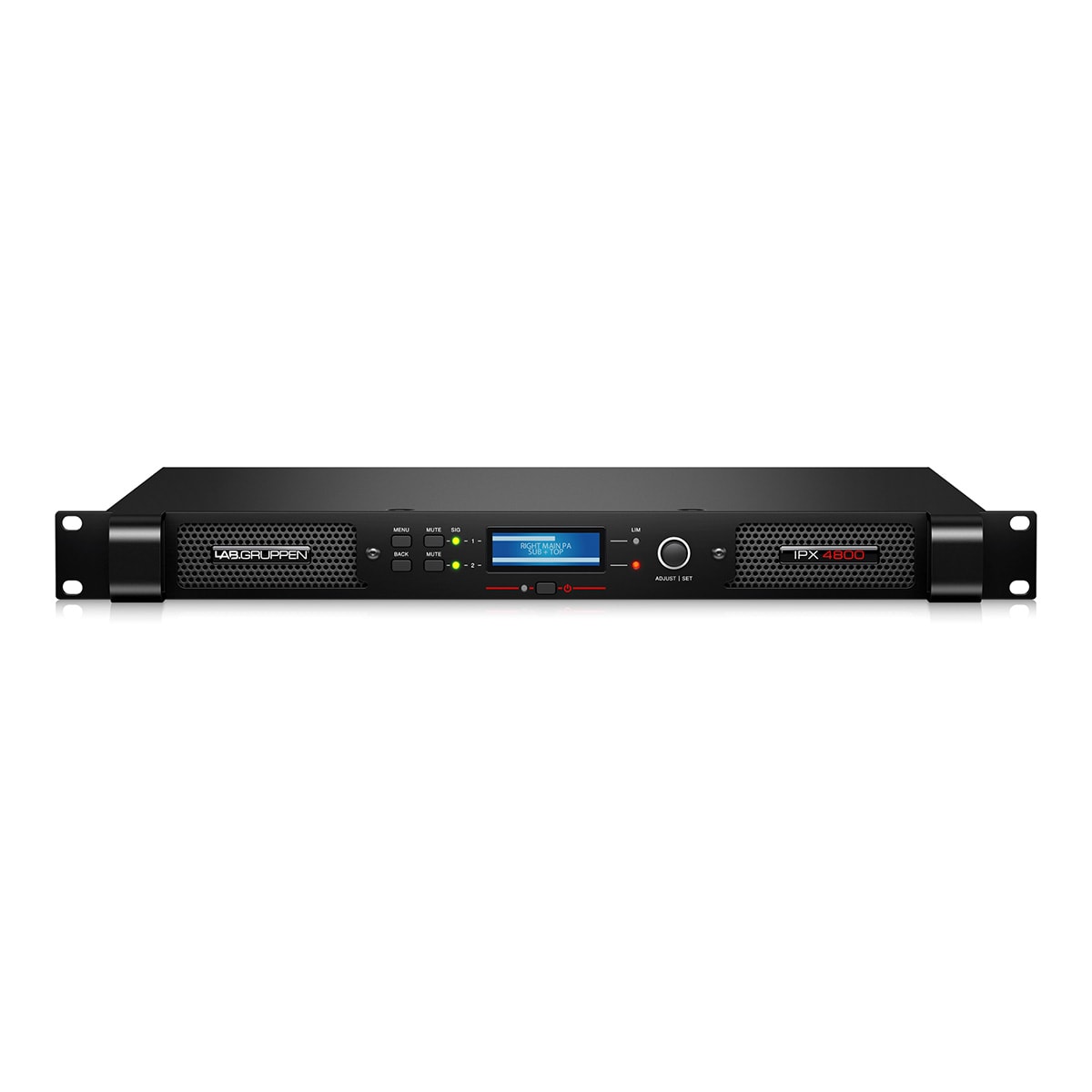

Backlit display with navigation buttons and encoder
Front panel setup
Horizontal output VU meter displayed on display
Fast network setup with automatic amplifier detection and identification
