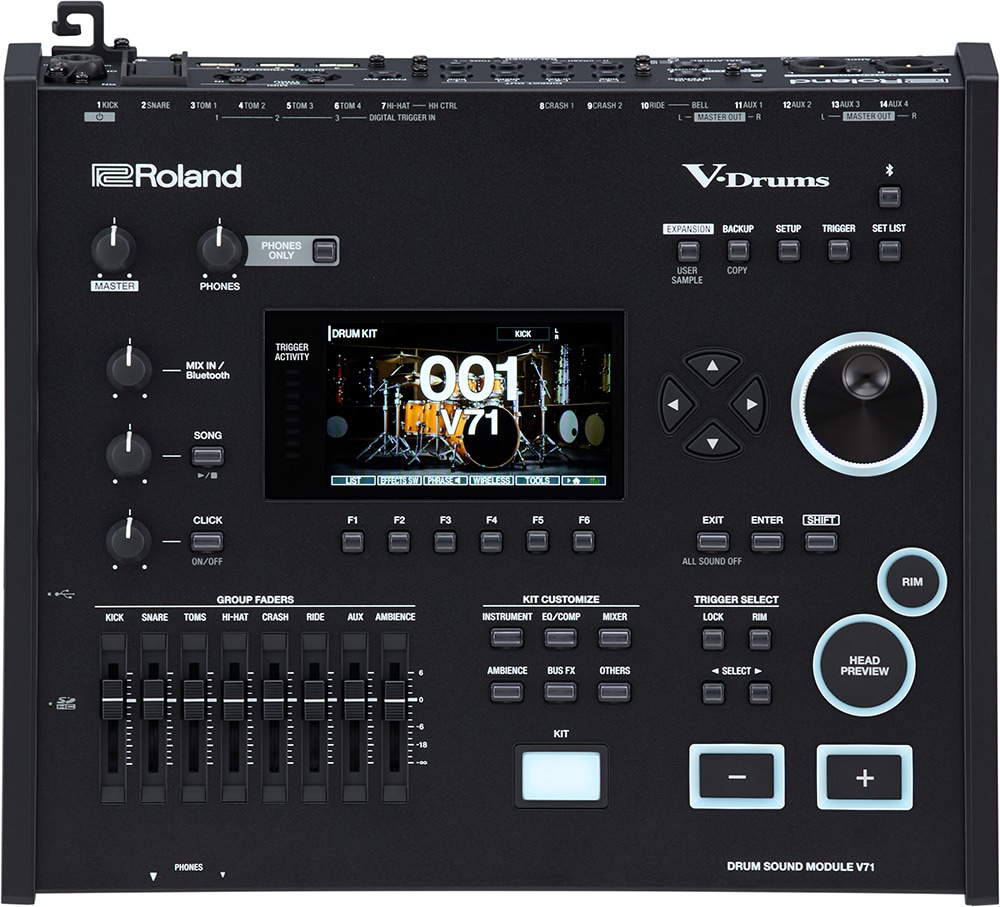

ROLAND / V71

The V71 is the flagship sound module of the newly redefined V-Drums series. Download upcoming releases from Roland Cloud, including classic classics and instruments and kits curated by leading engineers, to the unit and create your own custom kits. The V71 offers highly flexible editing capabilities, tour-focused durability, and a variety of features to support drummers.

■ Main Specifications
● Number of Drum Kits: 200 (Presets: Over 70)
● Number of Tones: Over 1000
● Effects: Layer Transient: Per Layer, Layer Equalizer: Per Layer, Pad Equalizer: Per Pad (Separate for Head and Rim),
Pad Compressor: Per Pad (Common to Head and Rim), Overhead Mic Simulator, Room/Reverb/Kit Resonance,
Bus Effects: 4 Systems (2 per System Can Be Used Simultaneously/With Side Chain Function)/94 Types, Bus Reverb, Master Compressor,
Master Equalizer
● User Samples: Number of User Samples: Up to 500 (Including Factory-Preset User Samples), Total Sound Length: 24 Minutes in Mono, 12 Minutes in Stereo,
Importable File Format: WAV (44.1kHz, 16/24 16-bit)
●Song Player (SD Card) = Audio File: WAV (44.1kHz, 16/24-bit), MP3
●Recorder = Recording Method: Real-time, Maximum Recording Notes: Approximately 40,000, Export File Format: WAV (44.1kHz, 16-bit), SMF

or Recording Method: Real-time, Maximum Recording Time: 60 minutes (Temporary Recording: 1 minute) (*1), File Format: WAV (44.1kHz, 16-bit)
●Display = 4.3-inch graphic color LCD, TRIGGER ACTIVITY indicator (LED)
●Faders = 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)
●External Memory = SD Card (SDHC compatible)

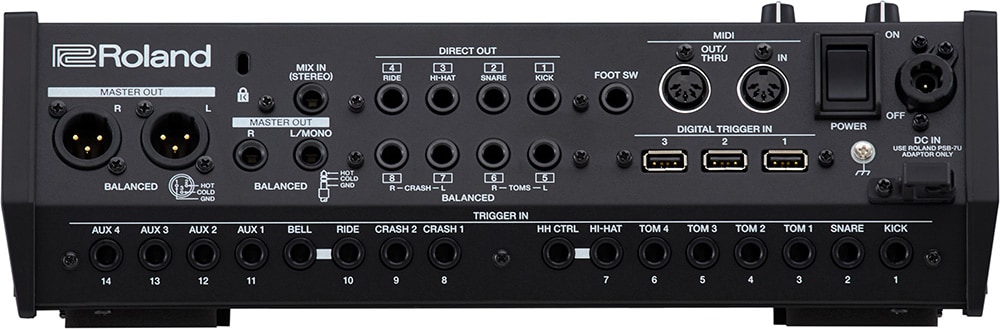

●Connection Terminals = TRIGGER IN Terminals x 14: TRS 1/4"" phone type (exclusive use with digital pads), DIGITAL TRIGGER IN jacks x 3: USB A type,
MASTER OUT (BALANCED) jacks (L/MONO, R): 1/4"" TRS phone type (balanced), MASTER OUT (BALANCED) jacks (L, R): XLR type (balanced),

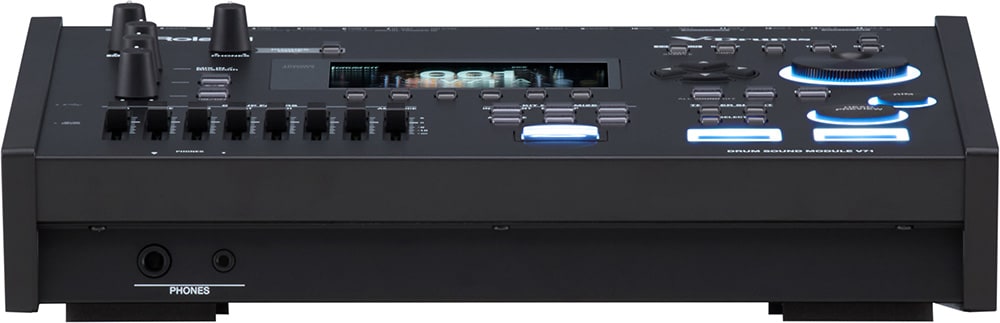

DIRECT OUT (BALANCED) jacks x 8: 1/4"" TRS phone type (balanced), PHONES jacks x 2: Stereo 1/4"" phone type, Stereo mini phone type,

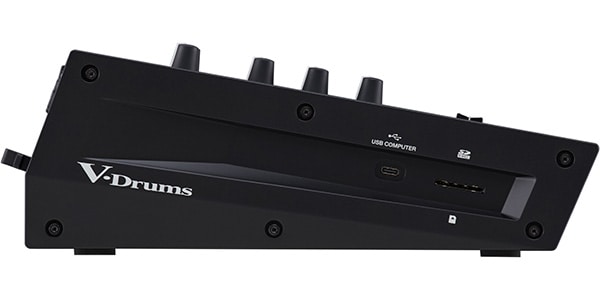

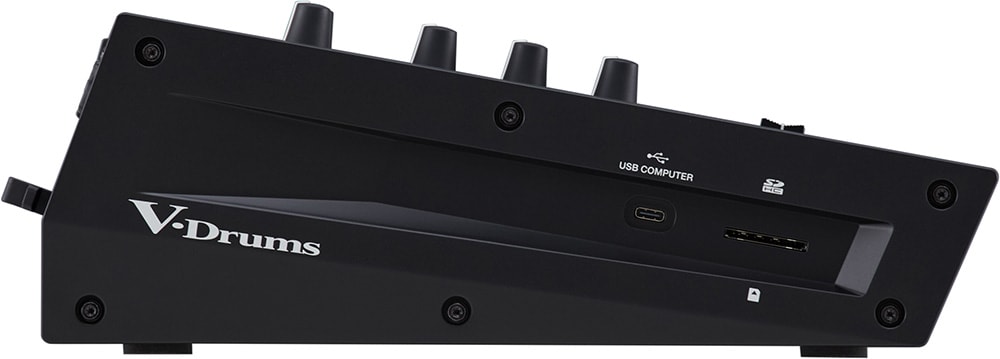

MIX IN (STEREO) jack x 1: Stereo 1/4"" phone type, MIDI (IN, OUT/THRU) jacks, USB COMPUTER port: USB Type-C(R)
(Class-compliant audio and MIDI communication / audio and MIDI communication via Roland driver), FOOT SW jack: 1/4"" TRS phone type, DC IN jack
● Number of USB audio recording/playback channels = ■ Bender Mode / Sampling Frequency (Original): 44.1 kHz

Sampling Frequency (with Sampling Rate Converter): 96 kHz, 48 kHz

■ Generic Mode / Sampling Frequency (Original): 44.1 kHz

● Power Supply: DC 12V (AC Adapter)
● Current Consumption: 2,400 mA
● Power Consumption in Off Mode (Automatically Shuts Off): 0.2 W
● Dimensions: 330 (W) x 308 (D) x 110 (H) mm
● Weight: 4.2 kg
● Accessories: Quick Start (including warranty), Roland Cloud Connect Setup Guide, Roland Cloud Activation Card, AC Adapter
● Optional Accessories: Pads: PD Series, PDX Series, BT-1 / Cymbals: CY Series / Kicks: KD Series, KT Series
/ Hi-hat: VH series / Hi-hat control pedal: FD series / Acoustic drum trigger: RT series
/ Footswitch: BOSS FS-5U, FS-6 / Personal drum monitor: PM series
(*1) An SD card is required for recording. If you do not have an SD card, you can make temporary recordings of approximately one minute, but they cannot be saved to the unit.
