RCF / EVOX J8

The RCF/EVOX J8 is an active 2-way array speaker that is ideal for vocal range reproduction and delivers clear sound over a wide range.

■Active 2-way array speaker
■1400W Peak, 700W RMS
■12", 8 x 2"

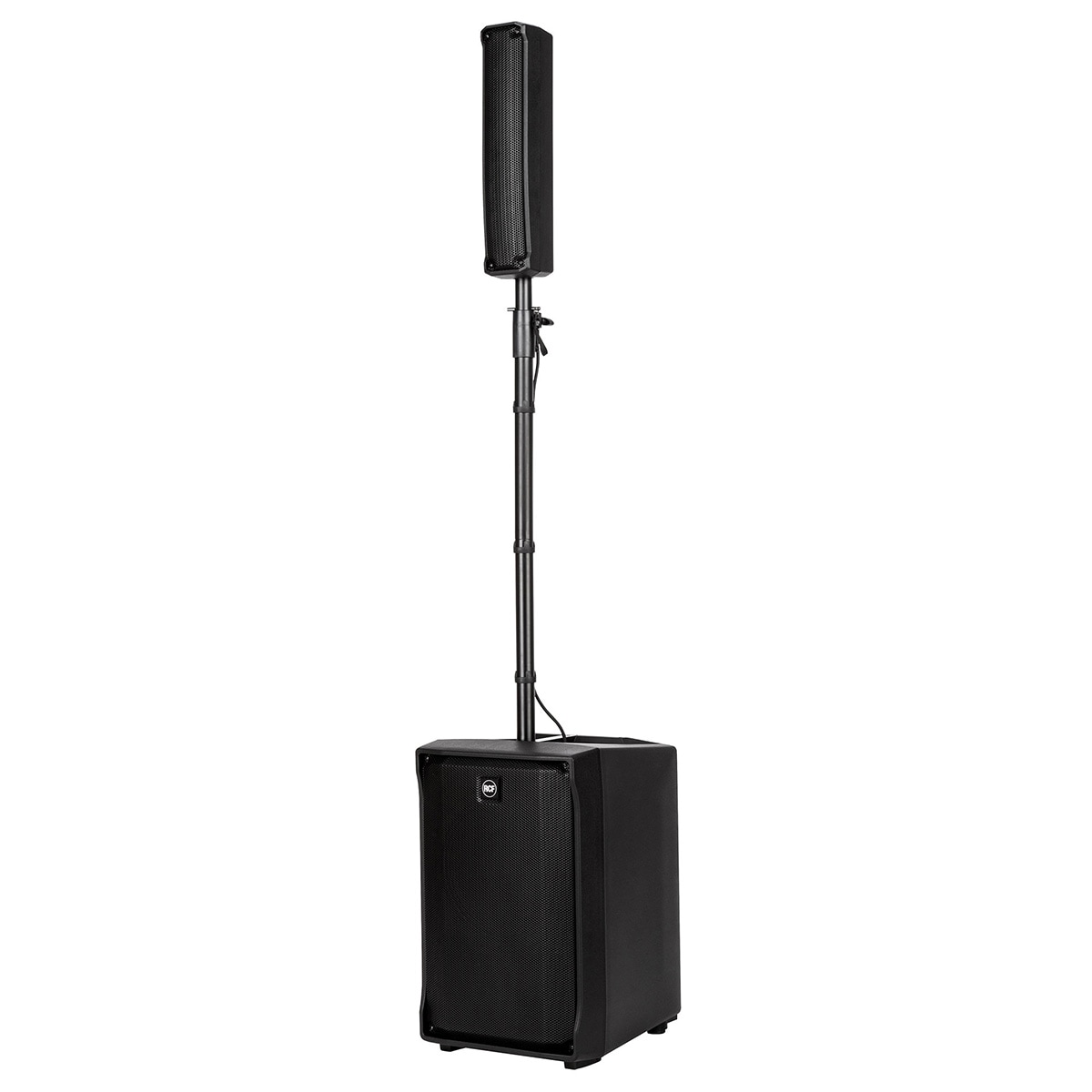

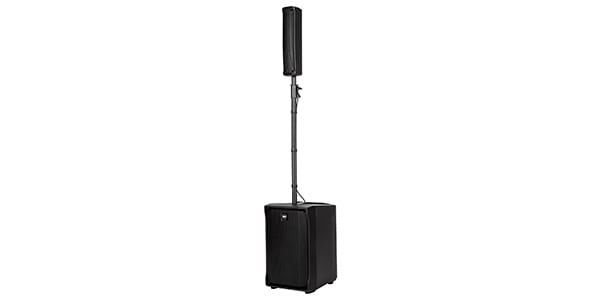

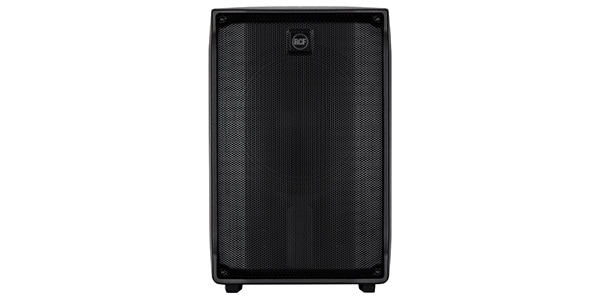

EVOX J8 is an active array speaker that combines eight 2" full-range satellite modules with a bass-reflex low-frequency enclosure equipped with a 12" single woofer. It has a built-in class D amplifier that can output a powerful total of 1400W Peak. While inheriting the characteristics of the original EVOX series, the EVOX J series has achieved higher cost performance by changing the enclosure to a polypropylene composite material. Like the original EVOX series, it is ideal for reproducing the vocal range and delivers clear sound over a wide range.

Frequency response40 Hz - 20000 Hz
Maximum output sound pressure @ 1m128 dB
Horizontal dispersion angle120°
Vertical dispersion angle30°
LF12", 2.5" v.c

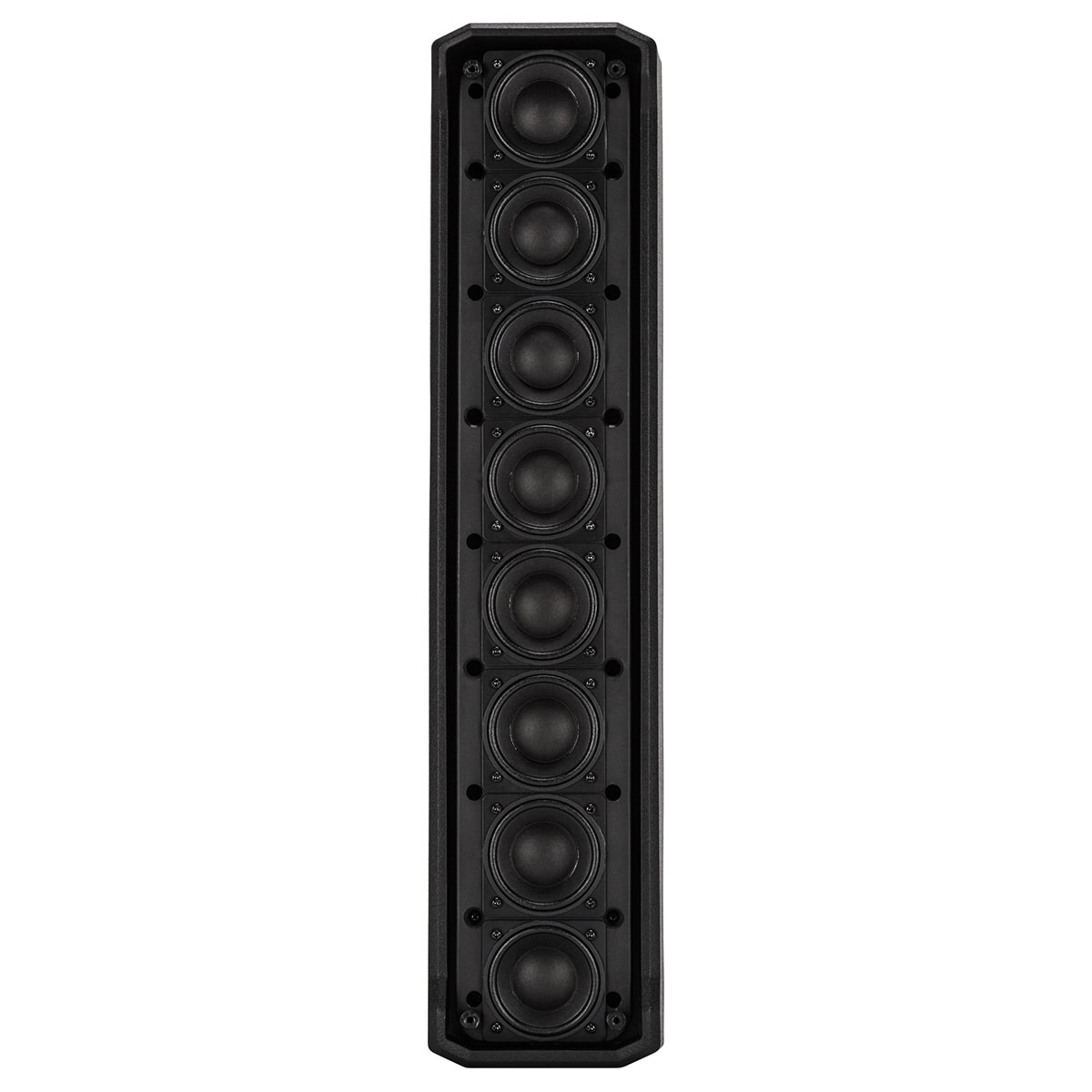

HF8 × 2.0", 1.0" v.c
Input signalBalanced/unbalanced
Input connectorsXLR, phono
Output connectorsXLR
Input sensitivity-2 dBu/+4 dBu
Crossover
Frequency220 Hz
ProtectionThermal, RMS
LimiterSoft limiter

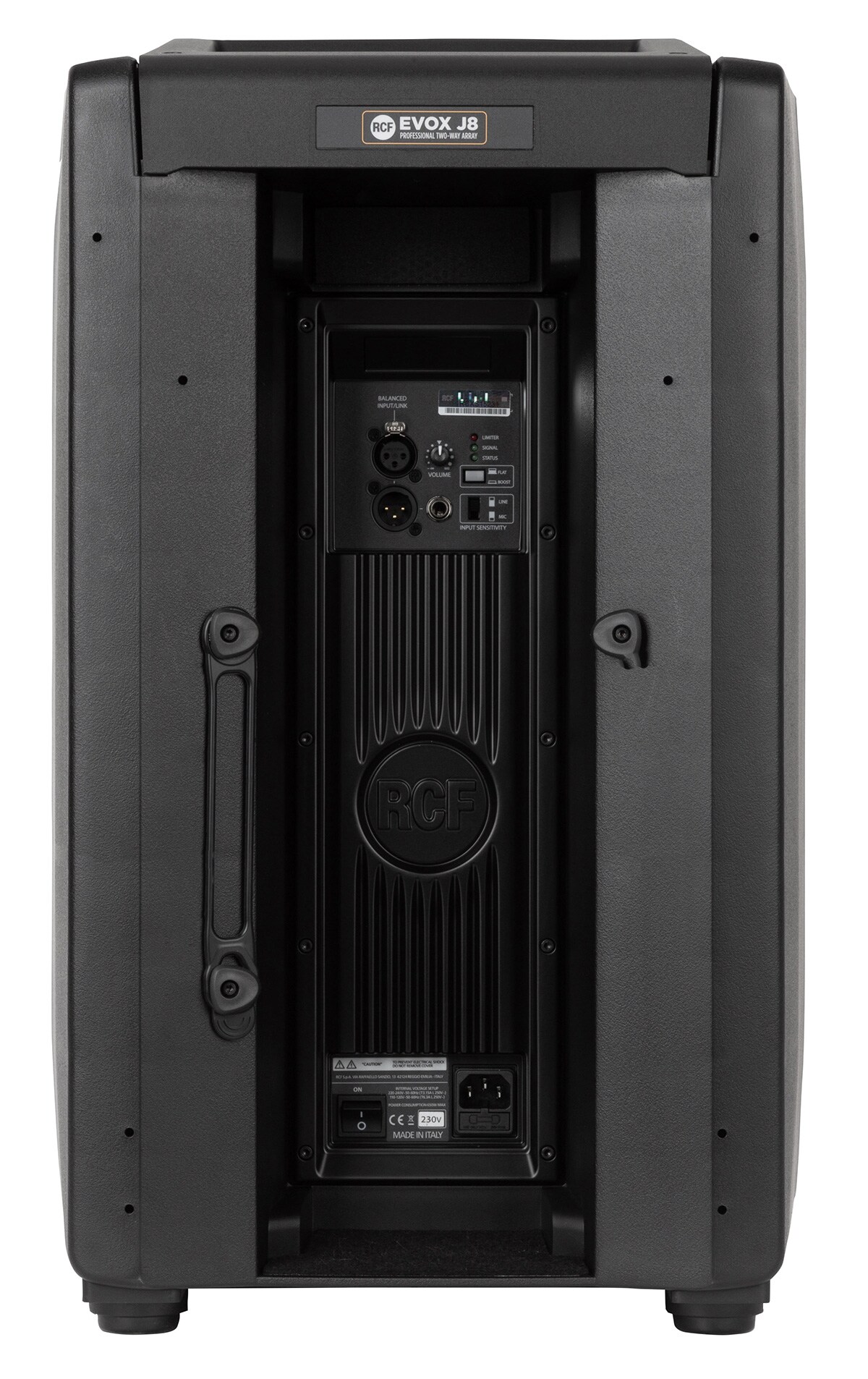

ControlsVolume, Boost, Mic/Line
Total output power1400W Peak, 700W RMS
LF output power1000W Peak, 500W RMS
HF output power400W Peak, 200W RMS
Air coolingNatural air cooling
Cabinet materialPolypropylene composite

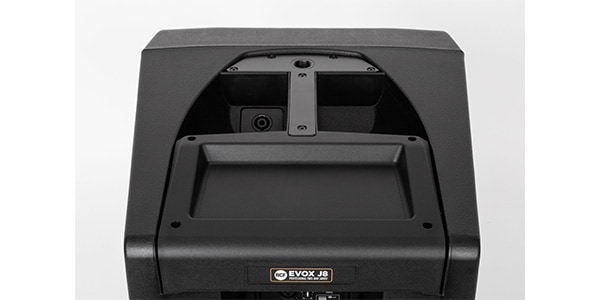

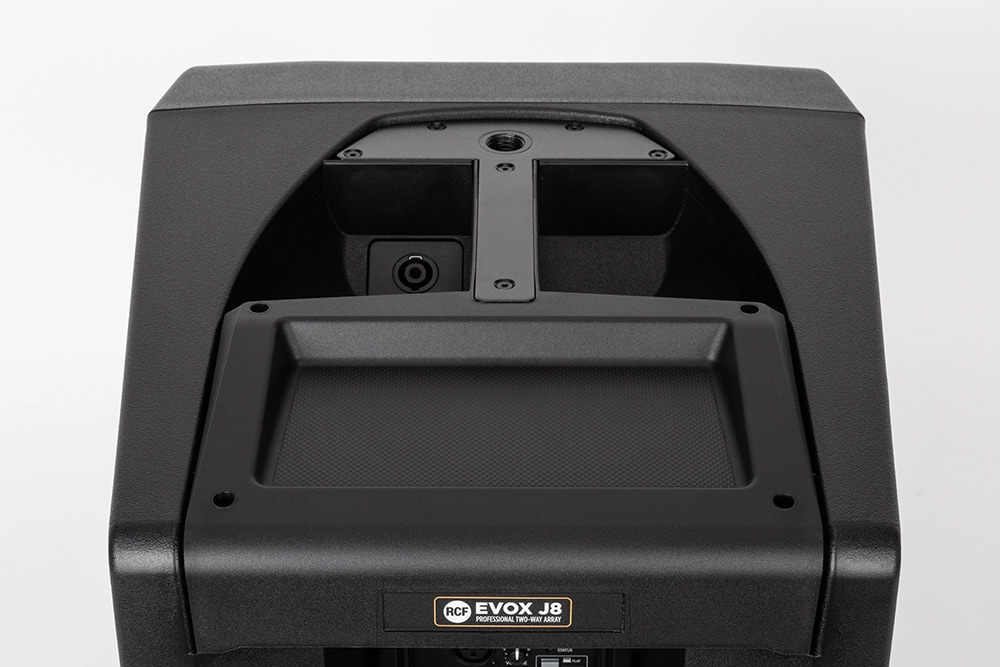

HandleSubwoofer top × 1
GrillSteel
ColorBlack, White

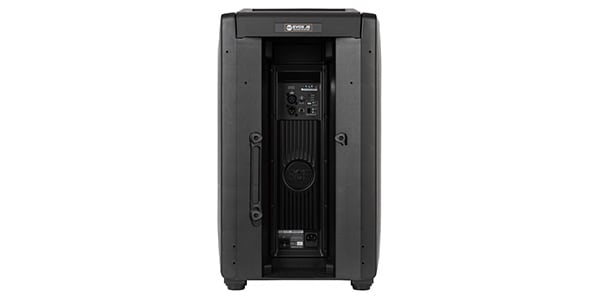

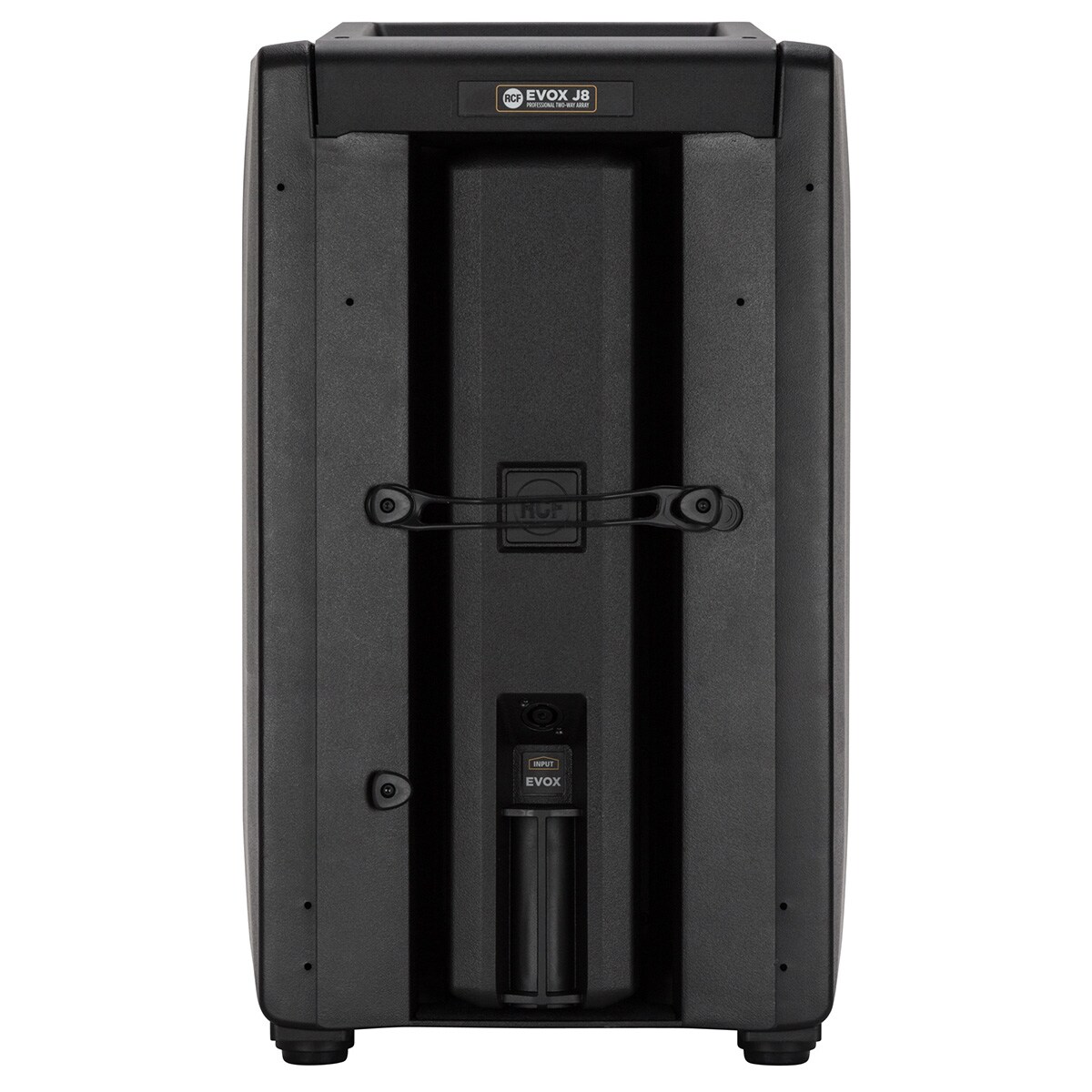

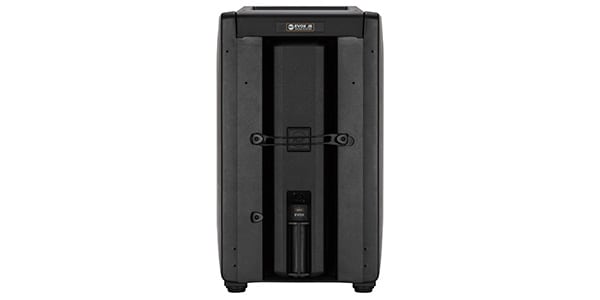

Subwoofer dimensions (H × W × D)623 × 400 x 460 mm

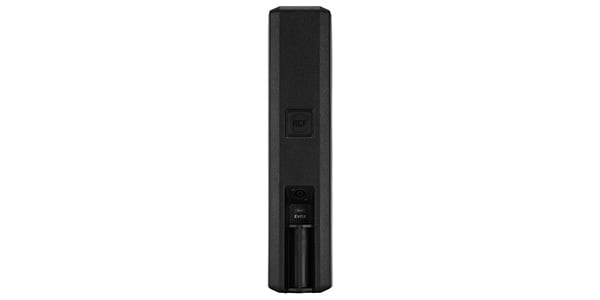

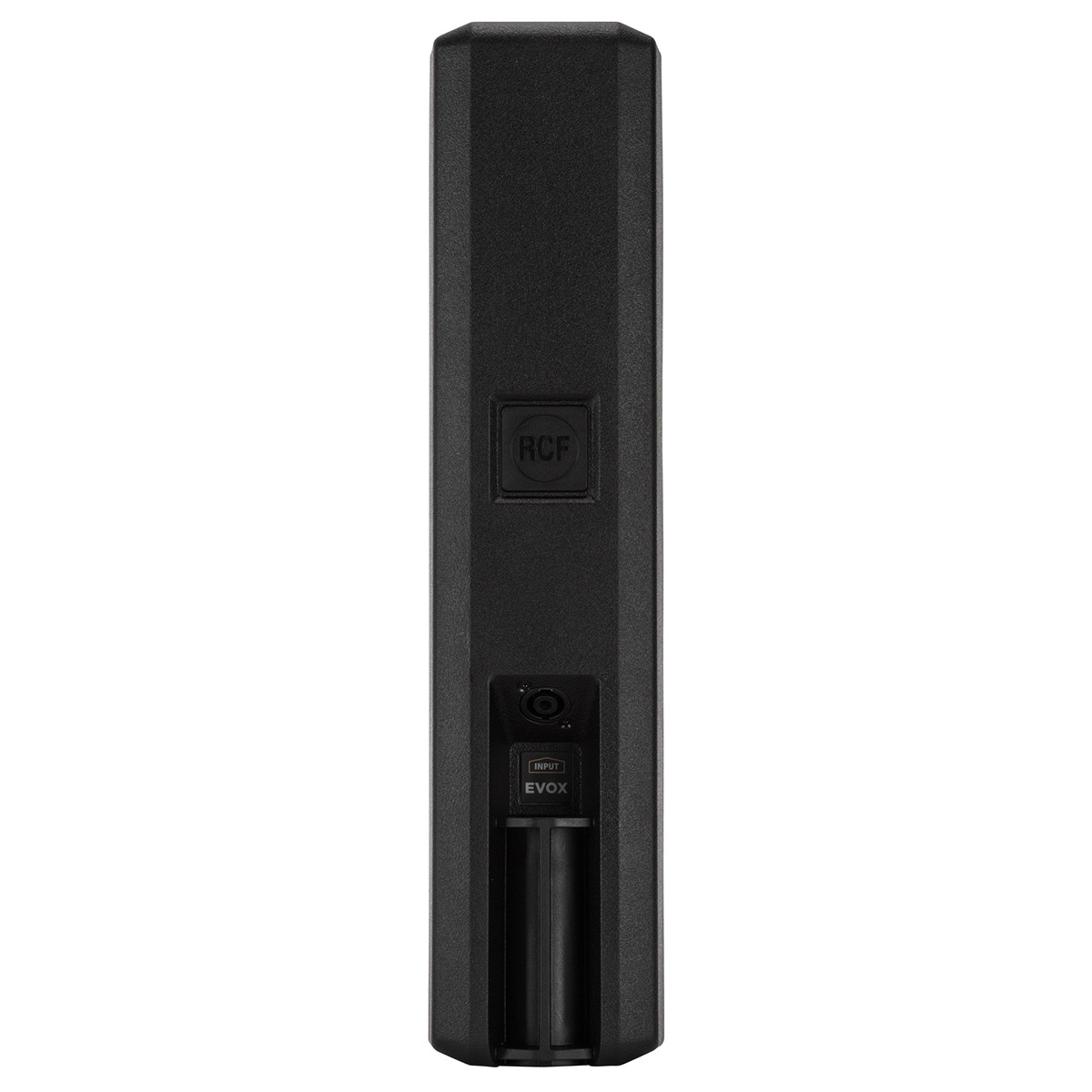

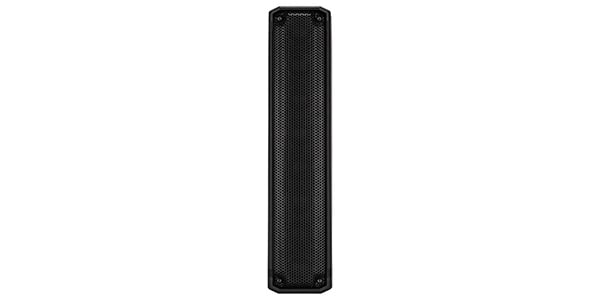

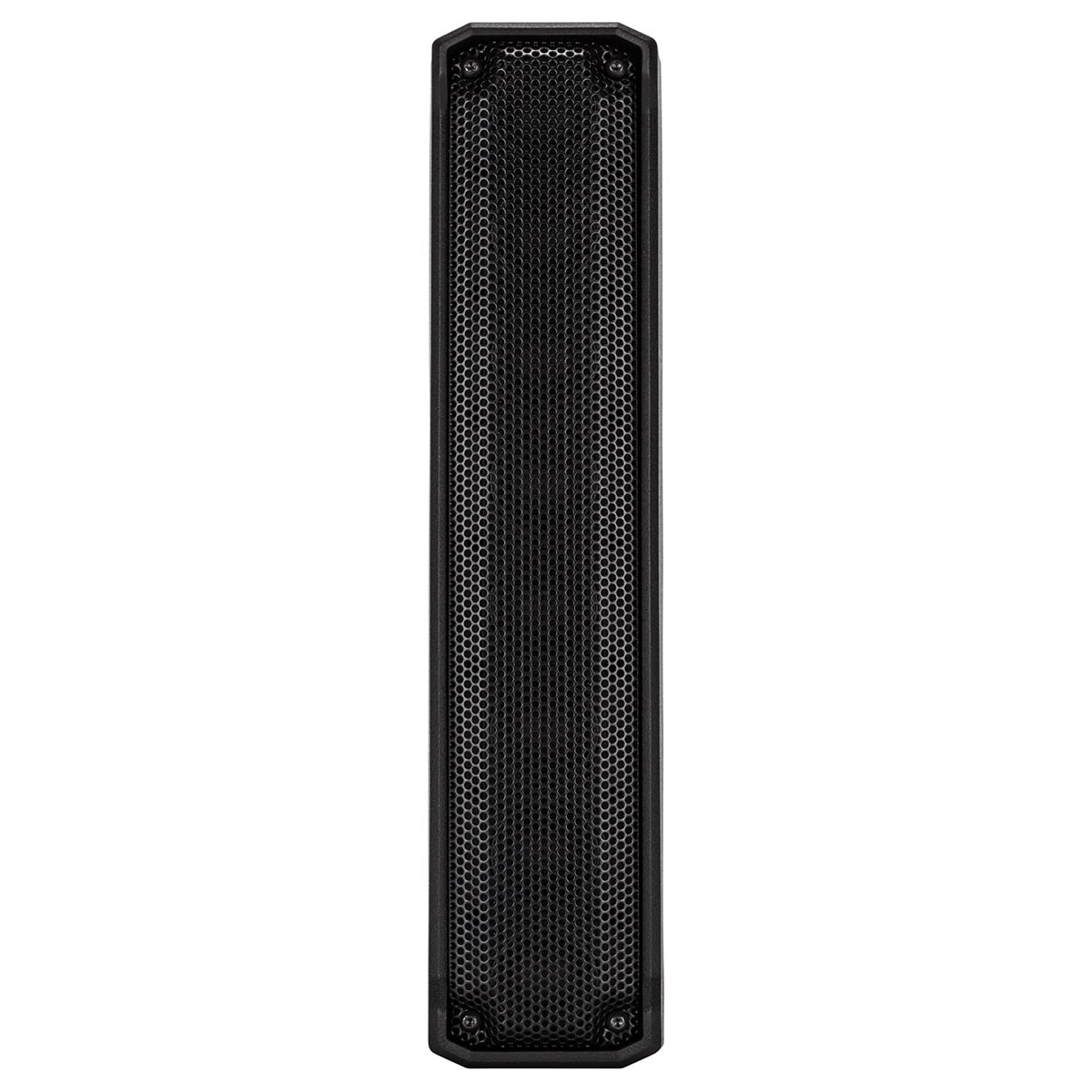

Satellite dimensions (H x W x D) 501 x 113 x 120 mm
Minimum dimensions when stacked (H x W x D) 1974 x 400 x 460 mm
Maximum dimensions when stacked (H x W x D) 2284 x 400 x 460 mm
Weight 20.2 kg
Packaged dimensions
(H x W x D) 676 x 451 x 581 mm
Packaged weight 29.9 kg
