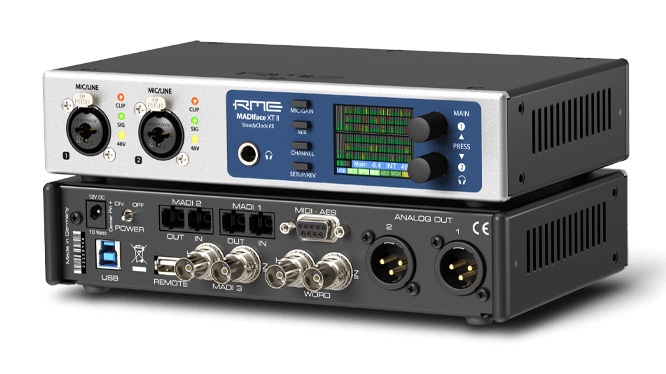

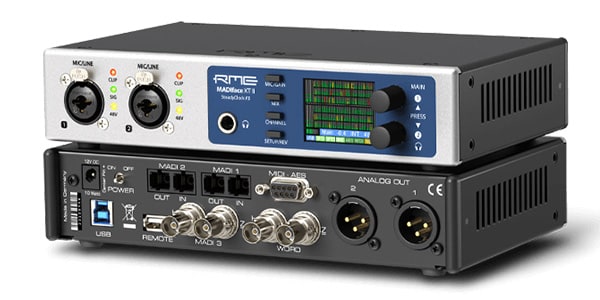

RME / MADIface XT II オーディオインターフェイス

In addition to stereo analog input/output, it is equipped with a wide variety of MADI terminals. When combined with MADI-compatible equipment, it functions as the core of a recording system that can handle a large number of audio channels with high quality. Comes with a reliable Sound House 3-year warranty!

■Audio interface

MADIface XT, the predecessor of MADIface XT II, ??was the world's first USB 3.0 audio interface released in 2013, and was praised as the world's smallest portable audio interface with three MADI inputs and outputs in a compact housing and access to hundreds of audio channels.

The successor model, MADIface XT II, ??maintains the same compact housing and abundant channel count, but has updated digital and analog circuits, achieving performance that surpasses that of the previous model. Significant performance improvements have been made in both the analog and digital areas, and the SN ratio and THD values ??during AD/DA conversion have been improved, achieving even higher accuracy and stable performance.

It is equipped with a variety of functions, including 3 MADI systems, 196 inputs / 198 outputs, 192 kHz support, class-compliant USB 3.0 capable of transmitting 394 channels, SteadyClock FS jitter suppression function, TotalMix FX DSP digital mixer for flexible mix and patchbay, Room EQ capable of 9-band equalization on output channels, and direct connection function for USB controller ARC USB (sold separately).

MADIface XT II delivers reliable sound quality and comfortable and efficient operability in all situations, including studio recording, immersive audio production, playback systems, live sound, broadcast station recording, monitoring, and mixing, and meets the demands of professionals with its high performance.

■USB3 class compliant audio
MADIface XT II operates in three different modes: driver-based USB 2 or USB 3, standalone mode, and class compliant mode (CC mode).

CC mode is a standard that is natively supported by operating systems such as Windows, Mac OS, and Linux distributions; no proprietary drivers are required; devices are recognized directly when the CC firmware is loaded.

By using the TotalMix FX for iPad app in CC mode, you can control MADIface XT II entirely from your iPad, adding professional-level analog input and output to your iPad.

MADIface XT II eliminates the PCI Express port installed on the previous MADIface XT and uses only a USB 3.0 port. The new MADIface XT II's Class Compliant mode has been significantly updated to allow it to theoretically transmit and receive all 394 channels without a driver. Additionally, it provides configurable routing options to give you the flexibility to take advantage of class-compliant mode.

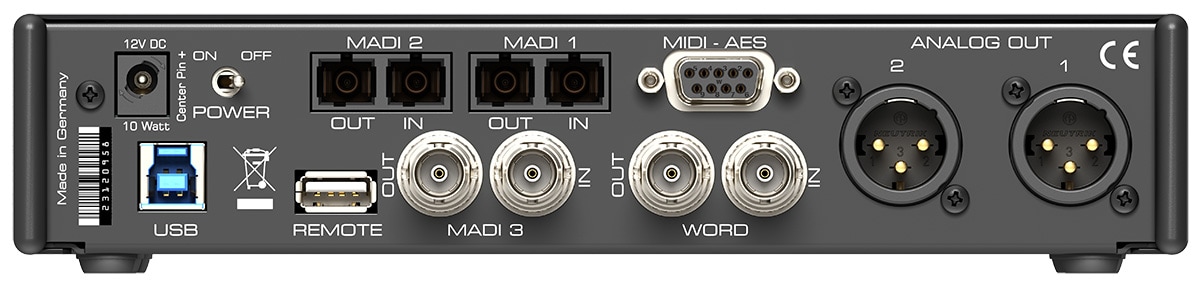

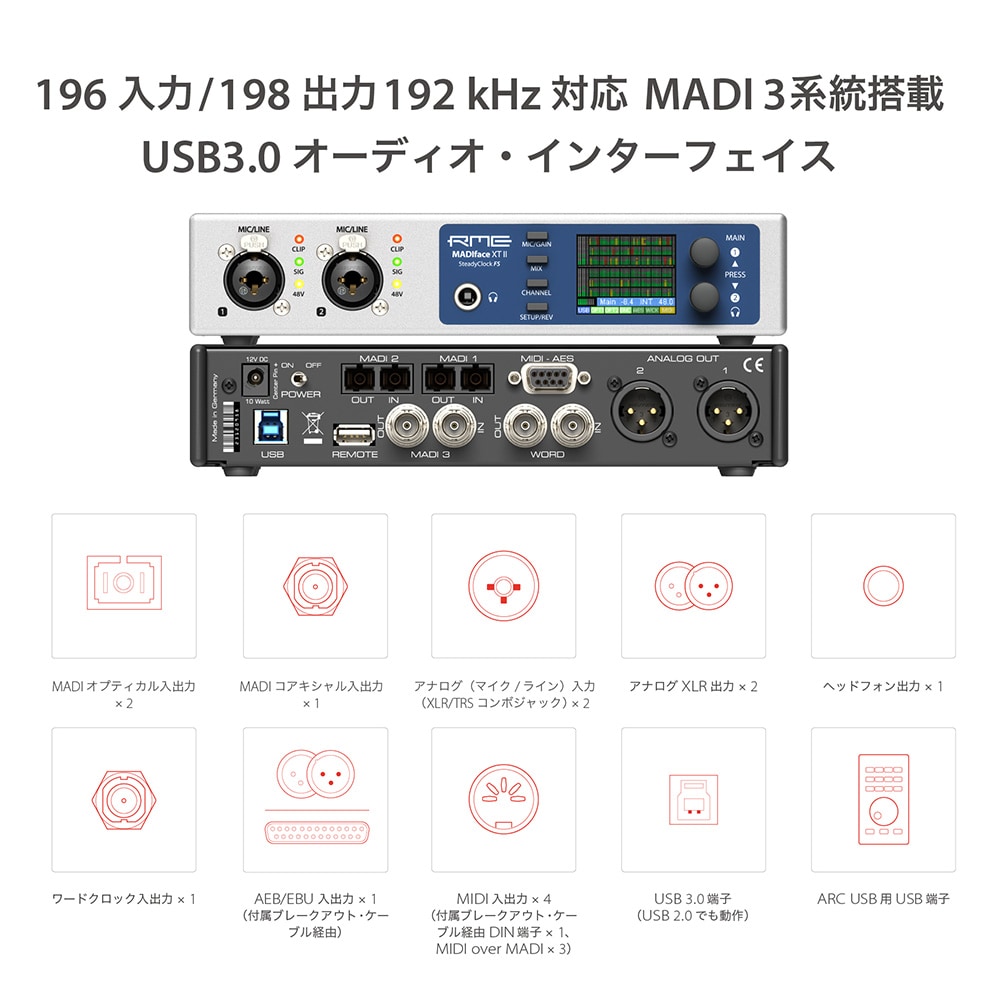

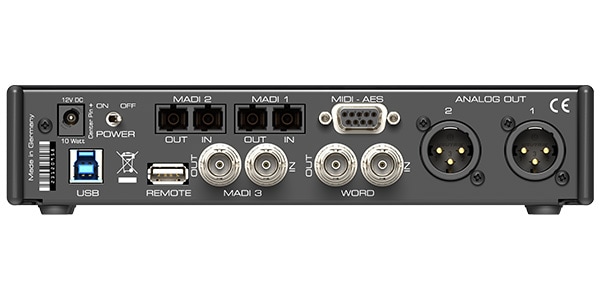

■Input/output
・MADI optical input/output × 2
・MADI coaxial input/output x 1

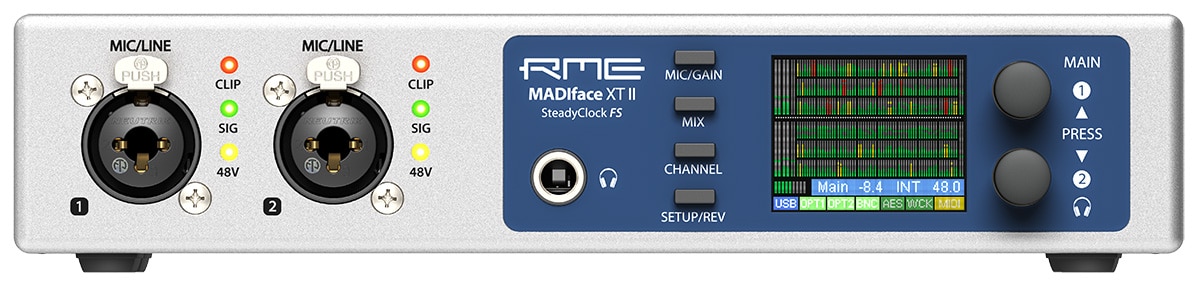

・Analog (mic/line) input (XLR/TRS combo jack) x 2
・Analog XLR output x 2
・Headphone output x 1
・Word clock input/output x 1
・AEB/EBU input/output x 1 (via included breakout cable)
・MIDI input/output x 4 (DIN terminal x 1 via included breakout cable, MIDI over MADI x 3)
・USB 3.0 terminal (also works with USB 2.0)
・USB terminal for ARC USB


■Main functions

・All settings can be changed in real time
・Buffer size/latency setting: selectable from 32 to 8192 samples
・196/198 channel recording/playback @48 kHz/24 bit
・100/102 channel recording/playback @96 kHz/24 bit
・52/54 channel recording/playback @192 kHz/24 bit
・Clock mode: slave, master
- Advanced master/slave clock automatic switching
・SteadyClock: Extremely stable digital clock that is not affected by jitter
・SyncAlign: Maintains accurate alignment in sample units and prevents swapping between channels
・SyncCheck: Monitors the synchronization status of input signals and displays the results.
・TotalMix: Latency-free submix and full ASIO direct monitoring
・TotalMix: 4096-channel mixer with 46-bit internal processing
・TotalMix FX: 3-band EQ, low cut, reverb, echo, compressor, expander, auto level
・TotalMix FX Room EQ: 9-band PEQ with delay and volume calibration functions
・MIDI input/output (16 channels, high speed MIDI) x 1
・MIDI over MADI input/output × 3
・ARC USB (TotalMix remote controller sold separately) can be directly connected
・Complete standalone operation
・High power low impedance headphone output

■Included items
・USB 3.0 cable (USB C-B)
・USB 3.0 cable (USB A-B)
・Power adapter/power cable
・AES/MIDI breakout cable (BOAESMIDI)
・Rubber feet
・Note: Regarding the locking mechanism of the AC adapter
・MADIface XT II Setup Guide
・MADIface XT II Japanese User Guide
・DIGICheck Japanese User Guide
・Warranty
