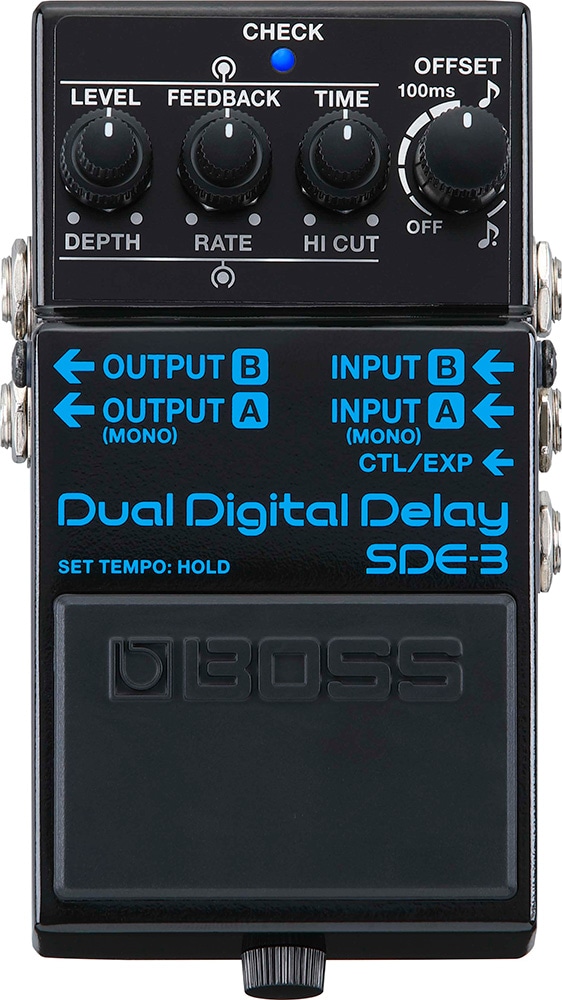

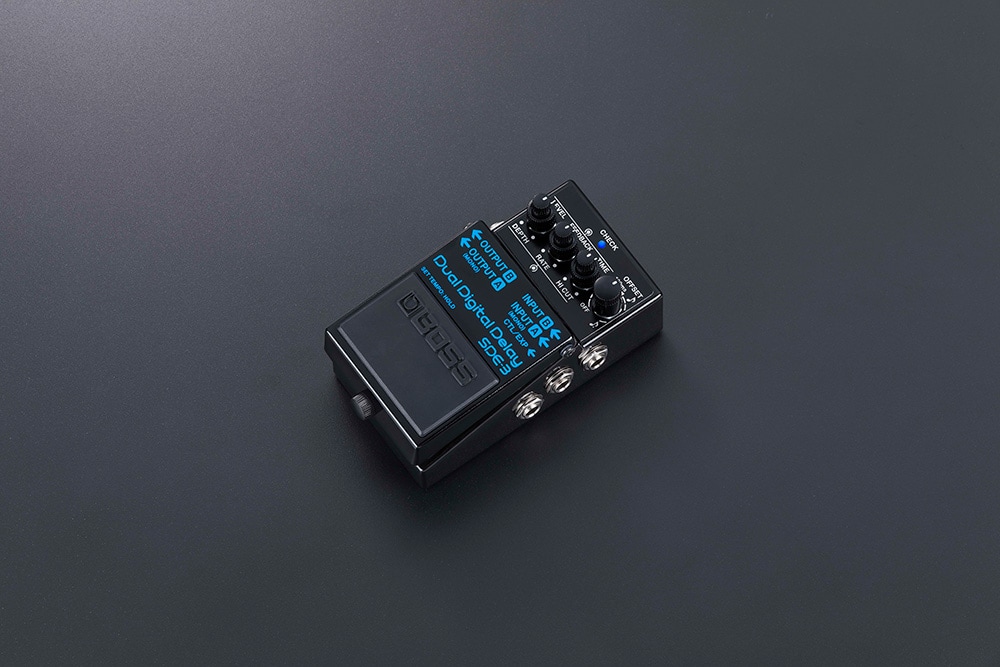

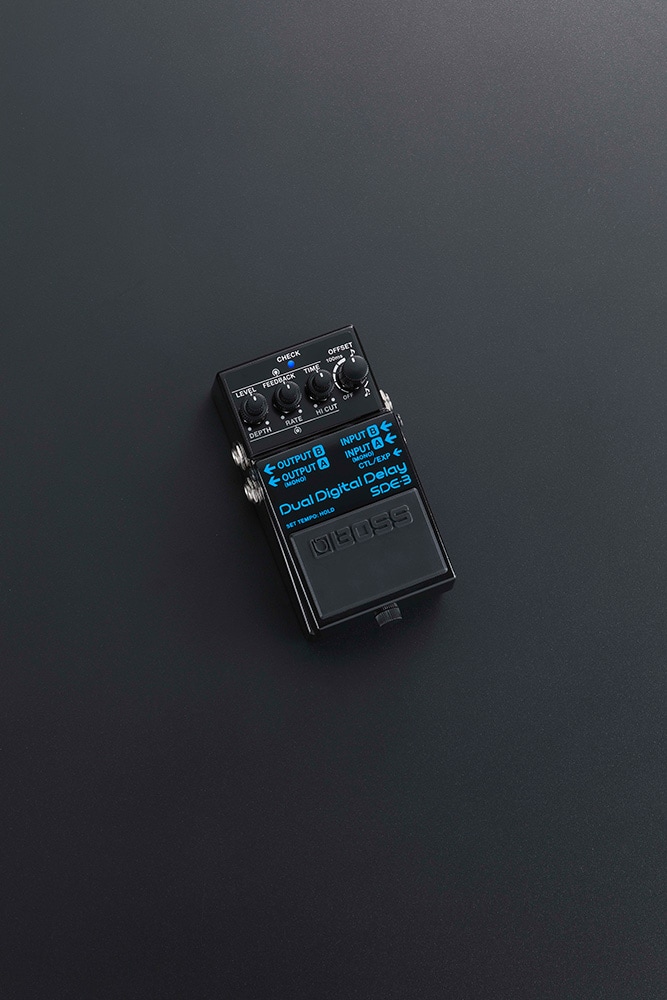

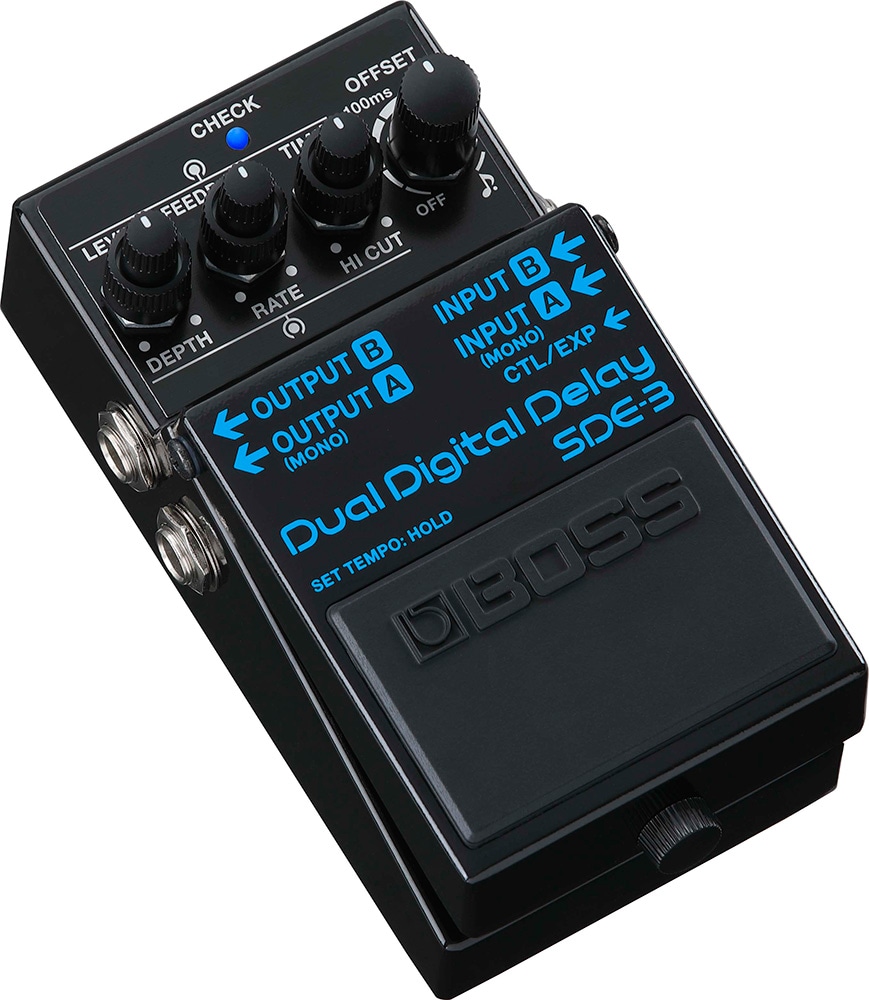

BOSS / SDE-3

The Roland SDE-3000 is a masterpiece of digital delay that combines clarity with musical warmth.Since its introduction in 1983, it has captivated many people. The SDE-3 condenses that ""vintage digital delay sound"" into a compact pedal. In addition, it is equipped with a new OFFSET function that brings three-dimensional sound images and rhythms that cannot be obtained with a single delay pedal, allowing you to create sounds that go beyond the framework of a compact pedal.

■Effector for guitar
■Digital delay
■Features
・A compact pedal that reproduces the iconic delay sound of Roland's famous SDE-3000
・Beautiful vintage digital delay sound that is clear yet warm
・RATE and DEPTH knobs that add a pleasant modulation effect to the delay sound
・HI CUT knob that cuts the high range of the delay sound
・OFFSET knob to create another delay sound by shifting the timing
・Supports delay times of up to 800ms in stereo and 1,600ms in mono
・Equipped with panning delay mode
- By switching the output mode, it also supports separate wet/dry output and direct mute.
・Tap ・Tempo function

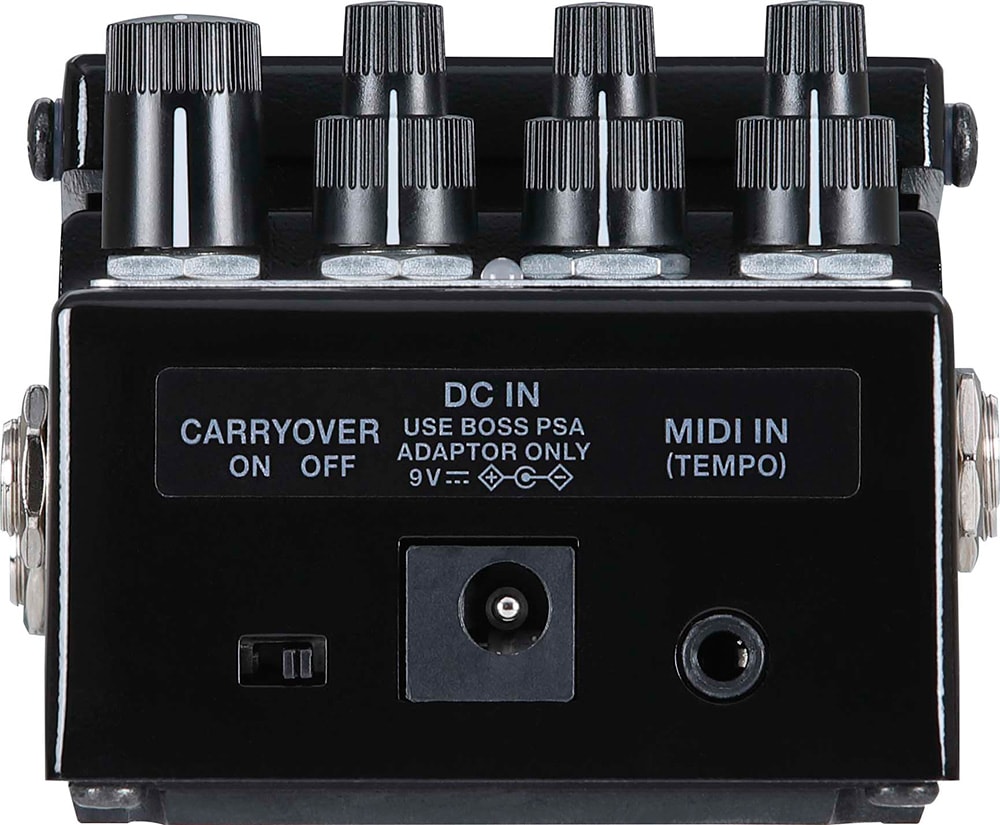

・Carryover function that maintains the delay sound when the effect is turned off
・Stereo compatible input/output terminals
・Tap by connecting a footswitch ・Tempo and HOLD functions can be used
・LEVEL, TIME and FEEDBACK parameters can be controlled by connecting an expression pedal
・MIDI IN terminal (stereo mini type) capable of receiving timing clocks

■Controls: TIME knob, FEEDBACK knob, LEVEL knob, DEPTH knob, RATE knob, HI CUT knob, OFFSET knob, pedal switch, CARRYOVER switch

■Specs
・Sample rate: 48kHz
- AD conversion: 24 bit + AF method * AF method (Adaptive Focus method) is Roland/Boss' original method that dramatically improves the SN ratio of the AD converter.
・DA conversion: 32 bits
・Nominal input level INPUT A (MONO), INPUT B: -20dBu
・Maximum input level INPUT A (MONO), INPUT B: +7dBu
・Input impedance INPUT A (MONO), INPUT B: 1M Ω
・Nominal output level OUTPUT A (MONO), OUTPUT B: -20dBu
・Maximum output level OUTPUT A (MONO), OUTPUT B: +7dBu
・Output impedance OUTPUT A (MONO), OUTPUT B: 1k Ω
・Recommended load impedance OUTPUT A (MONO), OUTPUT B: 10k Ω or more
・Bypass: Buffered Bypass
・Indicator: CHECK indicator (combined for tempo and battery check)
・Connection terminals INPUT A (MONO), INPUT B, OUTPUT A (MONO), OUTPUT B terminals: Standard type, CTL/EXP terminal: TRS standard type, DC IN terminal, MIDI IN terminal: Stereo mini type
・Power source: Alkaline battery (9V type), AC adapter (sold separately)
・Current consumption: 75mA
・Battery life when used continuously Alkaline battery: Approximately 4.5 hours *Varies depending on usage conditions.
・External dimensions: 73 (width) x 129 (depth) x 59 (height) mm
・Weight (including batteries): 450g
・Accessories: Warranty card, flyer (safety precautions, precautions for use, contact information), alkaline battery (9V type); already connected to the main unit
・Optional AC adapter: PSA-100
Foot switch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI Connecting Cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
