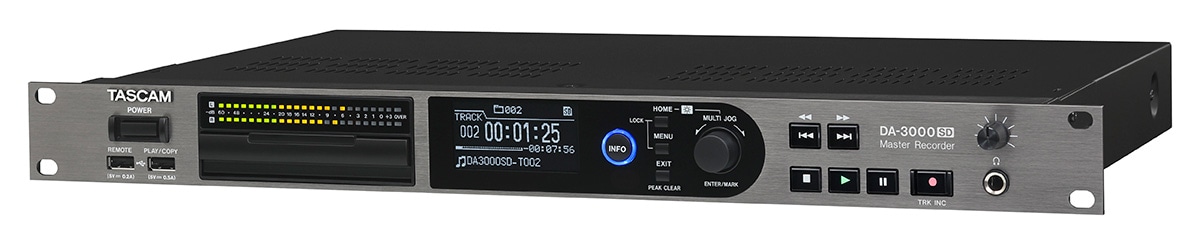

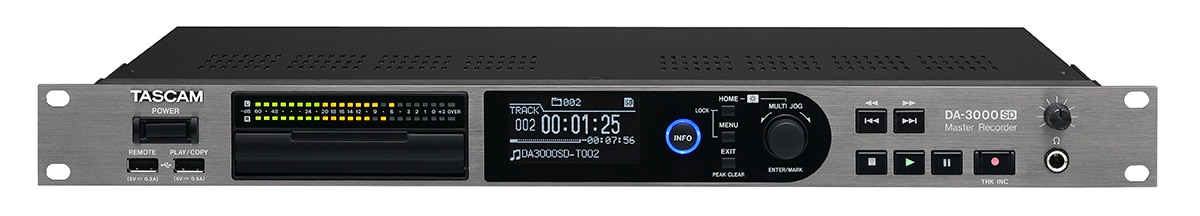

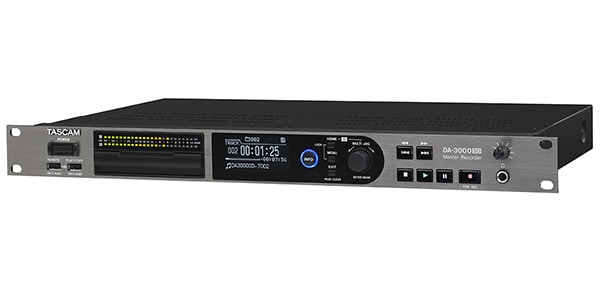

TASCAM / DA-3000SD Master Recorder/ADDA Converter

Professional master recorder / AD/DA converter that combines a master recorder and DA converter with high sound quality supporting high sampling recording.

■Master Recorder/ADDA Converter
≪Main Features.
・Maximum 192kHz/24bit PCM recording, maximum 5.6MHz DSD recording
ADDA DIRECT mode, can also be used as a high-quality stand-alone AD/DA converter

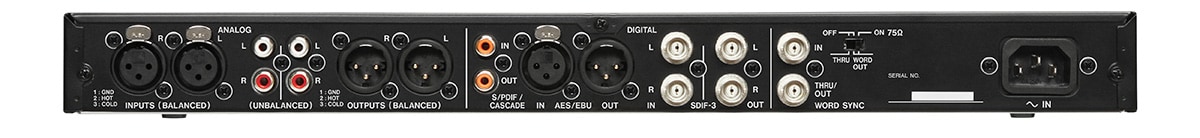

Extensive input/output terminals: analog XLR, RCA; digital S/PDIF, AED/EBU, SDIF-3, DSD-raw
High-precision (<1ppm) TCXO

Supported Media
SD: SDHC card (4GB to 32GB), SDXC card (64GB to 512GB), media ejection method: push-push type
USB: USB memory *Only playback and file copying to/from SD card supported
Recording and playback formats
PCM: 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
16bit / 24bit
　Recording: BWF (extension:.wav)
　Playback: BWF (extension:.wav), WAV (extension:.wav)
DSD: 2.8224 / 5.6448 MHz
　DSDIFF (extension:.dff), DSF (extension:.dsf)
Number of channels: 2 channels (stereo / monaural x2)
Analog Inputs
Unbalanced
　Connector: RCA pin jacks
　Reference input level: ?10dBV
　Maximum input level: +6dBV
　Minimum input level: +22dBV
　Input impedance: 22kΩ or more
Balanced
　Connector: XLR-3-31 equivalent (1:GND, 2:HOT, 3:COLD)
　Reference input level: +4dBu, +6dBu (only when maximum input level is +15dBu)
　Maximum input level: +15dBu, +18dBu, +20dBu, +22dBu, +24dBu
　Minimum input level: -8dBu, -6dBu (only when maximum input level is +15dBu)
　Input impedance: 10kΩ or more
■Analog outputs
Unbalanced
　Connector: RCA pin jack
　Reference output level: -10dBV
　Maximum output level: +6dBV

　Output impedance: 200 ohm or less
Balanced
　Connector: XLR-3-32 equivalent (1:GND, 2:HOT, 3:COLD)
　Reference output level: +4dBu, +6dBu (only when maximum input level is +15dBu)
　Maximum output level: +15dBu, +18dBu, +20dBu, +22dBu, +24dBu
　Output impedance: 100 ohm or less
■Digital Inputs
　S/PDIF, CASCADE: unbalanced
　Connector: RCA pin jack
　Format: IEC60958-3 (S/PDIF)
　With SRC OFF: 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
　With SRC ON: 32 to 216kHz
　Allowable frequency deviation: +/-100ppm (with SRC OFF)
AES/EBU balanced
　Connector: XLR-3-31 equivalent (1:GND, 2:HOT, 3:COLD)
　Format: AES3-2003 / IEC60958-4 (AES/EBU)
　With SRC OFF: 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
　With SRC ON: 32 to 216kHz
　Allowable frequency deviation: +/-100ppm (with SRC OFF)
SDIF-3 unbalanced
　Connector: BNC connector x2 (L/R)
　Format: SONY SDIF-3 / DSD-raw
　Clock sync frequency: 44.1kHz
Digital outputs
S/PDIF, CASCADE: unbalanced
　Connector: RCA pin jack
　Format: IEC60958-3 (S/PDIF)
AES/EBU balanced
　Connector: XLR-3-32 equivalent (1:GND, 2:HOT, 3:COLD)
　Format: AES3-2003 / IEC60958-4 (AES/EBU)
SDIF-3 unbalanced
　Connector: BNC connector x2 (L/R)
　Format: SONY SDIF-3 / DSD-raw
　Clock Sync Frequency: 44.1kHz
WORD SYNC IN
　Connector: BNC connector
　Input Level: 5V TTL equivalent
　Input Impedance: 75Ω +/-10
　Input frequency: 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
　Allowable frequency deviation: +/-100ppm
WORD SYNC THRU/OUT
　Connector: BNC connector
　Output Level: 5V TTL equivalent
　Output Impedance: 75Ω +/-10
　Output Frequency: 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
　Frequency stability: +/-1ppm or less (Ta=25?C)
USB
PLAY/COPY
　Connector: USB A type
　Protocol: USB 2.0 HIGH SPEED (480Mbps)
　Power supply rating: DC 5.0V, 0.5A
REMOTE
　Connector: USB A type
　Protocol: USB 1.1 FULL SPEED (12Mbps)
　Power supply rating: DC 5.0V, 0.2A
■Control Input/Output
　Infrared receiver: RC-10 compatible (wireless remote control)
Headphone output
　Connector 6.3mm (1/4') stereo standard jack
　Maximum output 45mW+45mW (at 32Ω load, distortion rate: 0.1%)
Power supplyAC100V, 50/60Hz
Power consumption 24W
Dimensions : 483(W) × 45(H) × 305(D) mm
Weight : 4.2 kg
Included in the box:
　DA-3000SD x 1
　Power cord (3P with protective grounding) x 1
　3P-2P conversion adapter x 1
　Wireless remote control (TASCAM RC-10) x 1
　Coin-type lithium battery for remote control (CR2025, inserted in remote control unit) x 1
　Rack mount screw kit x 1
　Operation manual (with warranty) x 1”
