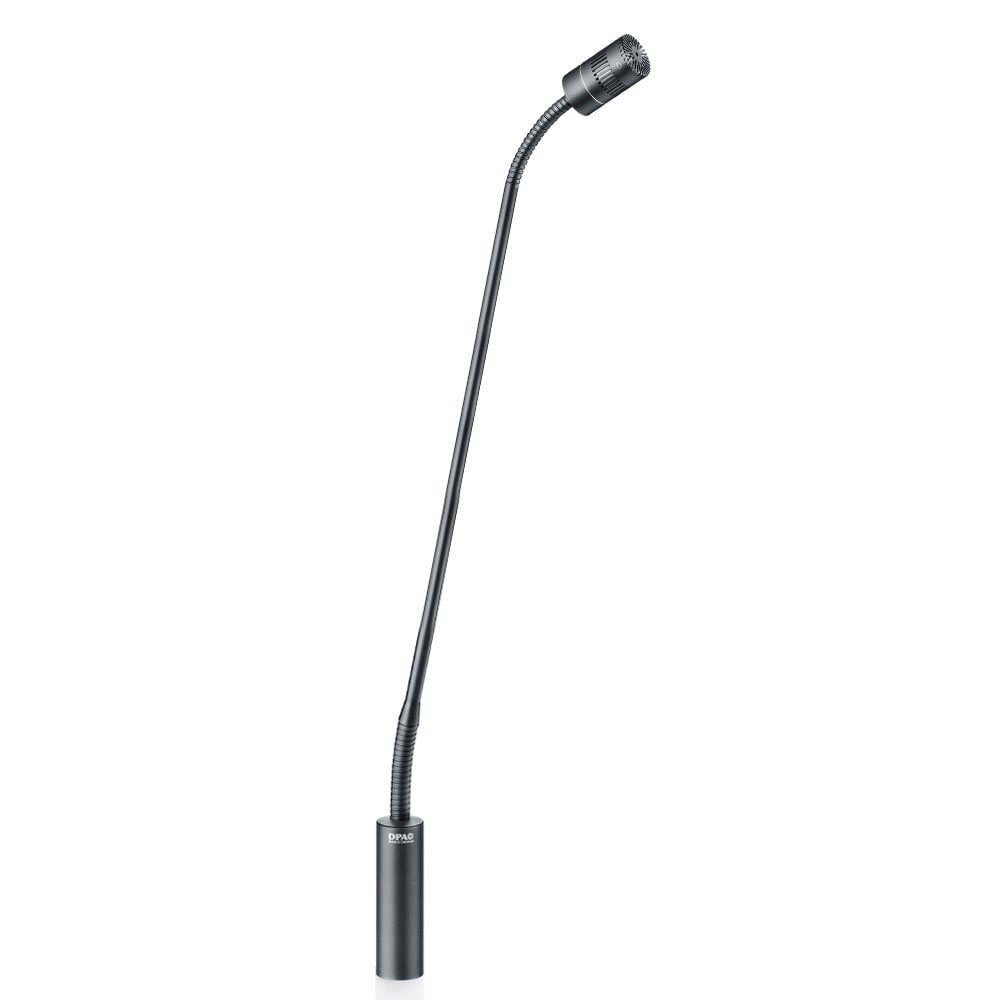

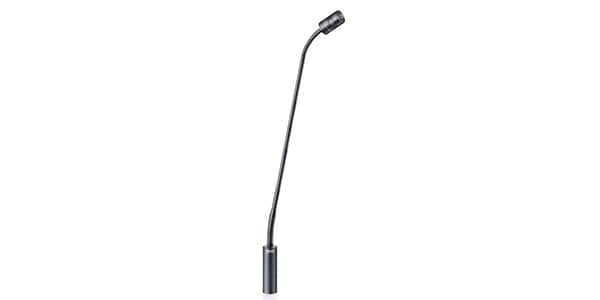

DPA / 4011-DF-G-B01-030

Using the MMC4011 Cardioid Microphone Capsule for its directional quality and attention to detail, this solution makes everything sounds like the original. The first-order cardioid pickup pattern provides superb separation between sound sources.

Directional pattern: Cardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency response: 20 Hz - 20 kHz
Effective frequency range ±2 dB, at 30 cm (11.8 in): 40 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (max. 27 dB)
Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
Dynamic range: Typ. 121 dB
Max. SPL, THD 10%: 144 dB SPL peak
Rated output impedance: 100 Ω
Minimum load impedance: 2 kΩ
Cable drive capability: Up to 100 m (328 ft)
Output balance principle: Impedance balancing
Common Mode Rejection Ratio (CMRR): > 40 dB
Power supply (for full performance): P48 (Phantom Power) - will work from 12 V with decreased high SPL performance
Current consumption: Typ. 3.5 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color: Matte black
Microphone length: 32 cm (13 in)
Microphone diameter: 19 mm (0.75 in)
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
