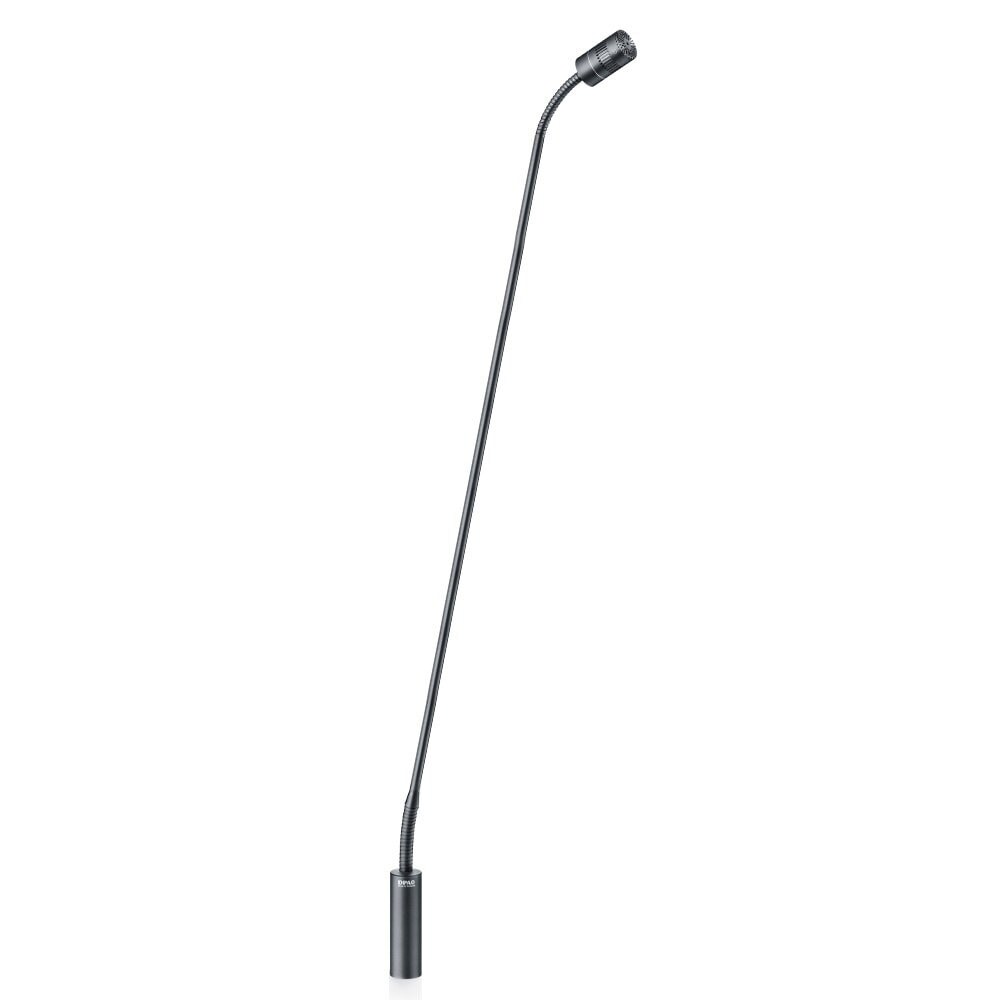

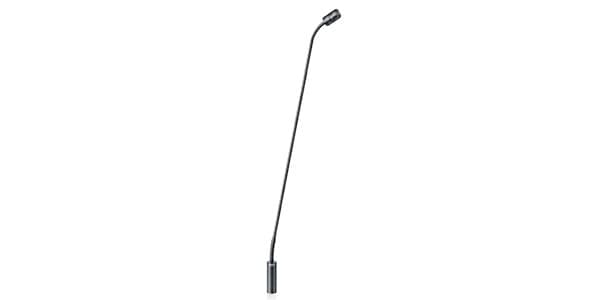

DPA / 4011-DF-G-B01-045

Using the MMC4011 Cardioid Microphone Capsule for its directional quality and attention to detail, this solution makes everything sounds like the original. The first-order cardioid pickup pattern provides superb separation between sound sources.

-Polar pattern: Unidirectional
■Cartridge: Prepolarized condenser
■Frequency Range (±2dB): 40Hz to 20kHz
sensitivity (±2dB):-40 dB re 1V/Pa
Equivalent noise, A-weighted: 18 dB(A) re 20 μPa
■ Total Harmonic Distortion (THD): 1% or less (139 dB SPL)
■Dynamic Range (Typical): 121 dB
■Maximum sound pressure level: 144dB SPL
■Impedance: 100Ω
■ Cable extension distance: Up to 100m
power supply:phantom DC48V(±4V), 3.5mA
■ Connector: XLR 3 pin (male)
Dimensions: microphone 19 mm diameter × 35 mm; overall 47 cm (±5 mm)
