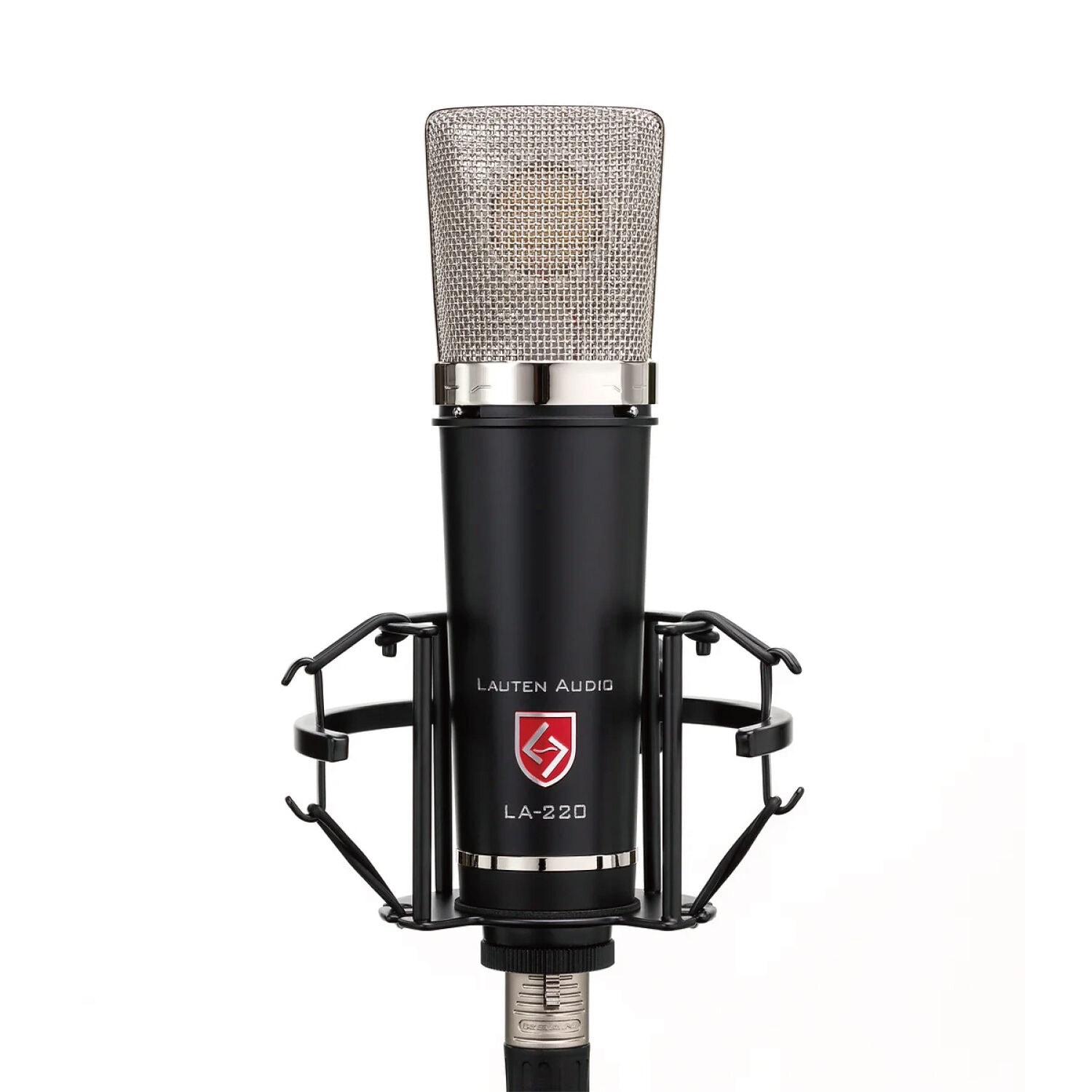

LAUTEN AUDIO / LA-220 V2

The LA-220 is a two-tone FET microphone that allows you to choose between the warmth of a classic microphone and the clarity of a modern microphone at the flip of a switch.

[TWO MICS IN ONE]
The LA-220’s onboard analog sound-shaping eliminates the need for mic swaps and downtime, which means you can focus on the main thing --- making music. Capture vocals with presence and punch or an electric guitar without any annoying high-end sizzle.

[CUSTOM CAPSULE]
The LA-220 utilizes the same upgraded capsule as its larger tube sibling, the LA-320. Unlike traditional capsule designs, our hand-tuned 32mm transducer naturally imparts gentle compression and balance to any sound source, making it ideal for use in an array of string, percussion, and vocal applications.

[WHAT'S INSIDE MATTERS]
Hand-soldered with high resolution, low distortion polypropylene capacitors and resistors, a US-made ultra-low noise JFET, and a vintage-inspired output transformer.

[IN THE BOX]
LA-220 / SPIDER SHOCK MOUNT / MICROPHONE BAG

[SPECIFICATIONS & DIAGRAMS]
TYPE: TRANSFORMER-BALANCED FET CONDENSER
CAPSULE: 32MM CENTER-TERMINATED PRESSURE GRADIENT
POLAR PATTERNS: CARDIOID
FREQ. RESPONSE: 20HZ - 20kHz
HIGH PASS: FLAT / 120Hz
LOW PASS: FLAT / 12kHz
DYNAMIC RANGE: 120DB MINIMUM
MAX. SPL: 0.5% THD @1000HZ: 130DB
IMPEDANCE: <200 OHMS
SELF-NOISE LEVEL: < 15DB-A
SENSITIVITY: 16MV/PA -40DB (ODB=1V/PA 1KHZ)
CONNECTOR: 3-PIN XLR
POWER: REQUIRES 48V PHANTOM POWER
BOX DIMENSIONS: 5" x 10" x 10"
IN-BOX WEIGHT: 3.9lbs
MIC W/ MOUNT WEIGHT: 1lb 9oz
