Limetone Audio / JCB-5S-Flat

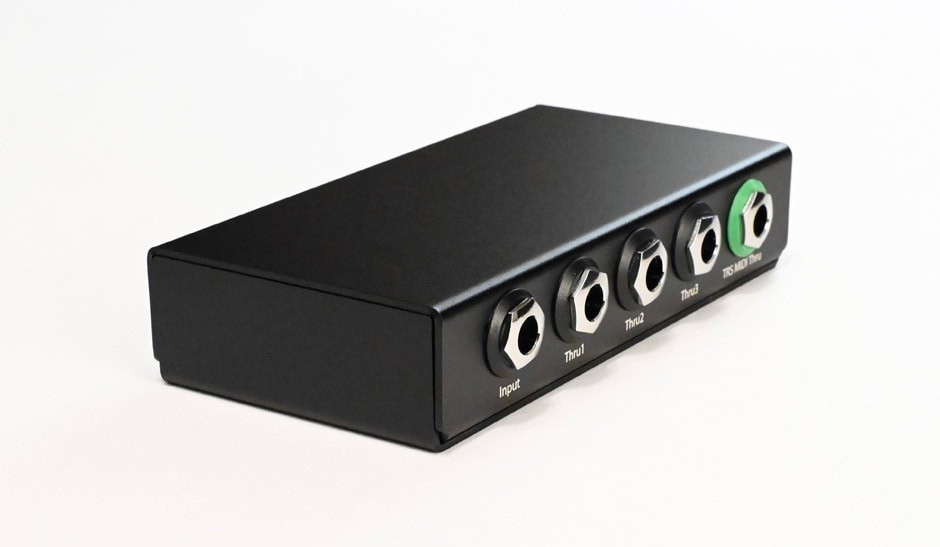

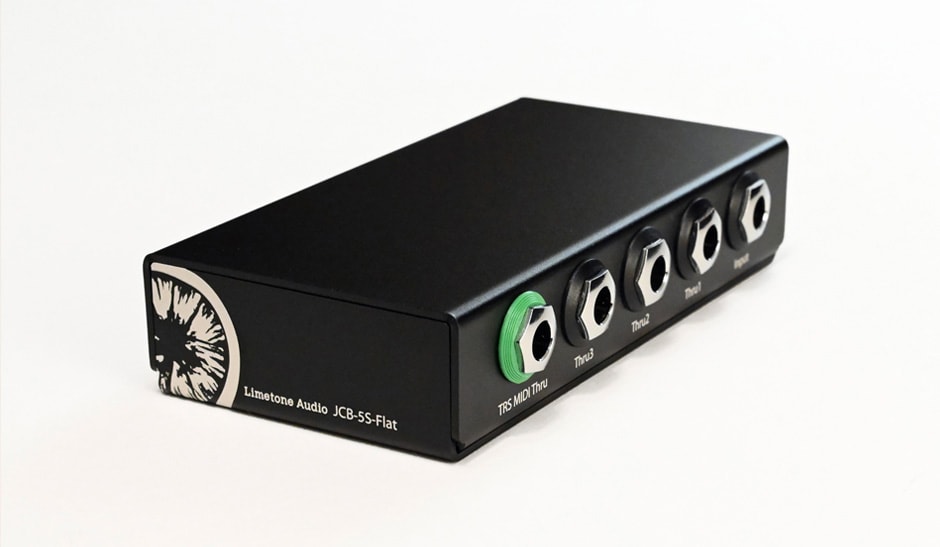

A signal junction box with an emphasis on sound quality, intended to be placed under effectors. It's the same size as a typical compact effector, allowing you to place a junction box without wasting space on your pedal board.

A dedicated board is placed inside to secure each jack, and the audio signal section and ground line are connected by hand wiring rather than by pattern wiring on the board. We select wiring materials after taking into consideration the tendency of the sound depending on the jack and housing. Regarding the solder we use, we use two different types of solder depending on the location, in order to transmit as much as possible from low to high frequencies with as little loss as possible.

For audio signals, it is equipped with an Input terminal and three Thru terminals, and the three Thru terminals can of course be assigned to Outputs, and can also be used to connect amplifier control signals (latch signals) using TRS plugs.

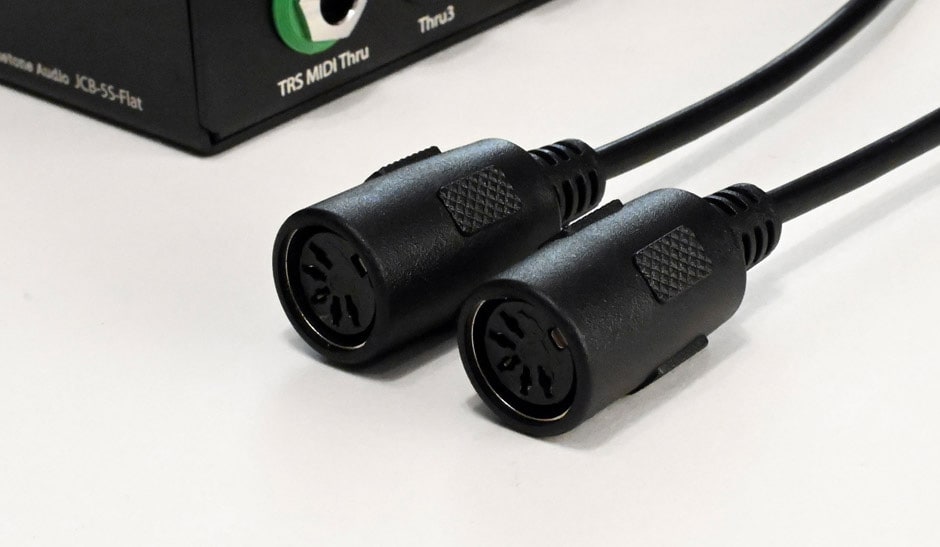

In addition, it is equipped with a TRS MIDI Thru terminal. By using the included MIDI-TRS conversion cable, MIDI signals can be routed through the TRS standard jack. The MIDI-TRS conversion cable is intended to be always attached to the MIDI cable side, so you can connect it without worrying about the orientation when setting it up.

This TRS MIDI Thru terminal also supports connection of amplifier control signals (latch signals) using a TRS plug, and audio signals can also be routed through the same way as other Thru terminals. The sound quality is also the same as other Thru terminals. (The green mark is added to prevent connection mistakes, and the internal structure is the same as other Thru terminals.)

The ground for each terminal is independent, suppressing the occurrence of ground loops. The earth of the case is connected to the ground of the Input terminal.



・By consolidating input and output in one place, setup time can be shortened.
・Avoid unnecessary troubles (other wiring coming out, moving knobs) due to not having to touch the effector inside the pedal board
- You can freely decide where to place effectors on the pedal board (no need to consider placing effectors located at IN and OUT on the edge)

■Connection terminals: Input, Thru1, Thru2, Thru3, TRS MIDI Thru 2 each

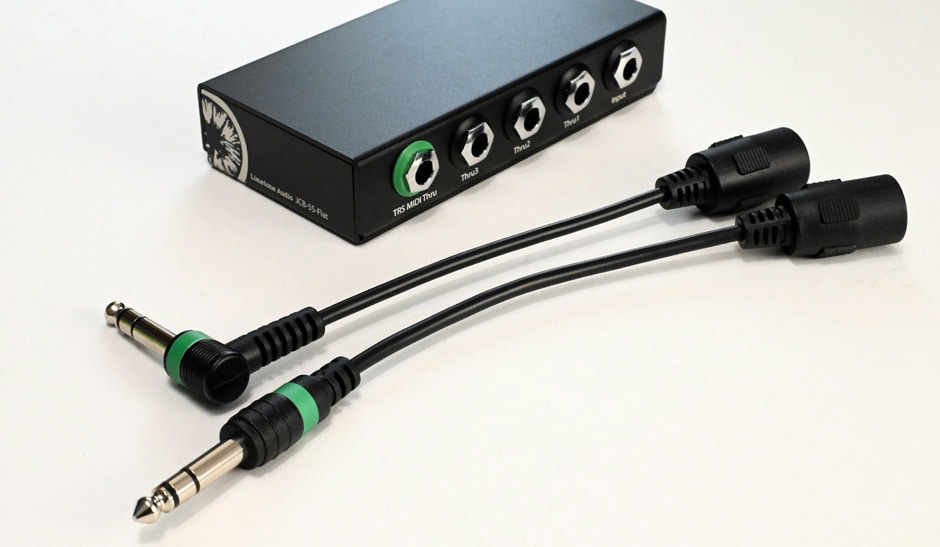

■Accessories: MIDI (female) to TRS (S) conversion cable, MIDI (female) to TRS (L) conversion cable, instruction manual, warranty card
■External dimensions: Width (W) 70mm (64mm not including protrusions), Depth (D) 124mm, Height (H) 26mm
■Weight: 194g
