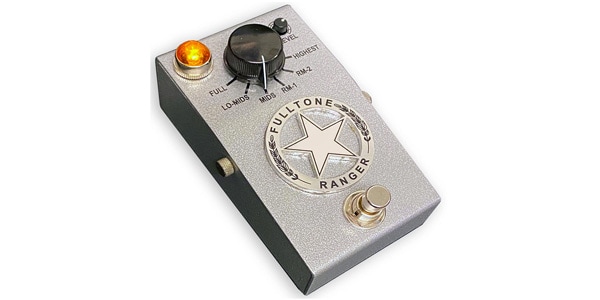

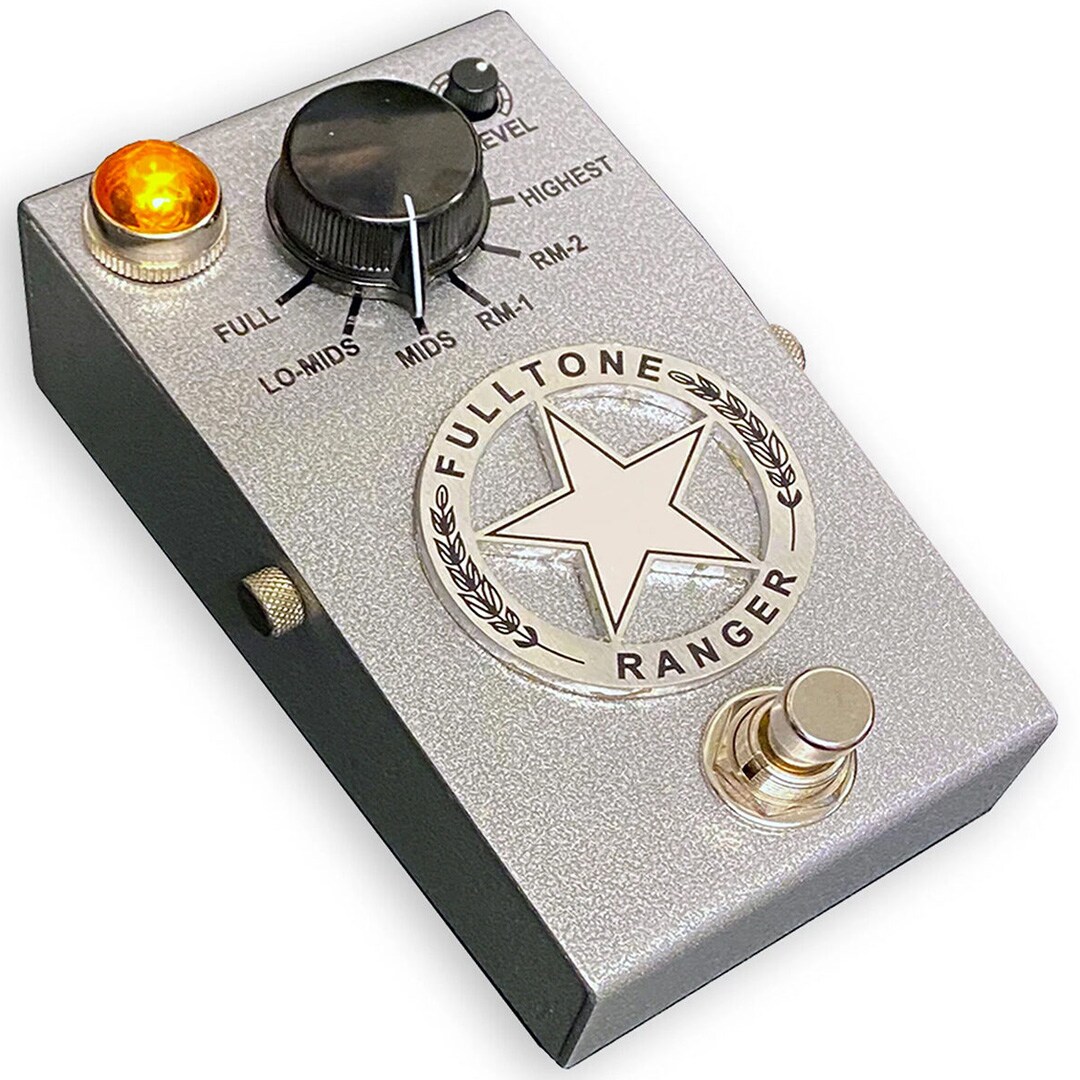

FULLTONE / RANGER

This pedal revives the legendary ""treble booster"" with 5 additional frequency bands and true bypass in an ultra-compact housing. The effect was marketed as a ""treble booster,"" but it actually boosted the midrange and treble while also providing incredible harmonic distortion, making tube amps more distorted.

In the RANGER, the circuit remains ""center positive"" but has been modified so that it can be powered by a standard ""center negative"" power adapter or power supply. Additionally, it is equipped with New Old Stock military germanium transistors.

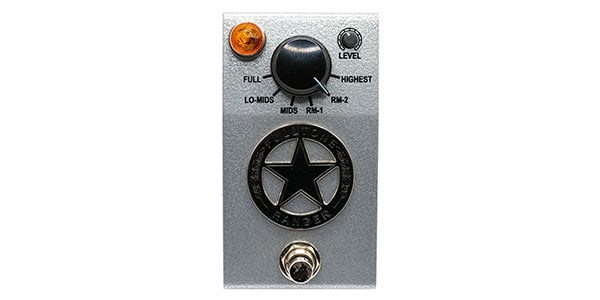

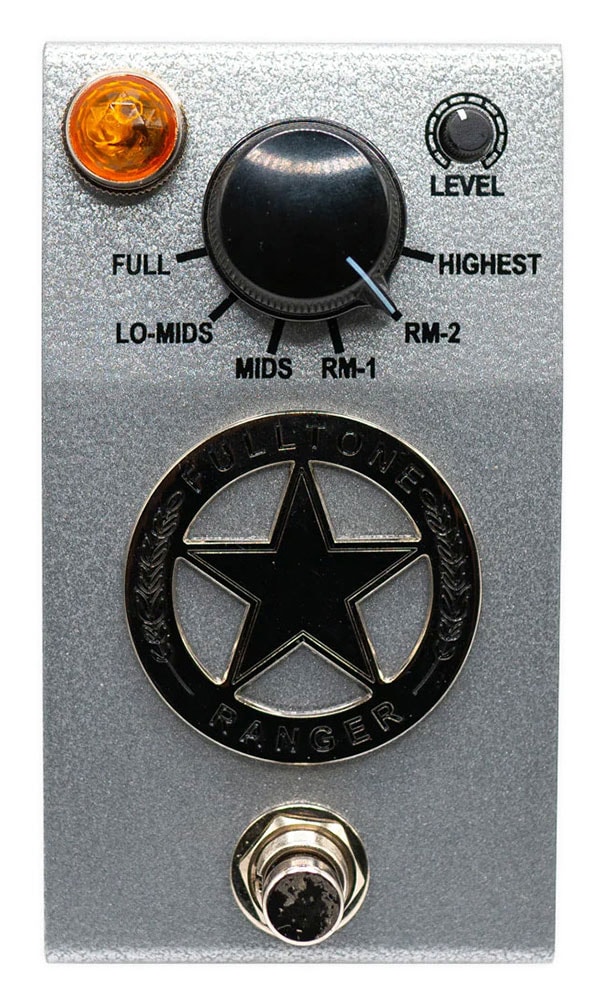

■Control
・LEVEL: Adjust the volume. Boost cut of ±15dB is possible from the 12 o'clock position.
・ROTARY MODE Switch: By switching the capacitor, you can switch between various frequency modes and create a high-pass filter that passes all signals above the selected frequency.
・ON/OFF Footswitch: Switch to turn on/off.

■INPUT: 1/4” monaural standard phone input terminal
■OUTPUT: 1/4” monaural standard phone output terminal

■DC INPUT: Operates from a high quality regulated 2.1mm x 5.5mm plug 9-18VDC center negative power supply.

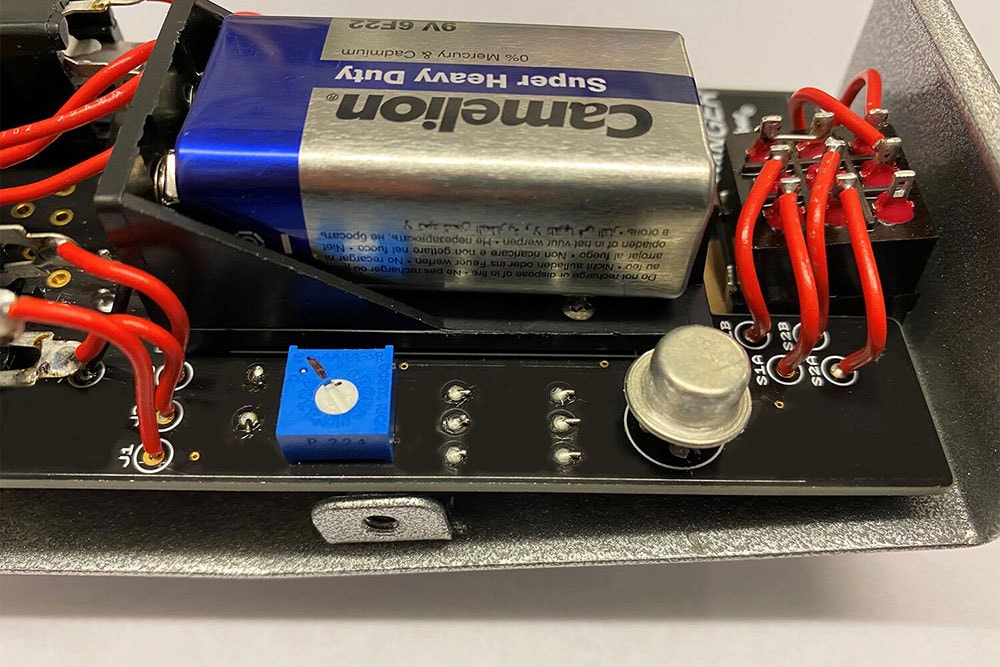

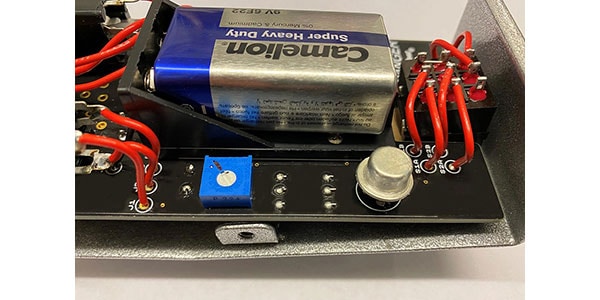

■BATTERY: It can also be powered by a 9 volt battery (006P battery). To replace the battery, unscrew the screws on the left and right sides of the housing, separate the top and bottom of the pedal, and replace the battery.
