EVH / Wolfgang Special QM, Baked Maple FB, Tiger Eye Glow

Road tested in arenas around the world by legendary guitarist Eddie Van Halen, the Wolfgang Special is a thoroughbred musical instrument with stunning style, explosive sound and specifications to withstand high-speed playing.

The Wolfgang Special QM, Baked Maple features a basswood body with an arched quilted maple top and a bolt-on quarter-sawn baked maple neck reinforced with sturdy graphite and hand-finished with a urethane back to match Eddie Van Halen's stoic specifications. The ebony fingerboard with a 12"-16" compound radius for energetic riffs and leads features 22 jumbo frets and black dot inlays. The neck end has a spoke wheel for easy truss rod adjustment.

Two custom-designed EVH Wolfgang Alnico 2 humbuckers are direct-mounted to the body, providing dynamic yet clear voicing as well as rich sustain for powerful chords and melody lines. The combination of the sturdy and reliable EVH branded Floyd Rose locking tremolo and Floyd Rose locking nut keeps the guitar in tune even with extreme arm playing. The bridge is also equipped with a convenient EVH D-Tuna that allows you to instantly switch to drop D tuning. The 500K EVH Bourns Low Friction Pot used in the volume knob with treble bleed circuit allows for smooth volume playing, and the 250K EVH Bourns High Friction Pot used in the tone control knob prevents tone shifts due to accidental operation. FEATURES
25.5" scale

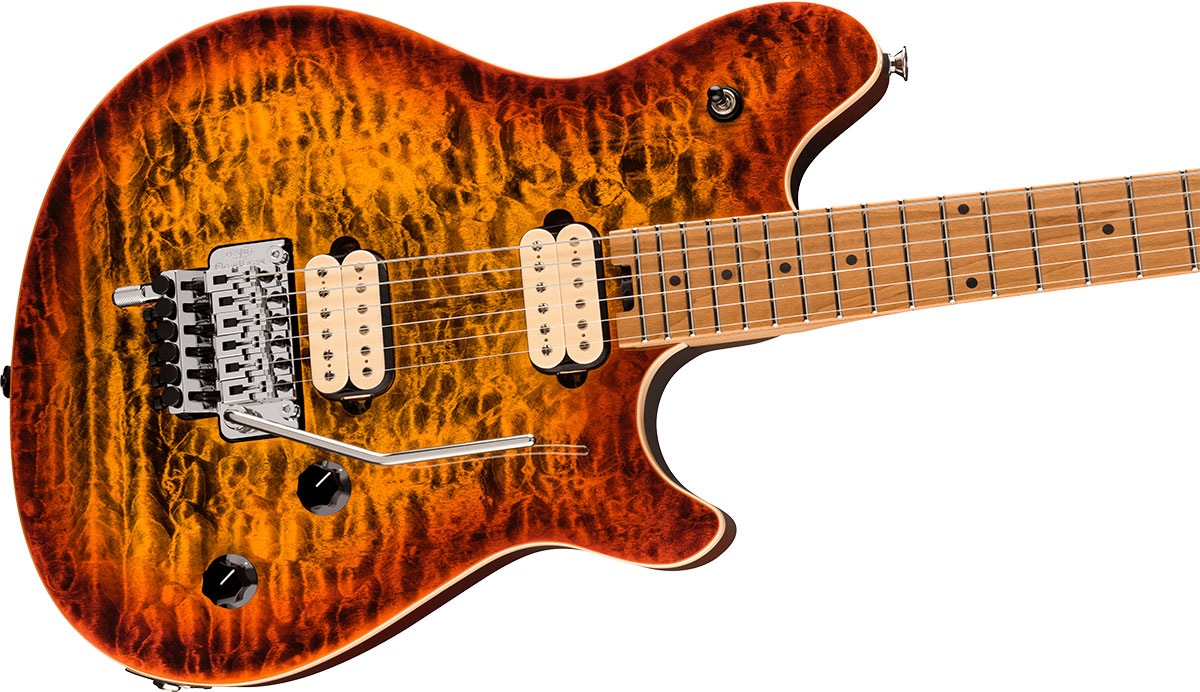

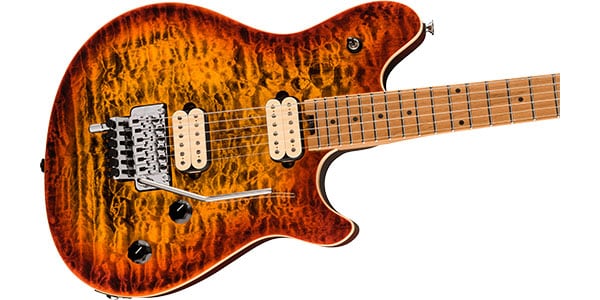

Basswood body with arched quilted maple top
Bolt-on quarter-sawn baked maple neck with built-in graphite stiffening rod
Neck shape made to Eddie Van Halen's exacting specifications, hand-rubbed satin urethane back finish
Maple fingerboard with 12-16" compound radius and 22 jumbo frets
Neck heel-mounted adjustment wheel for easy truss rod adjustment

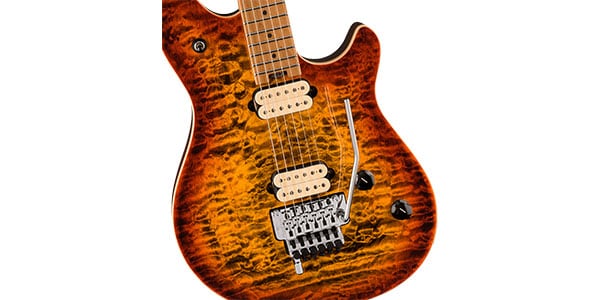

Direct-mounted EVH Wolfgang Alnico 2 bridge and neck humbuckers
EVH-licensed Floyd Rose locking tremolo with R2 locking nut
EVH D-Tuna
3-way toggle switching with treble bleed, EVH volume control (500K EVH Bourns Low Friction Pot), tone control (250K EVH Bourns High Friction)

Neck

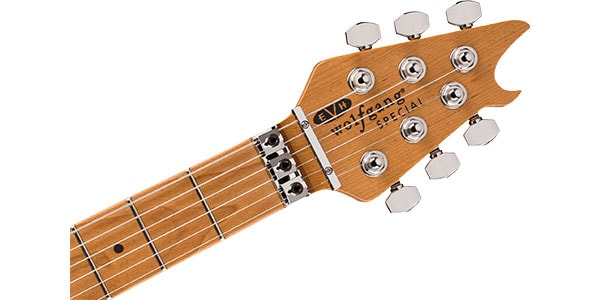

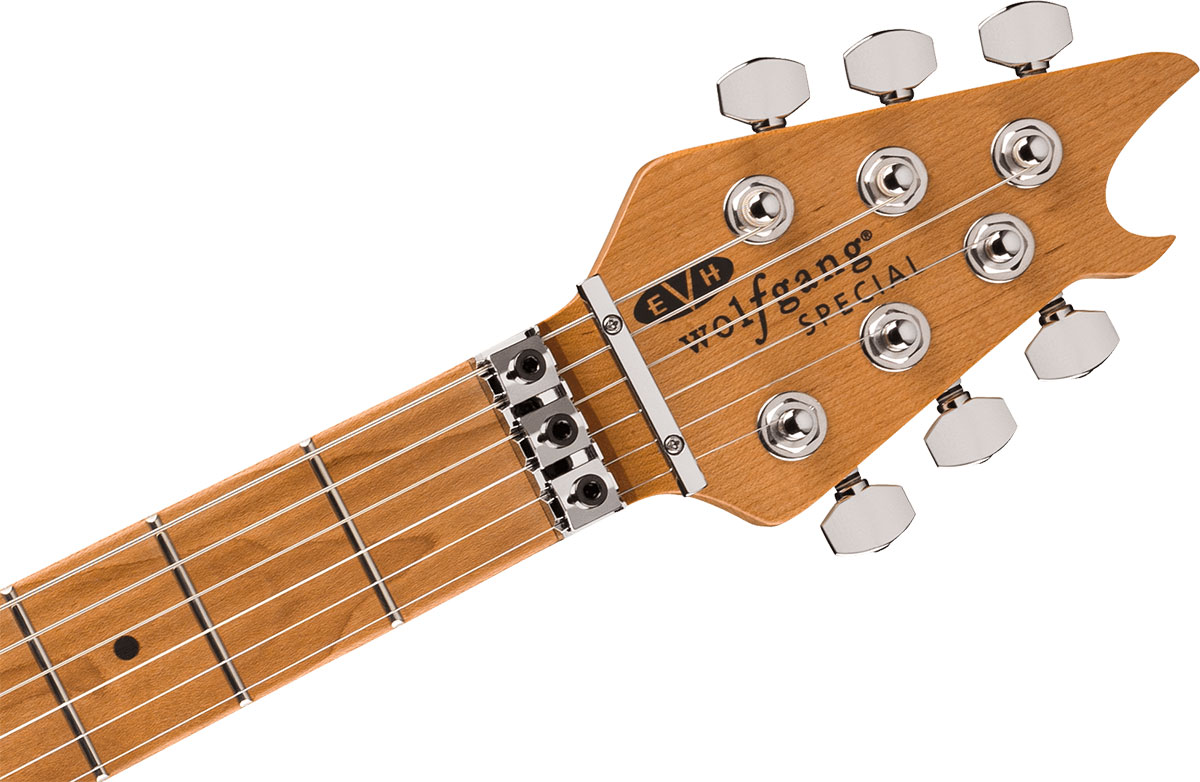

Headstock EVH Wolfgang
Neck Quartersawn Baked Maple
Neck Finish Hand-Rubbed Satin Urethane
Neck Shape Wolfgang Backshape
Neck Bolt-On with Graphite Reinforcement
Neck Thickness .805" at 3rd & .890" at 12th Fret
Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material Baked Maple
Position Inlay Black Dot
Side Dot
Number of Frets 22
Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
Nut Floyd Rose R2 Locking
Nut Width 1.625" (41.3 mm)
Nut Material Floyd Rose R2 Locking

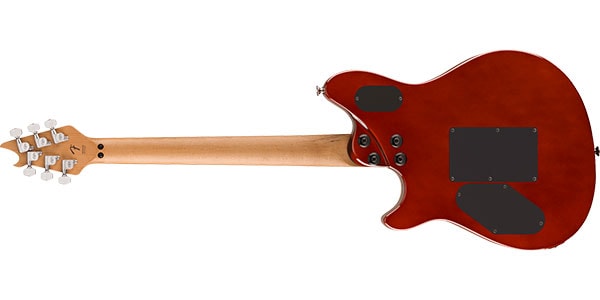

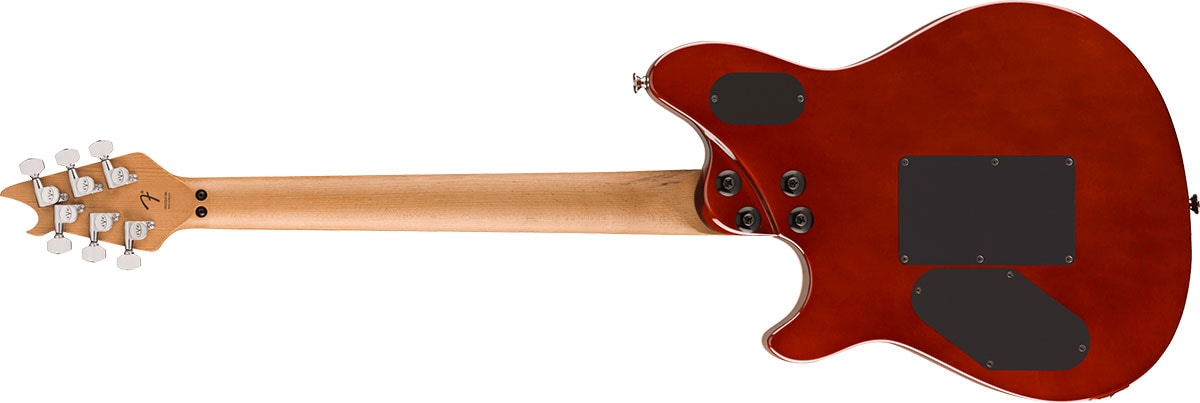

Body
Body Basswood
Body Finish Gloss Polyester
Body Shape Wolfgang
Body Binding 1-Ply Cream
Body Material Basswood

Hardware
Bridge EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
TREMOLO BLOCKBrass
CONTROL KNOBSBlack Knurled with White Indicator
SWITCH TIPBlack
HARDWARE FINISHChrome

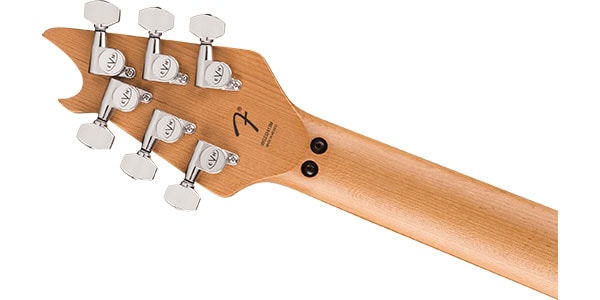

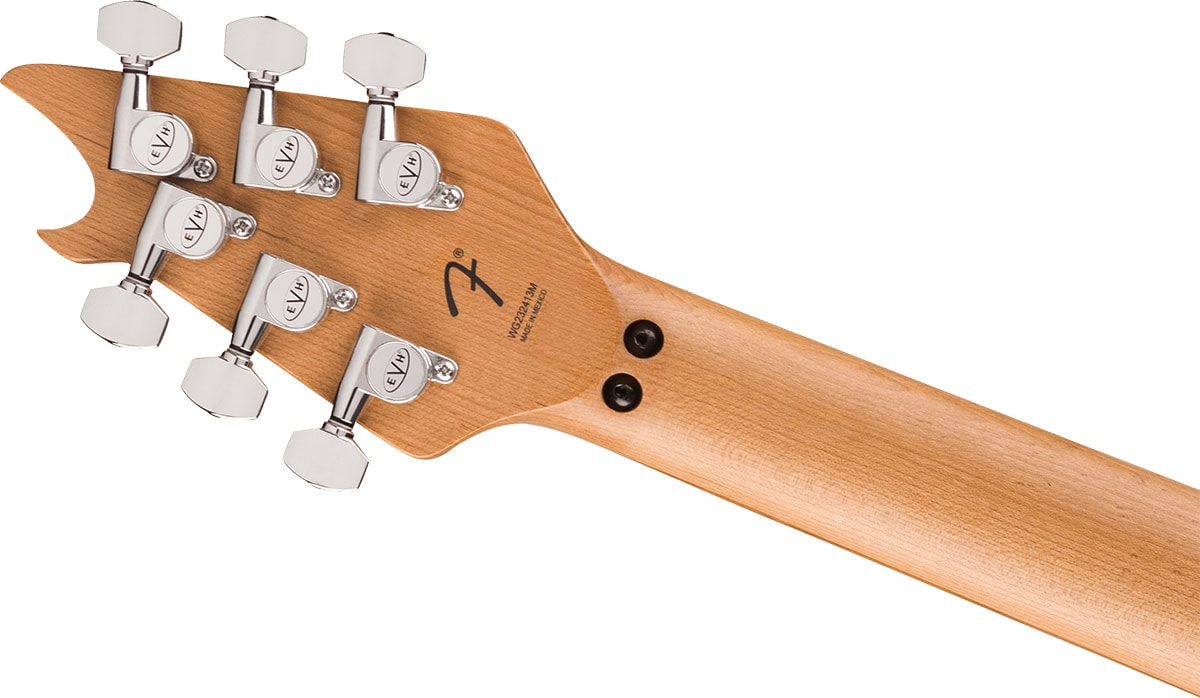

TUNING MACHINEEVH-Branded Gotoh
STRING TREESFloyd Rose Retainer Bar
STRINGEVH Nickel Plated Steel (.009-.042 Gauges)
TREMOLO ARMFloyd Rose 1000 Series Locking
STRAP BUTTONOversized

ELECTRONICS
BRIDGE PICKUPDirect Mount EVH Wolfgang Humbucking
NECK PICKUPDirect Mount EVH Wolfgang Humbucking
PICKUP CONFIGURATIONHH
CONTROLSVolume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
SWITCH3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
