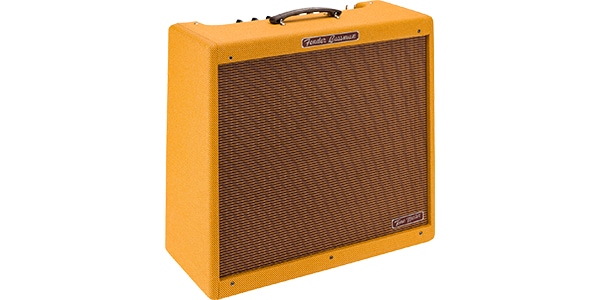

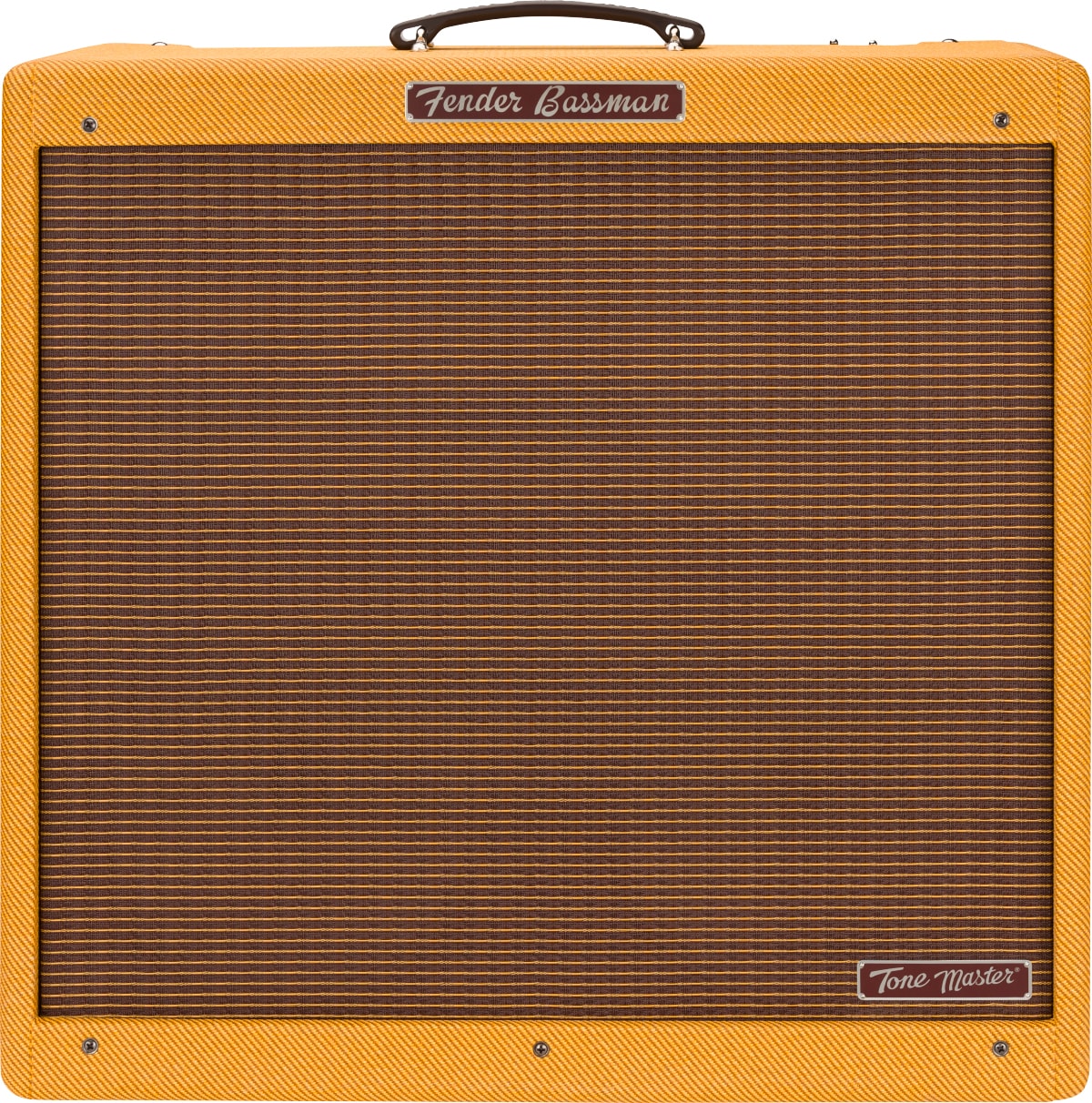

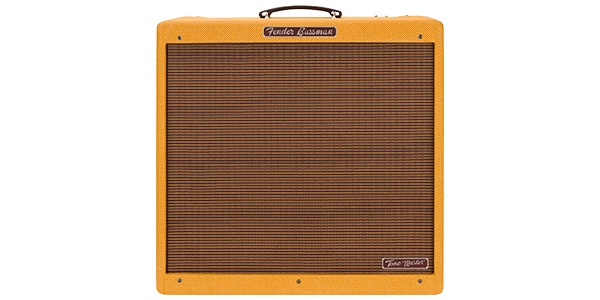

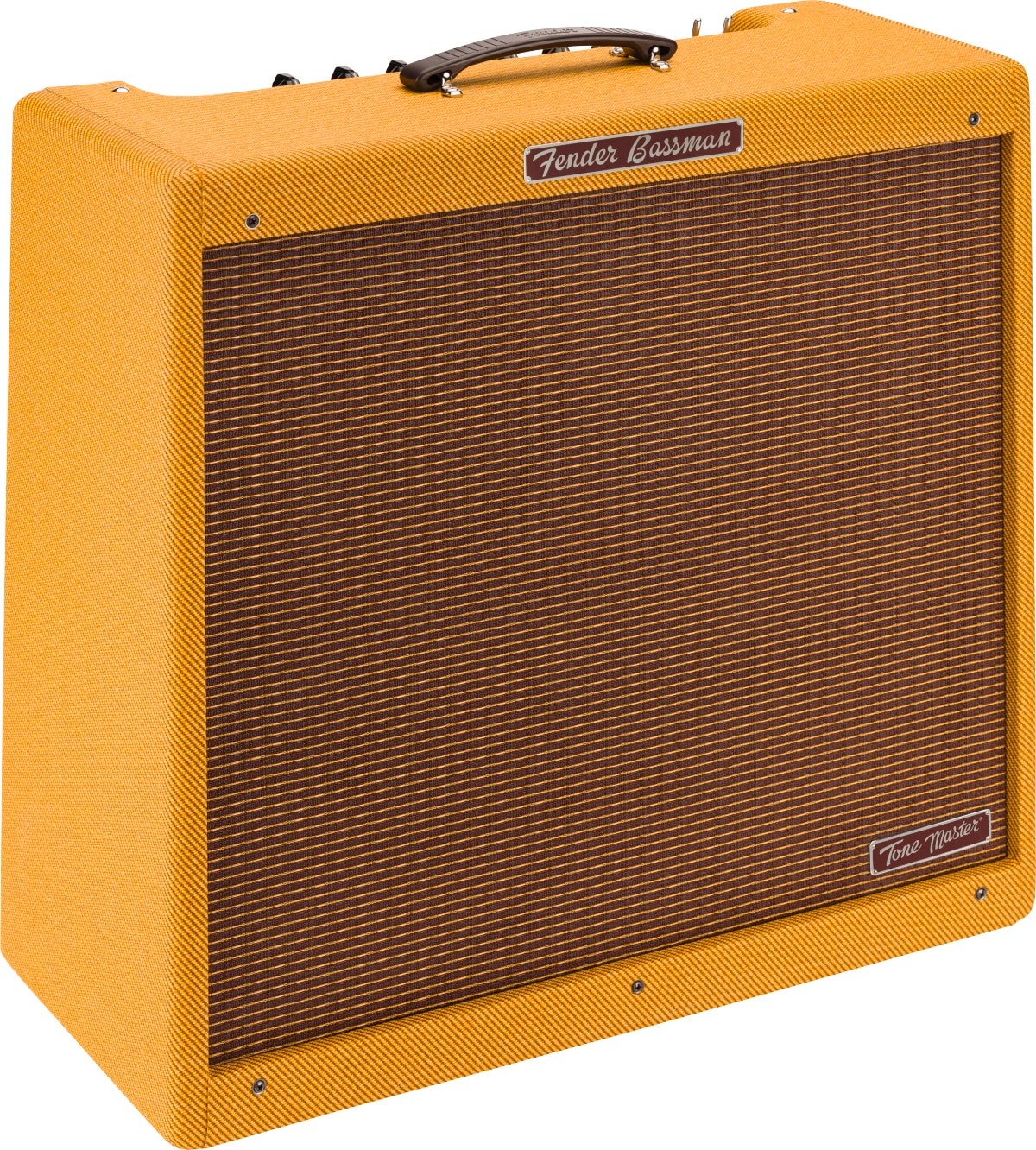

FENDER / Tone Master Bassman, 100V JP

The Tone Master '59 Bassman amplifier is a digital amplifier that uses massive amounts of digital processing power to faithfully model the circuitry and 45W output characteristics of the original Bassman tube amplifier.

Equipped with a high-performance Class D power amplifier, it provides headroom and dynamics equivalent to a tube amplifier, delivering a pure Bassman tone that is indistinguishable from the original amplifier.

Four Jensen P-10R speakers add sparkle and touch-sensitive characteristics to the sound, and additional features for the player, such as a convolution spring reverb, a Vintage/Tight switch that provides smooth bass response, and an effects loop placed after the power tubes. Other features include an output power selector that can be switched between full power and five attenuation settings, an impulse response (IR) XLR line output for precise cabinet simulation, a mute switch, and a lightweight pine cabinet.

FEATURES
4 Jensen P-10R Alnico speakers
2 inputs and bright switches for normal and vibrato channels
Rear panel output power selector for full power and 5 levels of attenuation
Balanced XLR line output with impulse response (IR) cabinet simulator, level control and ground switch
Lightweight cabinet
Power jewel lights up in different colors for normal operation, warm-up and mute/silent modes
USB port for firmware updates
Universal power supply
With cover and 2-button footswitch

Electronics

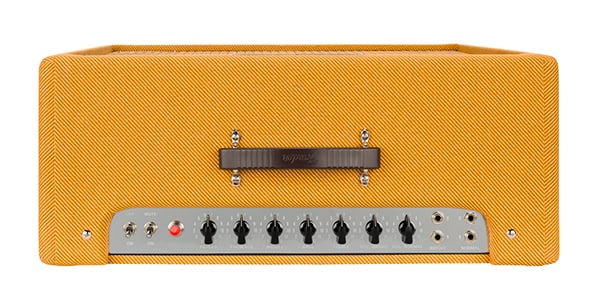

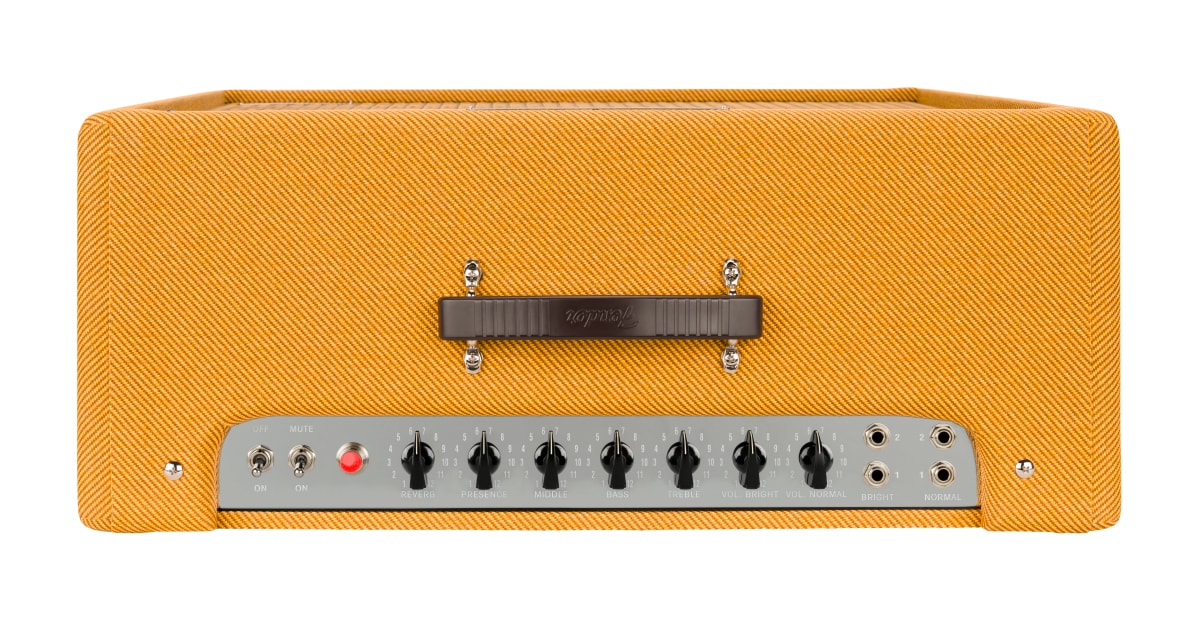

ControlsNormal Volume, Bright Volume, Treble, Bass, Middle, Presence, Reverb
Control PanelNormal Volume, Bright Volume, Treble, Bass, Middle, Presence, Reverb
InputsFour - (1/4", Two Bright and Two Normal)
LINE OUTOne - (Balanced XLR with Ground Lift and Level Control)
ChannelsTwo - (Normal and Bright)
EffectsReverb
Effects Loop1/4" (Send/Return)
ConnectivityUSB For Firmware Updates
CONNECTION TYPE1/4"
Volts100V JPN
Watts200W (Simulates 45W Tube Amp Performance)
Hardware
Control KnobsChicken-Head Style Pointer - Black
Amplifier CoverLacquered Tweed
CabinetLightweight Solid Pine
Grill ClothVintage-Style Brown and Gold
HandleMolded Rubber "Dog Bone" Style
Amplifier JewelsRed (Power), Red/Amber (Warmup), Amber (Mute)
FRONT PANELChrome
REVERB TANKDSP
REVERB TANK TYPEDSP

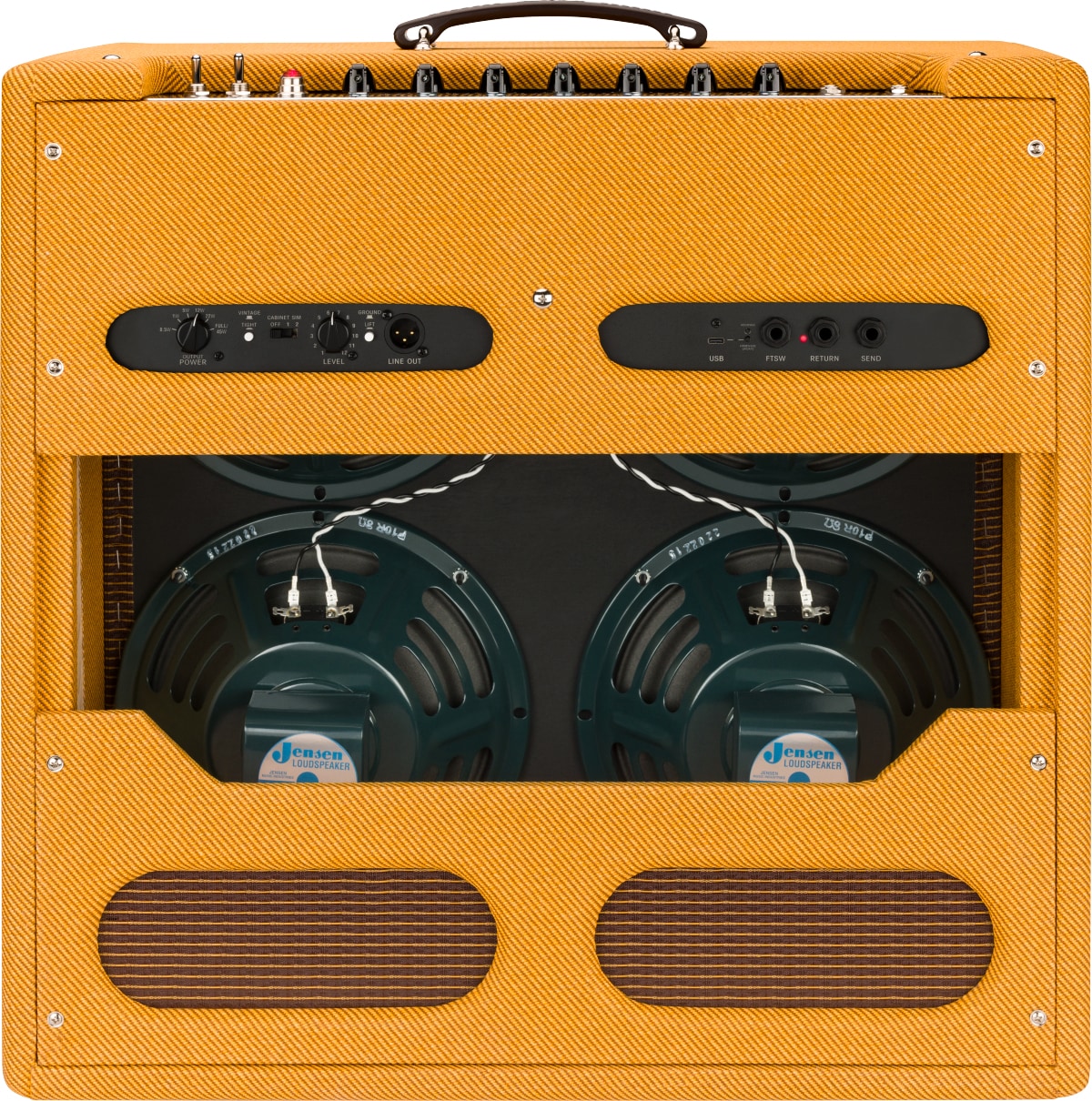

Rear Control PanelOutput Power Selector, Vintage/Tight Switch, Cabinet Sim Selector, Line Out Level, Ground Lift
Speakers
SpeakersFour - 10" Jensen P10R with Alnico Magnet
ImpedanceNA
