Disaster Area Designs / MIDI Baby

MIDI Baby is probably the world's smallest fully programmable MIDI controller with 1 switch, 1 multi-color LED, and many features.

■MIDI foot controller
■1 switch

Connect to your computer using the included USB cable.
Use the settings editor (web app) to configure the MIDI messages to be sent, input/output, LED color, etc.
You can send various MIDI signals such as MIDI PC#, CC#, MIDI note, etc.
You can also use special ""meta"" commands to reverse and play messages. It also has a MIDI clock and can send clocks.

*When ""pressing the switch for a very long time"", the signal that was set to ""pressing the switch for a long time"" will be sent because it passes through ""pressing the switch for a long time"". Please use it for functions that can be updated, such as switching programs. We do not recommend assigning different functions, such as stopping the sequencer and sending CC#, which is completely different. Please be careful in advance.

[Connection list]

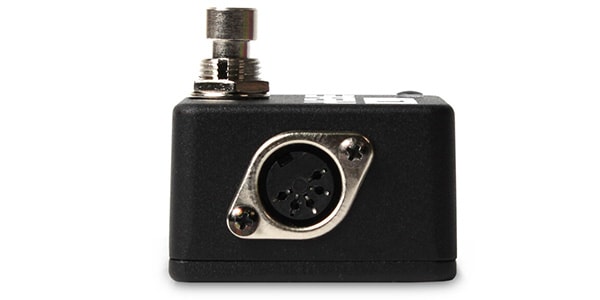

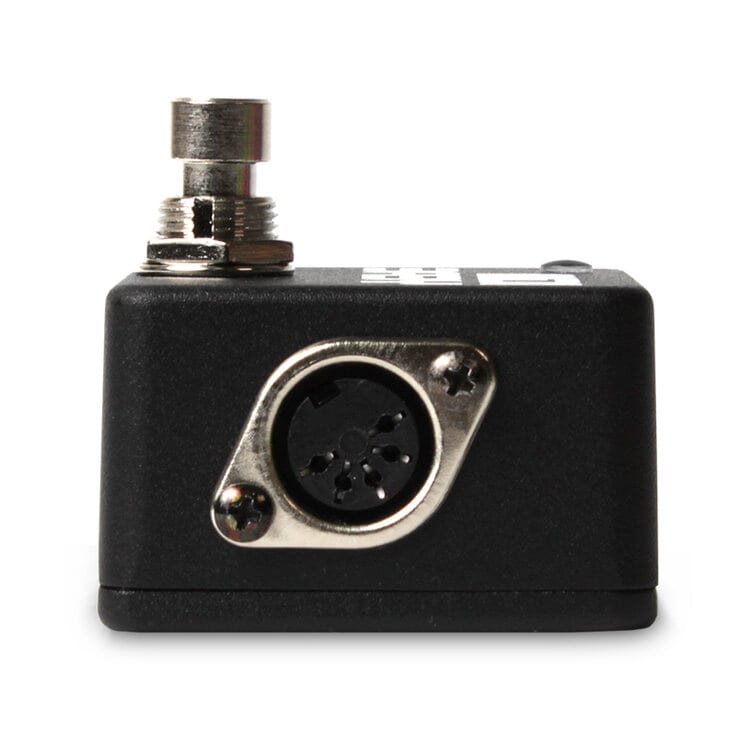

・MIDI output: Standard 5-pin MIDI terminal

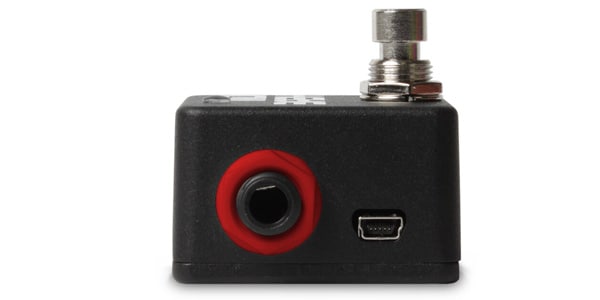

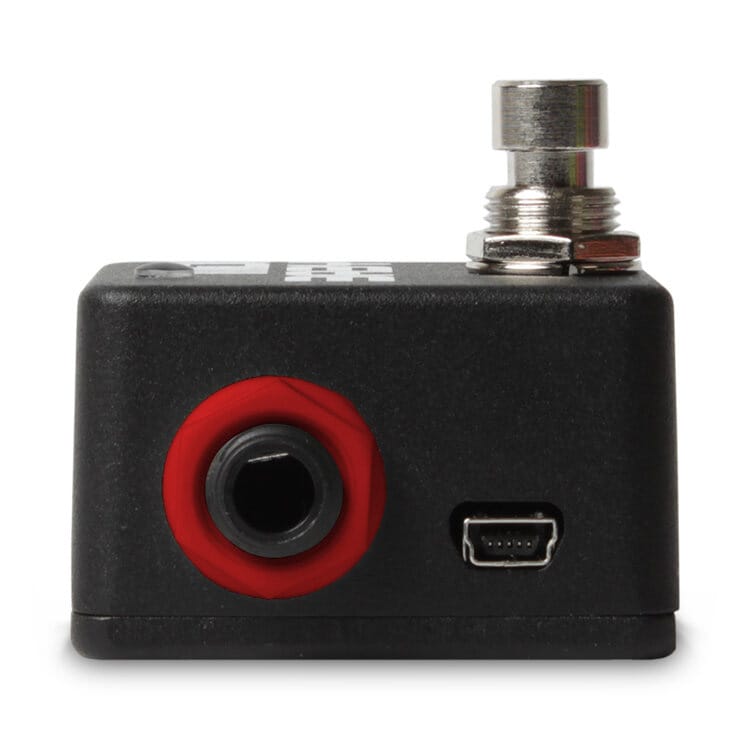

・MultiJack: MIDI output (supports tip/ring/both transmission), MIDI input/output (ring = input, tip = output), expression, dual foot switch
・USB: USB MIDI (control DAW and mobile devices), host of USB MIDI compatible devices (Zoom, Red Panda, Source Audio C4, etc.)
- Compatible with most MIDI compatible devices with general specifications

[Specs]
・Power supply: 9V/30mA
・50mm × 60mm × 50mm / 110g
