Blackmagic Design / ATEM 1 M/E Constellation 4K

ATEM 1 M/E Constellation 4K is a powerful 1 M/E Ultra HD live production switcher. It features 10 standards converted 12G-SDI inputs, 6 12G-SDI aux outputs, DVE, 4 ATEM Advanced Keyers, a 16 way multiview, media players and USB webcam output.

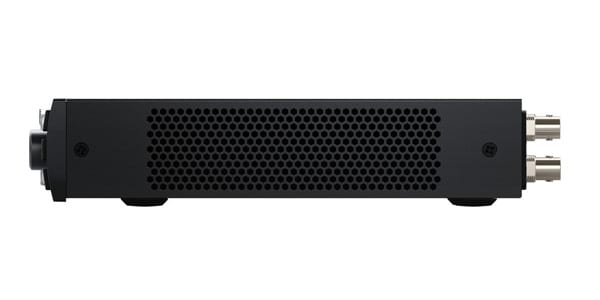

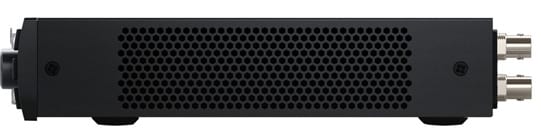

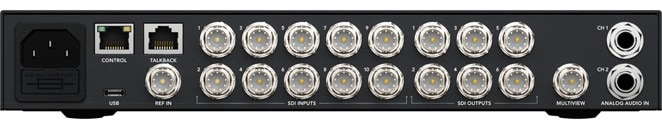

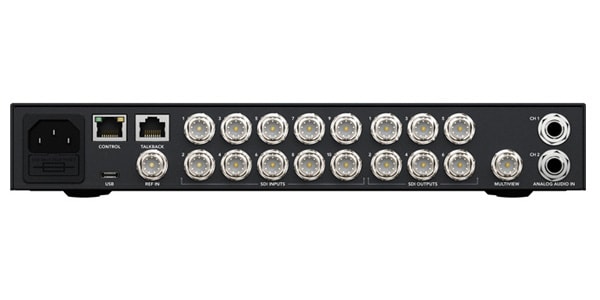

【Connections】
■Total Video Inputs：10
■Total Video Outputs：6
■SDI Rates：
1.5G, 3G, 6G, 12G
■Total Audio Inputs：
2 x balanced 1/4 inch Jack,
1 x 5 pin XLR Talkback.
■Total Audio Outputs：
1 x 5 pin XLR Talkback.
■SDI Audio Inputs：
16 Ch embedded audio on all SDI inputs.
■SDI Audio Outputs：
16 Ch embedded audio on all SDI outputs.
■Timecode Connections：
None
■Reference Input：
Tri-Sync or Black Burst.
■Video Input Re-Sync：
On all 10 inputs.
■Frame Rate and Format Converters：
On all 10 inputs.
■SDI Aux Outputs：
Any of the 6 SDI outputs.
■SDI Preview Outputs：
Any of the 6 SDI outputs.
■SDI Program Outputs：
Any of the 6 SDI outputs.
Down Converted SDI Program Output：1
■Webcam Output：
1 x USB-C supporting 720p or 1080p at PGM frame rate.
■Total Multi Views：
1 x 12G-SDI
■Control Panel Connection：
Ethernet. Direct connection between panel and chassis, or via network.
■Internal Timecode Generator：
Yes
■Talkback：
RJ45 for 3rd party talkback systems.
■Tally Output：
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
■Ethernet：
Supports 10/100/1000 BASE-T.
■Computer Interface：
1 x USB-C supports USB 2.01
*The warranty period for this product is one year from the manufacturer.

【Formats】
SD video format: Not supported
■HD video formats:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25
1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD video formats:
2160p23.98, 2160p24, 2160p25, 2160p29.97
2160p30, 2160p50, 2160p59.94, 2160p60
■SDI Standards:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
SMPTE 2081?1, SMPTE 2081?10, SMPTE 2082?1 and SMPTE 2082?10.
Video sampling: 4:2:2
Color accuracy: 10-bit
Color space: REC 709, REC 2020
■SDI auto-switching:
Auto detection of 1.5G-SDI, 3G-SDI Level A or Level B, 6G-SDI, 12G-SDI

【Product Specifications】
Upstream keyer: 4
Downstream Keyer：1
Advanced Chroma Keyer：4
DVE：1
Linear/Luma Keyer：5
■Transition keyer (Stinger/DVE):
Stinger x1, DVEx1
Layers: 7
Pattern generator: 5
Color generator: 2
■ Control panel:
■Emergency switching on front panel, software or optional hardware panel
Routable windows: 16
Window source labels: Supported
Tally: Red for program output, green for preview output
Talkback: supported
■Mix minus: supported


【Multi-View Monitoring】
■Multi-view monitoring:
Multi view x1 (can be set to 16, 13, 10, 7 or 4 views)
Supports program, preview, input, media player, key mask, and clean feed monitoring
Optional label and audio meters
■Multi-view video formats:
HD or Ultra HD

【Media Player】
Media Player: 2
■Channels:
Fill and key for each media player
Still image capacity of media pool: 20
■Clip capacity of media pool:
Up to 2160p60 x2
■Maximum clip frames in media player (720 HD):
1600 frames
■Maximum number of frames for media player clips (1080 HD):
800 frames
Media Player clip max. frames (2160 UHD): 200 frames
200 frames
Media Pool still image formats:
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool video file formats:
TGA sequences
■ Media pool audio file formats;
WAV, MP3 and AIFF

【Displays】

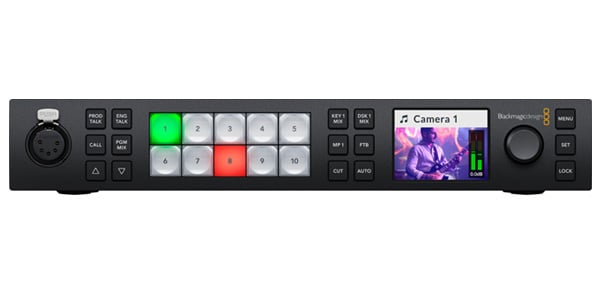

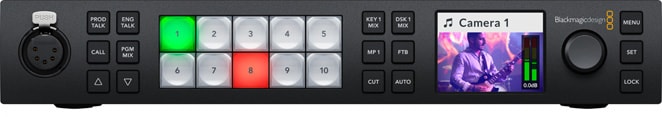

■Front panel:
Built-in 2.2” LCD monitor (for video); 10 LED buttons (for settings and emergency switching); 4 source buttons; 6 talkback selection and mix buttons; menu control knob and SET button; front panel lock button

【Processing】
■Processing delay: less than 10 lines
■Audio mixer:
28-channel mixer
On/Off/Audio-Follow-Video selectable
Measure levels and peaks
Master gain control
6-band parametric EQ, various dynamics (expander, gate, compressor, limiter)
■Down conversion:
1 x selectable HD down converted output

【Software】
Included control panel:
ATEM Software Control panel included free of charge (Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 or 11)
■Software updates:
USB or Ethernet direct connection to a Mac OS or Windows computer; includes ATEM Setup Utility
■Configuration:
ATEM Software Control panel; IP address of the ATEM enclosure is set via the ATEM Setup Utility connected to the enclosure via USB

【Operating System】
Mac:
Mac: Mac 13.0 Ventura
Mac 14.0 Sonoma or later version
■Windows:
Windows: Windows 10, 11.

【Power requirements
■Power supply:
Built-in 100?240 AC x1
Power consumption: 90W

【Size/Weight】.
SIZE：280.5(W)x44.2(H)x226.4(D)mm
Weight: 1.87kg

【Installation】
■Installation
Width: 2/3U rack
Height: 1U rack
■Optional accessories:
Teranex Mini Rack Shelf
