Blackmagic Design / SWATEMSCN4/1ME4/8K

[Official Japanese product] Eve Production switcher with 40 12G-SDI inputs, 24 12G-SDI Aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, independent Ultra HD multi-viewers and even 2 SuperSource processors!

■Ultra HD-compatible live production switcher

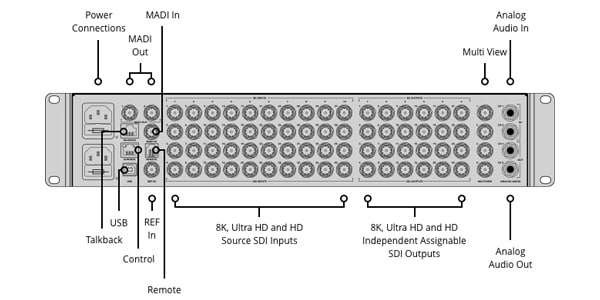

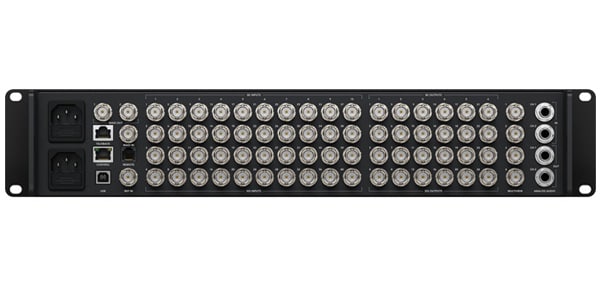

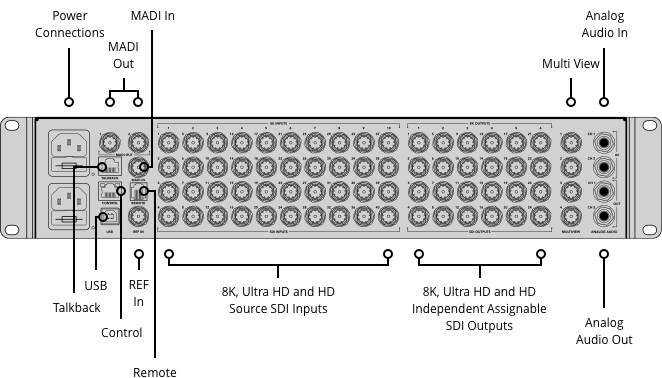

Connections
■Total video inputs:
40 (up to Ultra HD) / 10 (8K)
■Total video outputs:
28 (up to Ultra HD) / 7 (8K)
■Total Aux outputs:
24 (up to Ultra HD) / 6 (8K)
■SDI rates:
1.5G, 3G, 6G, 12G
■Total audio inputs:
2 balanced (1/4-inch jacks), 1 32-stereo channel BNC MADI input
■Total audio outputs:
2 balanced (1/4-inch jacks), 2 32-stereo channel BNC MADI outputs
■Timecode connections:
Not supported
■Reference inputs:
Tri-level sync or black burst
■Video input resync:
■All 40 inputs
■Frame rate/format converter
■All 40 inputs
■SDI video inputs
40 (10-bit Switchable between 720p, 1080i, 1080p, 2160p) and 10 (4320p)
■Other Audio Outputs:
1 x 5-pin XLR Talkback
■SDI Audio Outputs:
2ch embedded in SDI output on all outputs
■Other Audio Inputs:
1 x 5-pin XLR Talkback
■SDI Program Output:
Any of 24 SDI outputs
■Downconverted SDI Program Output:
Not supported
■SDI Preview Output:
Any of 24 SDI outputs
■Total Number of Multiviews:
4 (up to Ultra HD) / 1 (8K)
■SDI Multiview Outputs: 4
■HDMI Multiview Output:
Not supported
■Control Panel Connection:
Ethernet supports 10/100/1000 BaseT. Connect panel to chassis directly or via network.
■Internal Timecode Generator:
Supported
■Tally Output:
Adds Blackmagic Design GPI and Tally Interface via Ethernet connection. (Not included.)
■Computer interface:
USB 2.0 x1
■SIZE: 482(W)x90(H)x336(D)mm　8.4kg
*Power cable sold separately.
*This product has a one-year manufacturer's warranty.
