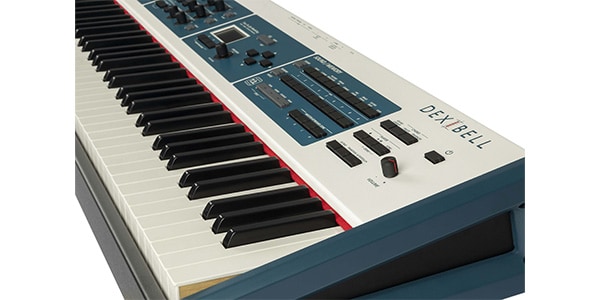

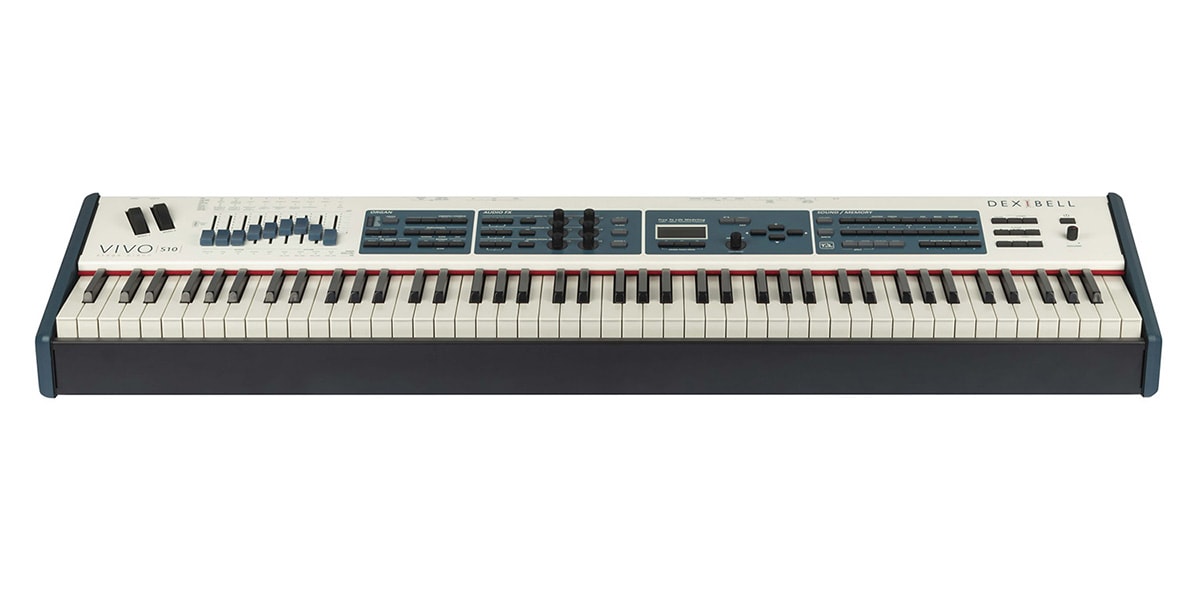

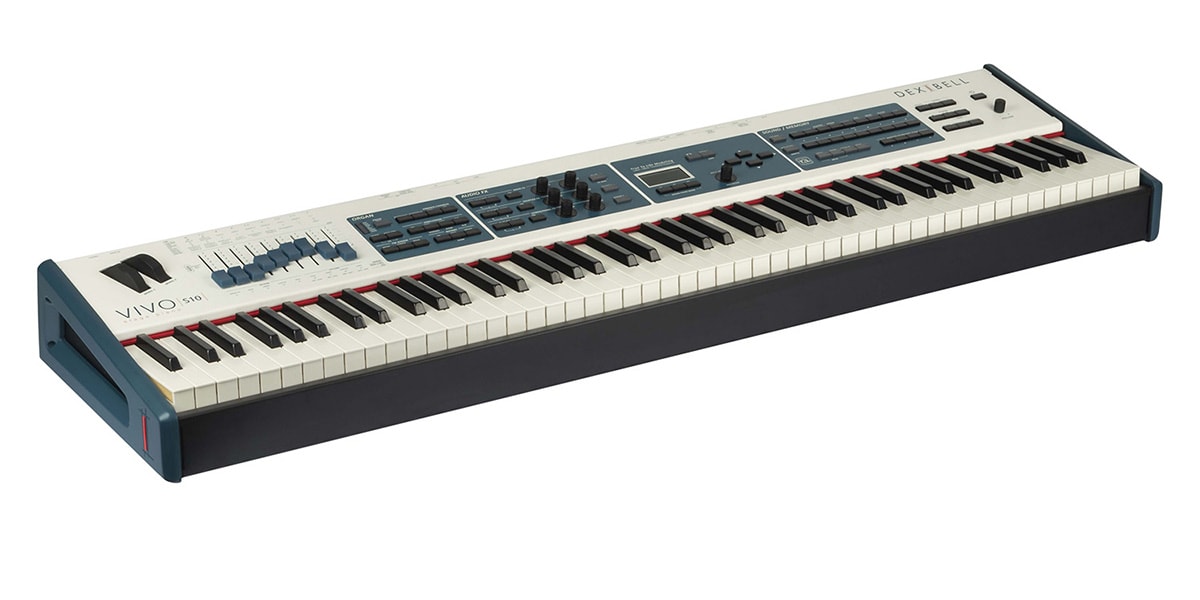

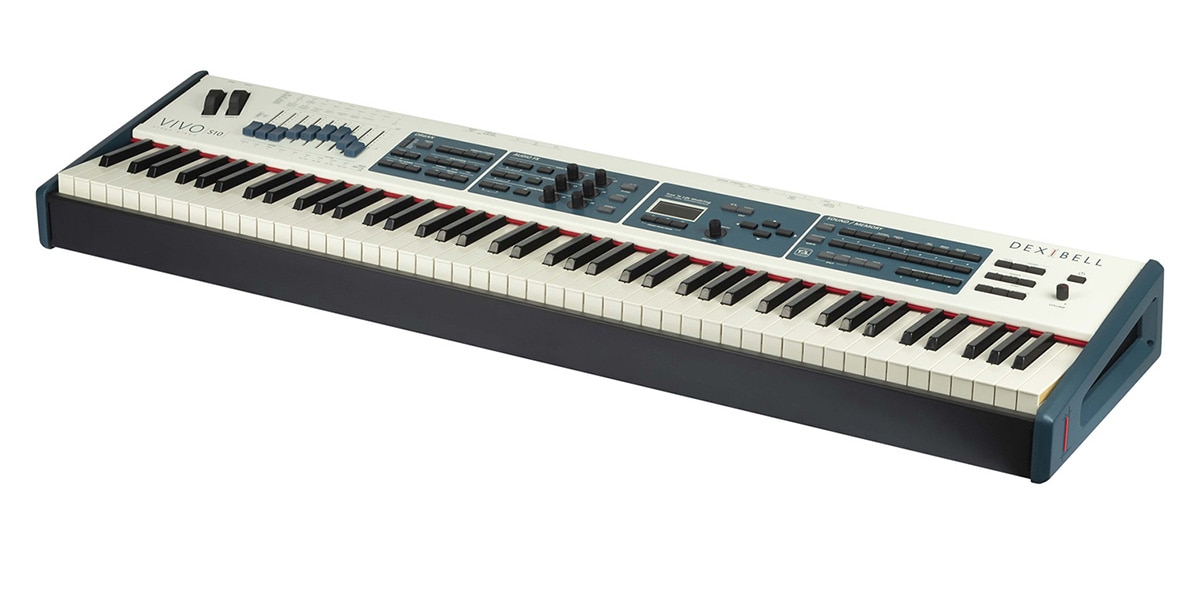

Dexibell / VIVO S10 Stage Piano

The flagship model of the "VIVO S" series, which uses a hybrid keyboard of wood and polymer to achieve the realistic feel of an acoustic piano. The sound engine is equipped with "Advanced T2L", an enhanced version of the company's proprietary T2L (True 2 Life) technology.

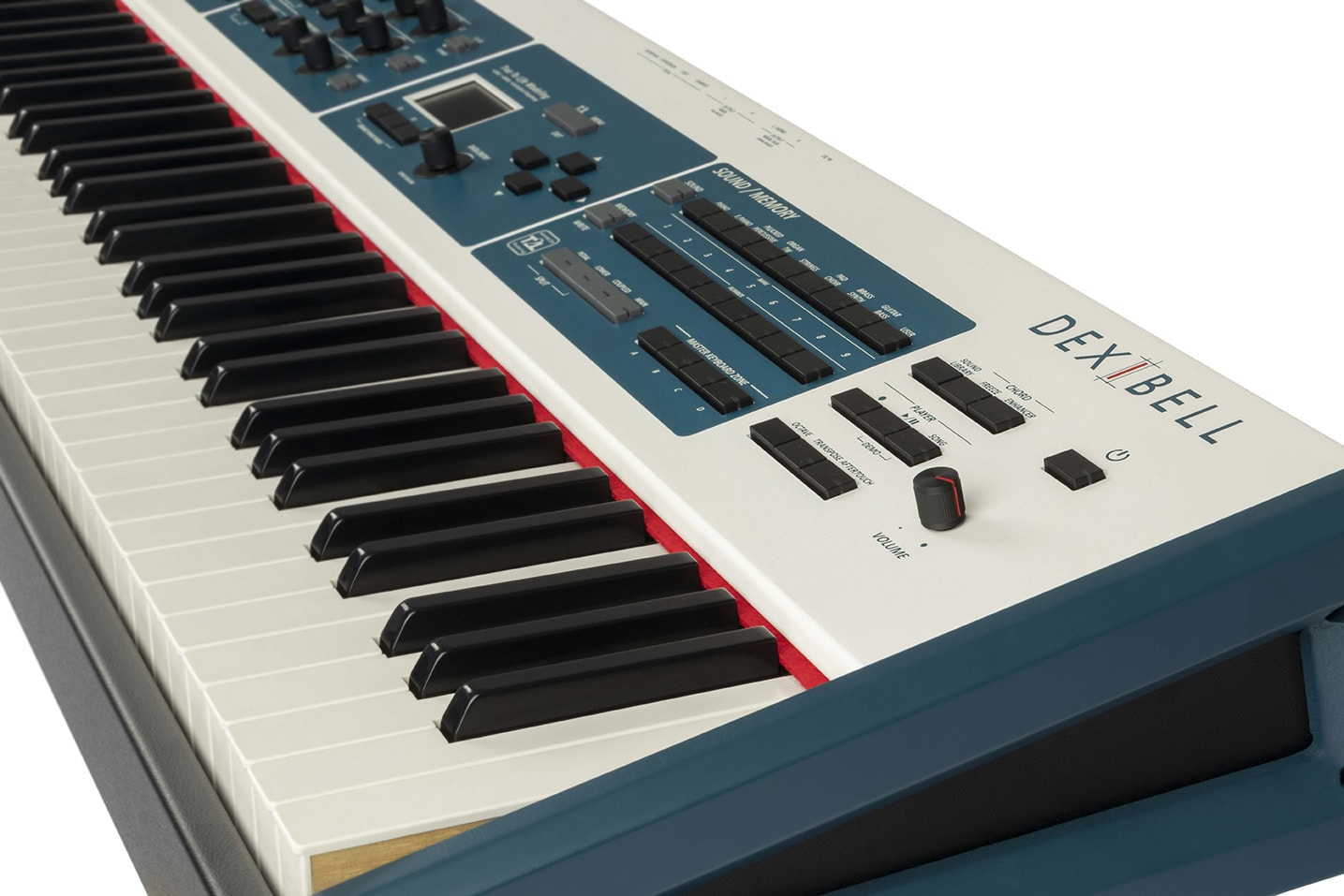

■ Unique hybrid hammer action keyboard

Equipped with a unique 88-key professional "hammer action" keyboard that uses a hybrid structure (wood and polymer).

The new VIVO S10 is equipped with a unique 88-key professional "hammer action" keyboard that uses a hybrid structure (wood and polymer) and "Advanced T2L" that further enhances the unique True to Life technology, providing musicians with the most advanced performance in the stage piano category.

In addition, the Bluetooth function that supports MIDI and audio allows you to wirelessly control programs and parameters from your iOS device using the VIVO Editor app.

・New quad-core processor with 3.2 GB memory
・180 sounds including the legendary PLATINUM selection
・More than 100 organ presets
・Unlimited 24-bit/48 kHz polyphony
・12 independent DSP effects, programmable outputs that can be used individually for routing each part

■Specifications
Keyboard: 88 keys (TP-400W: graded weight hammer action keyboard, wood and plastic hybrid construction, ivory and ebony feel, 3-point contact, aftertouch)
Tone generator: Advanced T2L (sampling and modeling technology)
Sampling: XXL wave size with samples up to 15 seconds
Sound wave: 24 bit linear - 48 kHz (internal processing & DSP: 32 bit floating point)
DA converter: 24 bit linear - 48 kHz, dynamic range / S/N ratio: 106 dB
Maximum polyphony: Unlimited (oscillators: 320)
Organ type TW1, TW2, FARF, VX, PIPE, User1/2
Presets: Over 100 organ presets + 180 tones + downloadable from website
Draw faders: 9 (motorized: tone wheel, mixer, EQ, master keyboard controller)
Built-in memory: 81
Waveform memory: 3.2 GB (can be changed to DEXIBELL, Sound Font format)
Keyboard mode: 4 parts (MAIN, LOWER, COUPLED, PEDAL) + 4 MIDI zones
Keyboard touch sensitivity: 7 levels + FIX
Reverb: 24 types
Effects: Organ (rotary, overdrive, vibrato/chorus) + 12 (3 systems per part) independent DSP x 17 types, seamless change technology when recalling effects
Master EQ: 3-band digital equalizer
Chord enhancer: Yes
Controllers: Draw faders (organ TW, S1-S9 reverb, volume), FX encoder x 6 (with LED meter), Data input/Song level encoder x 1 (with LED meter), Master volume knob, Wheel 1 & Wheel 2

Audio recording and playback function
Recording: .wav (48 kHz, recorded to USB memory)
Playback: .wav, .aiff, .mp3

Master tuning: 415.4 Hz - 466.1 Hz (adjustable in 0.1 Hz increments) + 440 Hz and 442 Hz are preset
TEMPERAMENT: 9 types + 3 users
Rhythm pattern: Multi-track audio patterns provided by X MURE app (for iOS devices, free)

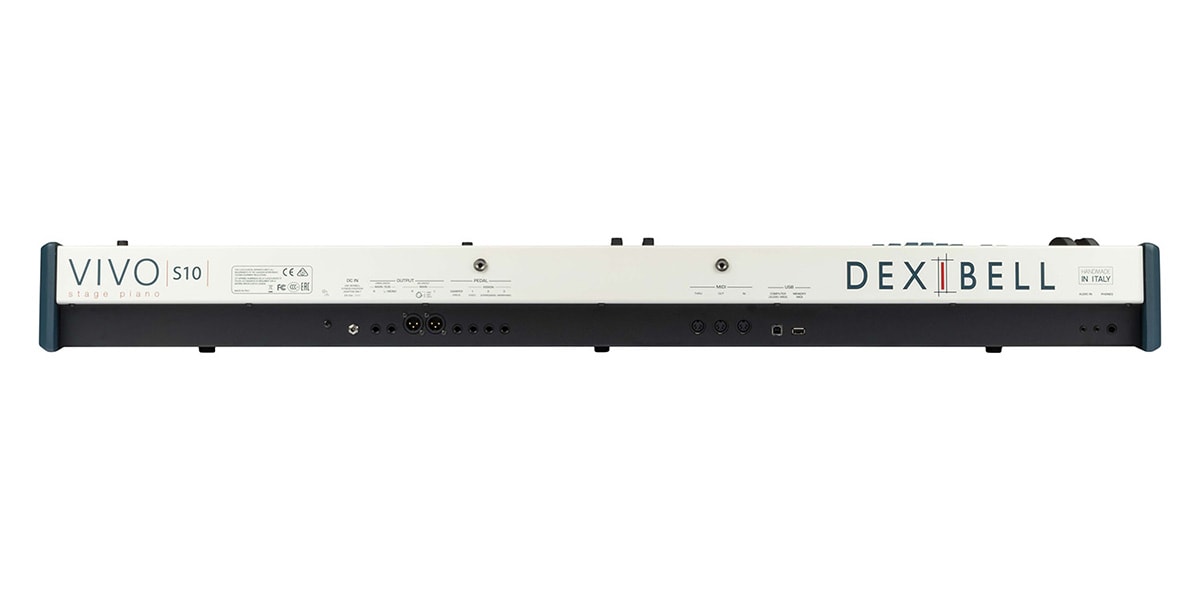

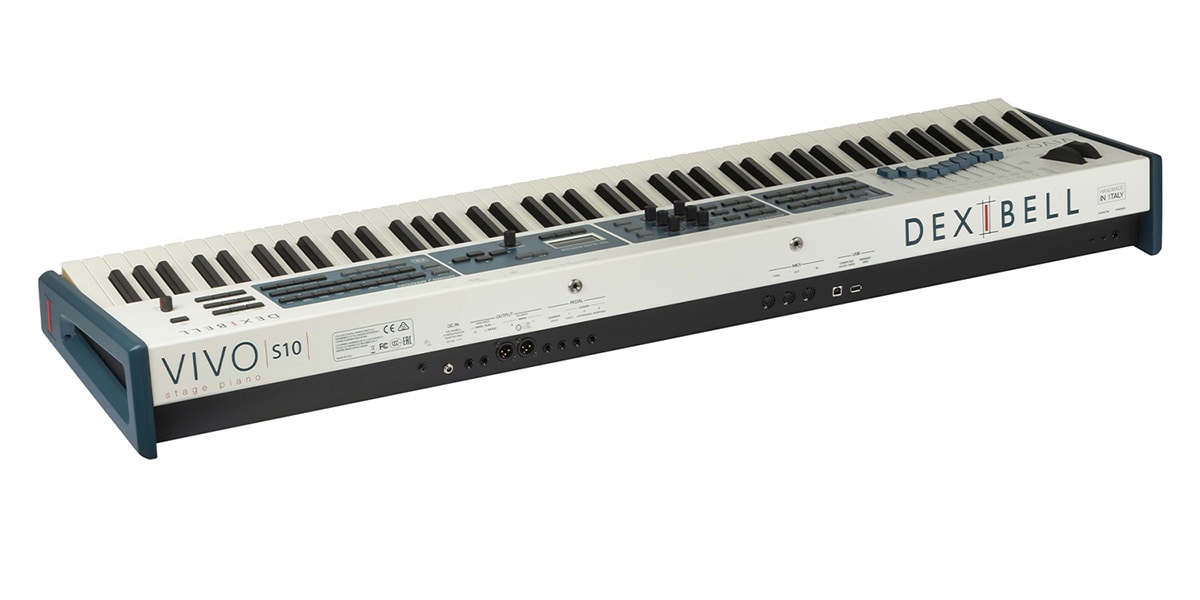

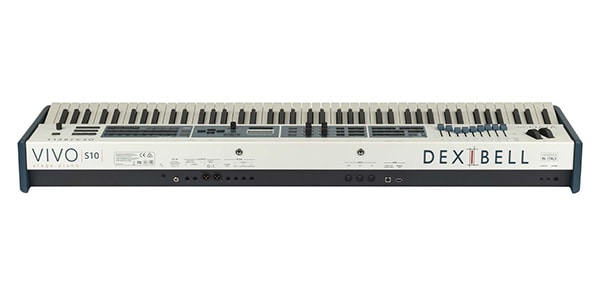

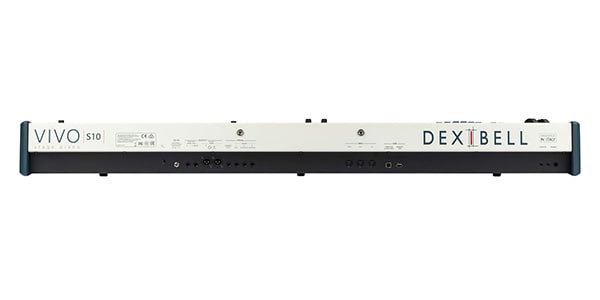

Input/output terminals
OUTPUT: MAIN balanced: XLR (L/R) - MAIN/SUB unbalanced (L/MONO, R) 1/4 inch phone jack
FOOT 1: Progressive damper action pedal with sympathetic resonance simulation
FOOT 2: Function assignable
FOOT 3: Expression pedal/function assignable
FOOT 4: Morphing pedal/function assignable

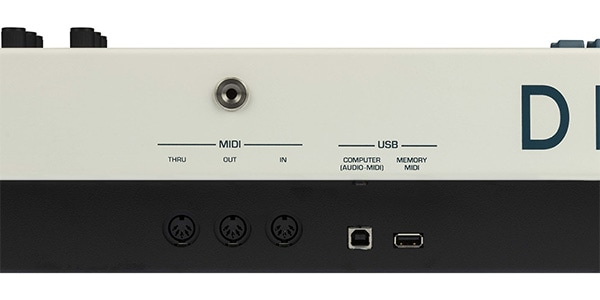

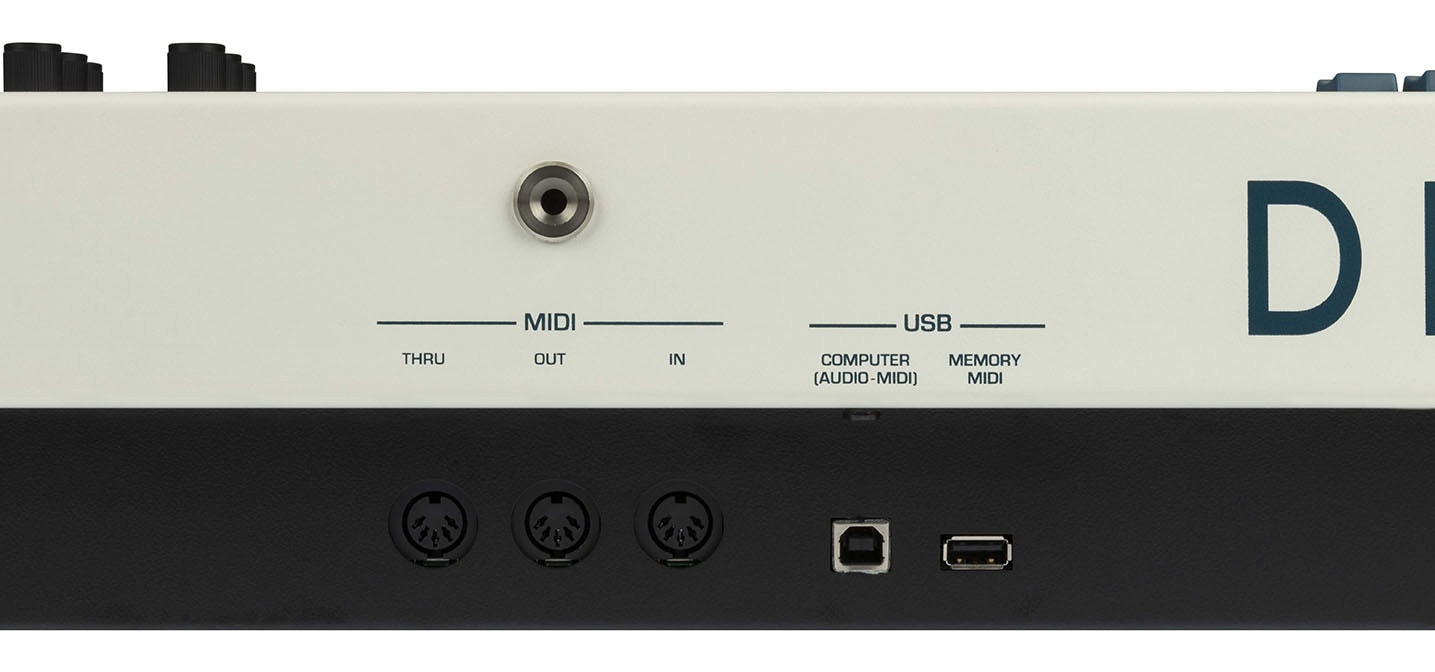

MIDI: In, Out, Thru
USB: TO HOST (MIDI & digital audio input/output), TO Device (memory & MIDI)
AUX IN: Stereo mini jack
BLUETOOTH: Audio input function
Bluetooth MIDI function: (MIDI BLE 4.2)
Display: 128 x 64 pixels, high contrast OLED
Power consumption
Standby: Less than 0.2 W
Maximum: 18 W
Metronome: Tap tempo + Standard tempo preset x 13
Dimensions: 1270 (W) x 354 (D) x 130 (H) mm
Weight: 20 kg
Accessories: AC adapter, damper pedal (DX CP1), music stand (DX MSK)
