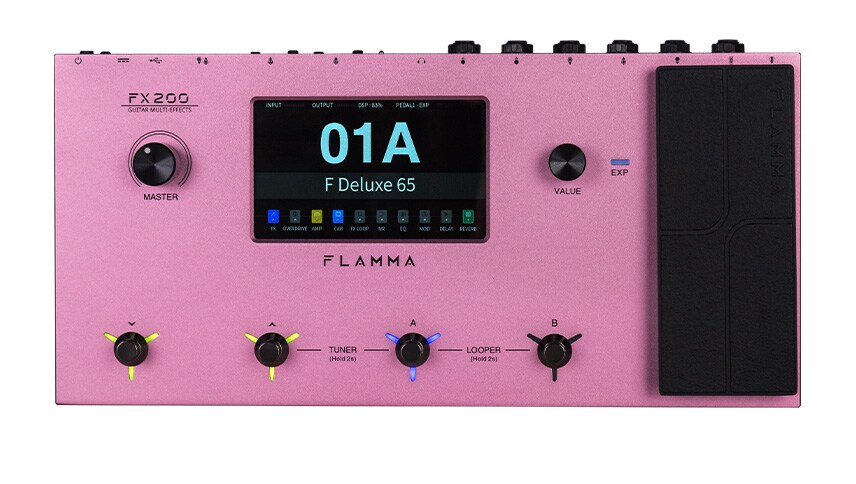

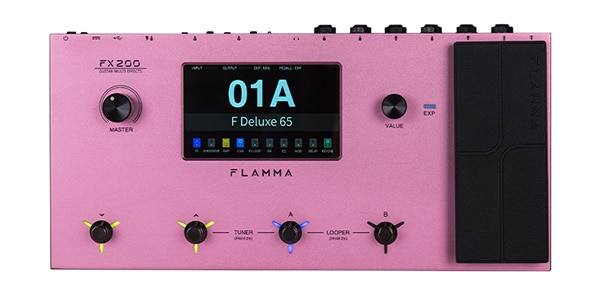

FLAMMA / FX200 Pink

The X200 is the latest flagship multi-effect processor from Flamma Innovation. The FX200 is a step up from the FX100 in every way, including a state-of-the-art 5’ LCD touchscreen and a new, sleek user interface with digital pedal icons that pop to recreate the feel of Flamma's micro pedal line-up.

■FX200-Hardware.
AUX IN: 1*1/8’ unbalanced stereo input jack, impedance value 47kΩ.
EXP 2: 1*1/4’ TRS jack, impedance value 10 kΩ.
INPUT: 1*1/4’ unbalanced mono input jack, impedance value 1MΩ
SEND: 1*1/4’ unbalanced mono output jack, impedance value 510Ω
RETURN: 1*1/4’ unbalanced mono input jack, impedance value 1MΩ
OUTPUT: 2*1/4’ unbalanced mono output jack, impedance value 600Ω.
PHONES : 1* 1/8’ stereo output jack, impedance value 47Ω
XLR OUT: 2* balanced XLR output jacks, impedance value 600Ω
MIDI: 1* 5-pin MIDI female port
USB: 1* USB TYPE-C port, for data transfer and USB AUDIO
DC IN: DC 9V 1A, centre negative
SNR: A/D converter 24-Bit 112 dB; D/A converter 24-Bit 110 dB
　
■FX200-Others
Dimensions: 343 x 170 x 55 mm (D x W x H)
Accessories: power supply, USB cable, quick guide
Weight: 1780 g

FX200b-Battery
Built-in rechargeable 3000 mAh lithium battery
Battery life: approx. 5 hours
