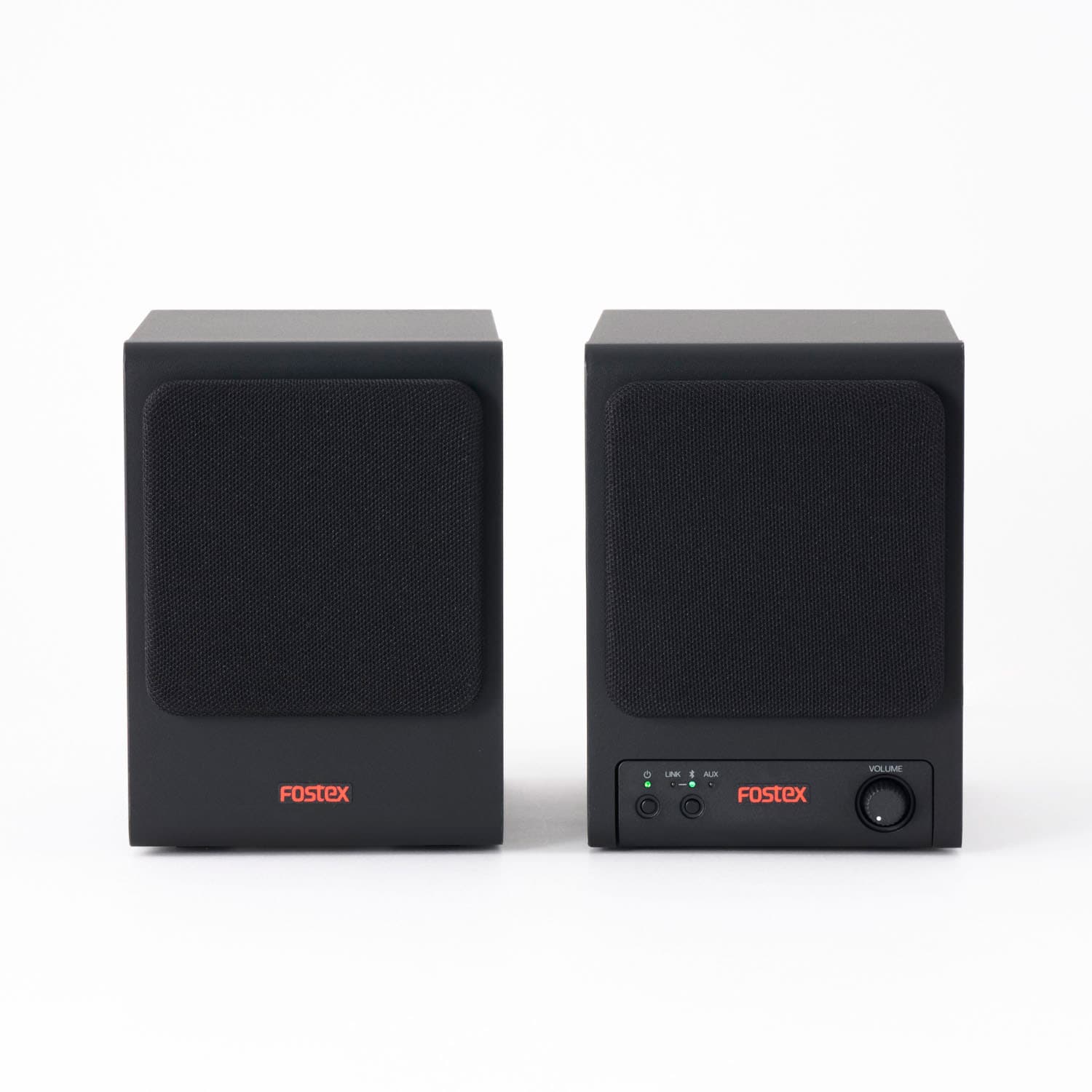

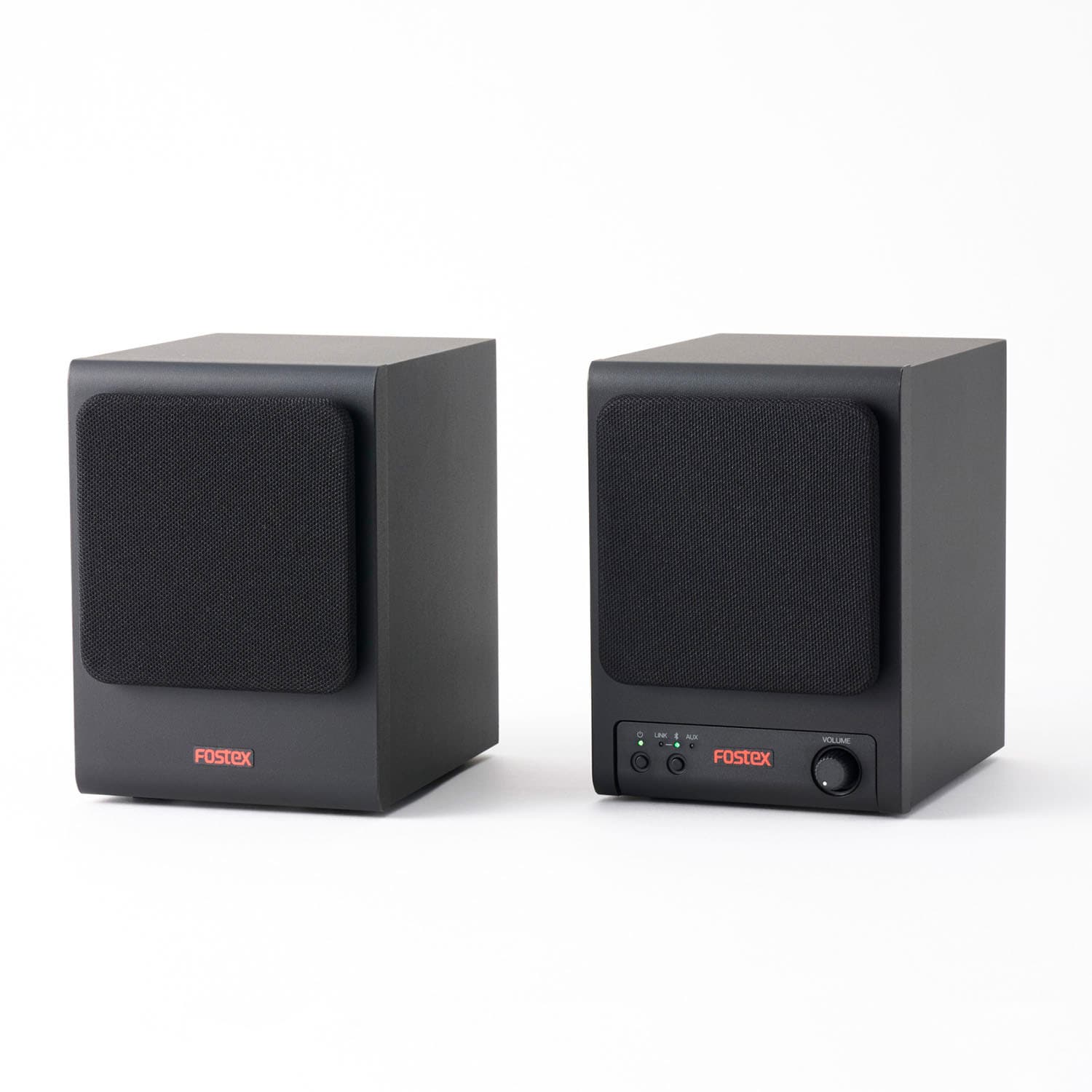

Fostex / PM01BD

Fostex/PM0.1BD is compact in size and equipped with a single driver, achieving high sound quality with excellent localization. This is an active speaker that allows you to easily enjoy music and video streaming anywhere with sound that exceeds its size.

■Powered monitor speaker
■15W+15W
■Pair

■Product overview
This product is an active speaker that is compact in size and allows you to enjoy subscription music and video streaming with high sound quality. The speaker unit is equipped with a single driver, which not only reproduces a sharp sound image with excellent localization, but also achieves a wide range through total sound tuning, easily providing a sound space that exceeds its size anywhere.

■Main features
●Equipped with a newly designed 75mm (3inch) full range single driver.
Equipped with a full-range single driver that reproduces a sharp sound image with clear sound quality from low to high frequencies. Coupled with the compact book size, you can easily play point sound sources and feel a realistic sound field.

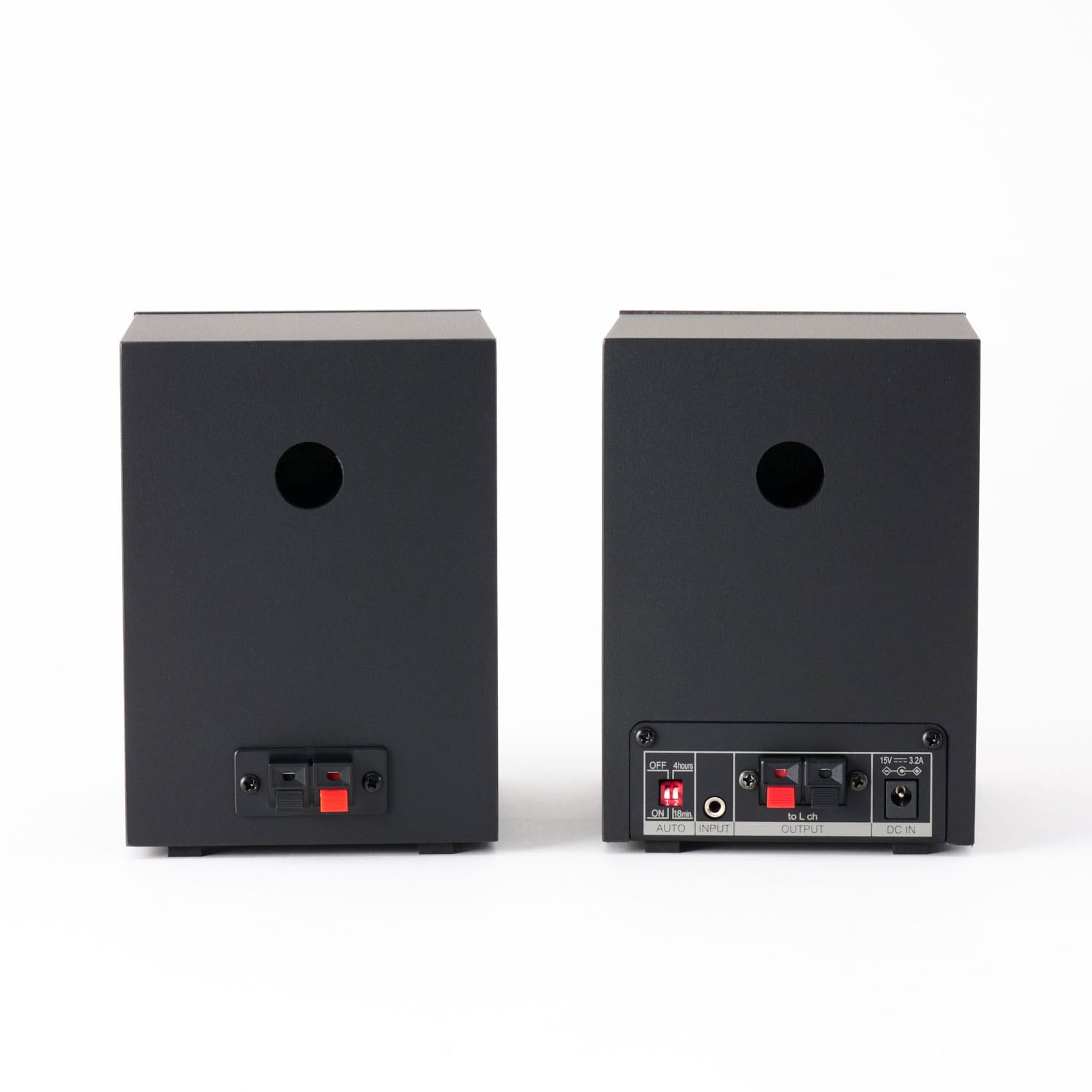

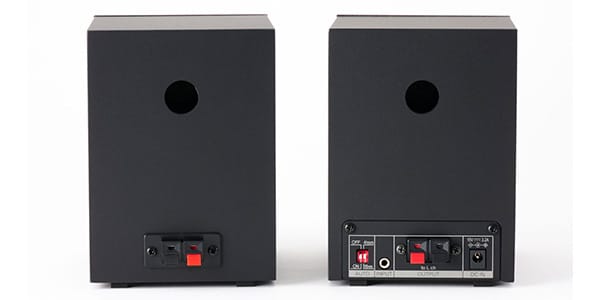

● Compatible with Bluetooth and analog (AUX) input.
It is possible to switch inputs such as Bluetooth for smartphones and analog for audio interfaces. (Bluetooth 5.0 SBC)
● Wooden enclosure with separate structure
The natural-sounding wooden enclosure has a separate structure for the enclosure and amplifier section, eliminating the effect of sound pressure on the back of the driver on the amplifier's electronic circuit. In addition, the R channel (active side) and L channel (passive side) have the same structure, minimizing differences in sound quality caused by left-right differences. The amplifier section is a high power D class 15W + 15W, powerfully driving each channel of R and L.

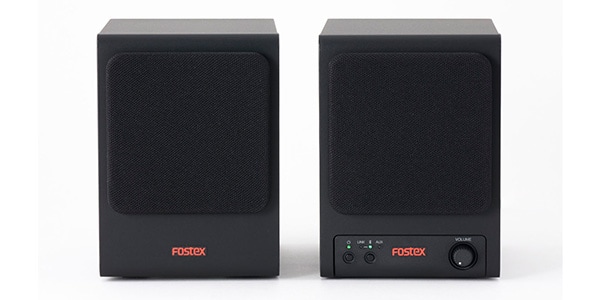

● Volume adjustment and input source selection can be done on the front.
The volume knob and input selector on the front of the main unit ensure excellent operability.
●Power saving mode to reduce power consumption
Equipped with a power saving mode that reduces power consumption when no signal is input (silent state) for a certain period of time.

■Main specifications
● General
Enclosure method: Bass reflex method
Built-in unit: 75 mm cone type full range
Amplifier power: 15W + 15W
Frequency characteristics: 110 Hz~20 kHz
Dimensions: 110 mm (width) x 153 mm (height) x 150 mm (depth)
Mass: 2.4 kg (1 pair)
●　Bluetooth
Communication method: Bluetooth standard Ver.5.0
Output: Bluetooth standard Power Class1
Communication distance: Approximately 10 m *If there are no obstacles
Frequency band used: 2.4 GHz band
Compatible profile: A2DP
Compatible codec: SBC
Compatible content protection: SCMS-T method
Transmission band: 20 Hz-20 kHz
●　AUX
Terminal: Stereo mini jack
Input sensitivity: 500 mVrms
Maximum input: 2 Vrms
● Power supply section/AC power adapter
Input: AC 100 V-240 V (50 Hz/60 Hz)
Output: DC 15V 3.2A
●Accessories
AC power adapter, speaker cable (1 m), safety precautions, instruction manual
