WiiM / WIIMAMPSV

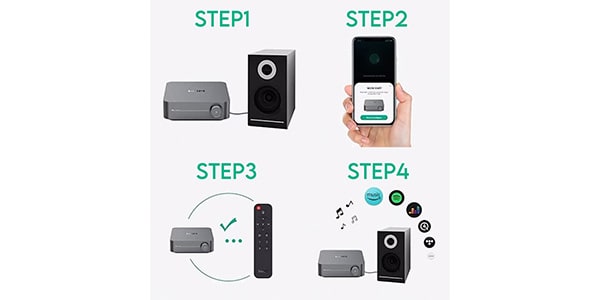

WiiMAmp upgrades your passive speakers to modern streaming-enabled devices, allowing you to stream music with Hi-Fi sound and a very simple configuration. Even audiophiles will appreciate WiiMAmp's sound quality, stable streaming, intuitive controls, and unlimited expandability. Just by installing WiiMAmp, you can transform your passive speakers into smart audio devices.

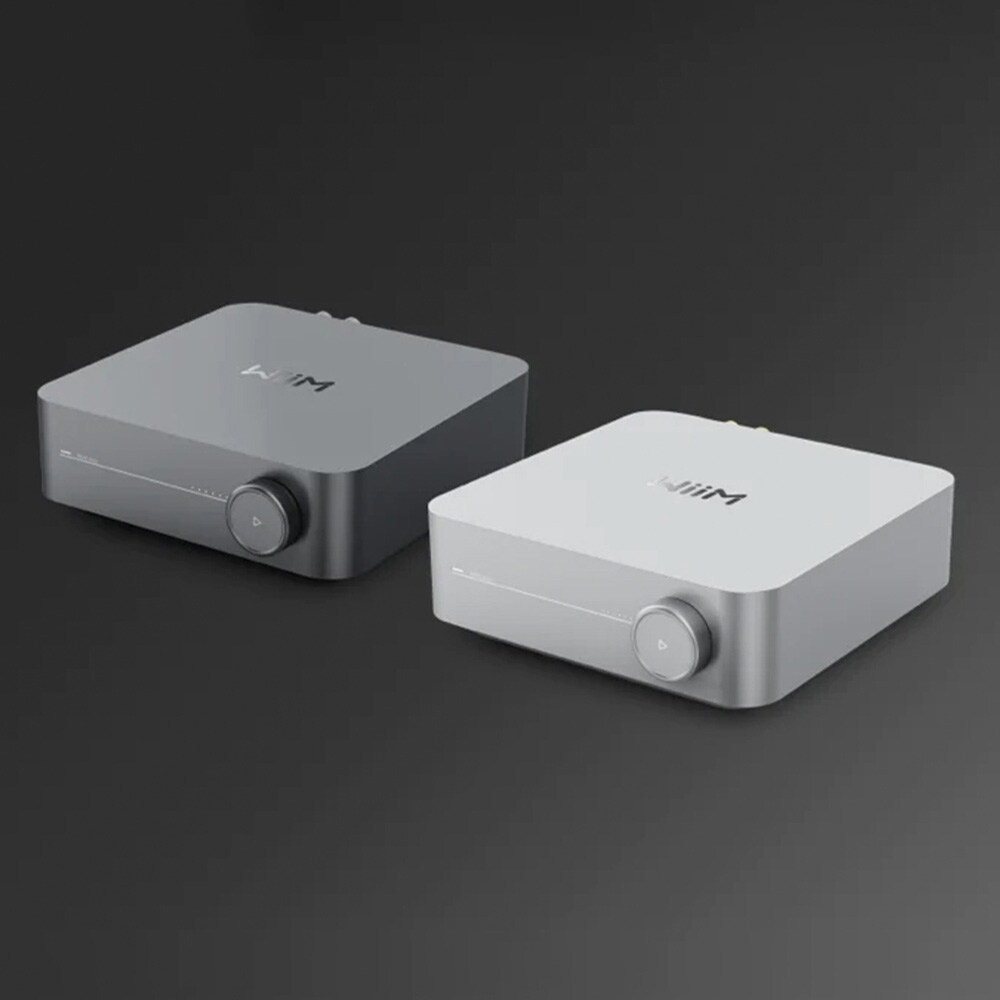

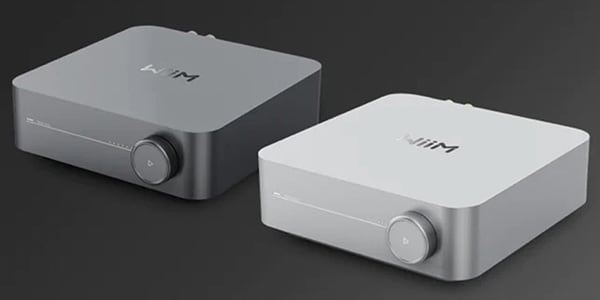

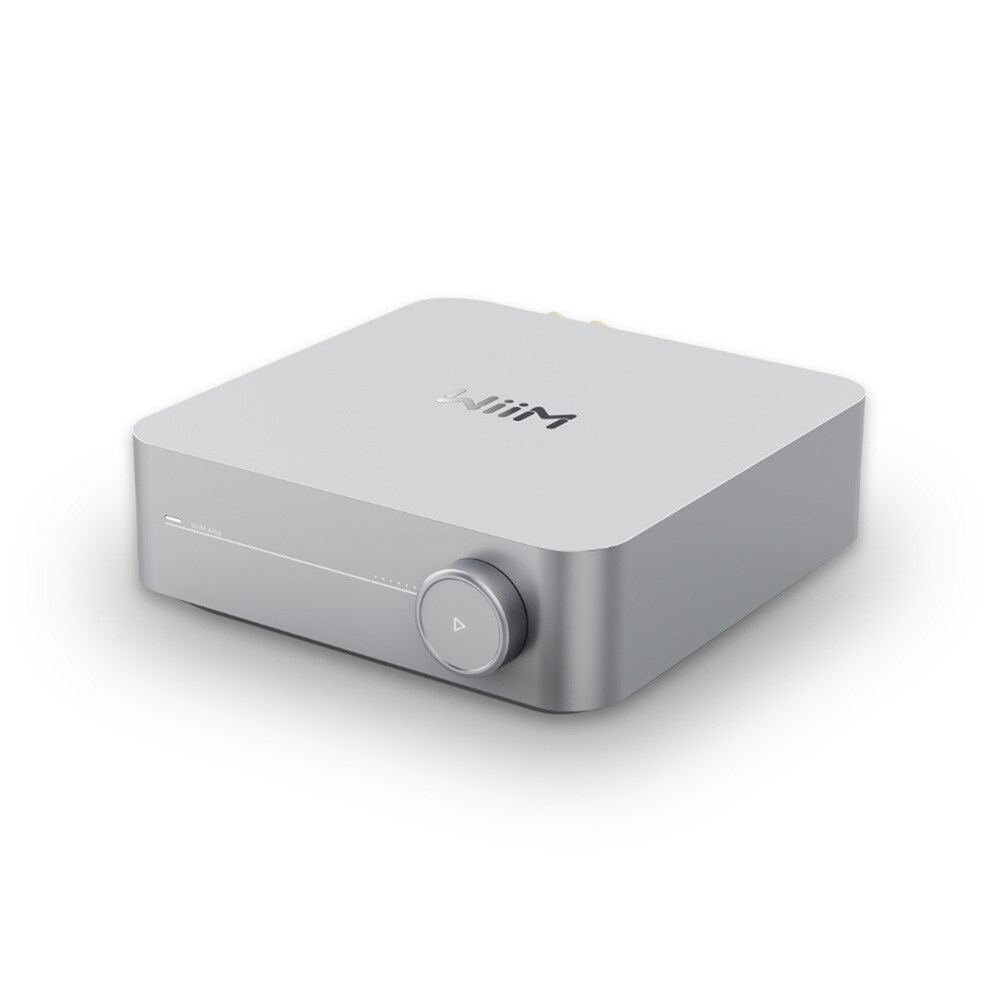

■Robust and compact design that fits well with high-grade systems
WiiMAmp follows a compact design with an aluminum shell for the exterior so that the appearance of the system is not compromised even when set up with a high-grade system, ensuring flexibility in installation location and setup.
Inside the compact body, high-grade component selection and innovative circuitry deliver output levels of 60W per channel into 8Ω and 120W into 4Ω.
It has a customized heatsink inside to ensure optimal heat dissipation performance.
From floor stands to bookshelves, you can set up with a wide range of speaker devices without feeling limited.

■Excellent sound quality

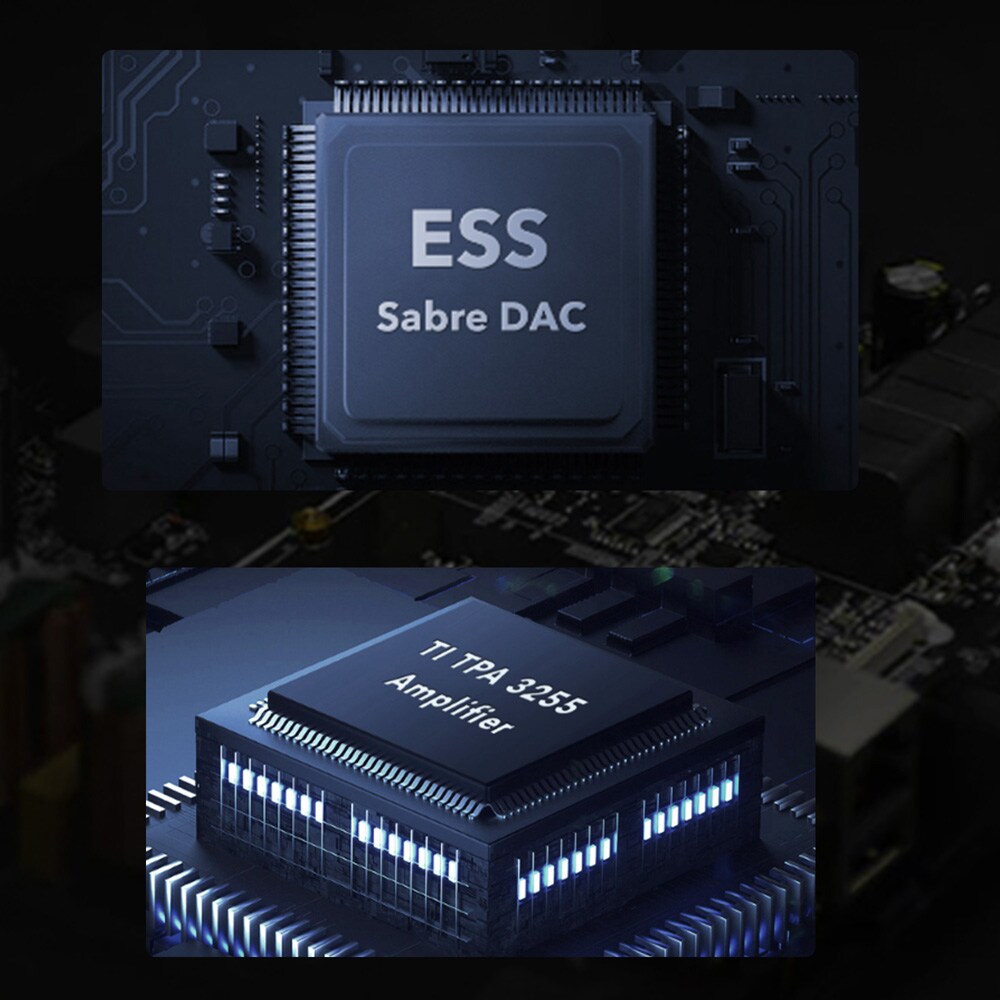

Experience unimaginable sound from a compact body with WiiMAmp equipped with the ESS Saber DAC chip ""ESS 9018 K2M"" and Texas Instruments ""TPA 3255"" Class-D power amplifier.
Delivering an incredibly clear and rich audio experience.
THD+N: 0.002% (-93 dB), SNR: 98 dB for a clear and rich listening experience.
From casual listeners to audiophiles, WiiMAmp's sound quality will satisfy everyone.

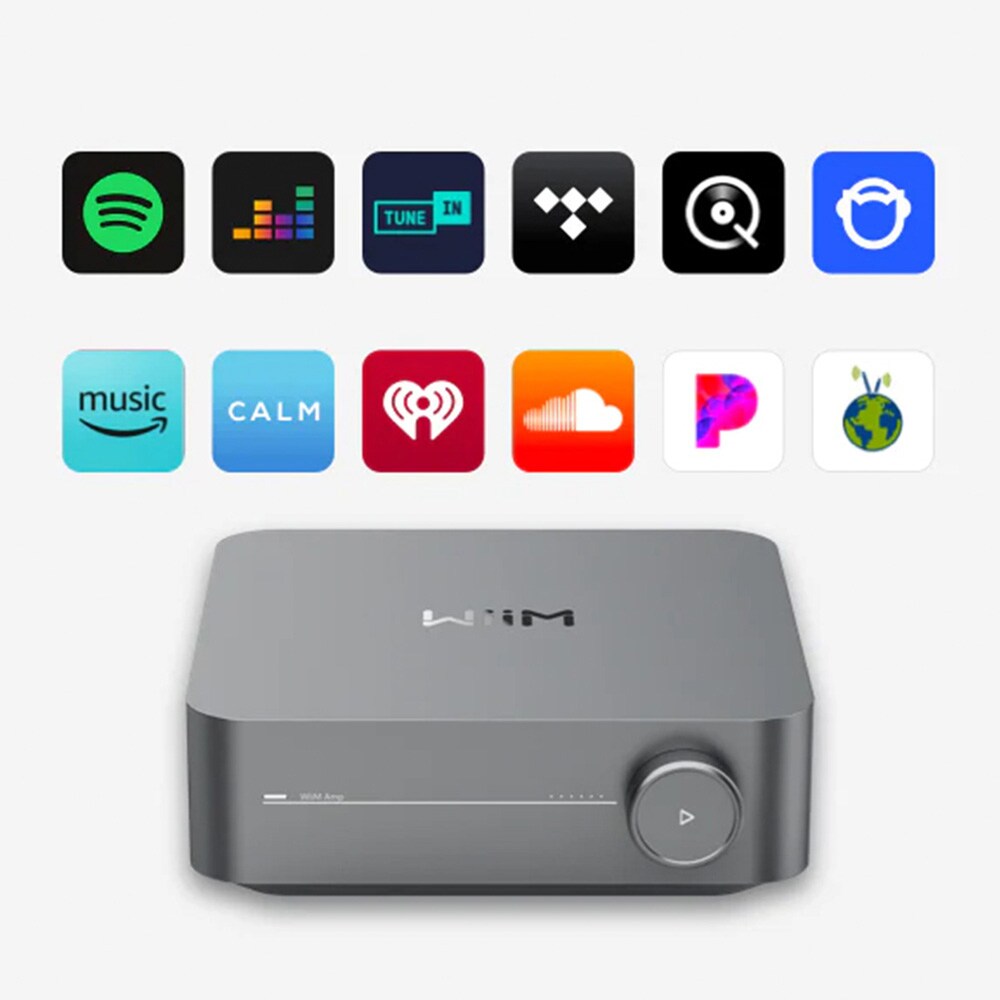

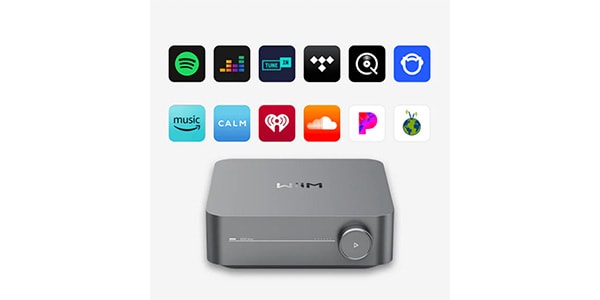

■Compatible with all streaming types
WiiM is compatible with many popular music streaming services.

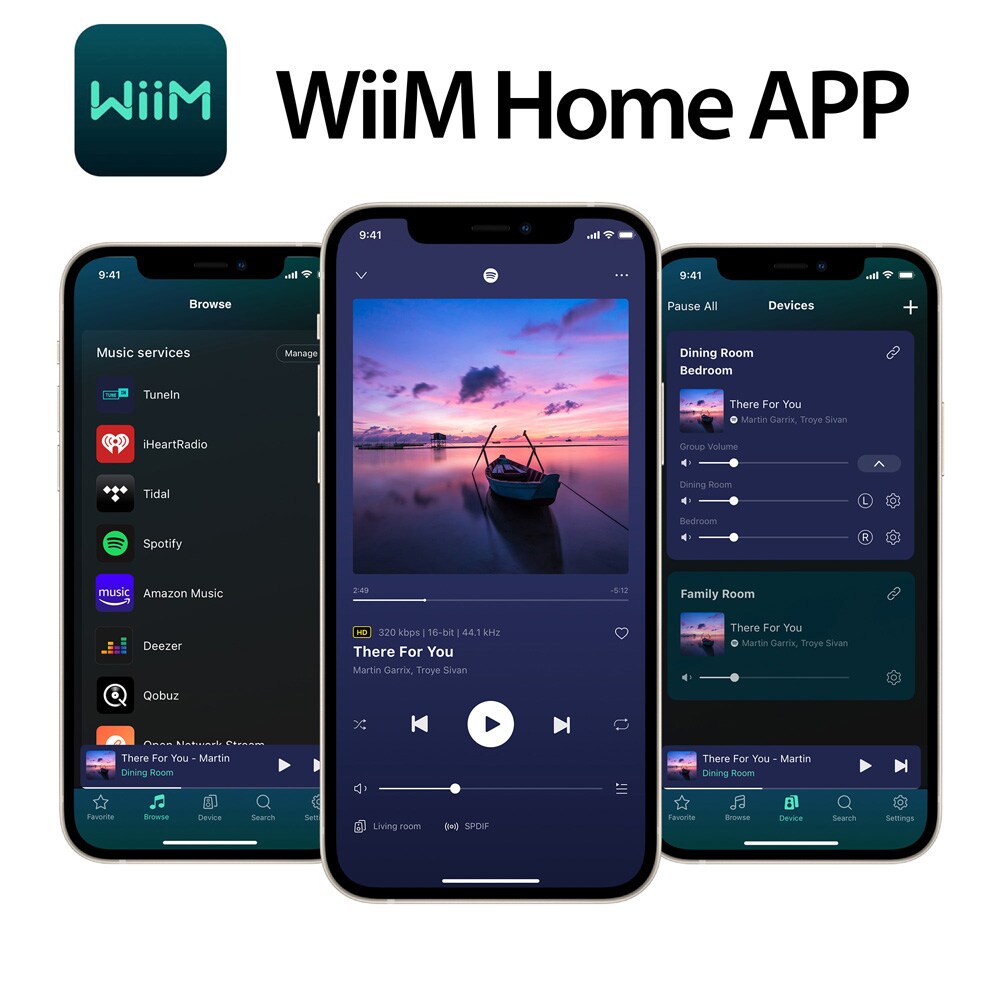

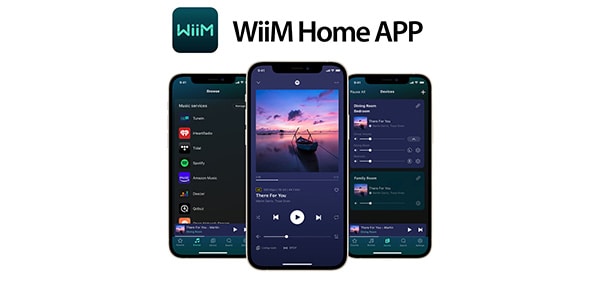

With a single device, you can control everything from streaming to device settings with WiiMHome from your smartphone.
There is no need to search for applications to match the streaming service; all you need is a smartphone and WiiM, and you can become a complete streamer with just one device.

■Access your music library anytime

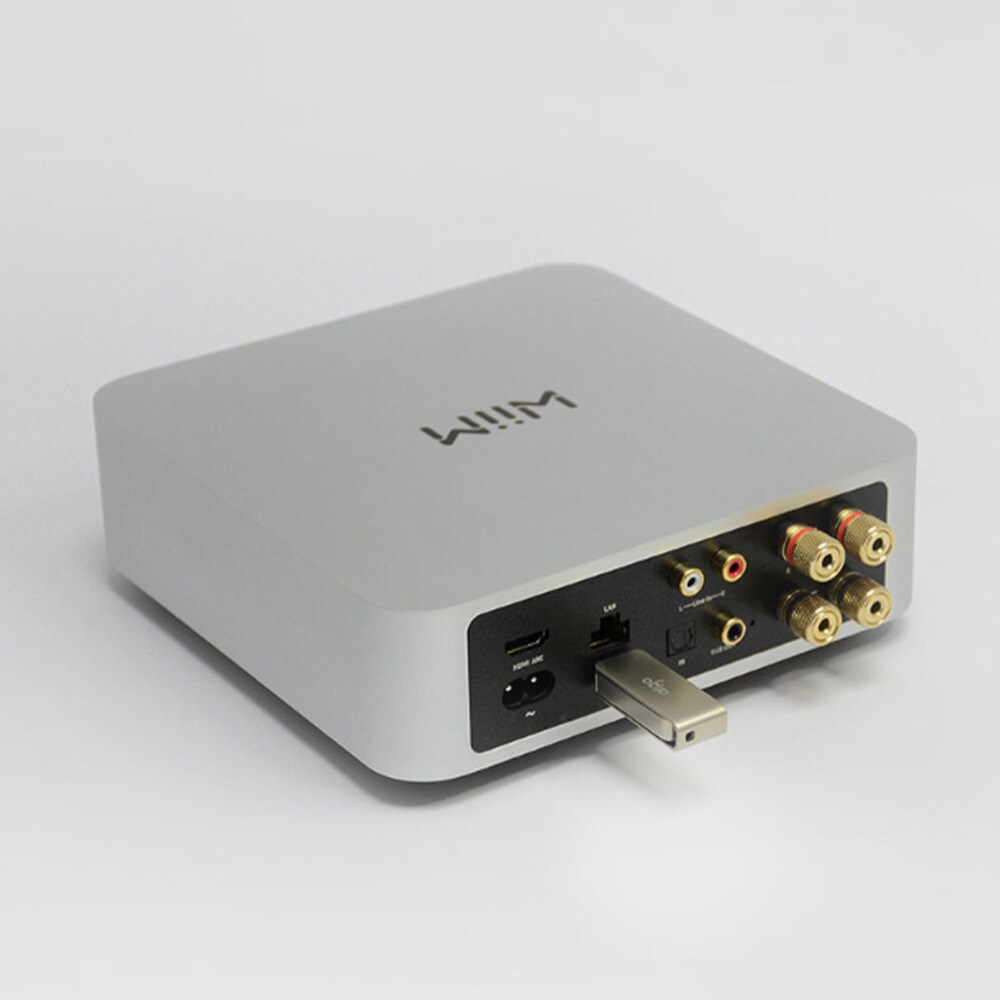

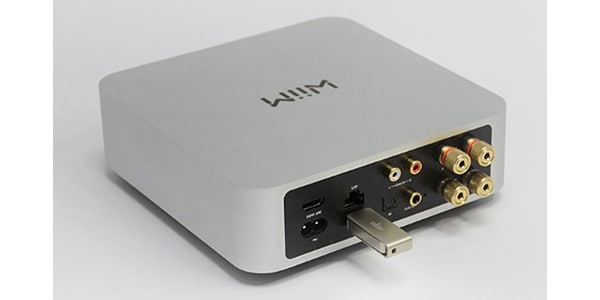

Connect your USB storage to the USB drive port to access your song collection anytime.
WiiMAmp acts as your media server, allowing you to enjoy your favorite songs anytime, anywhere in your home.
Additionally, if you are building multi-room audio, it can act as a media server and stream to multiple WiiM devices, allowing for richer multi-room audio.

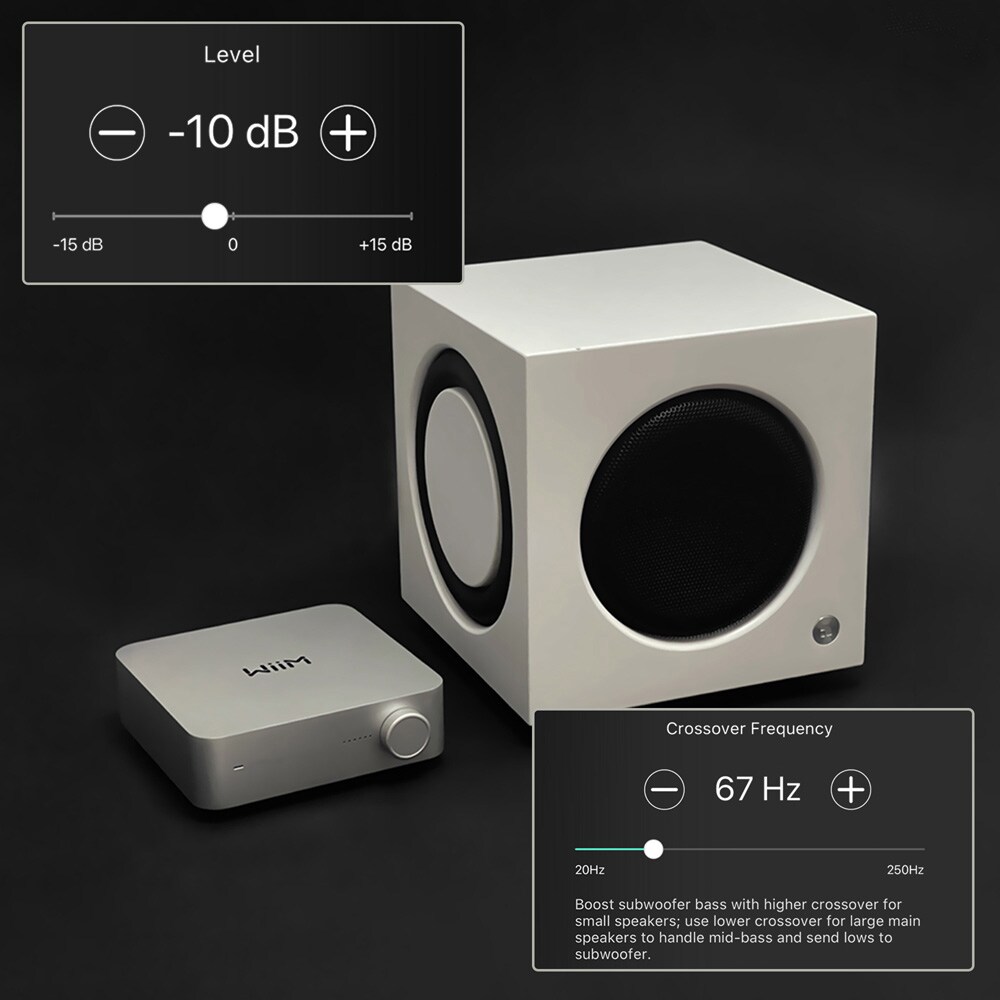

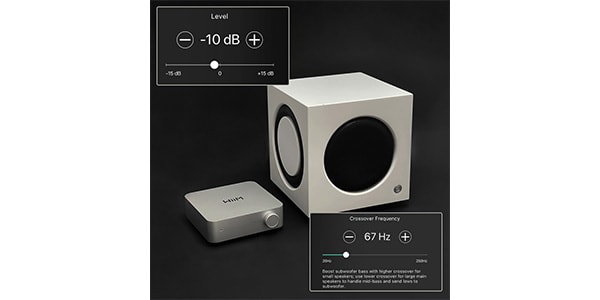

■Equipped with a subwoofer out that supports customization
It is possible to customize the subwoofer's crossover band settings and output level.
By customizing the subwoofer to your preference according to the speaker size you are matching up with, you can create a comfortable audio room with an excellent immersive experience.


■Size: 190×190×63mm
■Weight: 1840g
■Housing: Anodized aluminum
■Wi-Fi: IEEE 802.11 b/g/n/ac dual band Wi-Fi, 10/100 Mbps LAN
■Bluetooth: Ver5.1, A2DP sink and source, AVRCP, BLE HID
■Power input: 100 -240V 50/60Hz

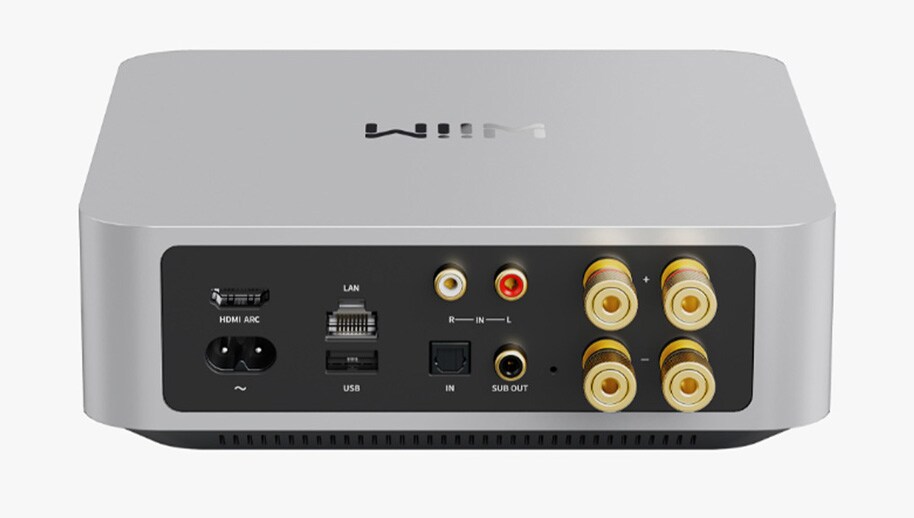

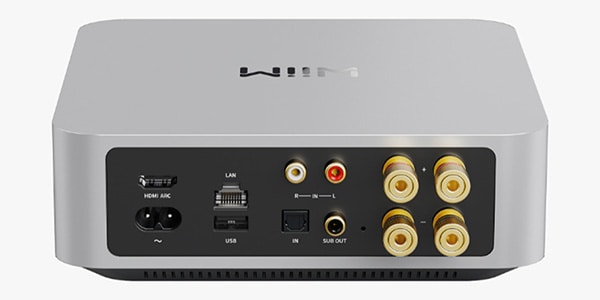

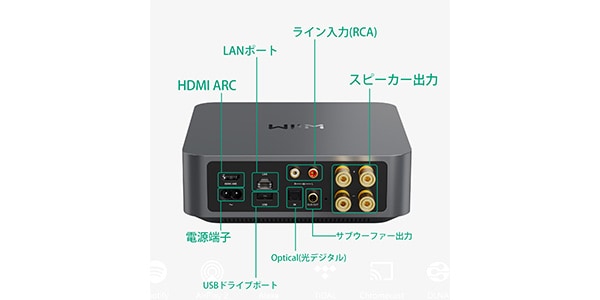

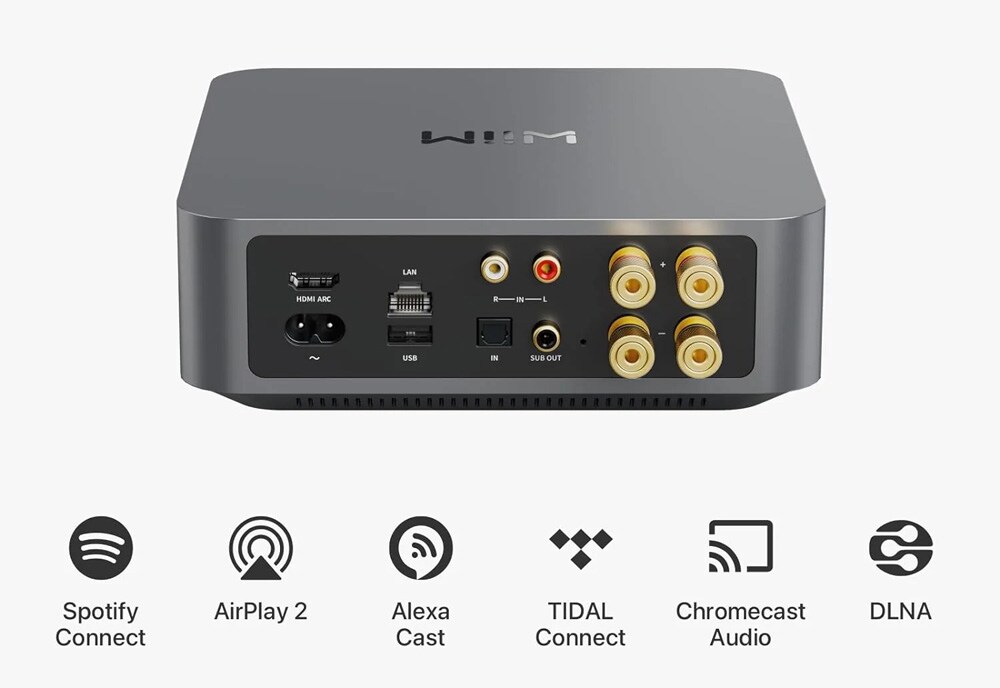

■Audio output: Passive speaker terminal/subwoofer output (with bass control function)
■Audio input: HDMI ARC / Optical / Line (RCA)
■Speaker output: stereo or dual mono sound
■Output level: 60W / channel (at 8Ω) / 120W / channel (at 4Ω)
■SNR: -98dB
■THD+N: -0.002% (-92dB)
■Subwoofer output: Automatic detection when connected, user adjustable range 20-250Hz crossover
■Supported formats: MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
■Theater format: Stereo PCM (not compatible with Dolby Digital, not compatible with DTS)

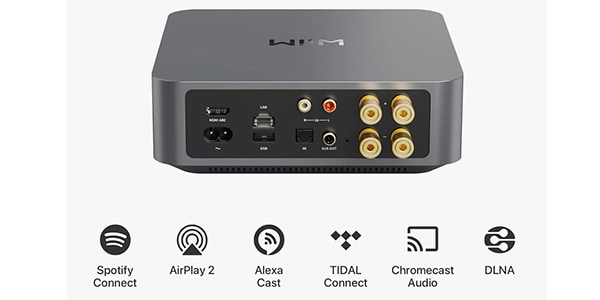

■Supported network functions: AirPlay2 / Chromecast / Spotify Connect / TIDAL Connect / Alexa Cast/DLNA

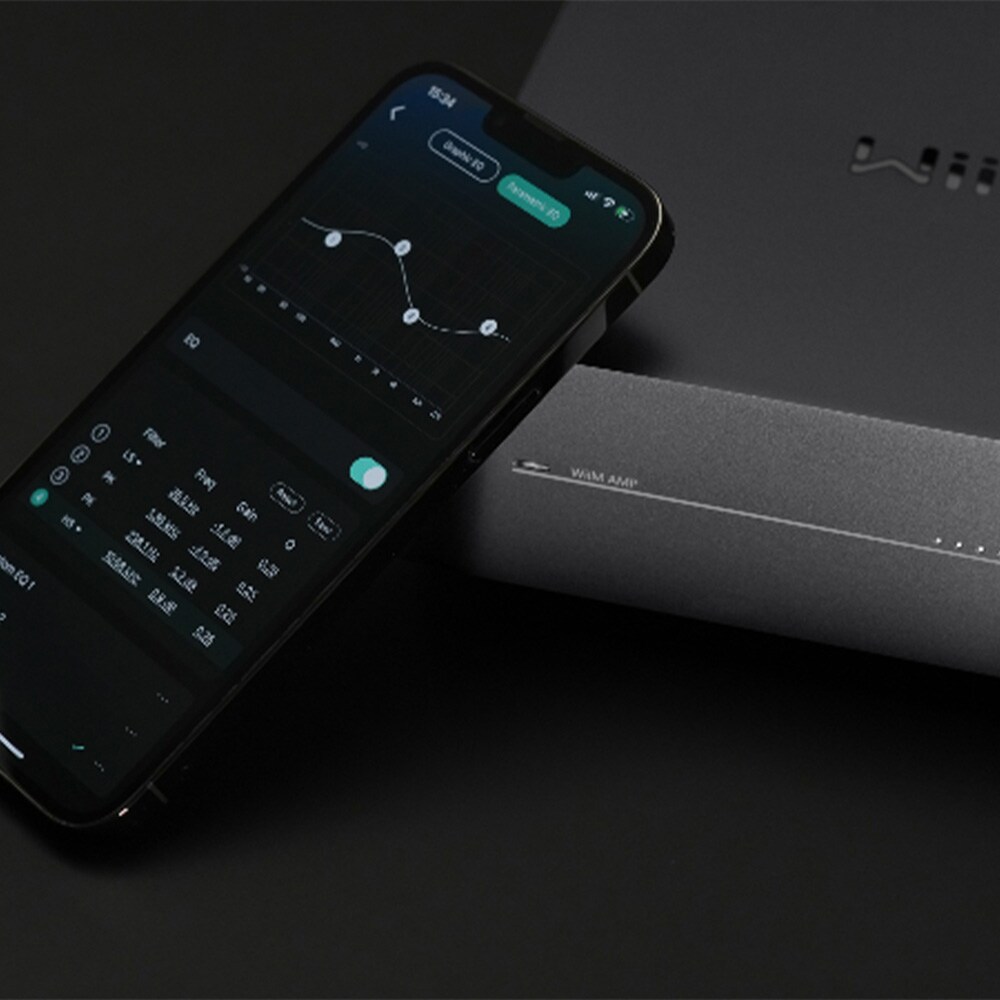

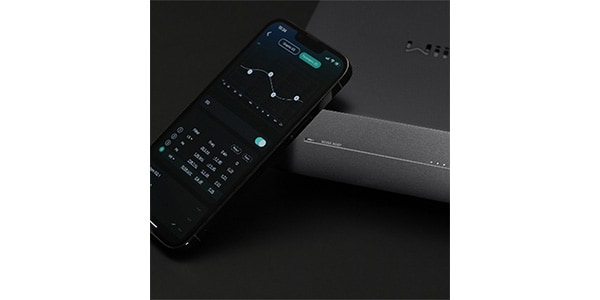

■EQ function: Preset / 10-band graphic EQ / 4-band parametric EQ
■LED function: status indicator/volume indicator
■Control: Volume control knob/play/stop, etc.
■Main streaming sources: Spotify / Amazon Music / Deezer / TuneIn / TIDAL / Qobuz / iHeartRadio / Napster / Sound Cloud / VTuner / Calm Radio, etc.
■Control device: iOS smartphone/tablet/Android smartphone/tablet/PC/Alexa speaker/Google Home device/HomePodetc
