Ibanez / PTEQ

We have added a “Q control” section that allows you to adjust the width of the frequency band to boost or cut, and brushed up the headroom so that it can be used with electric bass and keyboards by increasing the headroom. This single unit gives you the freedom to adjust the sound as you like.

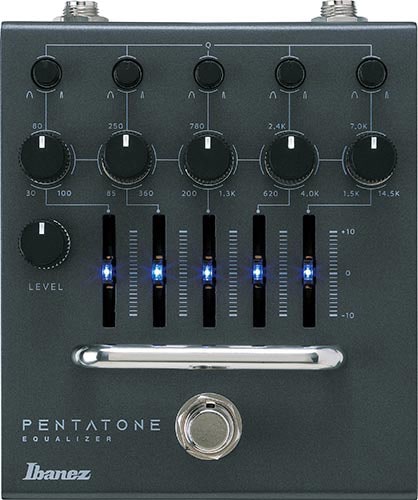

5-band parametric EQ
The 5-band parametric EQ allows you to adjust the sound to suit any situation.
The five knobs correspond to five different bands, and you can select any frequency from each band and adjust the fader to boost or cut the frequency by ±10 dB.

■Q controls
The Q controls allow you to adjust the frequency bandwidth of the equalizer for each band.
Turning the Q control knobs counterclockwise around each frequency selected by the 5-band parametric equalizer widens the bandwidth, and turning them clockwise narrows the bandwidth.

■Master LEVEL control
Adjusts the overall volume. It can be boosted up to about +6dB.

Wide headroom
Internal voltage booster circuit increases the headroom, which can be used for electric basses and keyboards.

Controls: 5-band frequencies, 5-band levels, 5-band Q controls, Master Level
Other: True bypass

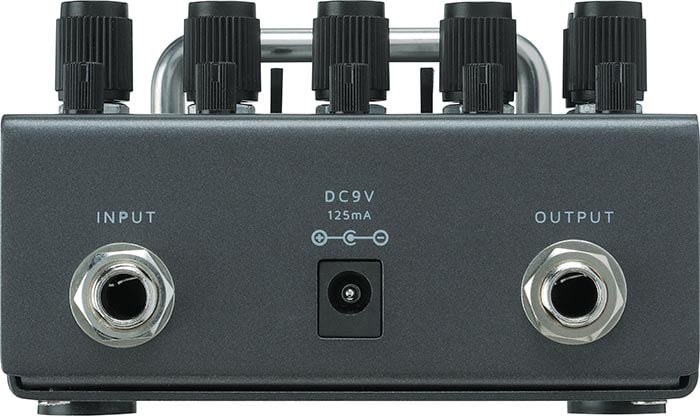

I/O's: INPUT, OUTPUT
Size: 100(W) x 123(D) x 63(H) (mm)
Weight: 690g (Including Battery)
Required Current: 125mA@9V
Power Supply: One 9V battery (006P) or External DC 9 volt AC adapter(*)
*Please purchase a 9V/center-negative AC adapter separately.
