ELEKTRON / Digitakt II

DIGITAKT is a 16 audio track and 16 MIDI track digital drum machine and stereo sampler.

The new Digitakt II is the key to taking you to another dimension.

Weave sound fragments together in stereo, with great audio manipulation and beat sequencing at your fingertips. Save or distort now as you wish with 16 tracks of stereo or mono samples, or MIDI-compatible. Each track offers switchable filters and a wide range of effects and modulations to take advantage of the enhanced processing power and ample memory to maximize sample duration. In addition, there are numerous useful features such as a Euclidean sequence generator, an expanded 128-step sequencer, an extensive sample library, and a modular workflow. Digitakt II is an indispensable tool for expanding the possibilities of sonic montage sculpting.

Specifications
Audio Track Features
16 x stereo/mono audio tracks and MIDI tracks
5 selectable SRC (audio) machines: one-shot, warp, stretch, repitch, grid
5 selectable FLTR machines: multi-mode, low-pass 4, equalizer, comb, legacy LP/HP
1 digital bass-wide filter per track
1 × digital overdrive per track
1 x Digital Bit Reduction
1 × Digital Sample Rate Reduction
1 × Overdrive master effect
1 x Stereo Compressor Master Effect
3 x assignable LFOs per track
400 MB sample memory
+ 20 GB of DRIVE storage
Extensive sample library
MIDI Track Features
4 simultaneous sounds per step
16 assignable CC controls
2 assignable LFOs per track
Performance
4 x trigger modes, track velocity, retrigger (works on audio tracks only) Preset pool (works on audio tracks only)
Keyboard mode with 36 different scales
Song mode
Sequencer functions
128 steps per pattern and track
Individual pattern length changeable per track
Individual scale change for each track
Parameter lock
Trig conditions and trig chances
Retrigger (audio tracks only)
Micro timing
1 x Euclidean sequence generator available per track
Send Effects
Saturator delay
Super Void Reverb
Panorama Chorus

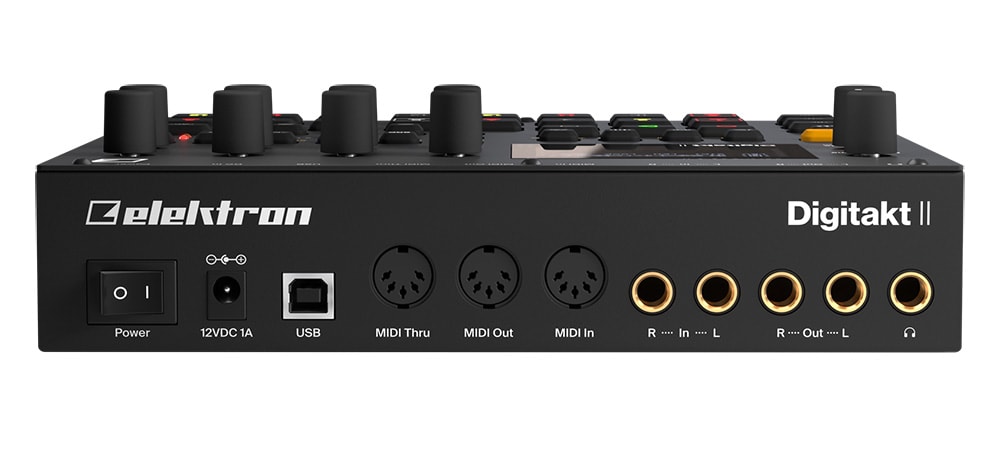

Hardware
128 x 64 pixel OLED screen
2 x 1/4" impedance balanced audio output jacks
2 × 1/4-inch impedance balanced audio input jacks
1 × 1/4-inch stereo headphone jack
48 kHz, 24-bit D/A and A/D converters
High-speed USB 2.0 port
MIDI in/out/through, DIN sync out
Physical Specifications
Rugged steel case
Dimensions: W215 x D176 x H63 mm (including knobs and feet)
Weight: approx. 1.48 kg (3.25 lbs.)
100 × 100 mm VESA mounting holes. Use M4 screws with a maximum length of 7 mm (0.35 in.)
Other
Overbidge support
Class compliant USB audio
External input mixer
3-year warranty
What's Included
Power Supply PSU-3c
Electron USB Cable
Artwork
