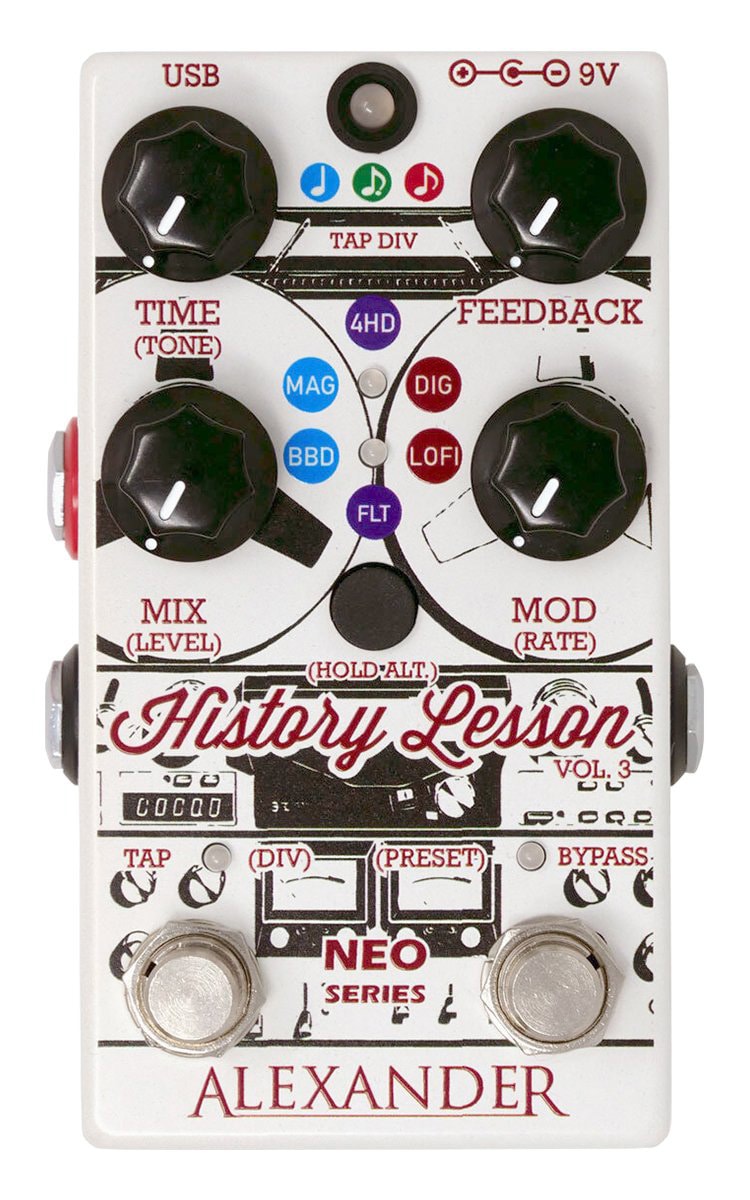

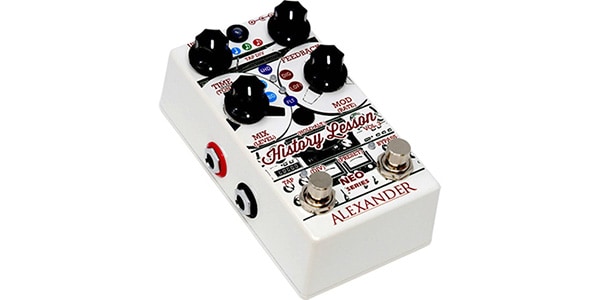

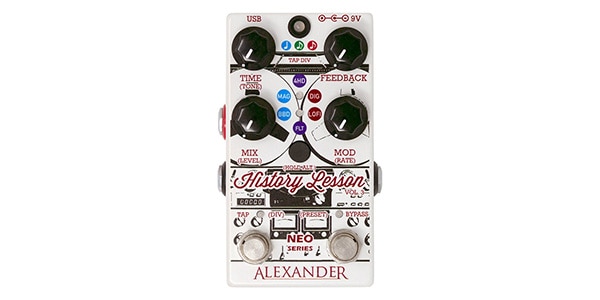

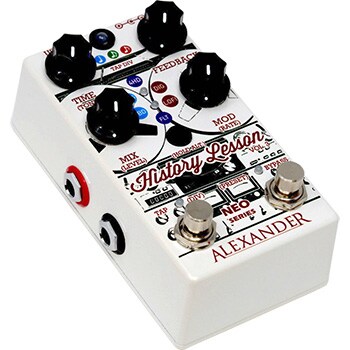

ALEXANDER PEDALS / HISTORY LESSON V3

An echo and delay effects pedal designed with respect and love for the best echoes in history. The six echoes and delays in this pedal have been selected from the 60-year long history of tape echoes and delays, and are still loved by many people today.

0 MAG: Magnetic tape style echo mode. It can also simulate tape shaking, swell, frequency and wear and tear.
BBD: Solid state analogue BBD (bucket relay device) delay mode. Chorus modulation effects can be added.
DIG: Bright and clean 24-bit digital delay mode. Can be used to add digital pitch modulator effects.
LOFI: Dirty and lo-fi analogue delay mode. Adjustable for uneven tape playback and transistor drive on the delay signal.
4HD: 4-head tape echo mode. Eight different head patterns can be selected.
FLT: 12-bit rack-style digital delay. Resonant filter control and pitch detuning for wilder effect effects.

■Guitar effects.
■Delay/Tape Echo.
■History Lesson Volume 3.
■Controls: Time / Tone, Feedback, Mix / Level, Mod / Rate, Select
■Switches: BYPASS, TAP/pISION
■Input/output terminals: Input, Output, Multi, DC In
■Power supply: 9VDC centre-minus (optional power supply recommended: ■Music Works / DC0913B)
■Current consumption: 80mA
■Size (maximum external dimensions): 59.5 × 121.5 × 73.5(W)mm
■Weight: approx. 288 g
