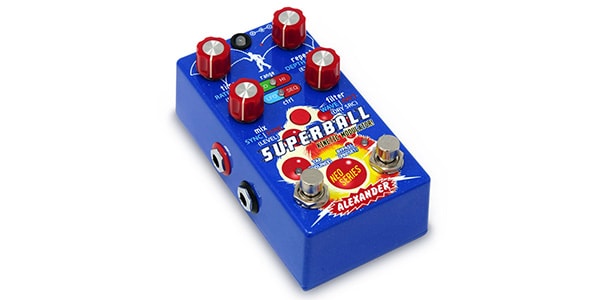

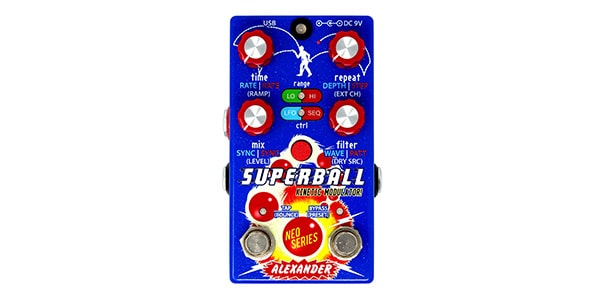

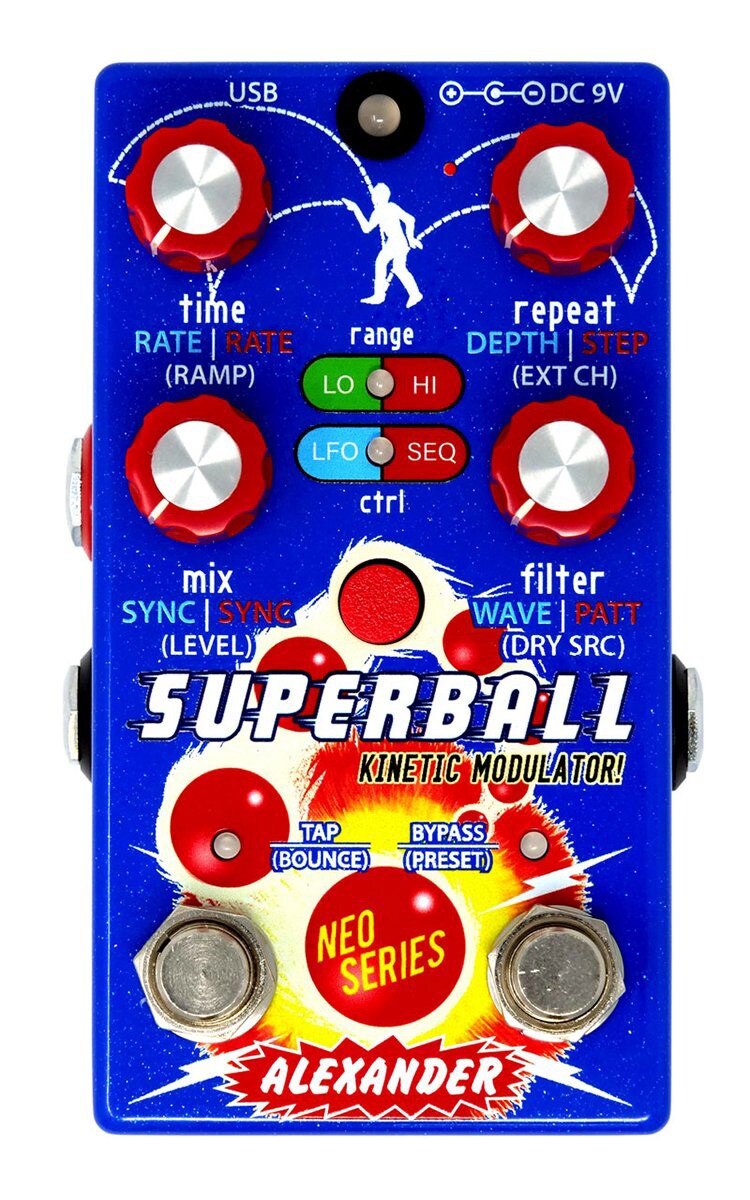

ALEXANDER PEDALS / SUPERBALL

A delay effect pedal unlike any other pedal, capable of producing complex and bizarre effects. The inclusion of a multi-wave LFO (Low Frequency Oscillator) gives you flexible control over the amount and direction of all delay parameters.

The following four control modes can be used to create very unique effects.

LO control mode: Sets the lowest point (low range) of the LFO waveform that controls the delay parameters.
HI control mode: Sets the maximum point (high range) of the LFO waveform that controls the delay parameters.
LFO control mode: controls the speed and intensity of the LFO as it transitions between the low and high ranges, with a choice of five LFO waveform patterns. It also features a unique effect called Bounce, which allows you to shift the delay parameter from the high range to the low range while reducing the intensity of the change, just like a real ball bouncing.
0SEQ control mode: adjusts the speed of the sequencer to change the clock rate of the audio DSP, as well as selectable sequencing patterns and maximum number of steps.

The product is designed so that, depending on the settings, pops and clicks may be heard in the effect sound, but this can be reduced to a certain extent by fine-tuning the controls.

■Guitar effect pedal
■Delay.
■Superball.
■Controls: TIME (RATE, RATE) / RAMP, REPEAT (DEPTH, STEP) / EXT CH, MIX (SYNC / SYNC) / LEVEL, FILTER (WAVE, PATT) / DRY SRC
■Switch: TAP / BOUNCE x 1, BYPASS / PRESET x 1
■BYPASS: Buffered analogue bypass
■DRY SIGNAL: Analogue or DSP (selectable)
■DSP: 24-bit + 32-bit controller
■Sampling frequency: 36kHz -> 6.66kHz
■I/O terminals: Input, Output, Multi, DC In *DC In plug size: I.D. 2.1 mm / O.D. 5.5 mm
■Power supply: 9VDC centre-minus (optional power supply recommended: Music Works / DC0913B).
*DC compatible plug size: inner diameter 2.1mm / outer diameter 5.5mm
■Current consumption: 130mA
■Size (maximum external dimensions): H55 x L122 x W74mm
■Weight: approx. 292 g
