SHIMBOL / ZO600MS ワイヤレスモニターレコーダー

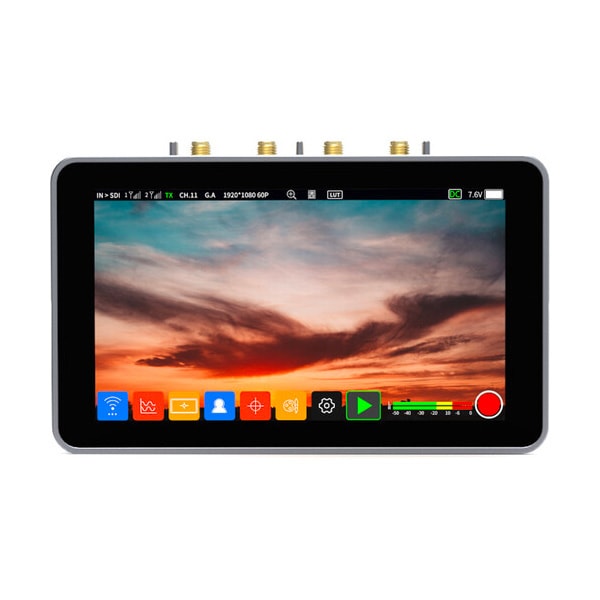

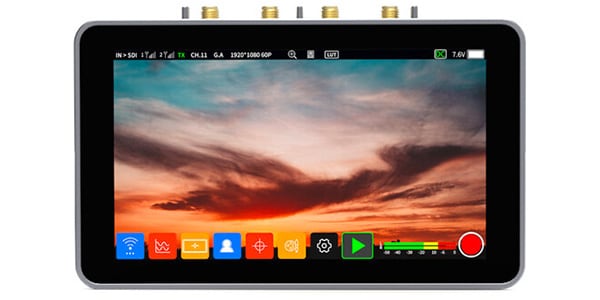

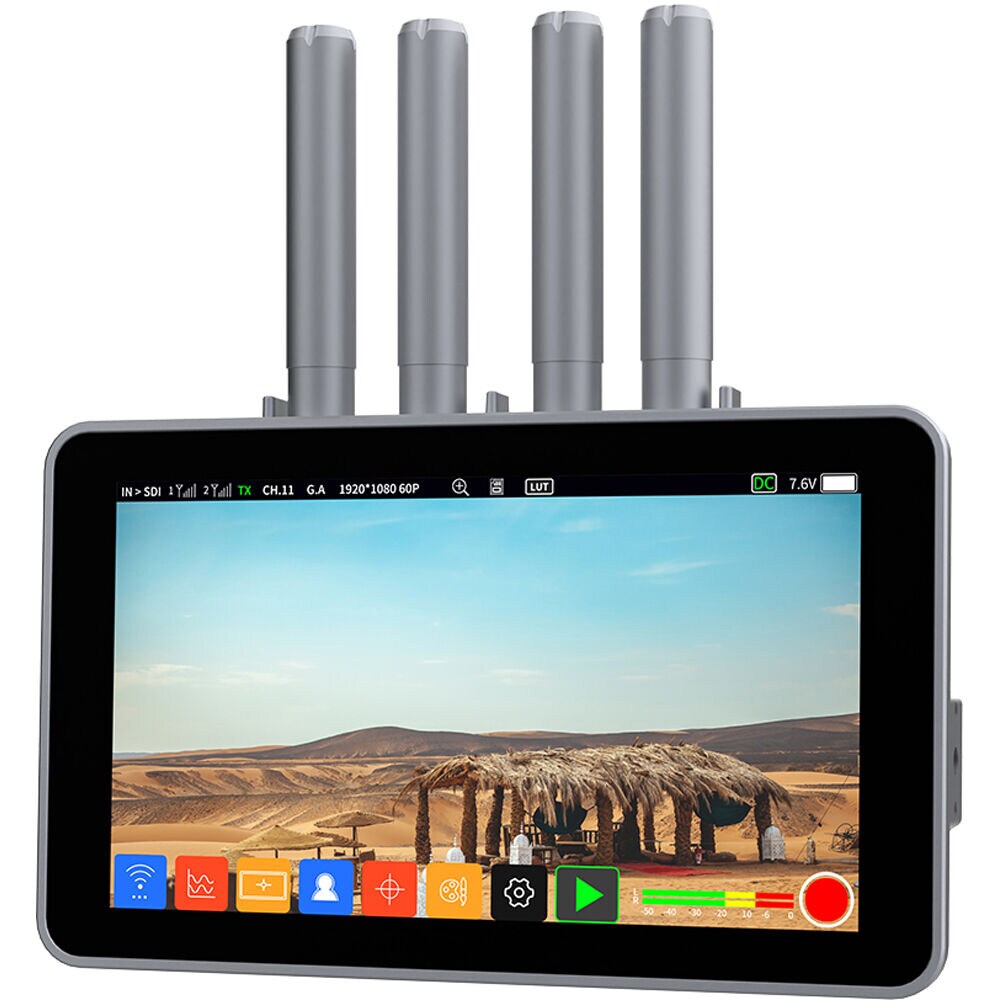

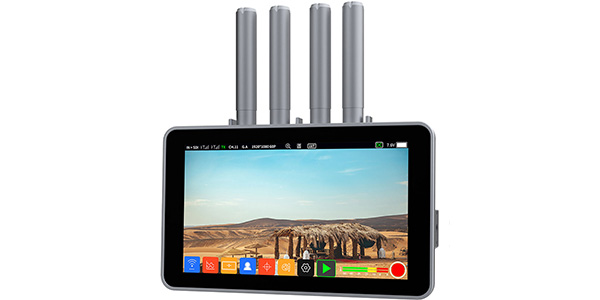

5.5” 3G-SDI & HDMI wireless touchscreen recorder and monitor capable of displaying and recording video up to 1080p60 with 3D LUT applied! It features 2000 nits brightness and 1200:1 contrast for comfortable use in daylight.

■Screen size: 5.5″TP
■Screen resolution: 1920x1080
■Brightness: 2000cd/m²
■Contrast Ratio: 1200:1
Viewing angle: 178°(H/V9)

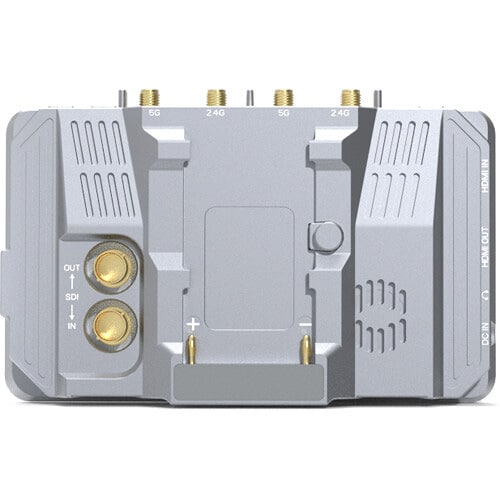

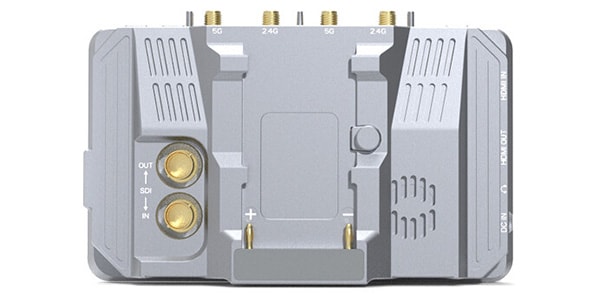

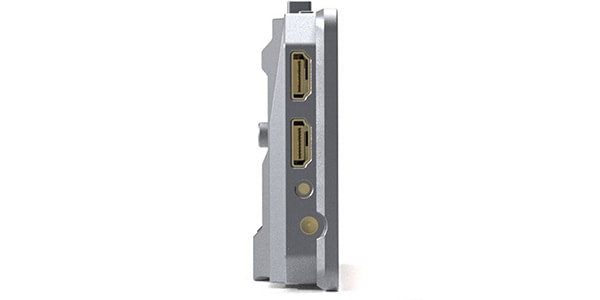

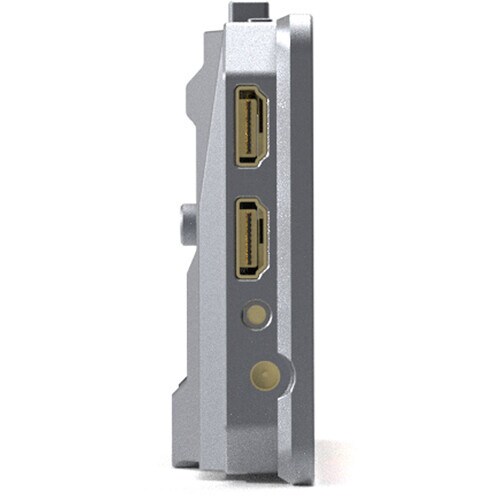

Input: DC In, SD card slot, SDI input (BNC female), HDMI input
■Output:

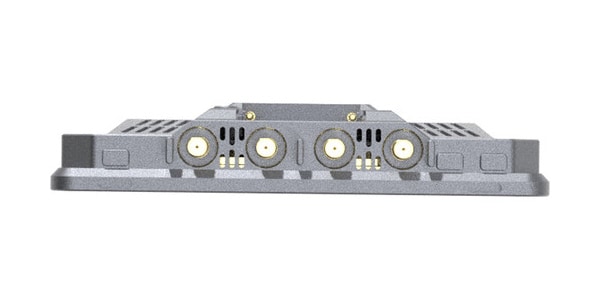

3.5mm headphone output, RP-SMA male (4 antennas)
TX: HDMI output (loop output)
RX: SDI output (BNC female), HDMI output
Video Recording Format: MP4
■LUT Format:
Cube file (17x17x17/33x33x33)
■Transmission range:
With one TX (transmit) device + one RX (receive) device: up to 300 m
■HDMI output format
TX:
1080p60/59.94/50/30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
RX:
1080p60/50/30/25/24
1080i60/50
720p60/50
■SDI Output Formats
RX:
1080p60/50/30/25/24
1080i60/50
720p60/50
Audio frequency: 48 kHz
Power supply method: NP-F/DC In
Input voltage: DC7V to 16V
Power consumption: <14W
Firmware update:
Update by SD card
Weight: 330g
■Unit size:
147.8x88.8x28.35 mm
