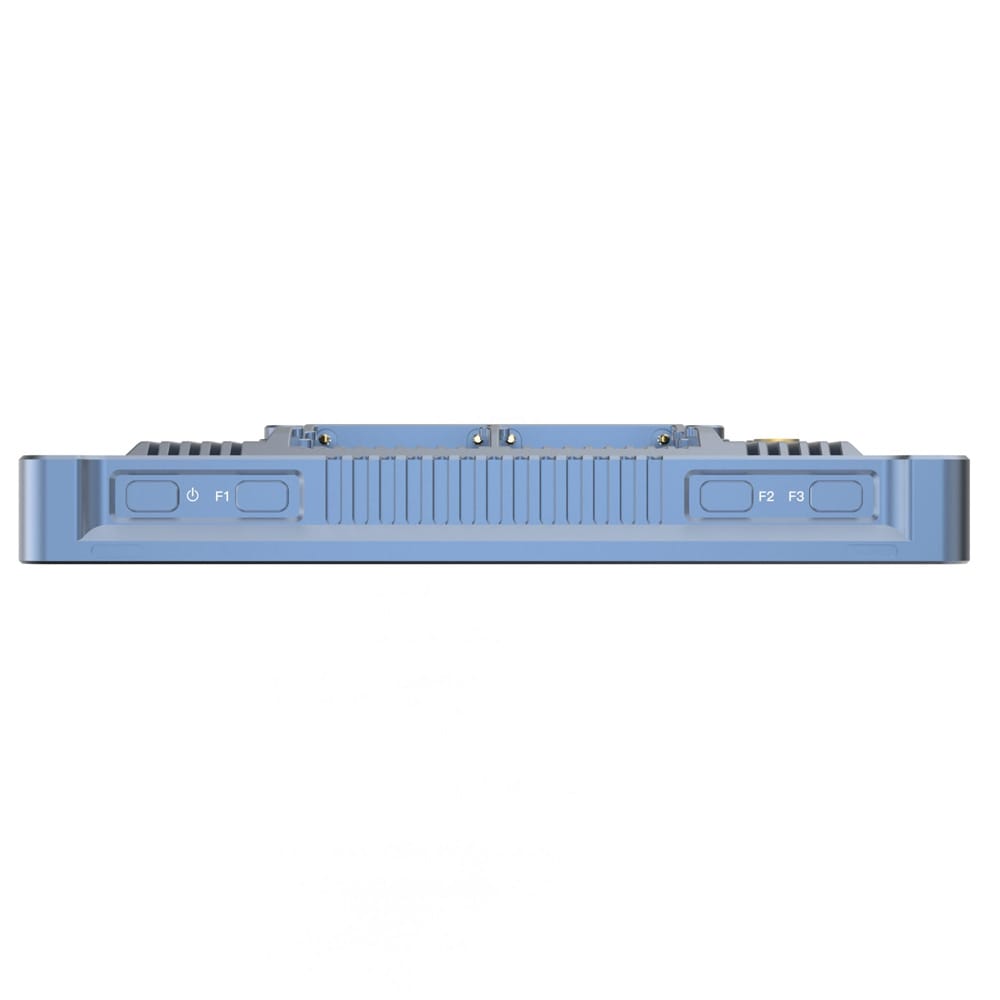

SHIMBOL / M7 On-camera monitor

4K HDMI HDR monitor with 7” touchscreen display! It has a resolution of 1920 x 1080, a brightness of 2000 nits, and supports P3 color gamut.

■On-Camera Monitor
■Screen size: 7″ TP
■Screen resolution: 1920x1080
■Aspect Ratio: 16:9
■Brightness: 2000cd/m2
■Color Gamut: DCI-P3/Delta E<1
■Contrast Ratio: 1800:1
■Viewing angle: 170°(H/V)
■Output interfaces:
SDI output, HDMI output, 3.5 mm headphone jack
■Input interfaces:
DC in, SDI input, HDMI input, SD card slot
LUT format: Cube file (17x17x17/33x33x33)
■L audio frequency: 48 kHz
■Power supply method: Dual NP-F/DC In
■Input voltage: DC 7 to 16 V
■Power consumption: <10 W
■Firmware update:
Update by SD card
■LUT output: HDMI & SDI compatible
■Body material: CNC aluminum alloy
■Color: Blue-gray
■Weight: 455g
■Unit size ;
178,8x119.8x23.3/28.2mm
■ Included:
M7 main unit
HDMI cable
SDI cable
Hot shoe mount
Reinforced screen protector
Cleaning cloth
SD card
Carrying case
