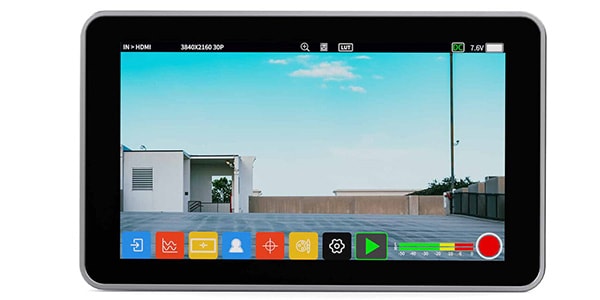

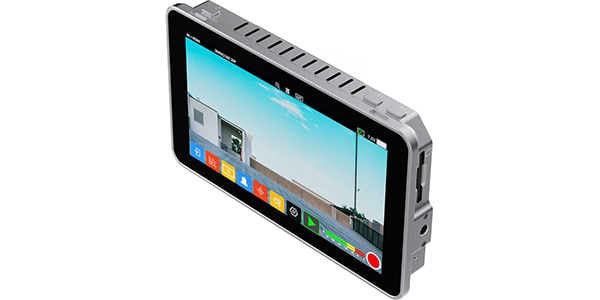

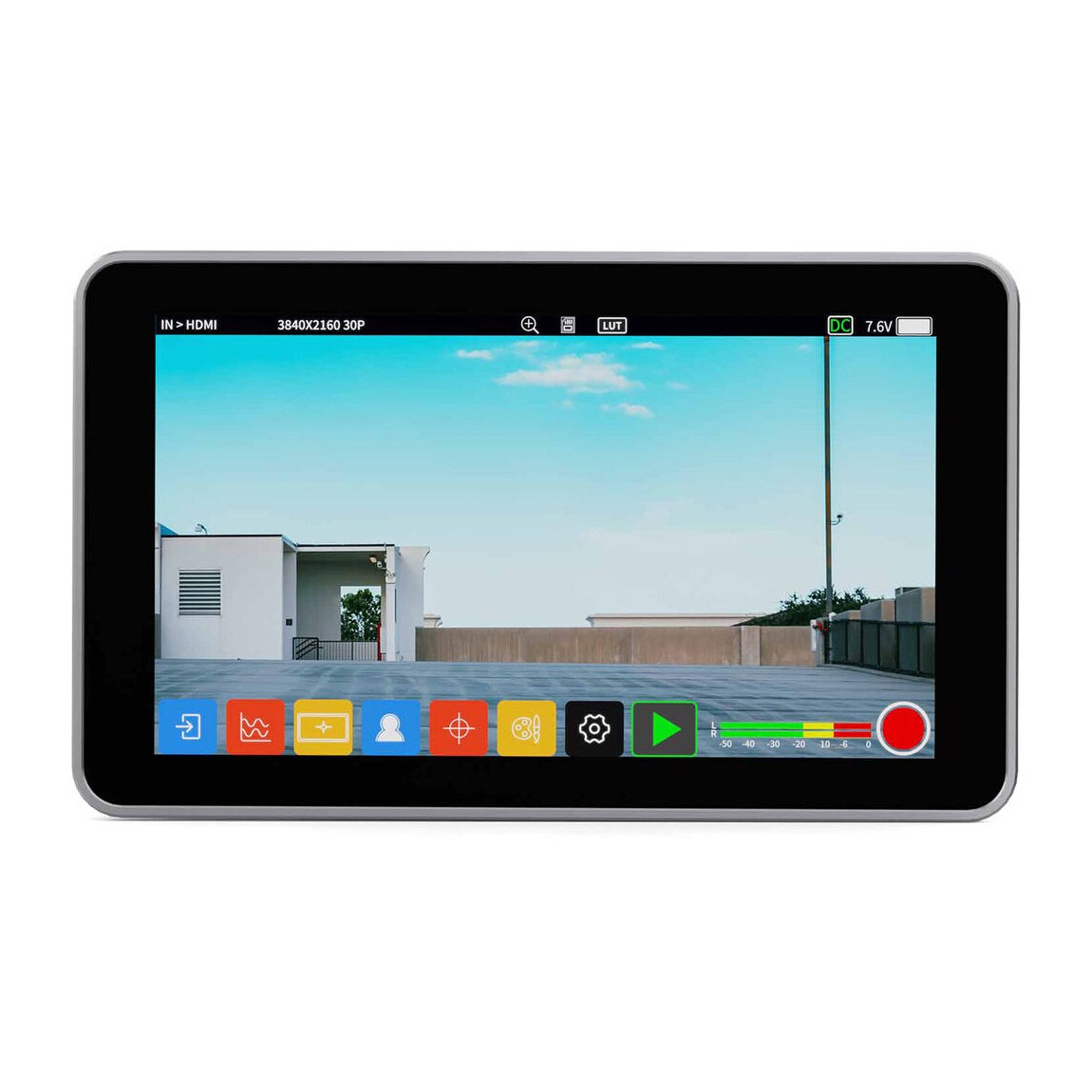

SHIMBOL / Memory I Pro　monitor recorder

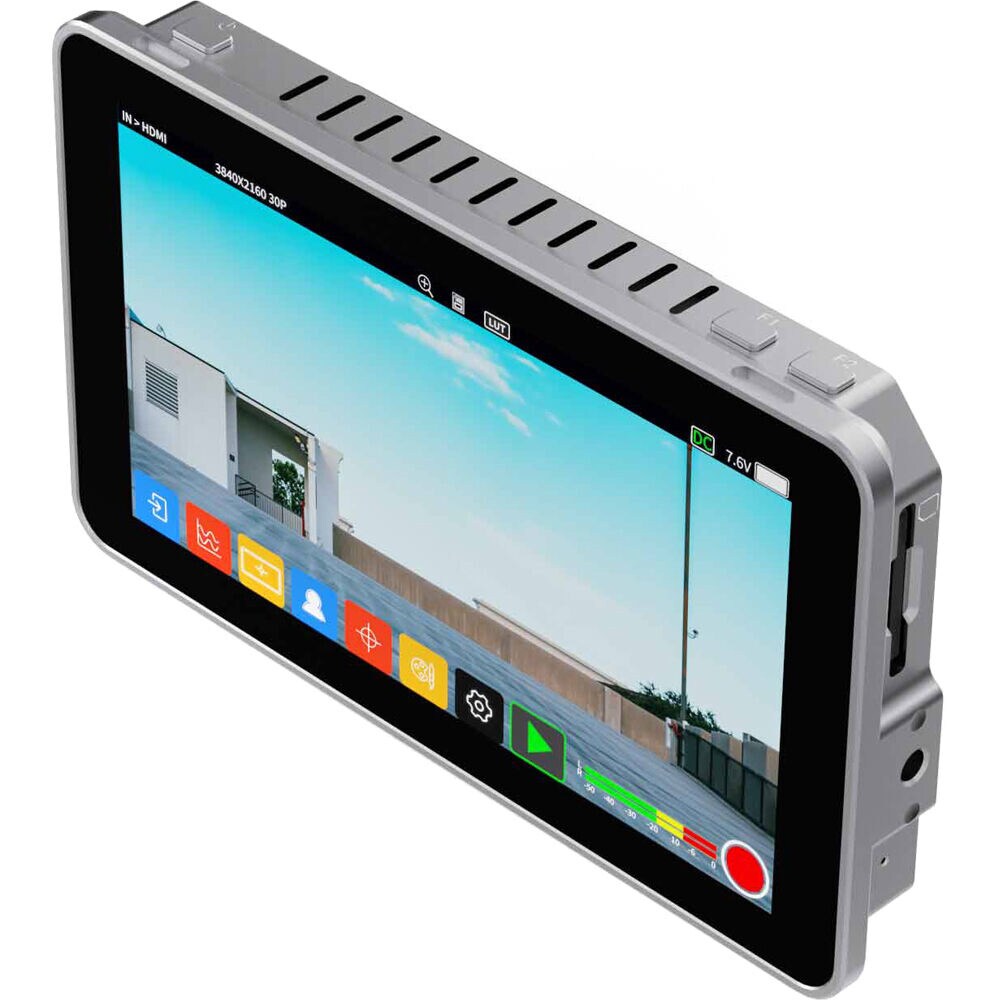

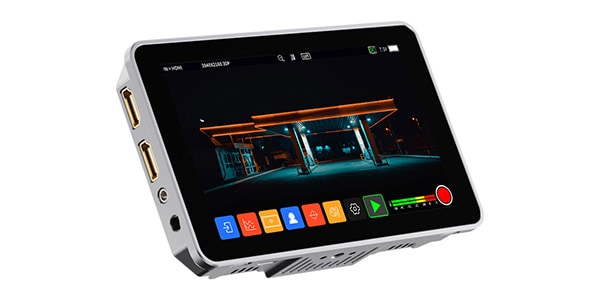

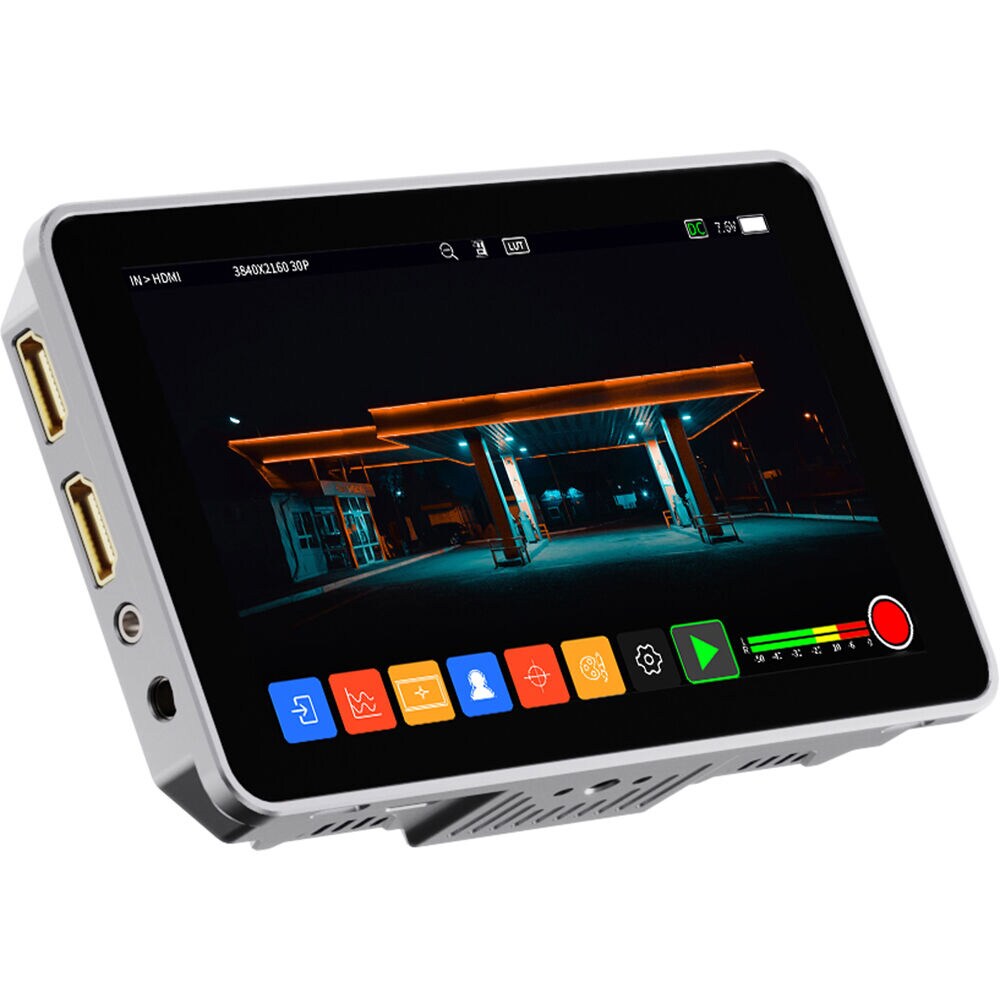

5.5” HDMI & 3G-SDI Touchscreen Monitor Recorder. Upgraded features and user interface allow monitoring of DCI 4K25 HDMI or 1080p60 3G-SDI video with a custom 3D LUT applied and recording at up to 1080p60!

■ Monitor Recorder
■ Screen Size:
5.5″TP
Screen Resolution: 1920x1080
■Brightness: 2000cd/m²
■Contrast Ratio: 1200:1
■Viewing Angle ： 178°(H/V)

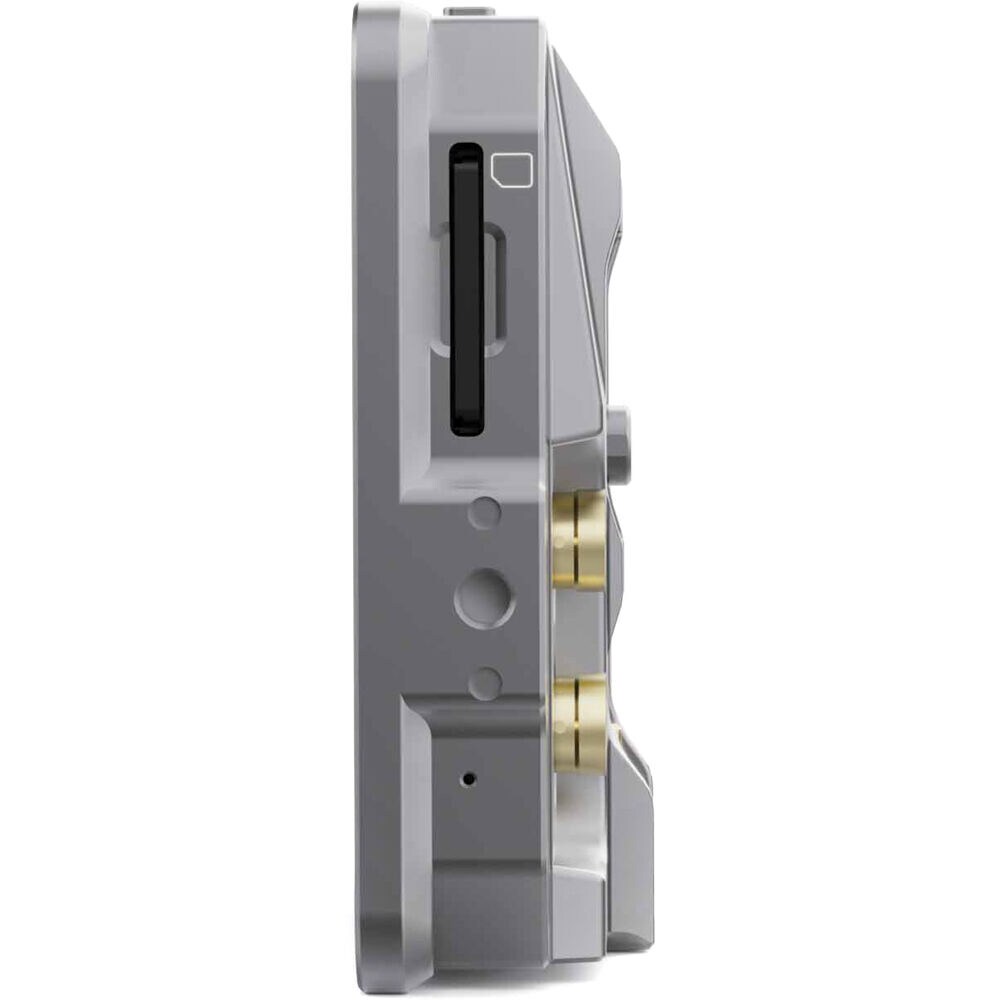

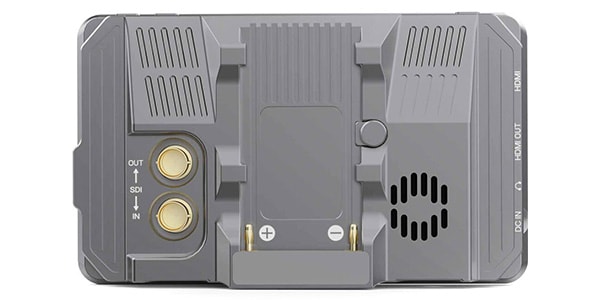

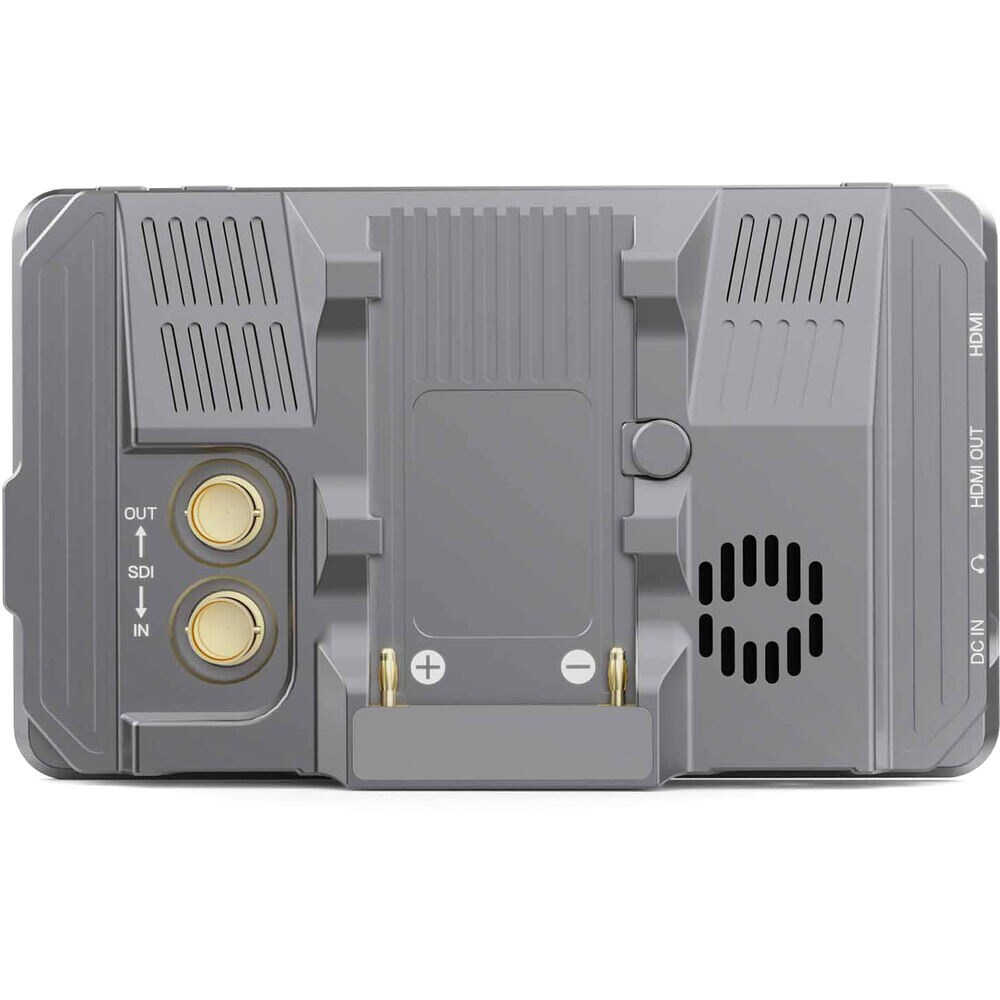

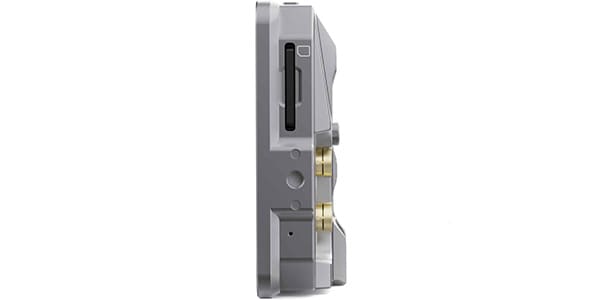

Input: DC In, HDMI input, SDI input, SD card slot

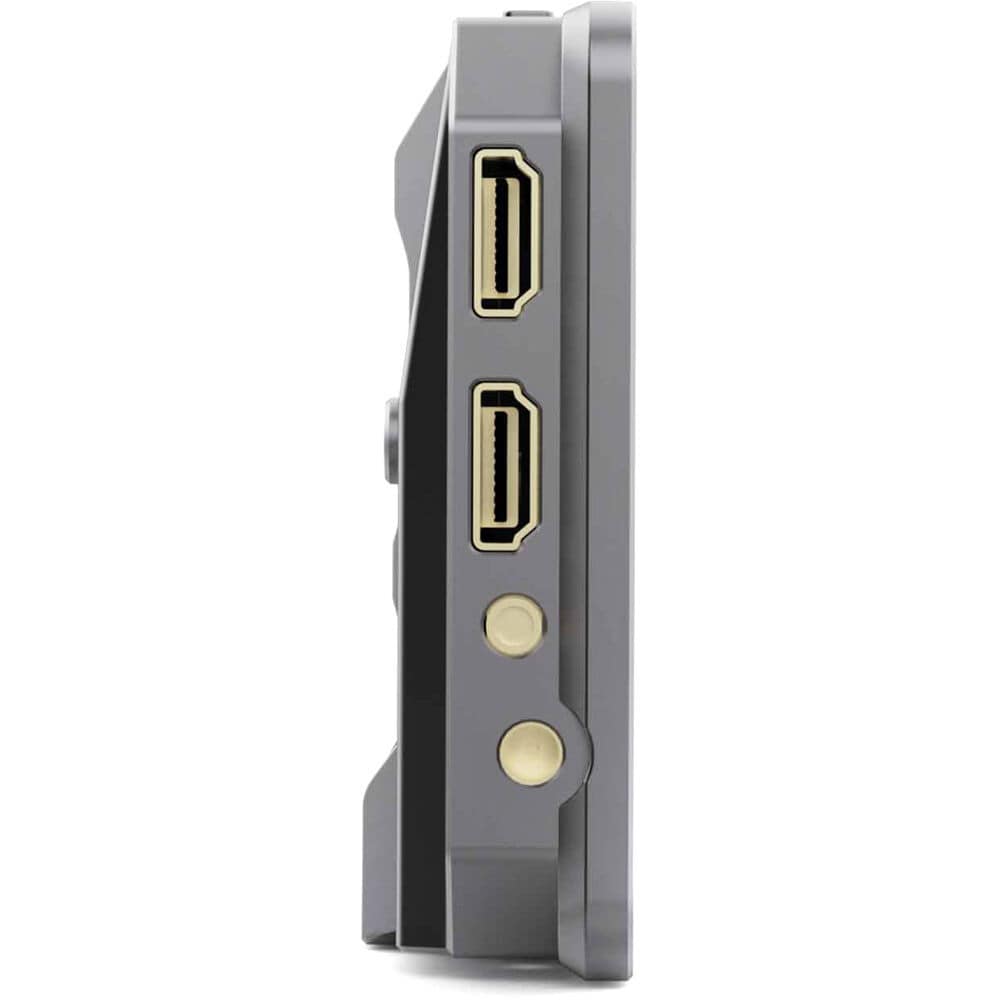

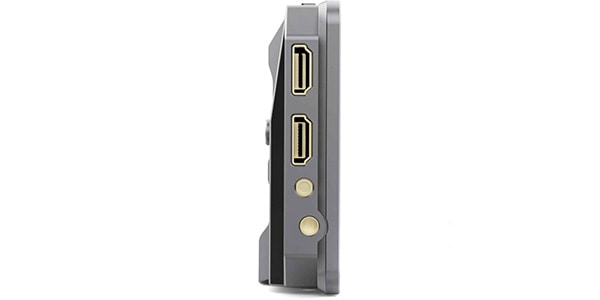

■Output: HDMI output, SDI output, 3.5 mm headphone output
Video Recording Format: MP4
■LUT Format:
Cube file (17x17x17 / 33x33x33)
■HDMI & SDI-LUT output: Supported
■HDMI video input format:
4096x2160p25/24/23.98
3840x2160p30/23.98/25/24/23.98
1920x1080p60/59.94/50/30/29.97/25/24/23.98
1920x1080i60/59.94/50
1280x720p60/59.94/50
■SDI video input format:
1920x1080p60/59.94/50/30/29.97/25/24/23.98
1920x1080psf30/29.97/25/24/23.98
1920x1080i60/59.94/50
HDMI video output format:
1920x1080p60/50/30/25/24
1920x1080i60/50
1920xp60/50
■SDI video output format:
1080p60/50/30/25/24
1080i60/50
720p60/50
■Audio frequency: 48 kHz
■Power supply method: NP-F/DC In
I■nput voltage: DC 7 V ? 16 V
■Power consumption: <12 W
■Firmware update: Update via SD card
■Weight: 305 g
■Unit size: 147.8 x 88.8 x 26.5 mm
