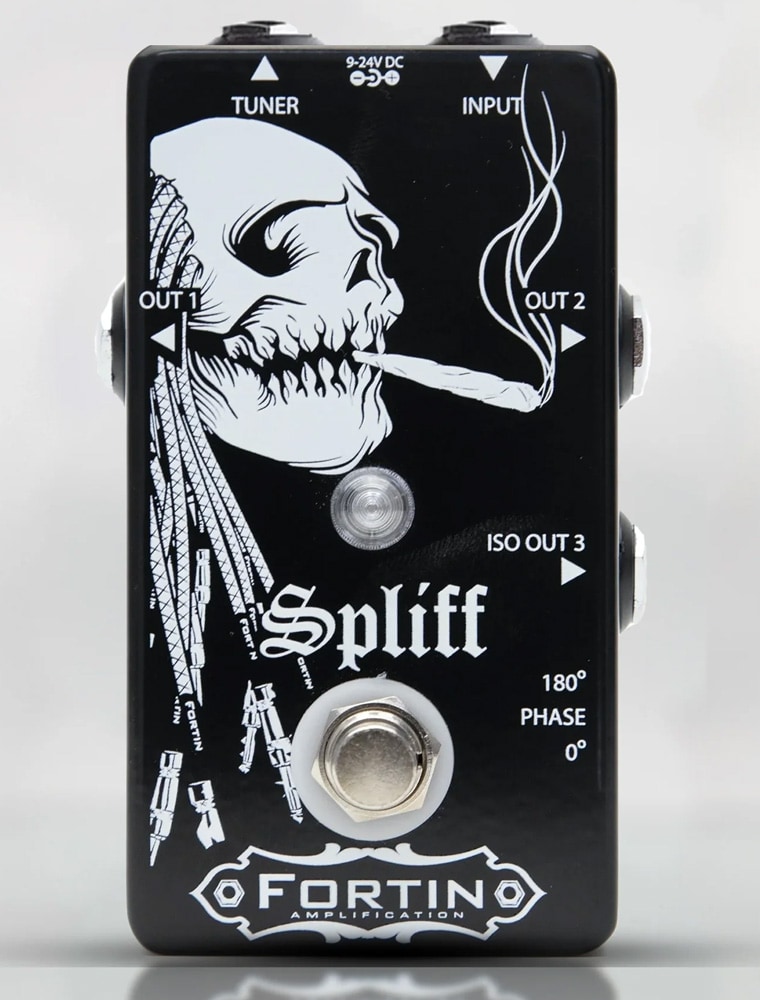

Fortin / SPLIFF

Spliff is a 3-way signal splitter with a discrete Class A buffer and a single output transformer isolated by a phase side switch.Placing Spliff in front of or behind your pedalboard will revive your tone, and true bypass pedals Remove the top-end loss (capacitance) that comes from using a board full of them.

■Made in the USA
■Top grade materials selected for superior sound, response and reliability
■Industry-standard 3DPT true-bypass mechanical stomp
■Input to 1M/output to 10k minimum load
■ Frequency response: Frequency response: 20hz to 20khz
■Max output: +9dBm (9VDC), +18dBm (24VDC; 9v-24vDC centre-pin negative (fully regulated) external adapter/power supply only (not included).
Current consumption: 4mA
■ Pedal dimensions (W/D/H): 4.4" x 2.38" x 1.06" (112mm x 60mm x 27mm) excluding knobs and switch
