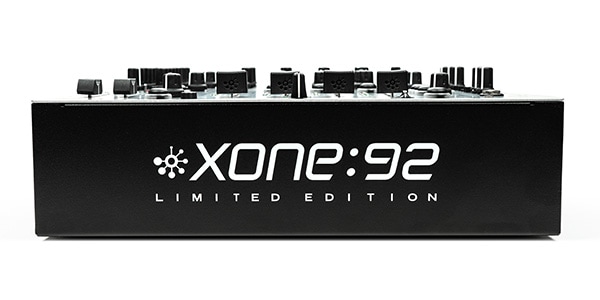

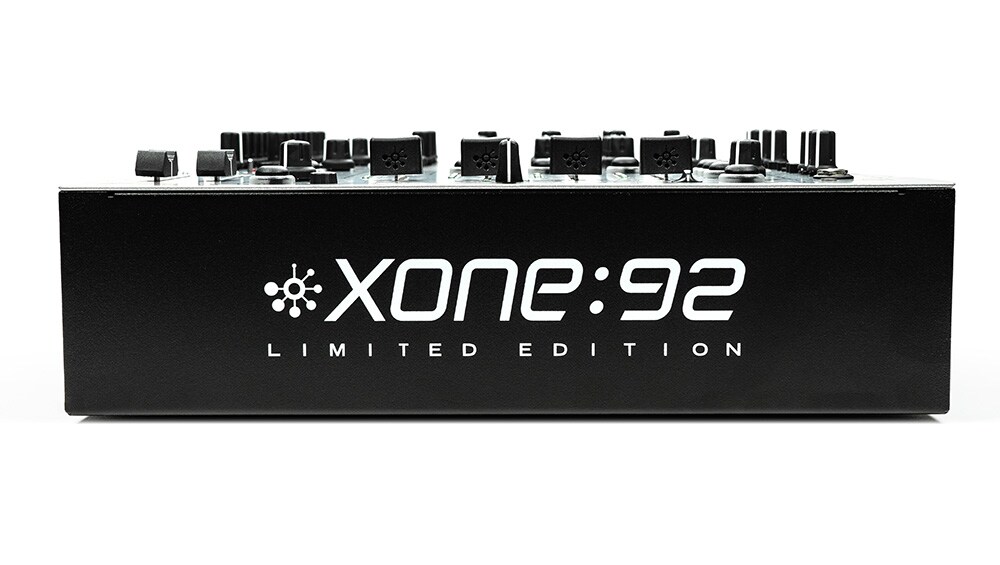

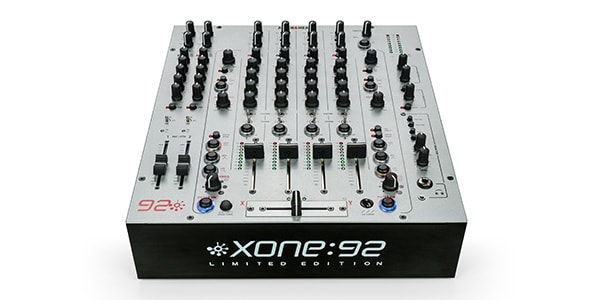

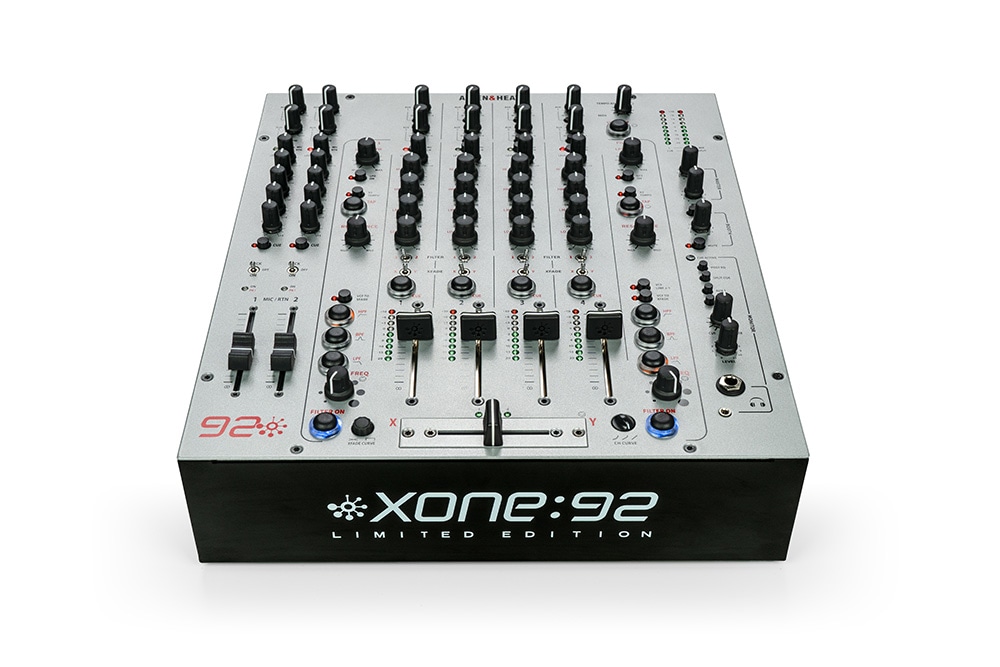

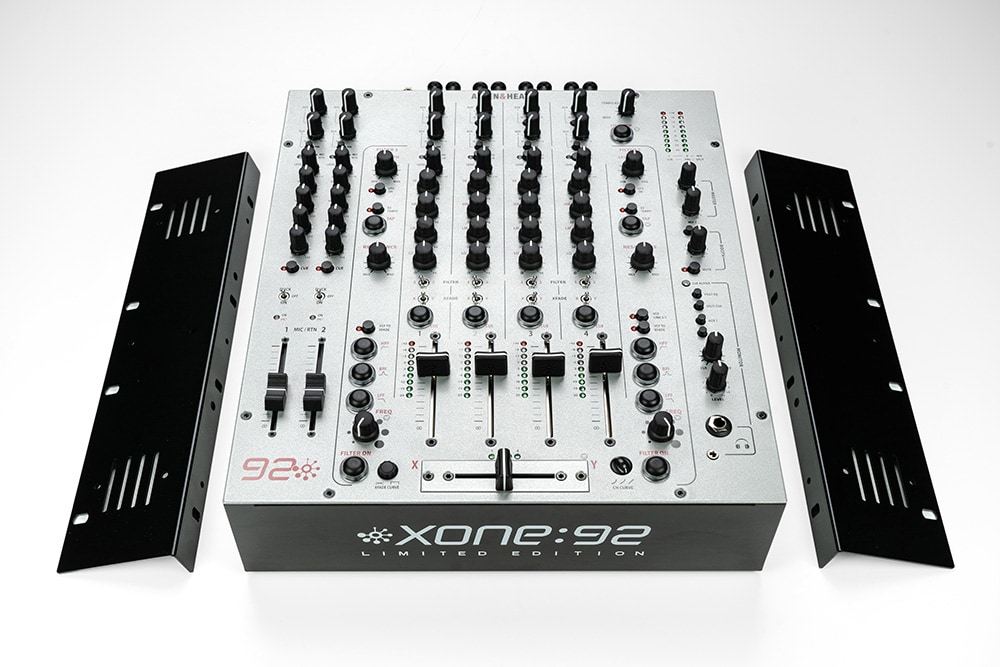

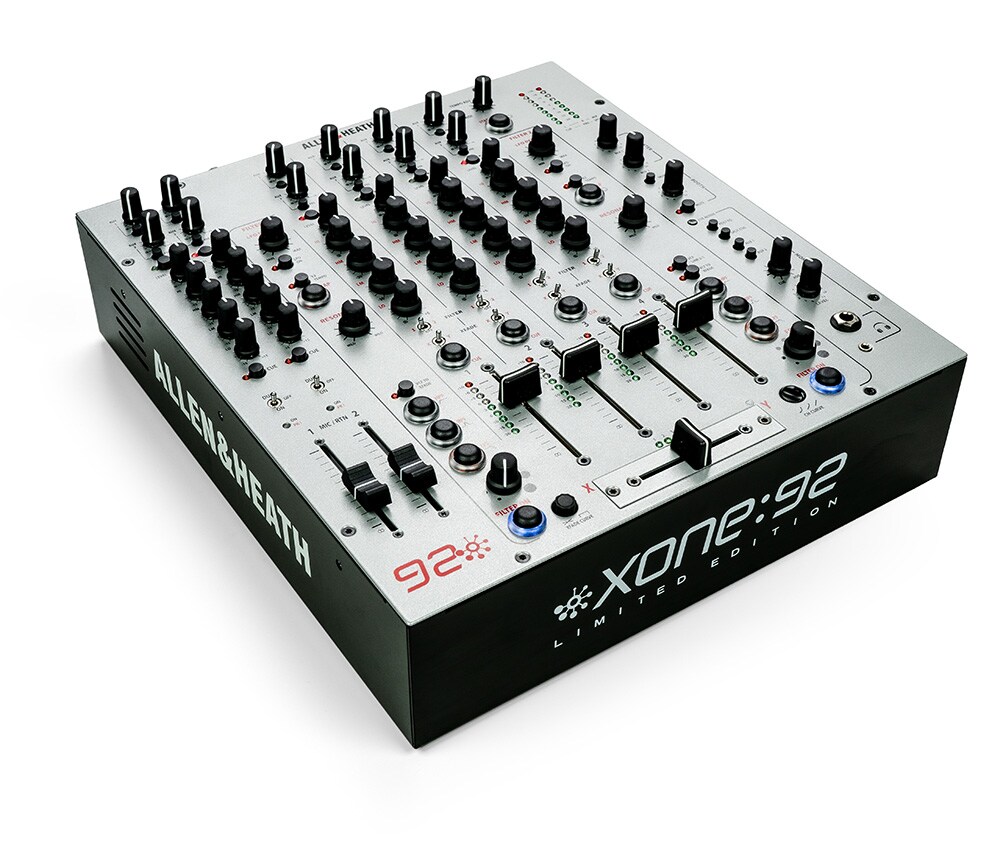

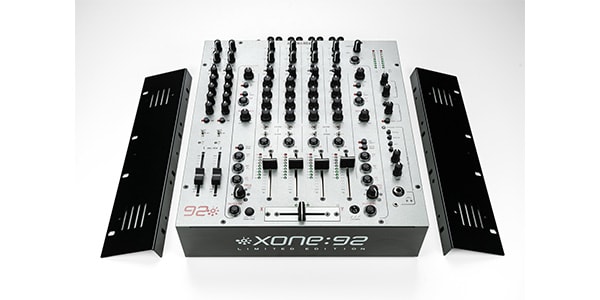

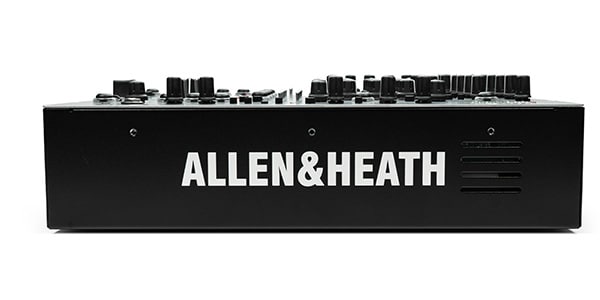

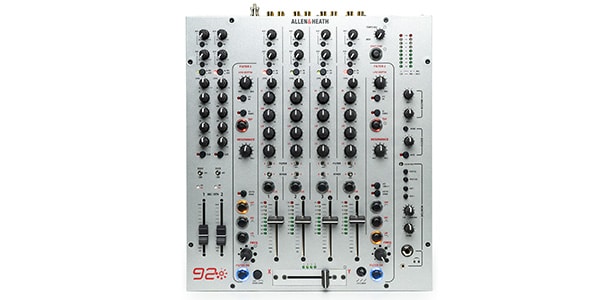

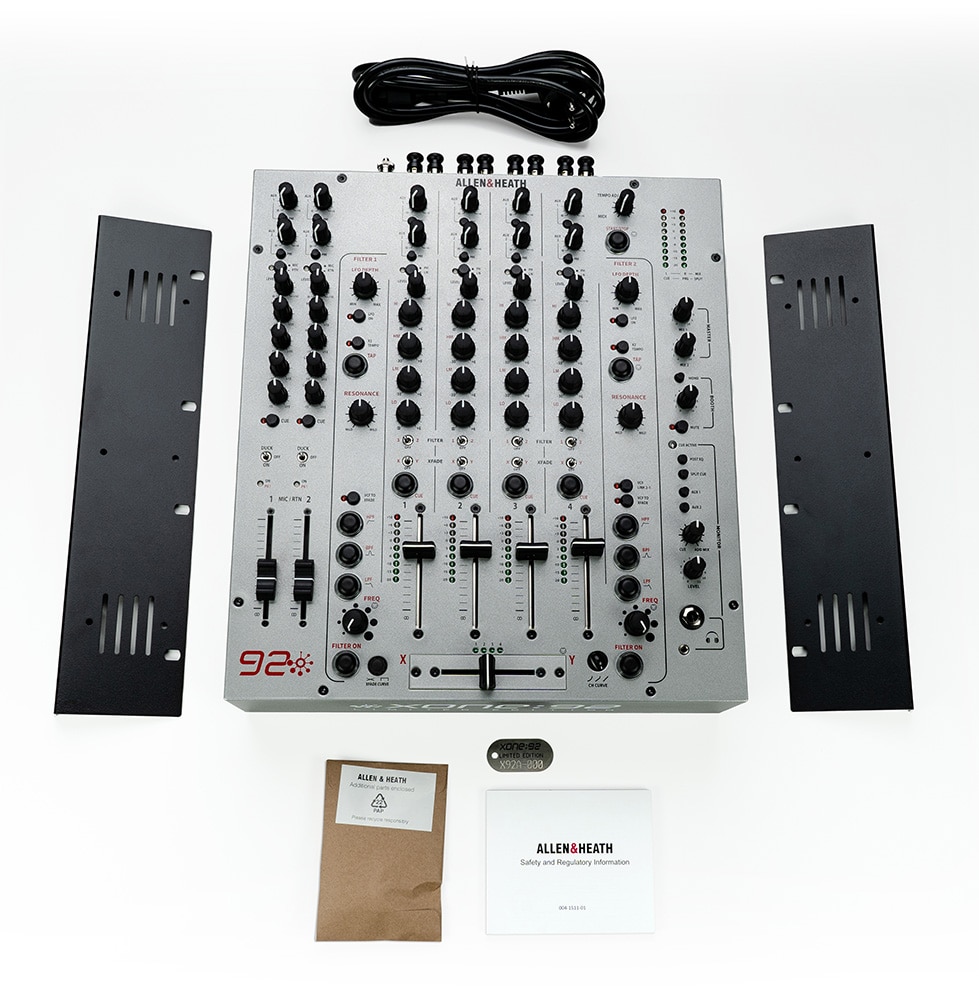

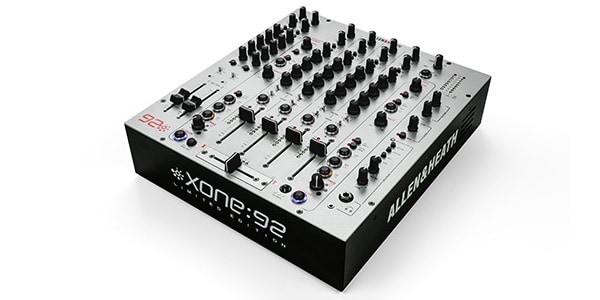

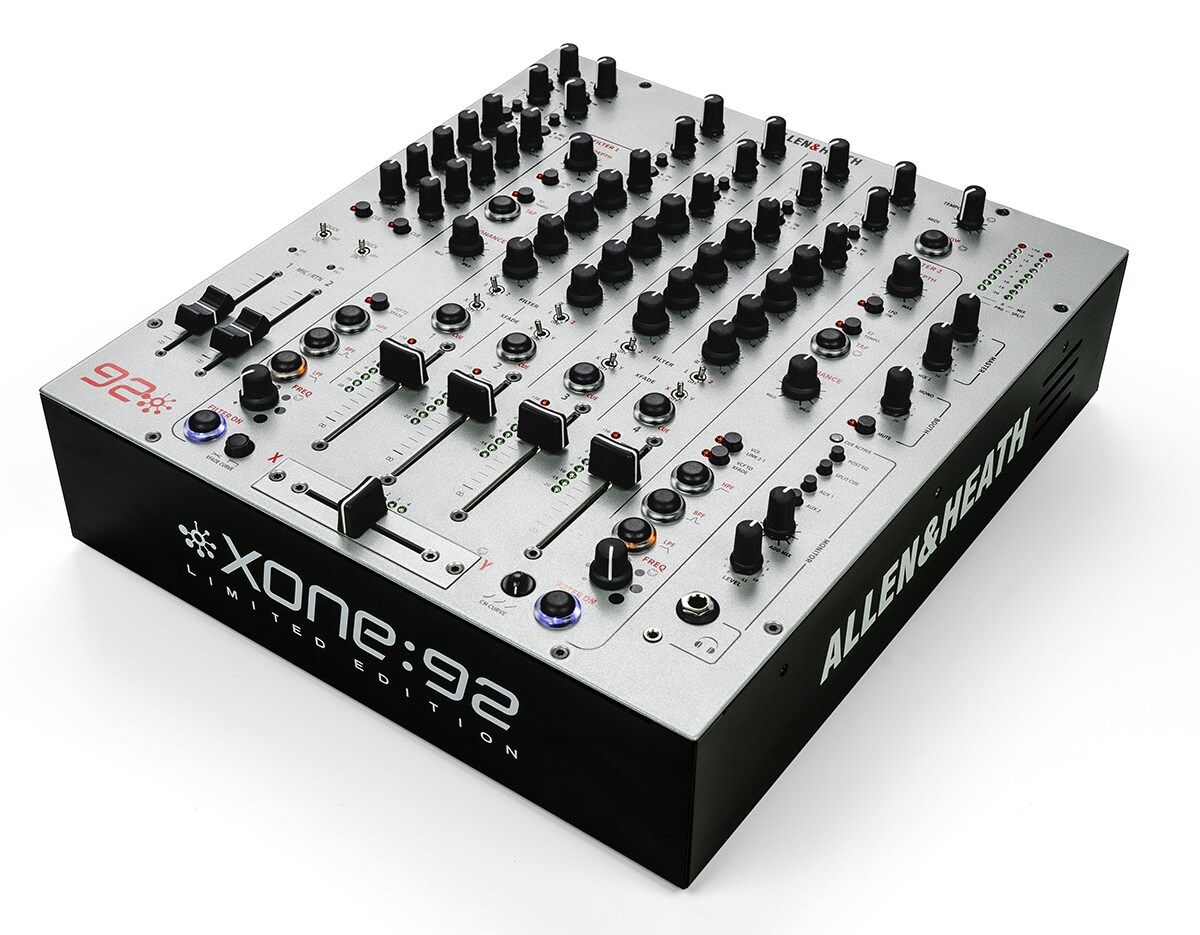

ALLEN&HEATH / XONE:92A LIMITED EDITION

The Xone:92 Limited Edition celebrates 20 years of the iconic Xone:92, combining classic styling with modern refinements to deliver the best-ever version of the legendary analogue DJ mixer.

Model ：XONE:92 Limited Edition
Type ：Analogue
Channels： 6 + 2
EQ ：4-Band: CH 1 - 4 ¦ MIC/RTN 1 ¦ MIC/RTN 2
BOOTH： STEREO/MONO ¦ MUTE ¦ Level

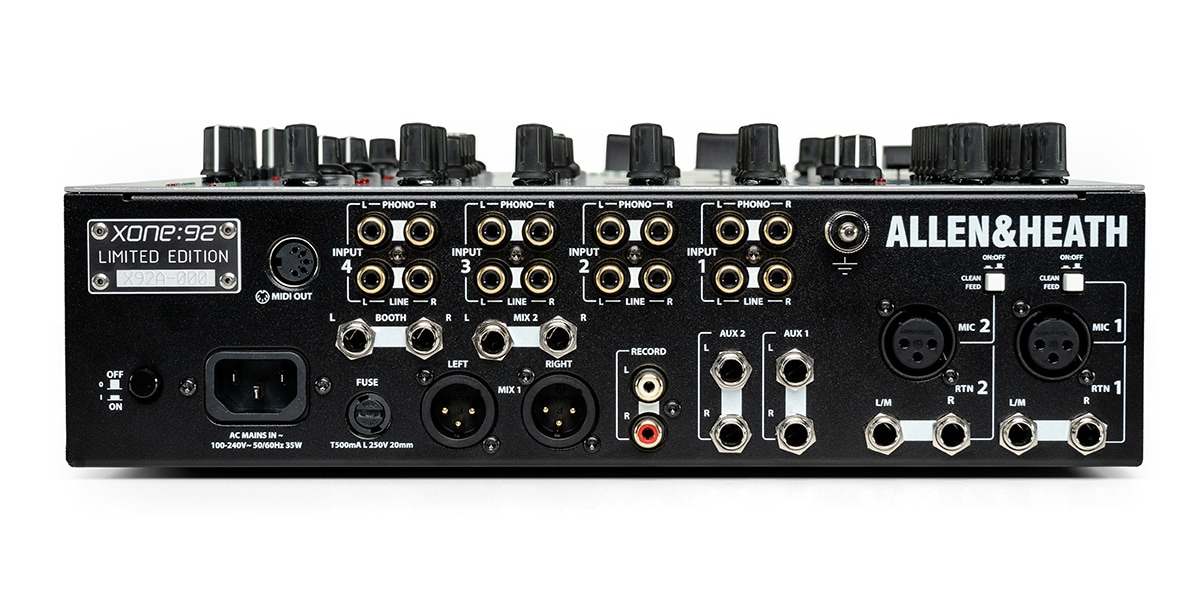

Phono： Inputs 4 x RCA: CH 1 - 4
Earth Ground Terminals： x 1 Stereo Line Inputs ：4 x RCA [CH 1 - 4], 2 x 1/4" TRS [RTN 1 / RTN 2] Mono/Stereo
Mic Input : 2 x XLR [MIC 1 / MIC 2]
MIX 1 Output : 1 x XLR [Balanced]
MIX 2 Output : 1 x 1/4" TRS [Unbalanced]
BOOTH Output : 1 x 1/4" TRS [Unbalanced]
RECORD Output: 1 x RCA [Unbalanced]
Stereo Send/Return I/O: 2 x 1/4" TRS: AUX1 ¦ AUX2 [Mono/Stereo], 2 x 1/4" TRS: RTN 1 ¦ RTN 2 [Mono/Stereo] Aux Sends : 2 x CH 1 - 4 ¦ MIC/RTN 1 ¦ MIC/RTN 2 [selectable Pre/Post]

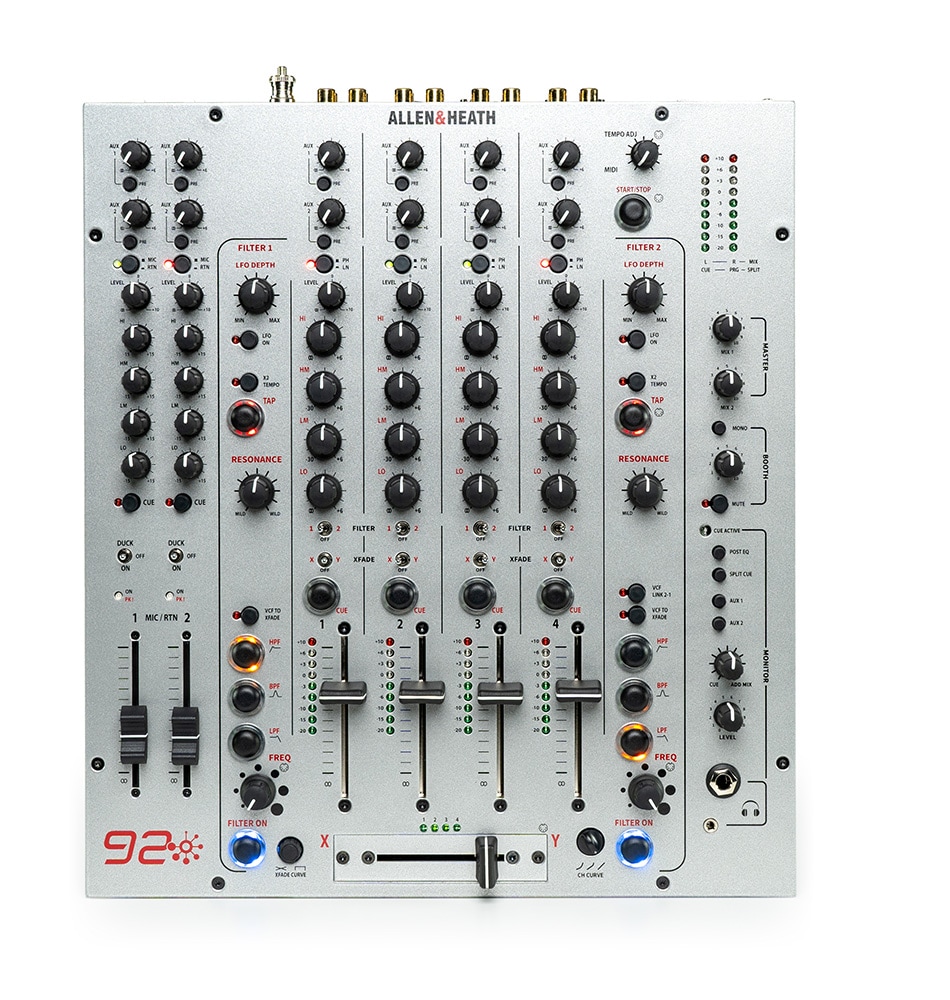

Filters : 2 x Stereo analogue Voltage Controlled Filters, HPF / BPF / LPF Response Select ¦ ON/OFF [soft switched] , Adjustable FREQ / RES / LFO , Assignable CH 1- 4 [soft switched]
Channel 1 - 4 Faders : 60mm linear Voltage Controlled Amplifier
Channel 1 - 4 Fader : Curve Switched ¦ 3-way Global
Cross Fader : mini innoFADER Pro standard ¦ 45mm linear VCA ¦ User
Cross Fader Curve : Rotary ¦ Progressive transition to Fast-cut
MIDI Assignable : Yes: MIDI CC ¦ MIDI Note ON/OFF
MIDI Out : 1 x 5-pin DIN
