ELATION / PUL013

Variations

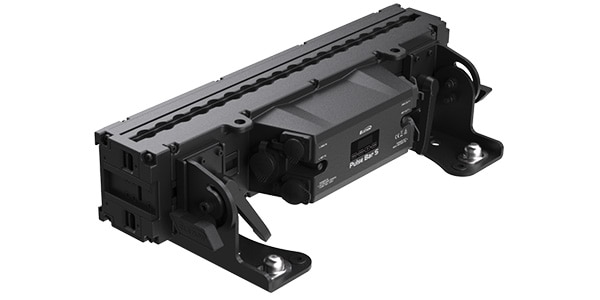

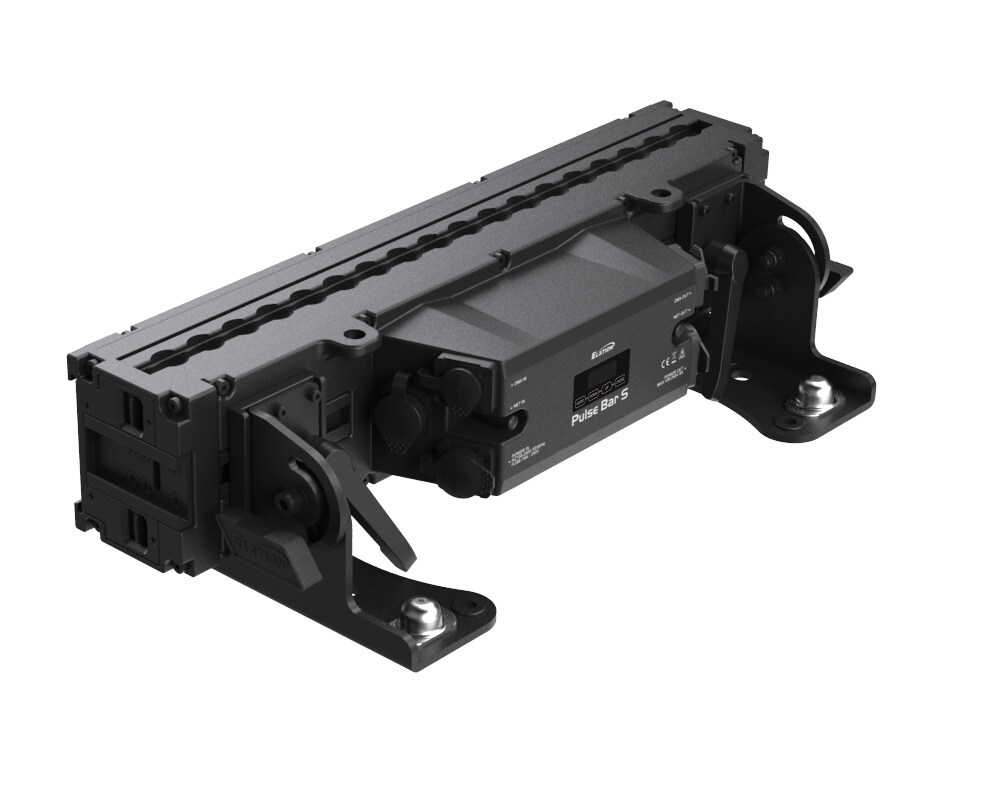

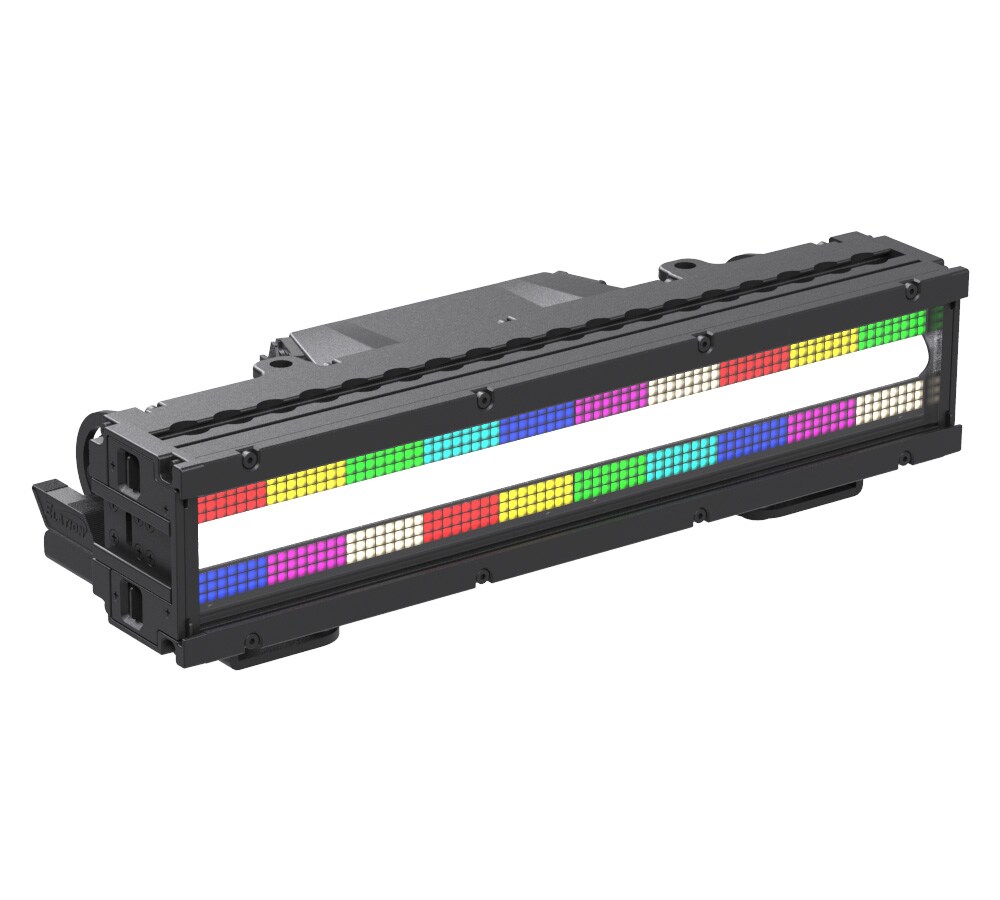

ELATZION's IP65 compliant strobe visual effects bar. 480 1.5W RGB LEDs arranged in 20 zones around the housing. Additionally, there are 200 5W cool white LED strobe lines divided into 20 zones in the center and 80 1.5W RGB LEDs divided into 10 zones in the center. The total output is over 13,327 lumens, delivering powerful light.

■ Light source
- 1.5W RGB LED x 560
- 5W CW strobe LED x 200
- Average LED lifespan of 50,000 hours (*Note 1)

■ Photometric data
- Total lumen output:
- Integrating Sphere
- All LED: 10,400 lumens
- CW LED: 13,327 lumens
- RGB LED: 5034 lumens

■ Effect
- 20 zone RGB plate LED (10 x 2)
- 20 zone CW strobe LED (10 x 2)
- 10 zone RGB strobe line LED (10 x 1)
- 1-20Hz strobe rate
- Library of customizable RGB and CW strobe effects
- Variable dimming mode and curve

■ Color
- RGB color array

■ Control/Connection
- 9 DMX channel modes (3ch, 11ch, 22ch, 34ch, 52ch, 124ch, 77ch, 132ch, 110ch)
- 4-button control panel, LED display
- RDM (Remote Device Management)
- IP65 5-pin XLR DMX input/output
- IP65 RJ45 Ethernet input/output (Art-Net, sACN, KlingNet)
- IP65 locking power cable input/output

■ Size/weight
- Length: 501.2mm
- Width: 200mm
- Vertical height: 206.1mm
- Weight: 7.2 kg

■ Electrical/thermal characteristics
- AC 100V 50/60Hz
- Maximum power consumption 750W
- Power passing capacity: 7A (1 unit at 110V; 2 units at 240V)
-5°F to 113°F (-15°C to 45°C)
- BTU/hr (±10%) 2557.5

■ Accessories
- Safety cable
- IP65 locking power cable
- Fixture interconnect splice

■Optional items
- BAR S NSP Lens (BLS021)
- BAR S WFL Lens (BLS061)
- BAR S XFL Lens (BLS101)
- BAR S L140 Lens (BLS141)
- BAR S L1060 Lens (BLS161)
- #8050000053 - Omega Bracket (Qty 2)
- Fixture Interconnect Splice Package (FISP06)
- L-Track to M10 adapter, 70mm (LTR001)
- L-Track to M10 adapter, 44.5mm (LTR008)
- L-Track C Clamp & Adapter Assembly, 70mm (LTR100)
- L-Track C Clamp & Adapter Assembly, 44.5mm (LTR112)
- Interconnect clamp adapter (FICA01)

■ Certification/Evaluation
- CE | cETLus | IP65 | FCC | UKCA

Note 1: Under test laboratory conditions. May vary due to factors including, but not limited to, environmental conditions, power/voltage, usage pattern (on/off cycles), controls and dimming.
