Shanling / H2-SV

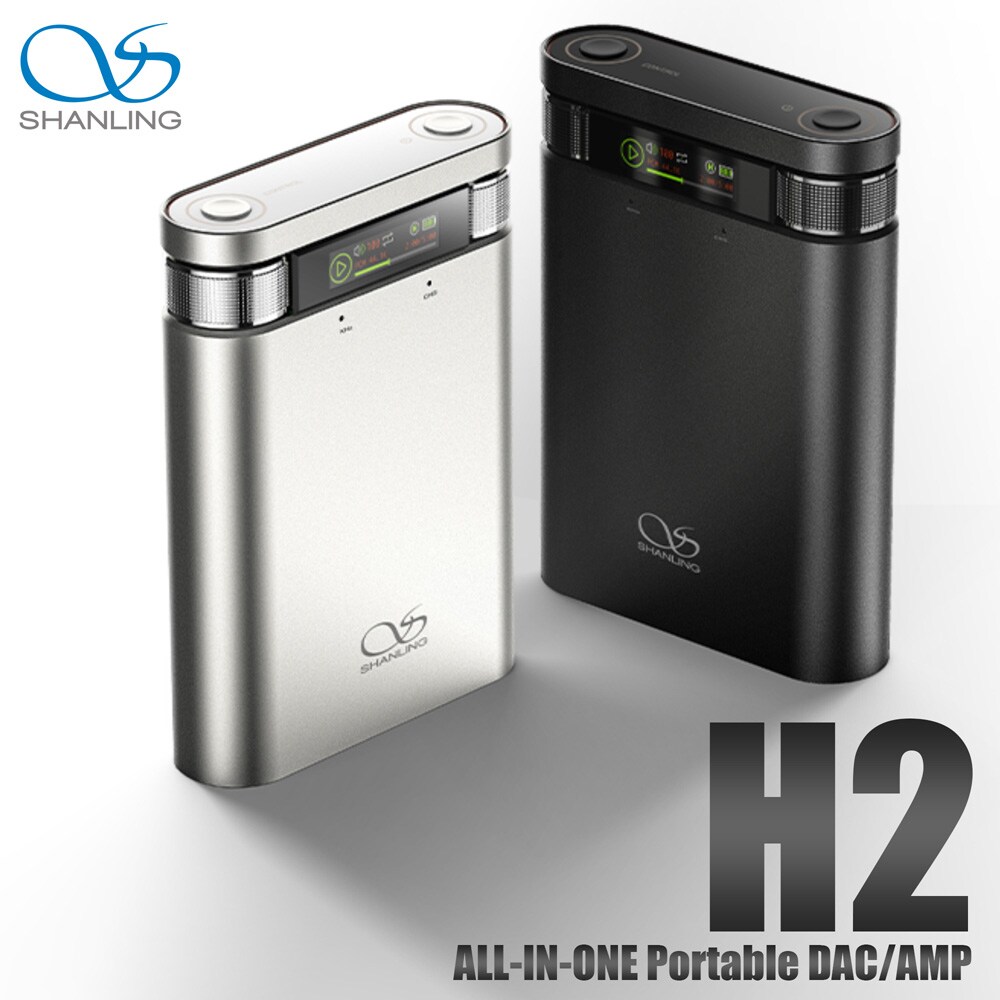

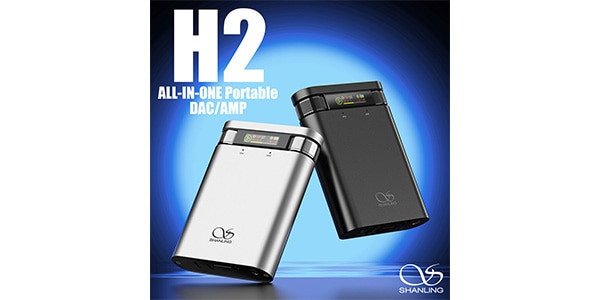

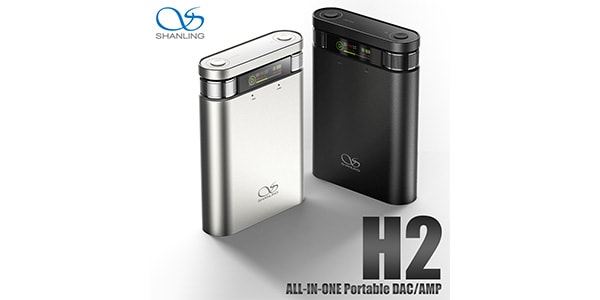

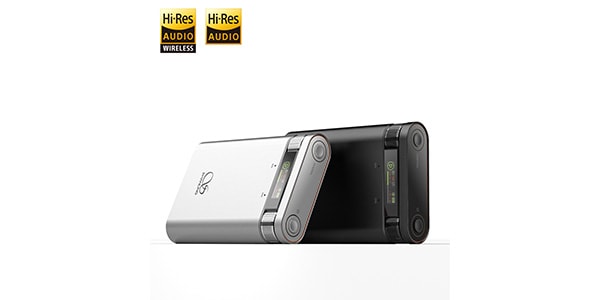

Shanling H2 is an all-in-one portable DAC/AMP player that allows you to enjoy high-quality sound playback.

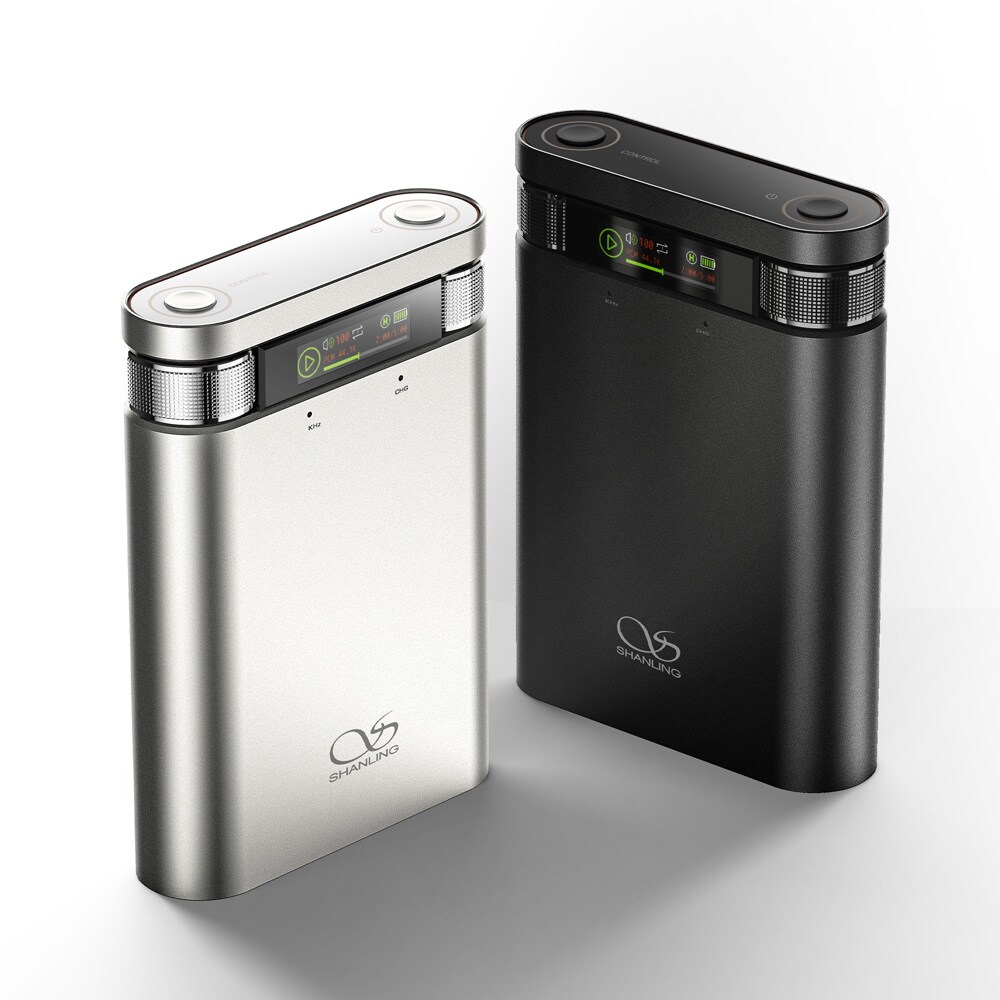

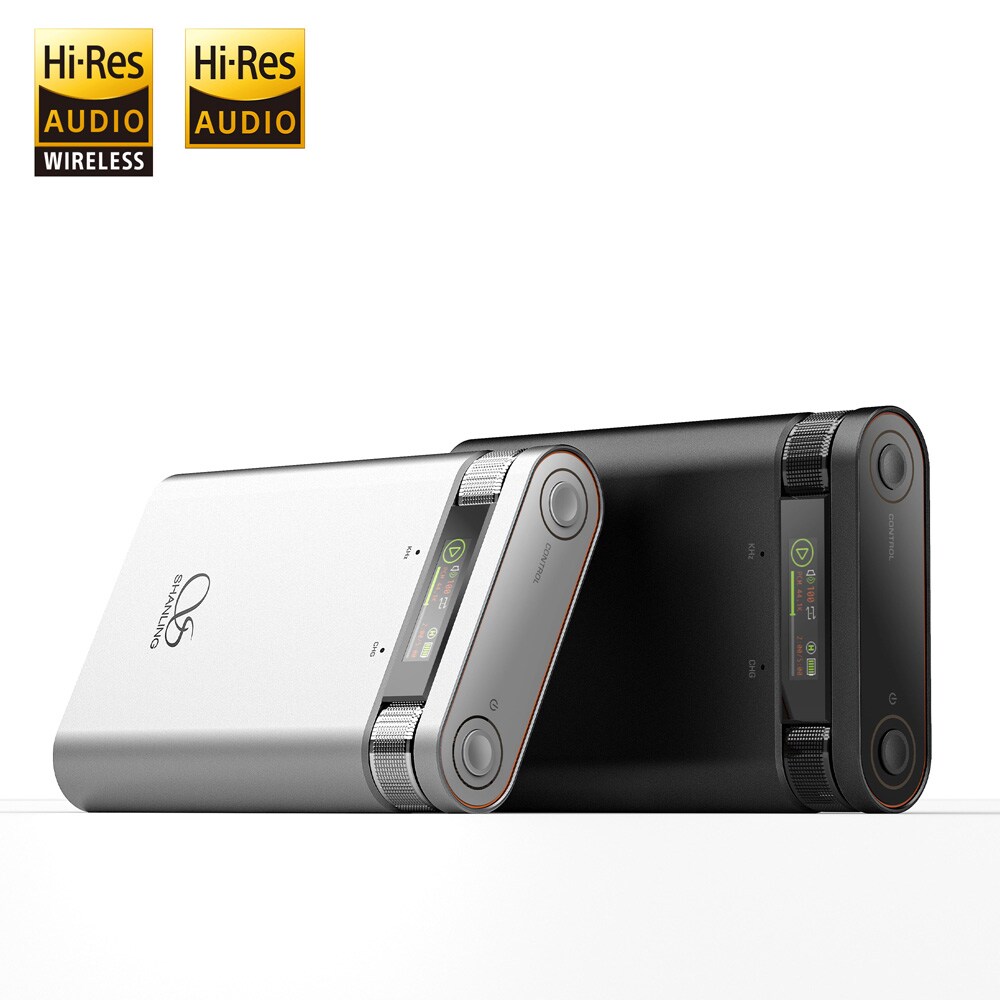

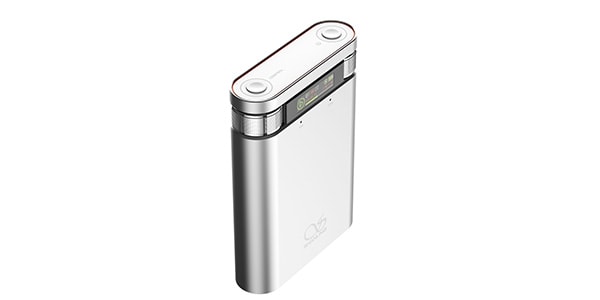

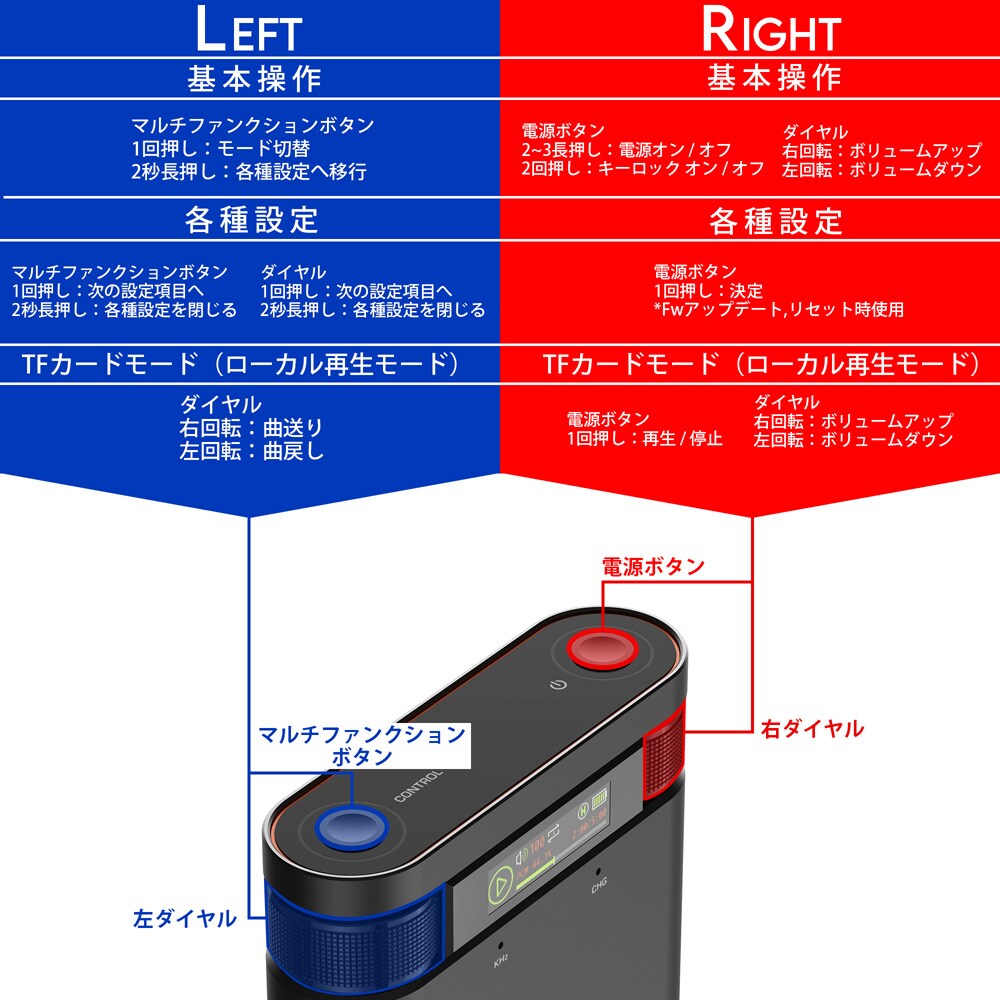

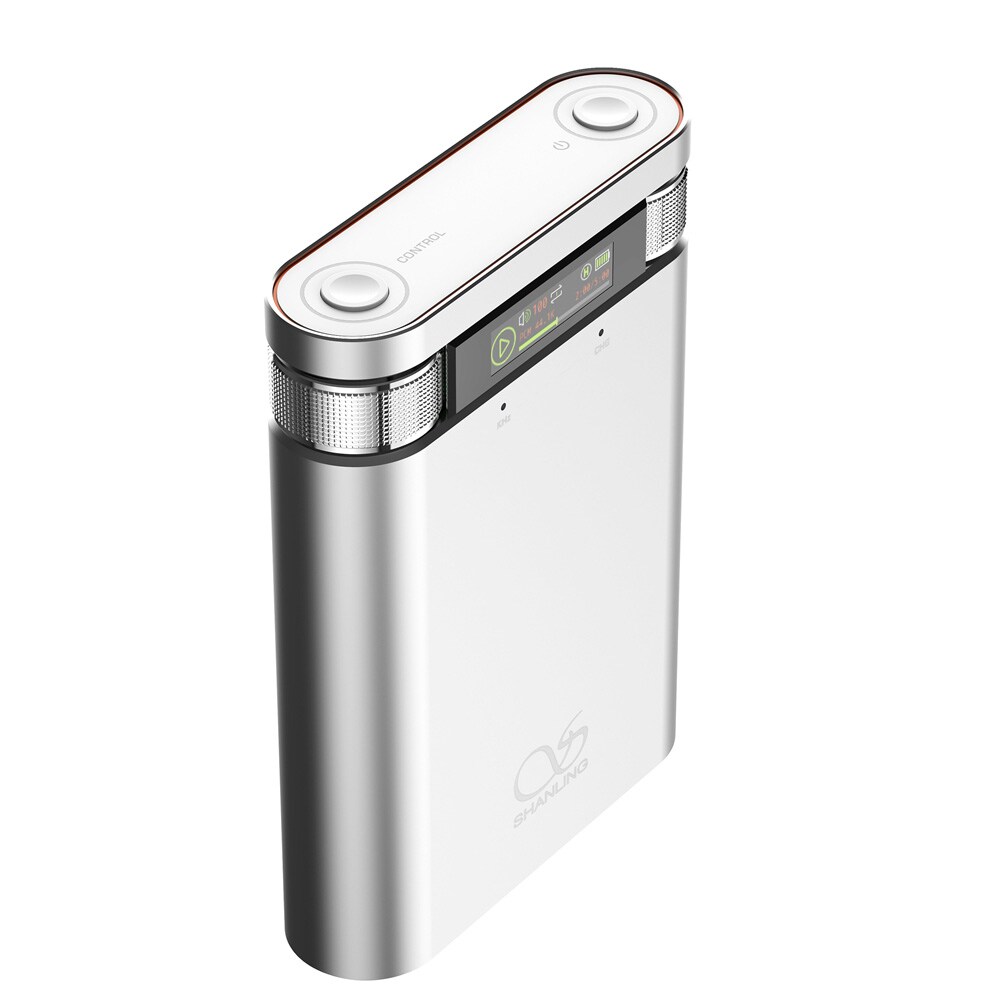

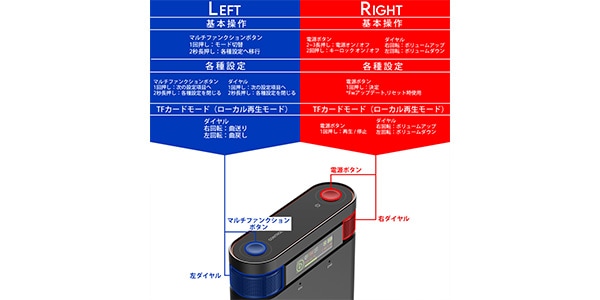

■One-hand design that is light and easy to operate
・The H2 uses a one-handed design that is simple and easy to operate, and the body is made of aircraft-grade magnesium-aluminum alloy. By adopting lightweight, thin, and smooth curves for the body line,
We have achieved a one-handed design with excellent operability, allowing you to access the control system while holding it with one hand.
Palm-sized and portable, the H2 is easy to carry and allows for a listening experience in any situation.

■All-in design that combines high-quality DAC/AMP and audio player
・The H2 is not only a high-quality, high-resolution DAC/AMP, but also a high-definition audio player that provides a pure listening experience. It is equipped with a local playback function using the MicroSD card slot on the bottom, making it possible to play music on its own.

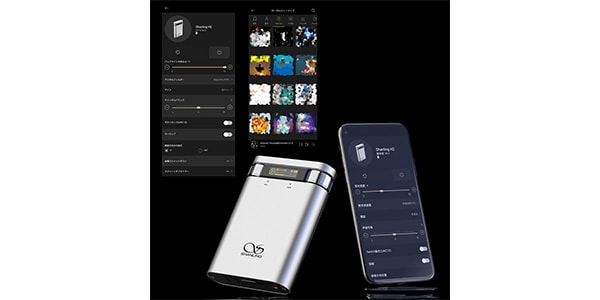

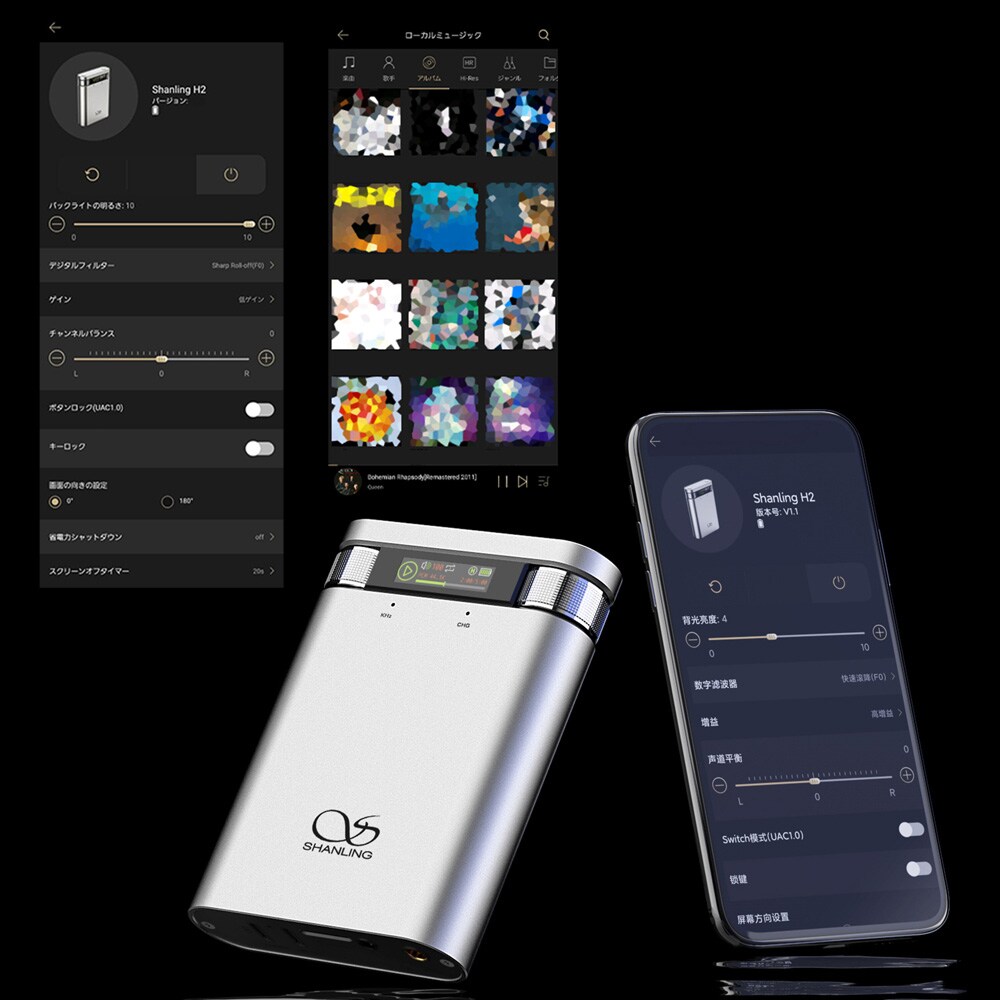

It is also possible to access the song library on the SD card by pairing the H2 with a smartphone using the SyncLink function of the dedicated APP EddictPlayer. This turns H2 into a high-definition audio player.

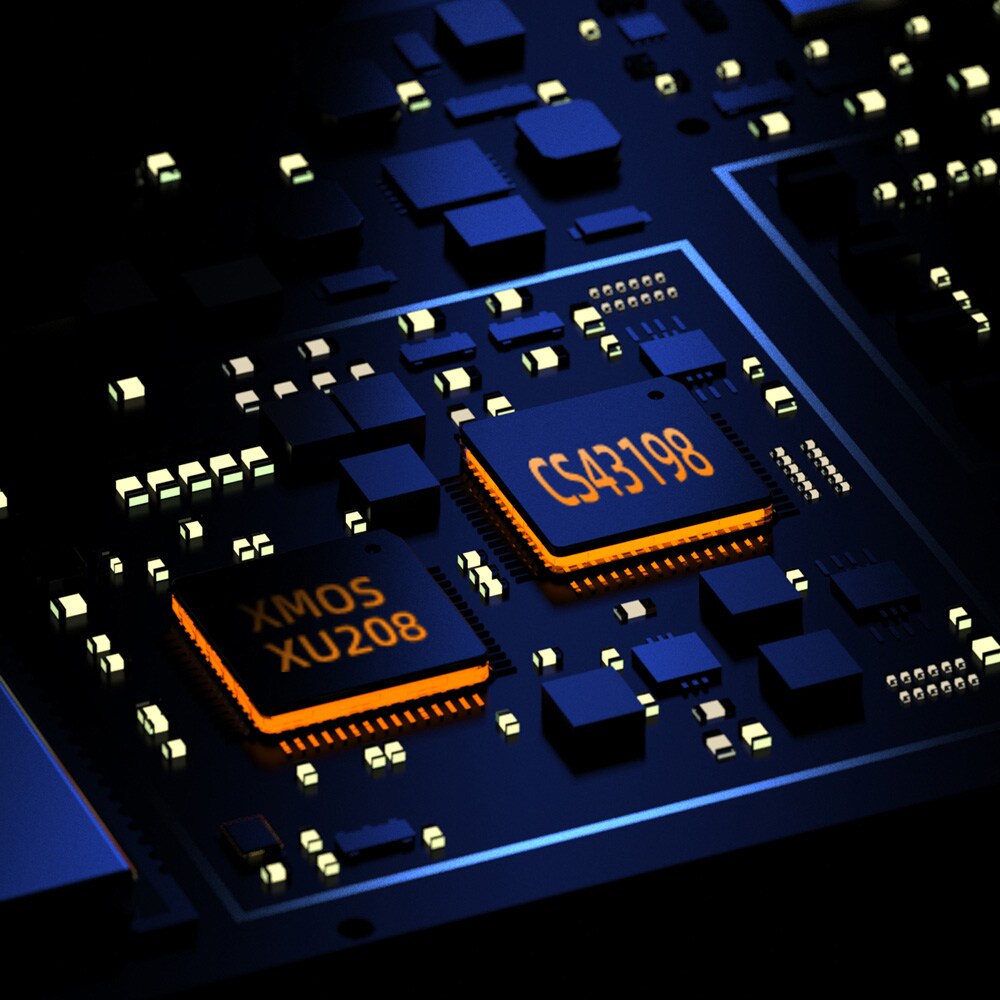

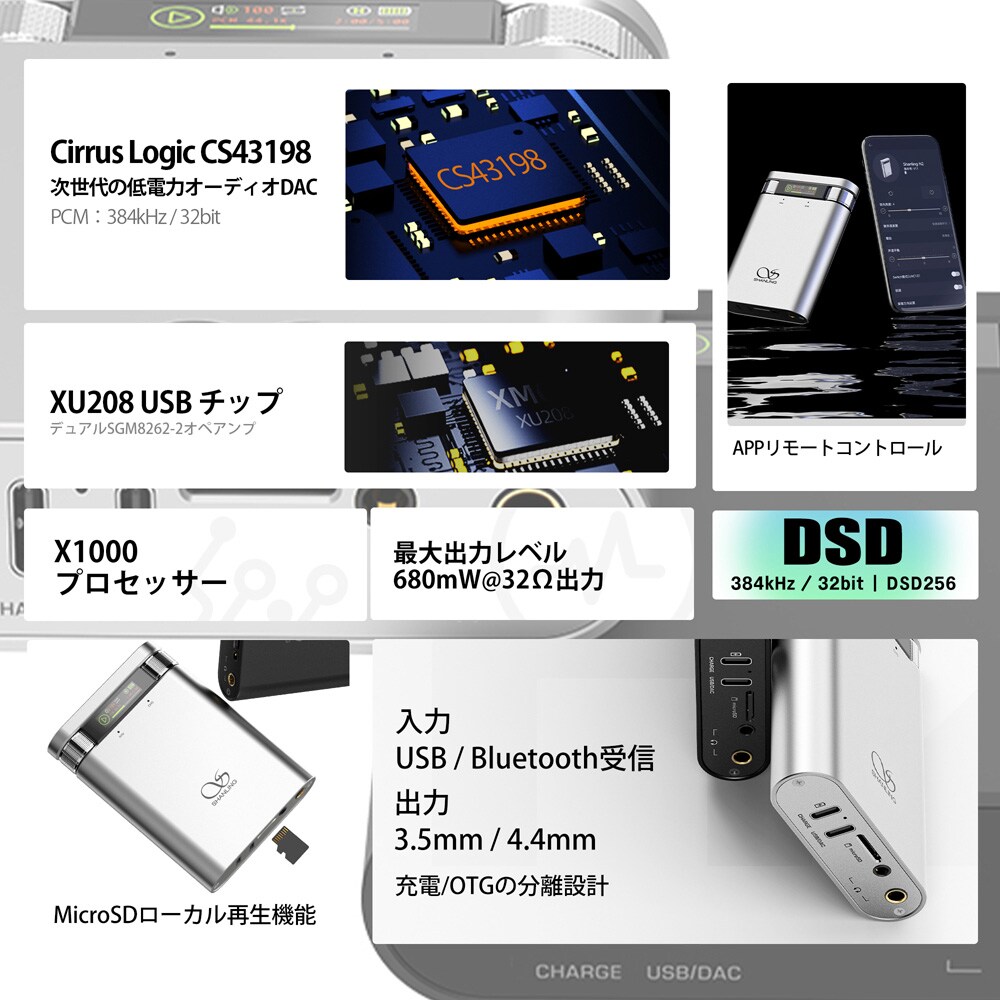

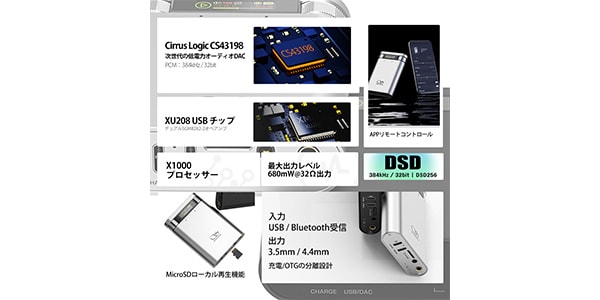

■Equipped with “CS43198” in the DAC section which is the “core” of the sound
・The DAC section, which is the key to the H2's sound, is equipped with Cirrus Logic's CS43198, which has excellent dynamic range and separation, achieving a high standard in the industry while minimizing the area.
SHANLING's highly accurate tuning technology, which boasts a history of over 30 years, provides pure sound quality reminiscent of concert scenes and tuning that inherits high-end sound.
・S/N ratio: 125dB
・Distortion rate: 0.0007%
・PCM: 384kHz/32bit

■Newly developed operational amplifier circuit Outstanding acoustic technology

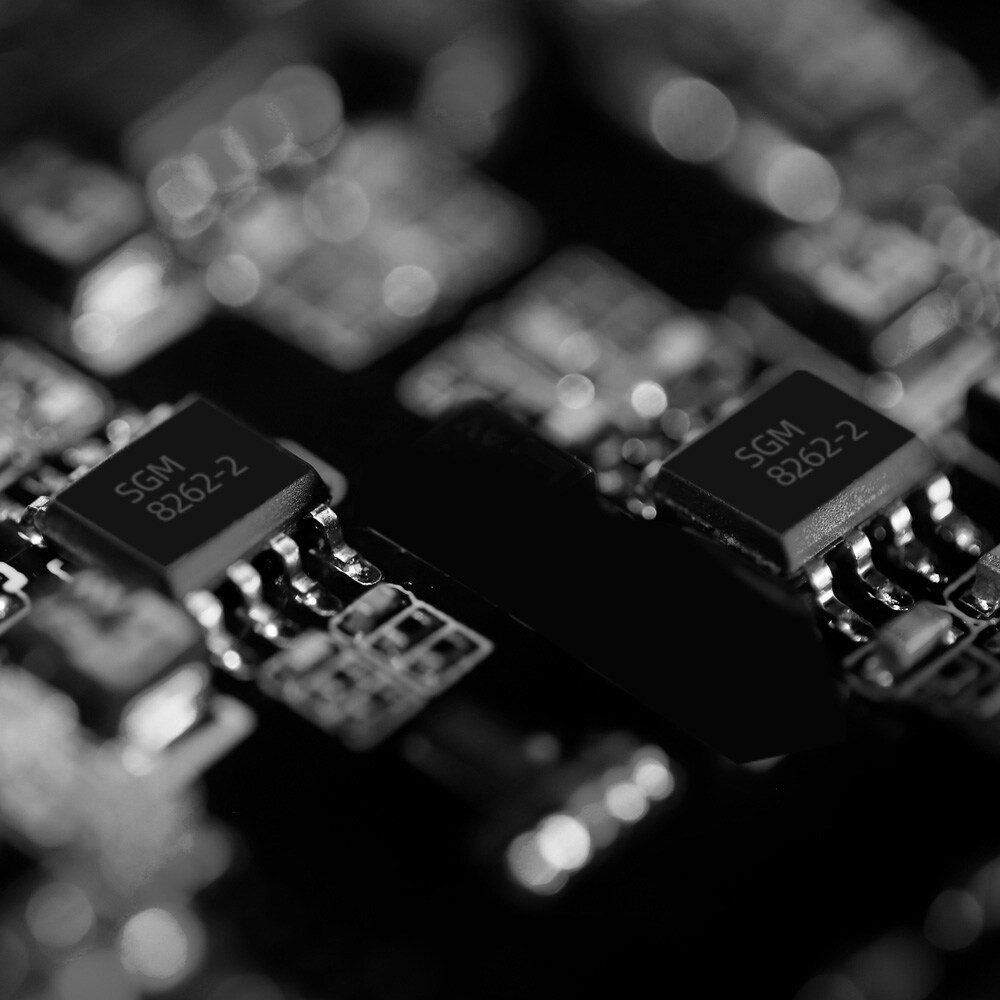

- Compared to the previous model, the H2 uses a newly developed operational amplifier circuit to achieve higher quality and smaller scale design. The amplifier circuit uses dual SGM8262-2 manufactured by SG Micro, which has a reputation for low noise and high-speed response, and the filtering capacitor uses ELNA's aluminum electrolytic capacitor ""Silmic II,"" achieving high driving force and dynamic range while producing a warm and smooth sound.

■Equipped with XMOSXU208 USB chip
・The H2 is equipped with the XMOS XU208 USB chip, realizing USB asynchronous audio decoding with high processing performance, low power consumption, and low latency. Supports 384kHz and DSD256 in USB-DAC mode for clear and noiseless sound.
・In USB-DAC mode
・PCM384kHz
・DSD 256

■Two-stage gain function and highly adaptable connectivity
・H2 supports 3.5mm + 4.4mm output, has two levels of gain function [High/Low], and maximum output reaches 680mW@32Ω when balanced output. With its USB-DAC function, MicroSD card local playback function, Bluetooth receive function, and high output value, the H2 can meet all needs with high quality.

■High performance battery Enjoy music for longer and enjoy it
-Equipped with a high-performance battery with a total capacity of 2,100mAh and a unique PMU chip, it achieves sophisticated power management and high performance that allows you to enjoy music for longer.
・Continuous playback time
・3.5mm single end: 12.5 hours
・4.4mm balance 10.5 hours
*Varies depending on usage mode and operating conditions.

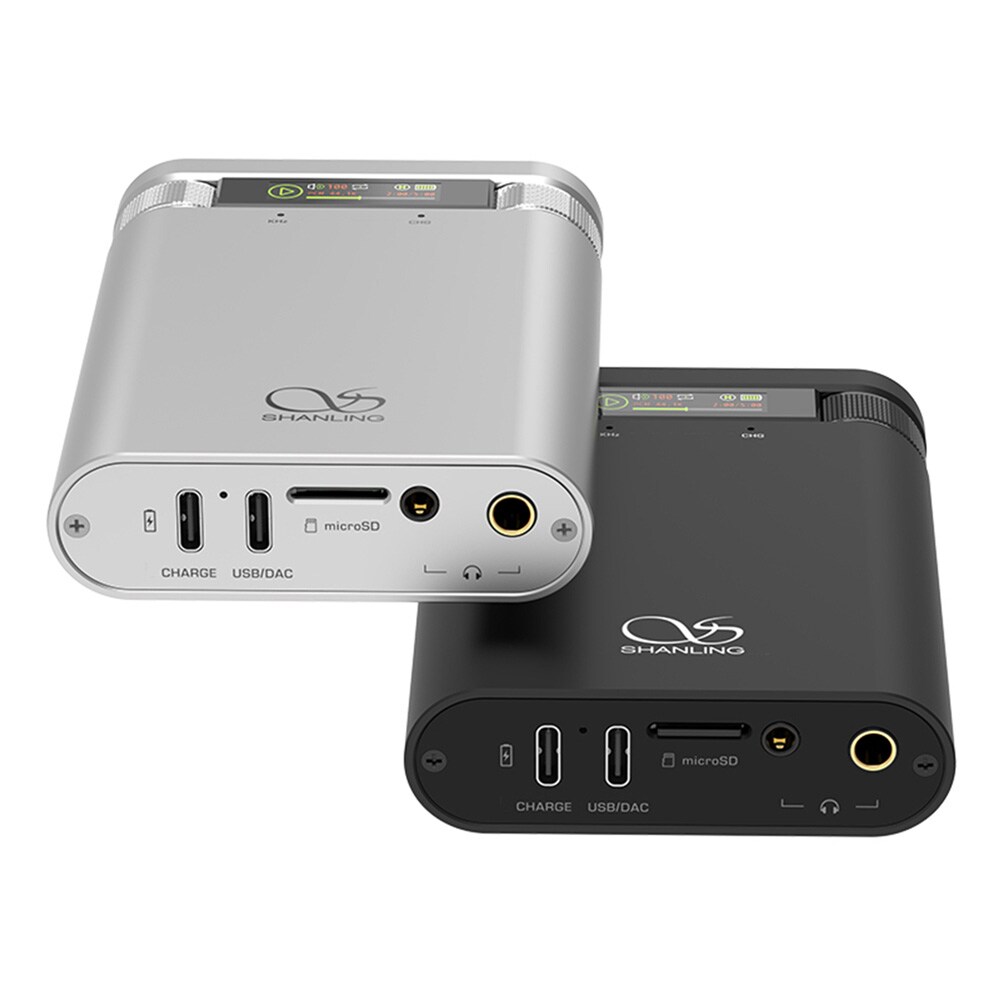

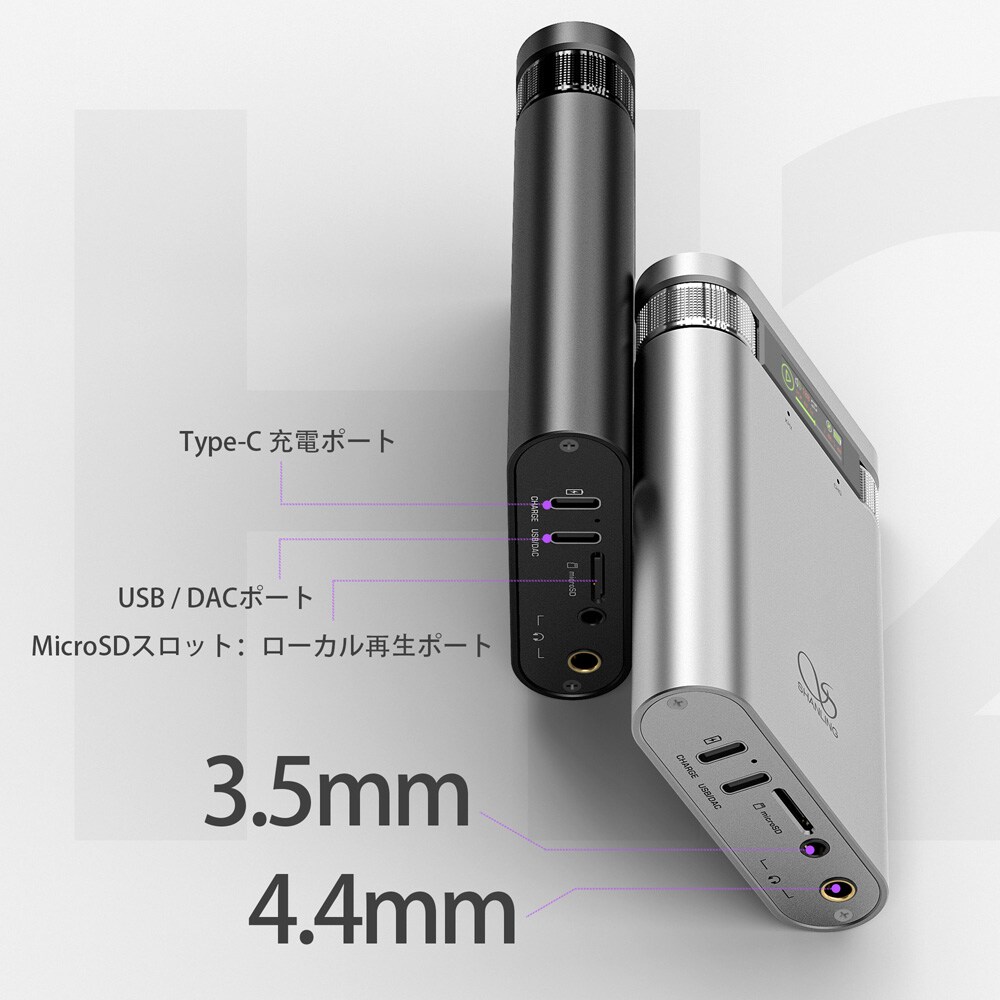

■Type-C dual port design Separate power and signal transmission
・H2 adopts a separate structure with independent Type-C connectors for power supply and digital signal transmission. Separating the charging port and USB digital transmission port reduces negative effects and interference from the power source. The dual port design allows you to enjoy music with clean sound while charging, making it possible to use it for free and casual situations.

■Wireless with Bluetooth5.0 receiver function
・H2 uses a module that supports Bluetooth 5.0 and is equipped with a Bluetooth receive function that supports LDAC, AAC, and SBC codecs. You can support high-quality music experiences even wirelessly, depending on the scene and connected devices.
・Supported codec (reception only)
・LDAC/AAC/SBC

■Multi-functionality that colors various scenes with music
- It can be connected to a smartphone or tablet and used as a portable DAC/AMP, or a desktop DAC/AMP when connected to a PC, allowing not only a high-quality music experience but also the ability to make the sound of video content more gorgeous. Furthermore, by enabling UAC1.0 mode, it operates as a USB-DAC/AMP for game consoles such as home consoles, allowing you to play games with high-quality sound and enjoy games even more vividly with an immersive and highly realistic feeling.

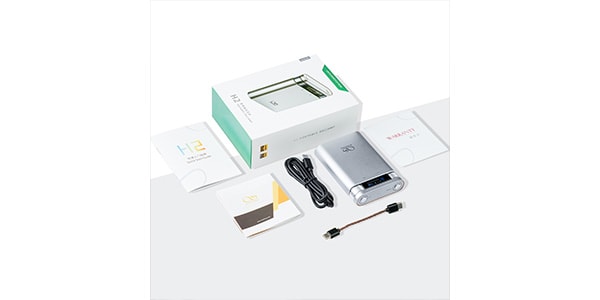

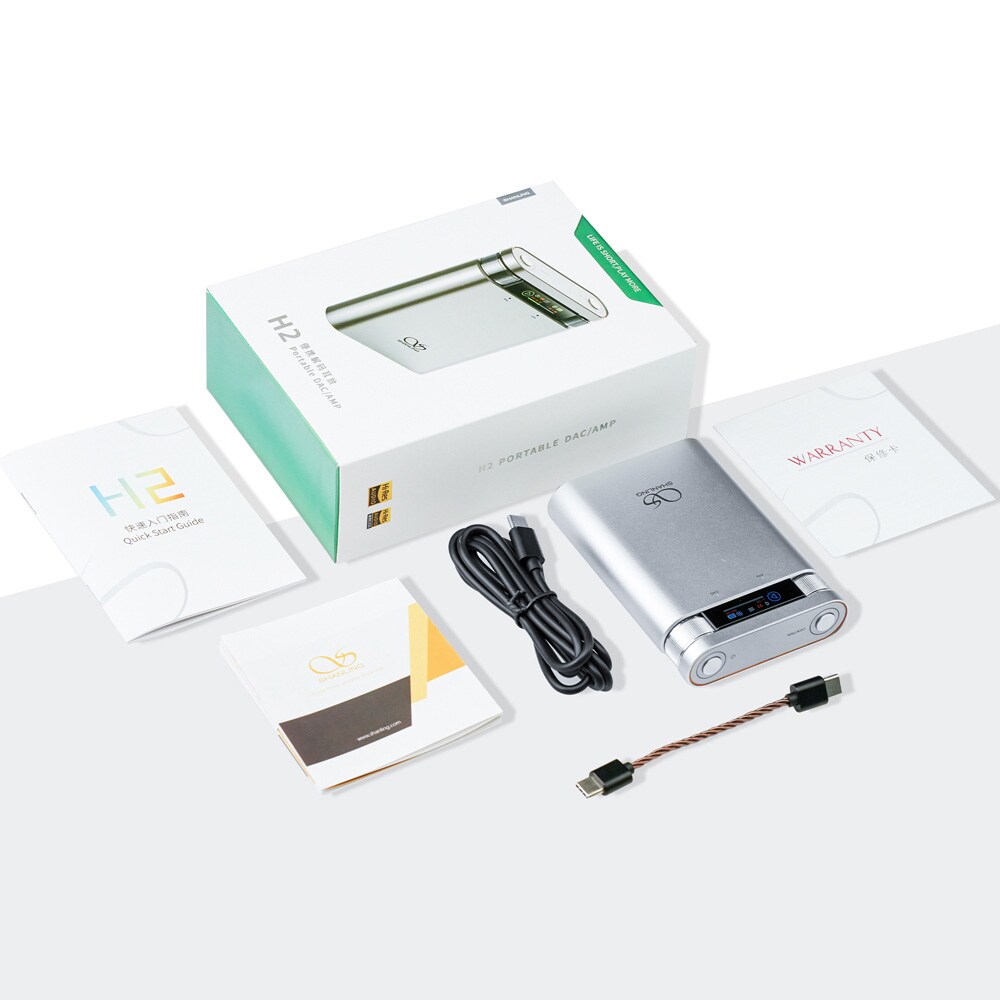

【accessories】
USB-A to C charging cable
USB-C to C OTG cable
quick start guide
Product warranty

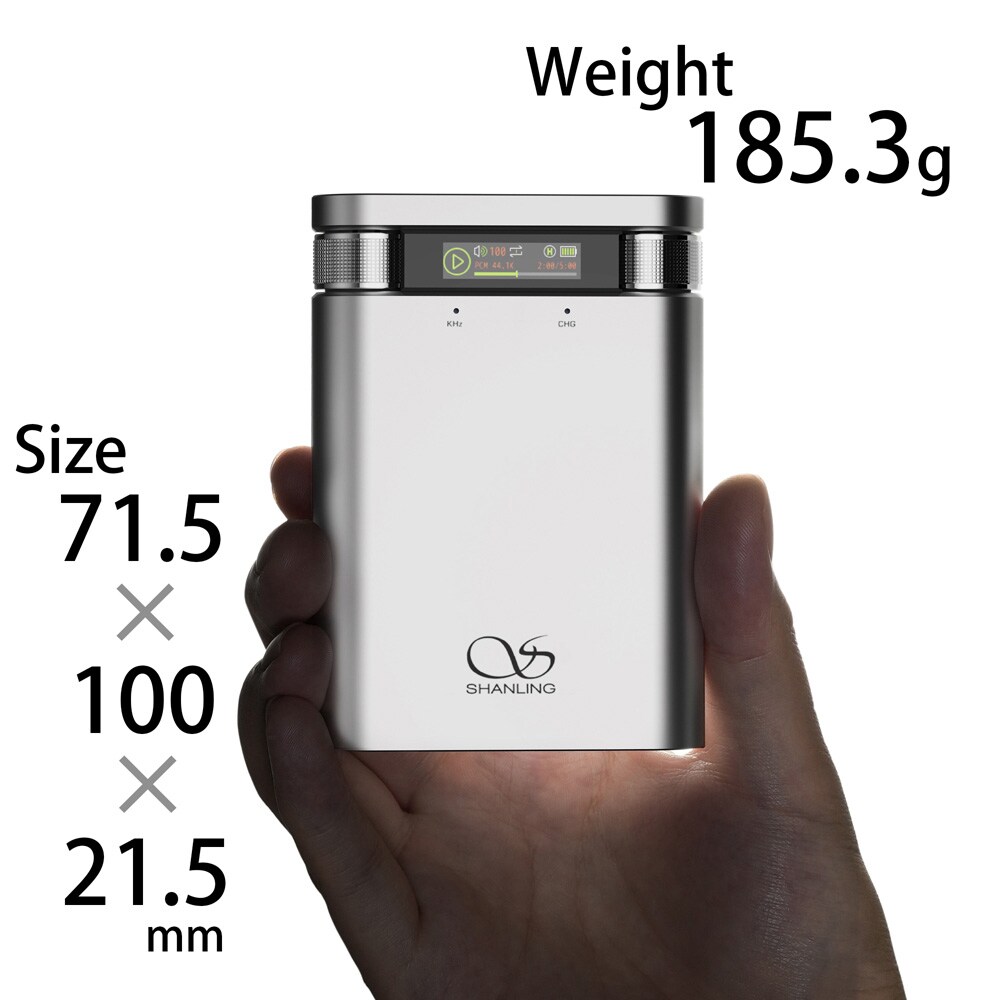

・Size: 71.5 x 100 x 21.5 mm
・Weight: 185g

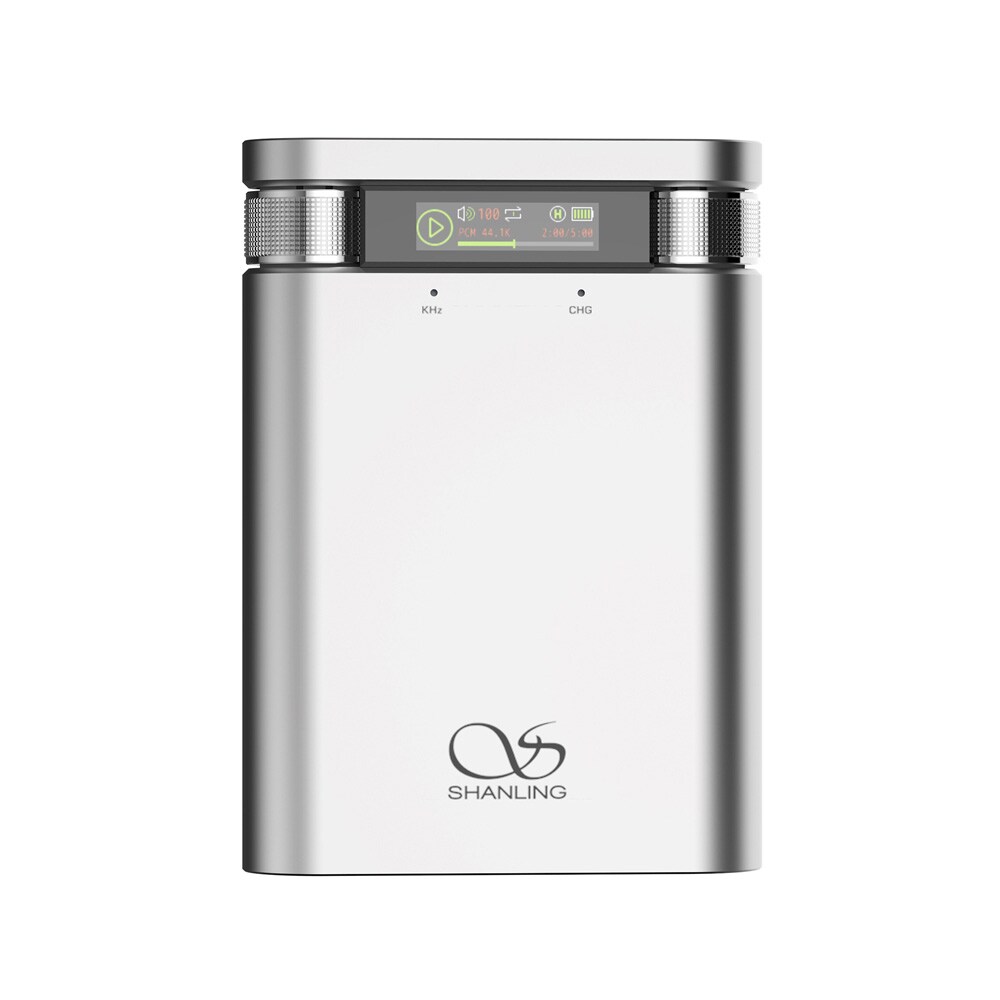

・Display: 0.99 inch LCD display
- Audio format: DSD ("".iso"", "".dsf"", "".dff"") *ISO DST encoding is not supported. ISO / DXD / APE / FLAC / WAV / AIFF / ALF / DTS / MP3 / WMA / AAC OGG / ALAC AAC / OGG / ALAC / MP2 / M4A / AC3 ​​/ M3U / M3U8 / OPUS
・When playing locally: PCM192kHz / DSD128 (software) / DSD64 (hardware)
・In USB-DAC mode: PCM384kHz / DSD256 (hardware decoding)
Gain setting: High/Low
Storage: MicroSD card up to 2TB
DAC chip: CS43198
Digital filter: Select from 4 types of digital filters
Bluetooth version: 5.0
Bluetooth codec (receive only): LDAC/AAC/SBC
Battery capacity: 2,100mAh
Continuous playback time: 3.5mm single end 12.5 hours
4.4mm balance 10.5 hours
*Varies depending on usage mode and operating conditions.
