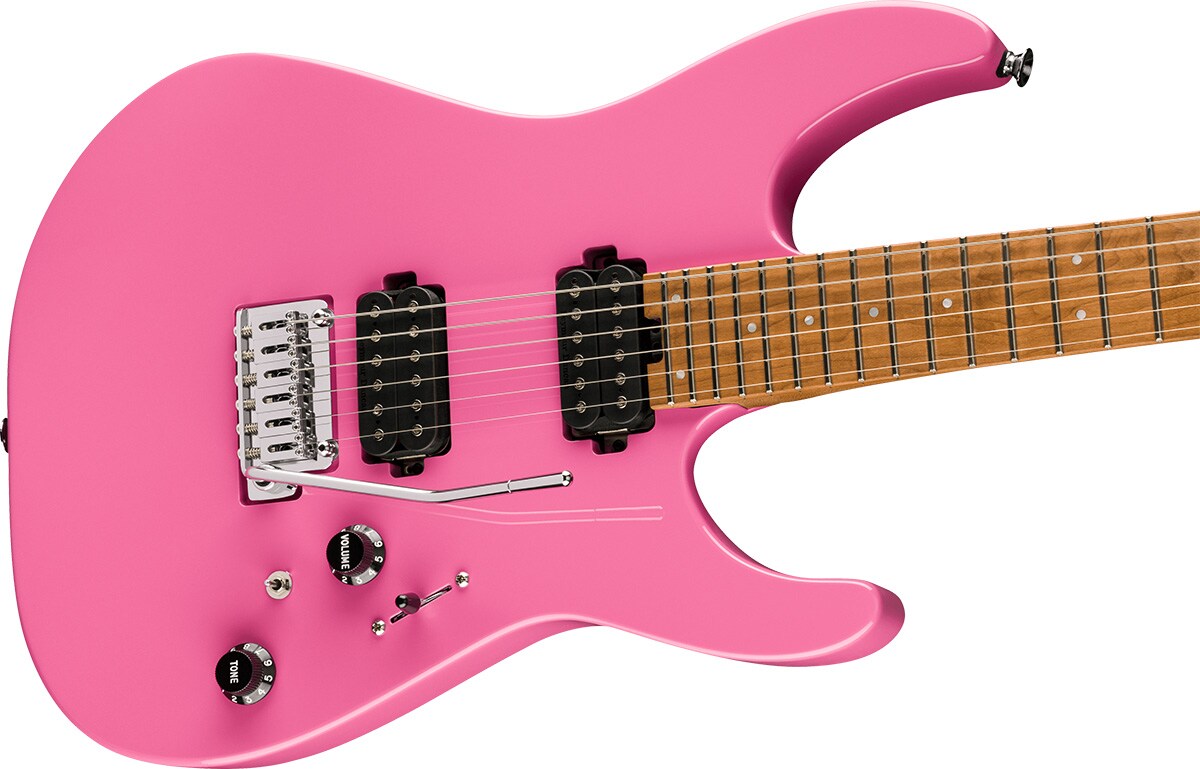

CHARVEL / Pro-Mod DK24 HH 2PT CM, Caramelized Maple Fingerboard, Bubbl

Built for the progressive guitarist who wants to sound like never before, the new Pro-Mod DK24 HH 2PT CM offers modern high-performance performance.

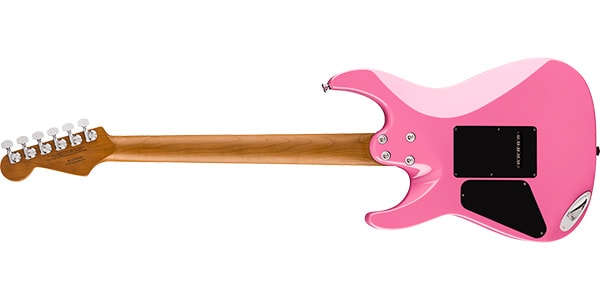

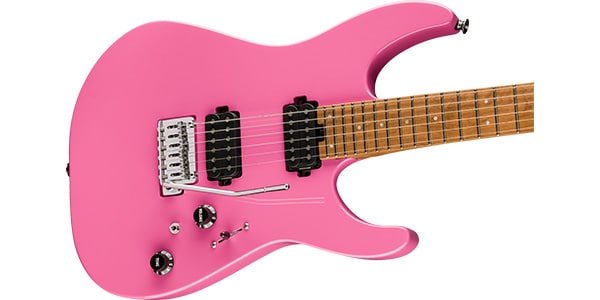

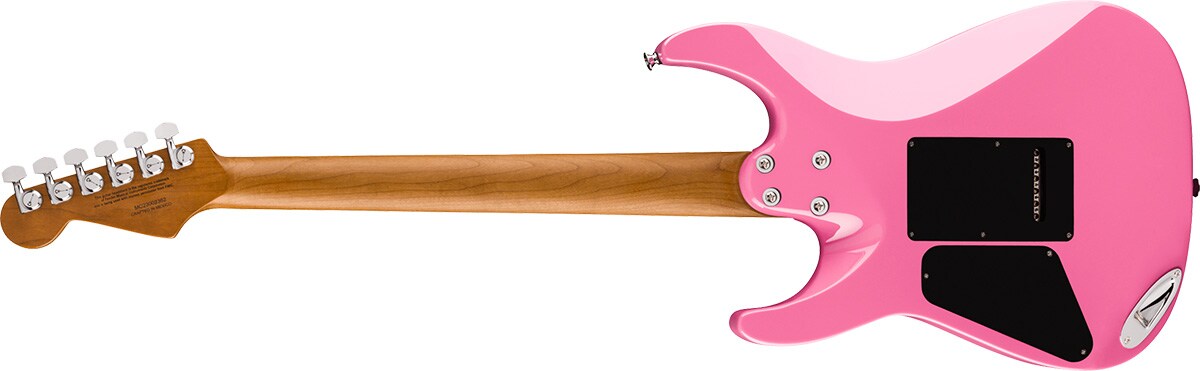

The Dinky body is made of alder, available in Gloss Black, Matte Blue Frost, Satin Burgundy Mist, and Three-Tone Sunburst finishes, which allows for easy access to the upper registers. Features a scalloped lower back bout and shredder's cut heel.

Bolt-on caramel maple "speed" neck with graphite reinforcement, smooth hand-applied urethane finish on the back, Luminlay side dots, and heel-mounted truss rod adjustment 12?16" compound radius spec caramel maple fingerboard features a comfortable edge treatment, 24 jumbo frets, pearloid dot inlays, and a Graph Tech TUSQ XL nut.

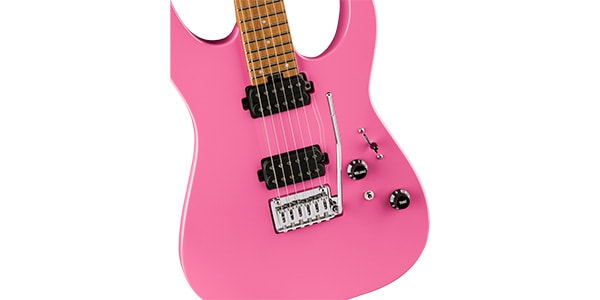

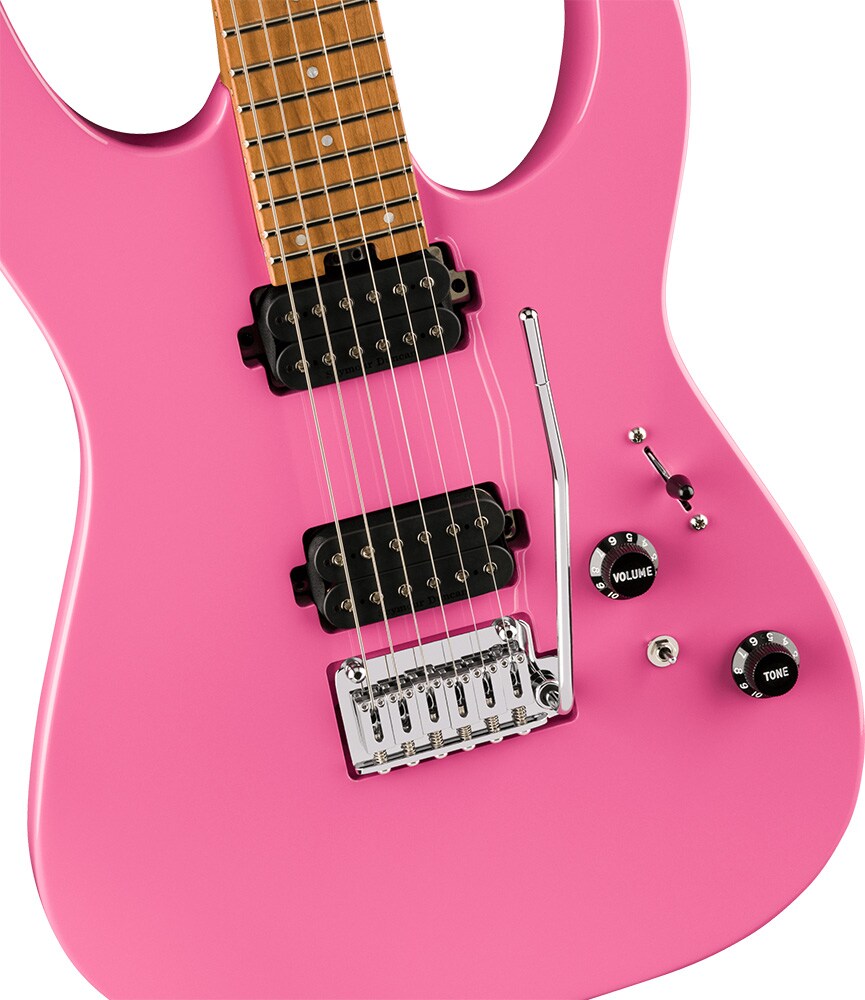

The HH pickup configuration, consisting of a direct-mounted Seymour Duncan Full Shred SH-10B bridge pickup and a Seymour Duncan Alnico II Pro APH-1N neck pickup, also features a 2-way mini-toggle switch for enhanced The HH pickup configuration consists of a 10B bridge pickup and a Seymour Duncan Alnico II Pro APH-1N neck pickup. The bridge pickup produces a crunchy top end and a defined low end, while the neck pickup ranges from uplifting highs to smooth lows.

Neck

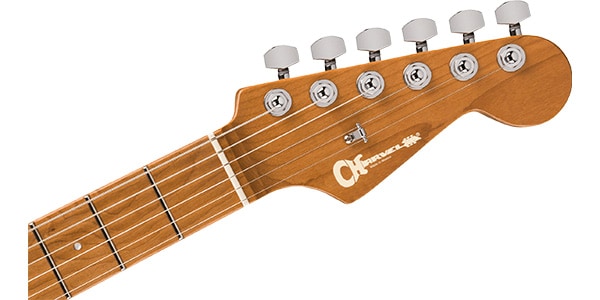

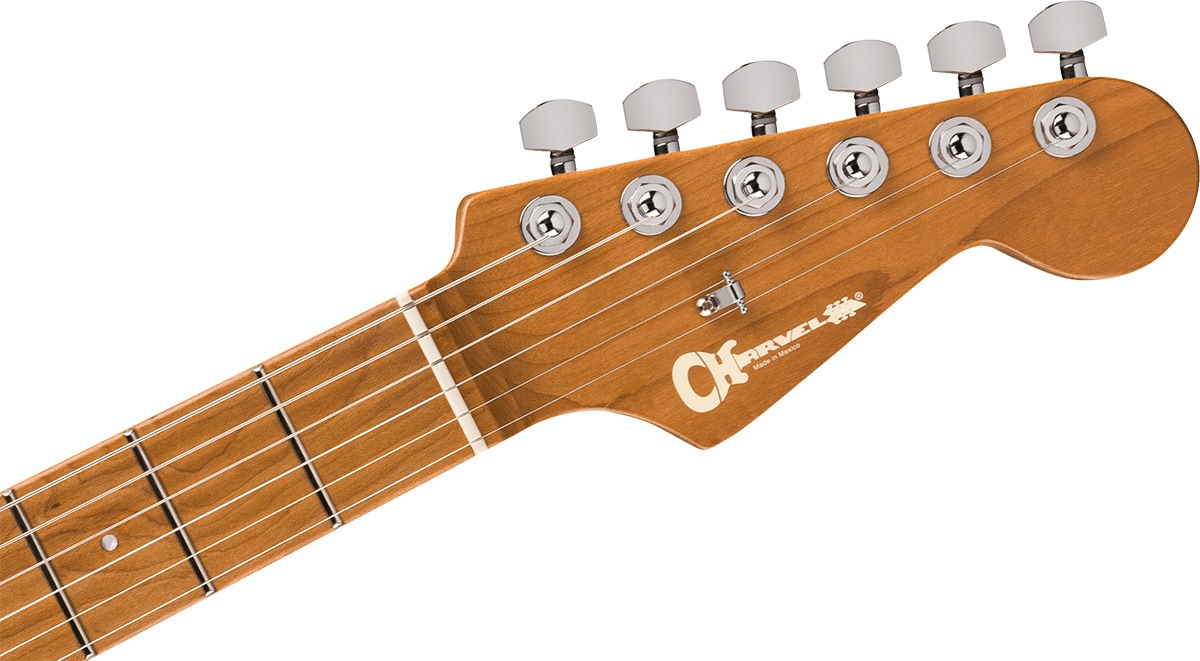

Headstock Licensed Fender Stratocaster
NeckCaramelized Maple
Neck FinishHand-Rubbed Urethane
NeckShapeSpeed Neck with Rolled Fingerboard Edges
NeckBolt-On with Graphite Reinforcement
Fingerboard Radius12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard MaterialCaramelized Maple
Position Inlays4mm Pearloid Dot
Side Dot
Number of frets24
Truss RodDual-Action with Wheel
Truss Rod NutHeel-Mount Truss Rod Adjustment Wheel
NutGraph Tech TUSQ XL
Nut Width1.6875" (42.86 mm)
Nut MaterialGraph Tech TUSQ XL

Body
BodyAlder
Body FinishGloss
Body ShapeDinky
BODY STYLESolid Body
Body MaterialAlder

HardwareBridgeGotoh Custom 510 Tremolo
BridgeGotoh Custom 510 Tremolo
PickguardNone
Pickup CoverBlack
Control KnobStrat-Style Skirt
SWITCH TIPBlack
Hardware FinishChrome

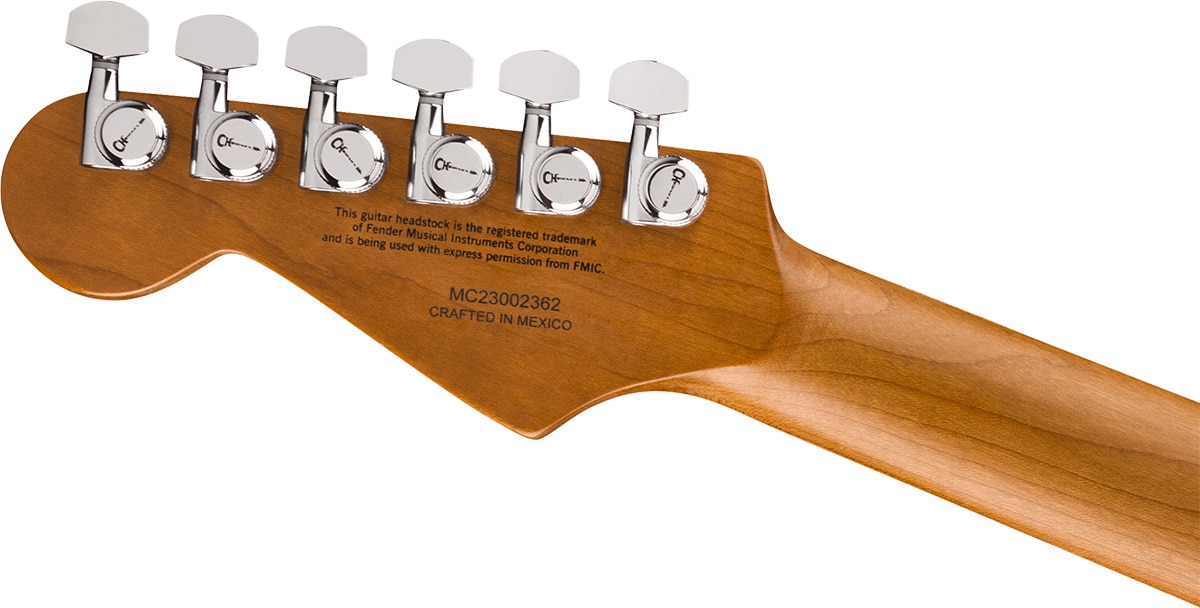

Tuning MachineCharvel-Branded Die-Cast Locking
STRING TREESFender Standard String Guide
STRINGNickel Plated Steel (.009-.042 Gauges)
Tremolo ArmGotoh
Neck PlateNone - 4-Bolt Sculpted Heel
Strap ButtonStandard

Bridge PickupSeymour Duncan
Bridge PickupSeymour Duncan Full Shred TB-10
Neck PickupSeymour Duncan Alnico II Pro APH-1N
Pickup ConfigurationHH
ControlVolume (500K EVH Bourns Low Friction Pot), No-Load Tone
Switch 5-Position Blade: Position 1. Both Inside Coils, Position 5.
AUXILIARY SWITCHING2-Position Mini Toggle Down/All Series, Up/All Parallel
