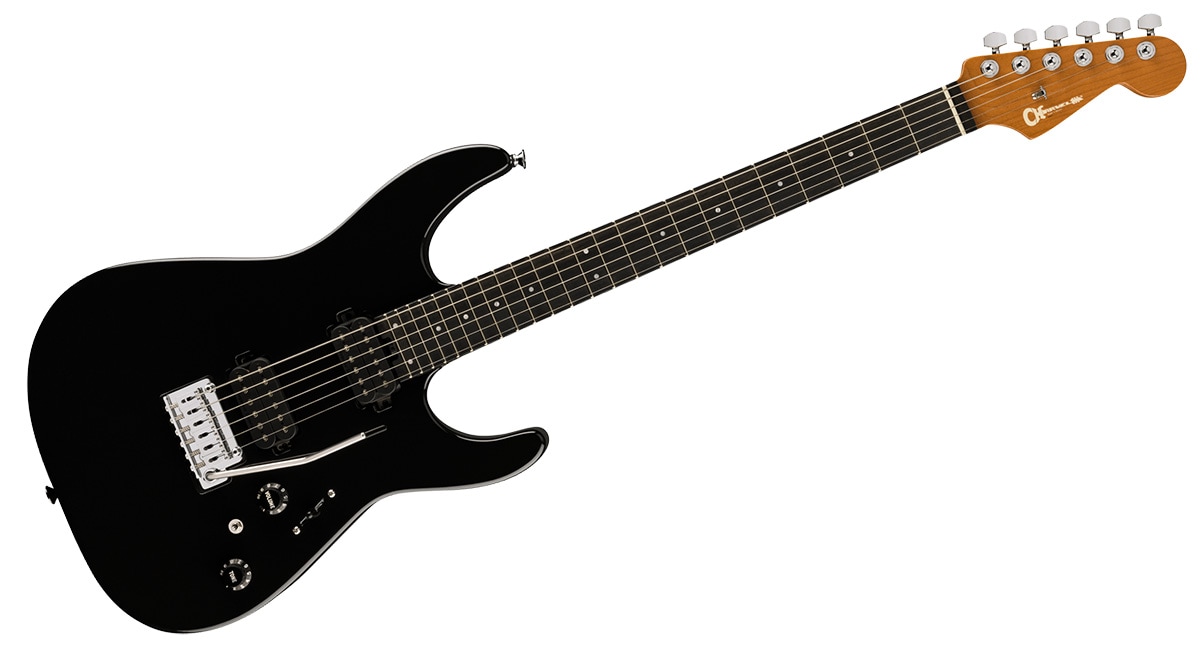

CHARVEL / Pro-Mod DK24 HH 2PT EB, Ebony Fingerboard, Gloss Black

The bolt-on, jaramelized maple speed neck features a heel-mounted truss rod adjustment wheel, luminescent Luminlay side dots, graphite reinforcement rods, and a carefully hand-finished urethane back finish that provides a silky smooth playing feel. The hand-finished urethane back finish provides a silky smooth playing feel.

And this neck is paired with 24 jumbo frets, pearloid dot inlays, a Graph Tech TUSQ XL nut, and a 12-16" compound radius ebony fingerboard with carefully treated roll-off edges.

It has a two-way toggle switch for series/parallel wiring, a Custom Seymour Duncan Full Shred TB-10 bridge pickup, and a Seymour Duncan Alnico II Pro APH-1N neck pickup. The bridge pickup is a Seymour Duncan Full Shred TB-10. The bridge pickup provides a crisp top end and highly articulate low end, while the neck pickup delivers a wide range of tones from superb high end to silky low end.

Combining sophisticated styling and core tone, the DK24 HH 2PT EB features 5-way blade pickup switching, 500K EVH Bourns low-friction potentiometer Stratocaster-style volume knob and No-Load tone control, Premium modern features include Gotoh Custom 510 recessed tremolo bridge, locking tuners, and chrome hardware.

Neck

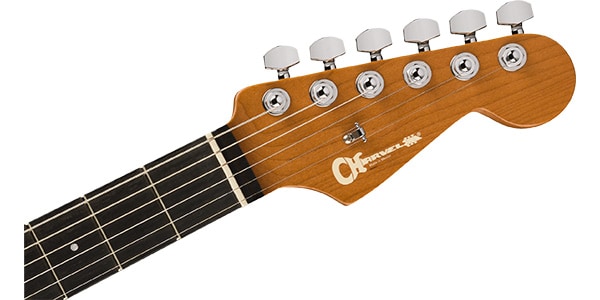

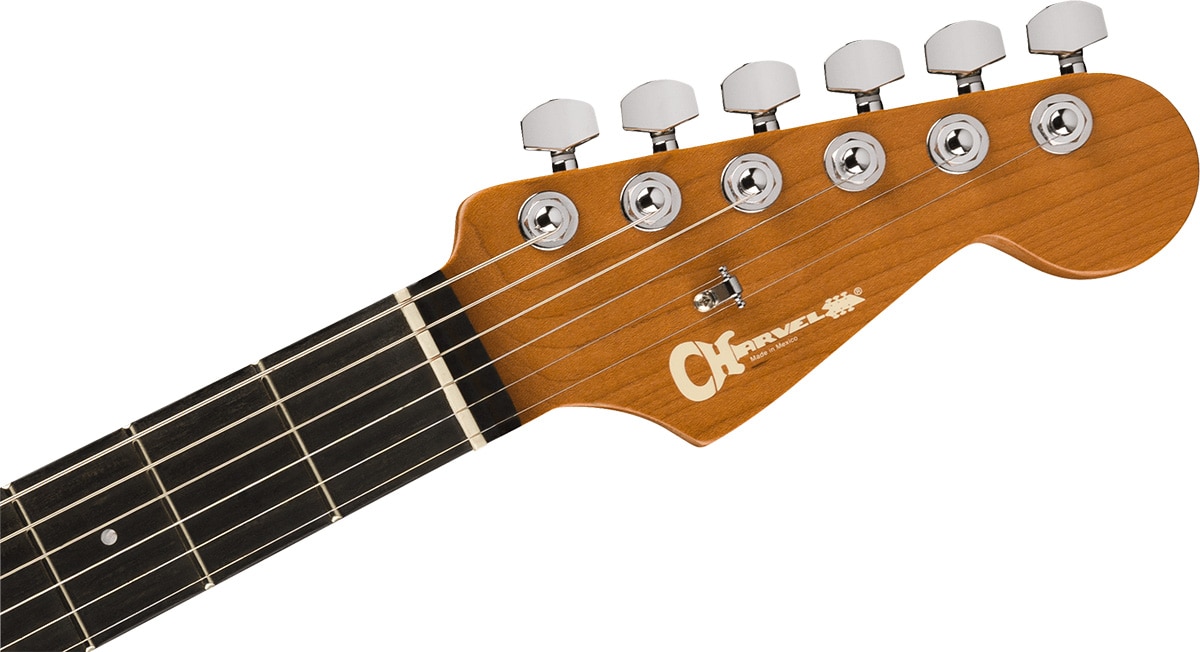

Headstock Licensed Fender Stratocaster
NeckCaramelized Maple
Neck FinishHand-Rubbed Urethane
NeckShapeSpeed Neck with Rolled Fingerboard Edges
NeckBolt-On with Graphite Reinforcement
Fingerboard Radius12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard MaterialEbony
Position Inlays4mm Pearloid Dot
Side Dot
Number of frets24
Truss RodDual-Action with Wheel
Truss Rod NutHeel-Mount Truss Rod Adjustment Wheel
NutGraph Tech TUSQ XL
Nut Width1.6875" (42.86 mm)
Nut materialGraph Tech TUSQ XL
icon specs

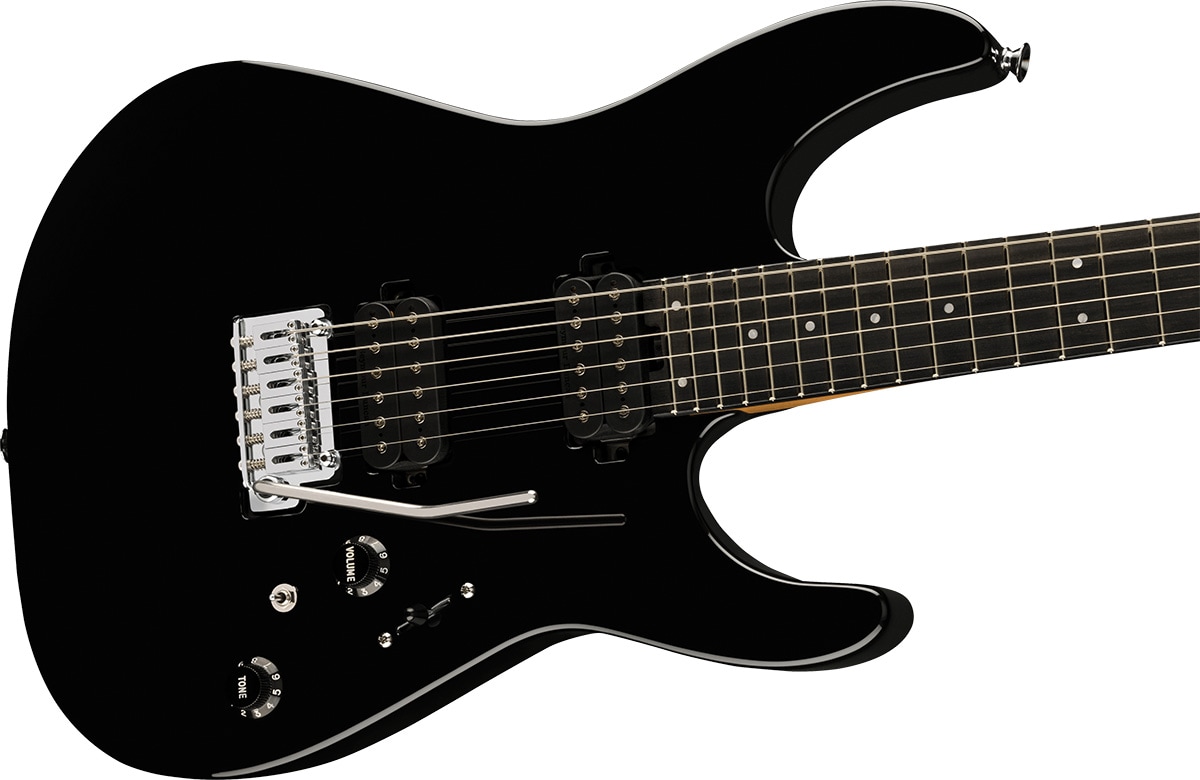

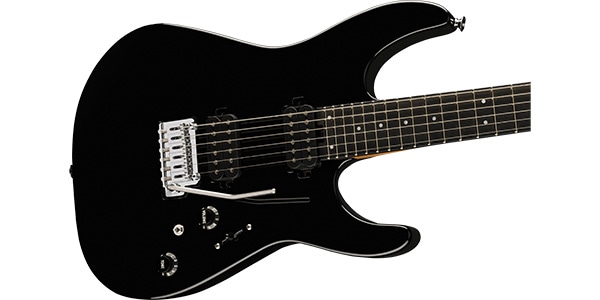

Body
Body Alder
Body FinishGloss
Body ShapeDinky
BODY STYLESolid Body
Body MaterialAlder

HardwareBridgeGotoh Custom 510 Tremolo
BridgeGotoh Custom 510 Tremolo
PickguardNone
Pickup CoverBlack
Control KnobStrat-Style Skirt
SWITCH TIPBlack
Hardware FinishChrome

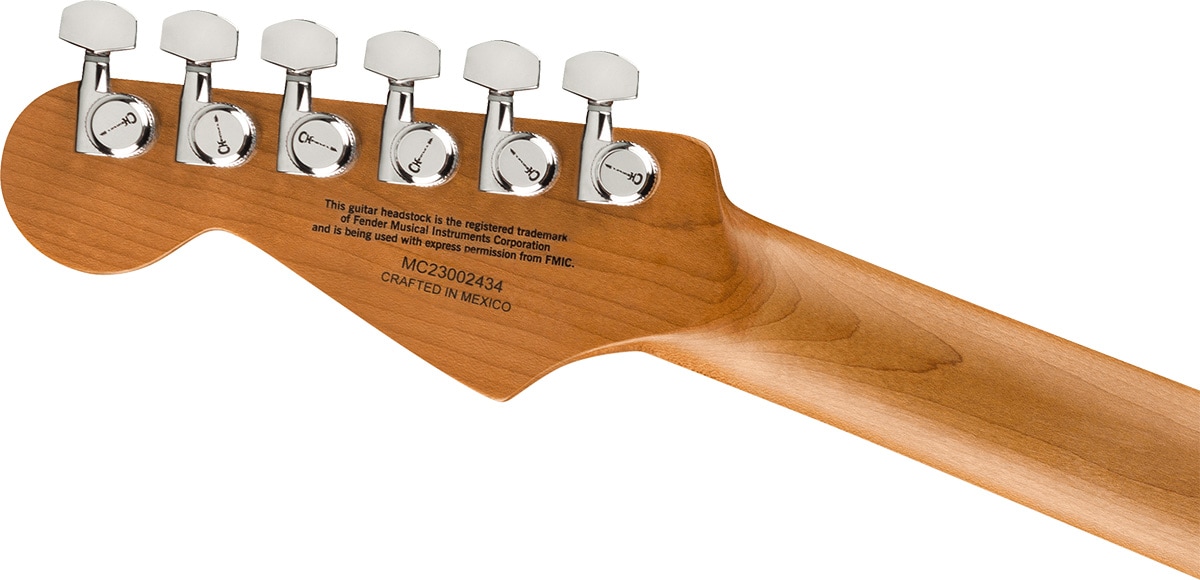

Tuning MachineCharvel-Branded Die-Cast Locking
STRING TREESFender Standard String Guide
STRINGNickel Plated Steel (.009-.042 Gauges)
Tremolo ArmGotoh

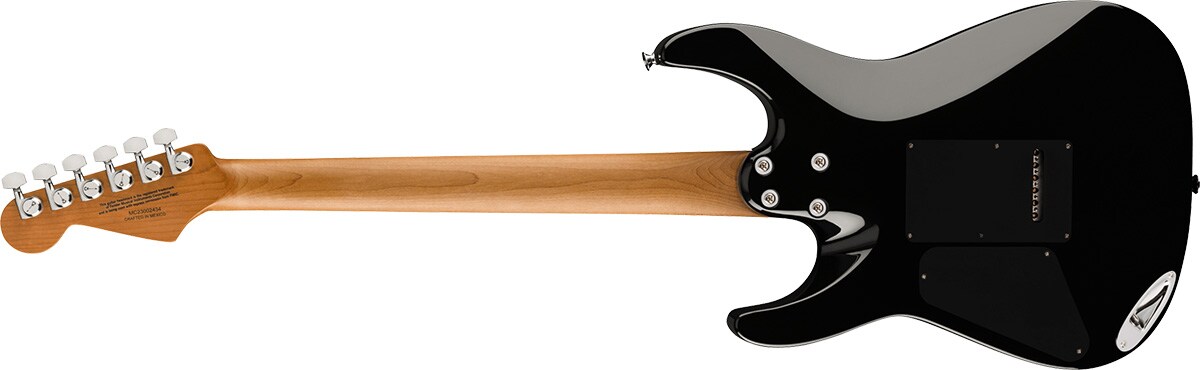

Neck PlateNone - 4-Bolt Sculpted Heel
Strap Button Standard
icon specs

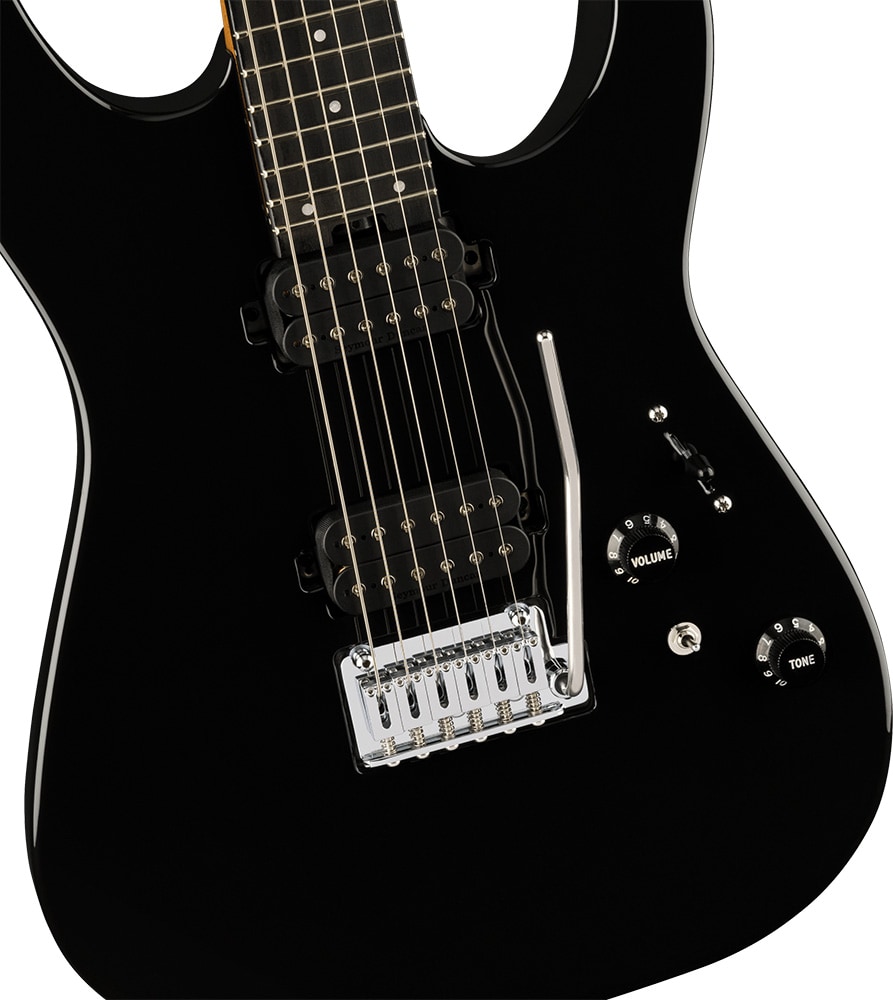

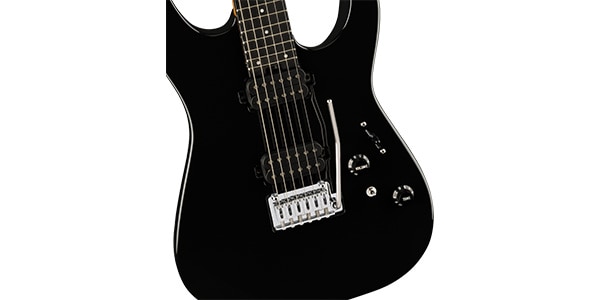

Electronics
Bridge PickupSeymour Duncan Full Shred TB-10
Neck PickupSeymour Duncan Alnico II Pro APH-1N
Pickup configuration HH
ControlVolume (500K EVH Bourns Low Friction Pot), No-Load Tone
Switch 5-Position Blade: Position 1. Both Inside Coils, Position 5.
AUXILIARY SWITCHING2-Position Mini Toggle Down/All Series, Up/All Parallel
