BOSS / VE-22

BOSS/VE-22 is a vocal effector that is equipped with many high-quality OSS effects and is useful in a variety of situations such as live performances and distribution.

■Simple operation vocal effector that leads to the sound you envision.

■Sales points
1. Vocal effector that easily guides you to the singing voice you envision
2. A wide range of approaches are possible, including brushing up your singing voice and actively creating your sound.
3. PITCH CORRECT function for stable pitch and electric voice
4. HARMONY function that adds beautiful harmony
5. HARMONY, EFFECT, ECHO, 3 blocks can be used at the same time
6. XLR input jack with phantom power
7. Input level settings allow use of any microphone
8. XLR terminal OUTPUT that supports stereo output
9. 50 ready-to-use preset memories and 99 user memories to store freely created sounds
10. LCD color display with excellent visibility
11. HARMONY/EFFECT/ECHO knob with LED light for simple operation
12. Three pedal switches also support customizable functions
13. USB Type-CR? terminal that allows connection to a PC or mobile device* for recording and audio playback
14. AUX IN terminal for audio playback
15. Looper function expands performance range
16. Supports connection of external footswitch/expression pedal
17. Two power supply methods that can be used with AA batteries and AC adapter (sold separately)
18. Microphones and cables can be safely carried together with the dedicated case CB-VE22 (sold separately)
*Operation with all devices and software is not guaranteed.

■Top-of-the-line vocal effects
BOSS is a pioneer of vocal effectors and has released numerous products. The VE-22 is equipped with a variety of effects developed using the technology and know-how cultivated over the years. You can add rich reverberation to create a sound that envelops the audience, or use an electric voice that emphasizes pitch changes or a singing voice that sounds like it's being played through a loudspeaker to give the song more definition. It also includes 50 presets created in collaboration with BOSS engineers and artists. There are many ready-to-use presets, including iconic sounds that everyone has heard, so you can use them in your performances right away.

■Pursuing simple operability

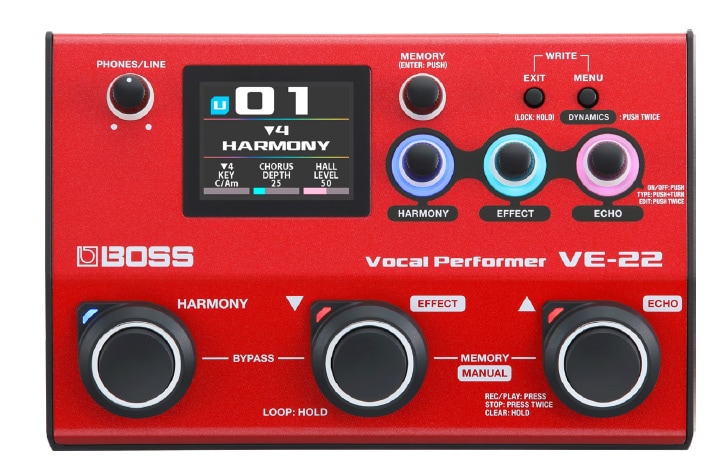

The bright color display with excellent visibility allows you to instantly understand the status of effects even on a dark stage. You can perform with confidence. Additionally, the knobs provided for each of HARMONY, EFFECT, and ECHO provide extremely simple operability. Turn the knob to adjust parameters, click to turn on/off each function, and double-click to make more detailed settings. You can save up to 99 sounds you create as user memory. Furthermore, the pedal switch on the main unit also supports customization of functions. It is designed to be easy to operate even on a desktop, making it suitable for use in streaming.

■Natural and diverse harmony
VE-22 is equipped with a HARMONY function that can be turned on/off with a pedal switch. Just by setting the key of the song, even one person can create beautiful harmonies. It also supports not only the number and volume of harmonies, but also deeper settings. Depending on your ideas, the range of expression can be expanded greatly, such as by shifting the stereo position to give the harmony a wider range, or by changing the voice quality to change the atmosphere.

■Get a higher-grade beautiful singing voice with the VE-22, which also comes with a full range of effects to improve your singing voice. With ENHANCE, which increases voice clarity, COMP, which suppresses variations in volume, and DE-ESSER, which reduces harsh sibilance, you can bring out the appeal of your vocalist even more. In addition to dynamic microphones, it also supports the connection of condenser microphones that require phantom power. By setting the input sensitivity appropriately using the MIC SENS knob on the back, you can output beautiful singing voices with less noise. If the level of the mic is insufficient even when the knob is turned to its maximum value, you can use it without connecting a preamp by switching the GAIN setting from LOW to HIGH. The VE-22 delivers high quality sound with any microphone.

■Main specifications
●Sample rate: 48kHz
● AD conversion: 24 bits + AF method *The AF method (Adaptive Focus method) is a Roland/Boss original method that dramatically improves the SN ratio of the AD converter.
● DA conversion: 32 bits
●Internal calculation: 32-bit floating point
●Effect types: 39 types
●Memory: 99 (user) + 50 (preset)
●Phrase loop: 37 seconds
●Regular input level INPUT: -40dBu (variable), AUX IN: -20dBu
●Maximum input level INPUT: 0dBu, AUX IN: 0dBu
●Input impedance INPUT: 4k Ω, AUX IN: 27k Ω
●Specified output level OUTPUT L/MONO, R: -40dBu PHONES/LINE OUT: -10dBu
●Output impedance OUTPUT L/MONO, R: 600 Ω PHONES/LINE OUT: 47 Ω
●Recommended load impedance OUTPUT L/MONO, R: 600 Ω or more PHONES/LINE OUT: 47 Ω or more
●Display: Graphic color LCD 320 x 240 dots
●Controls: HARMONY switch, ▼ switch, ▲ switch, MENU button, EXIT button, PHONES/LINE knob, MEMORY knob, HARMONY knob, EFFECT knob,
ECHO knob, MIC SENS knob, PHANTOM switch, POWER switch

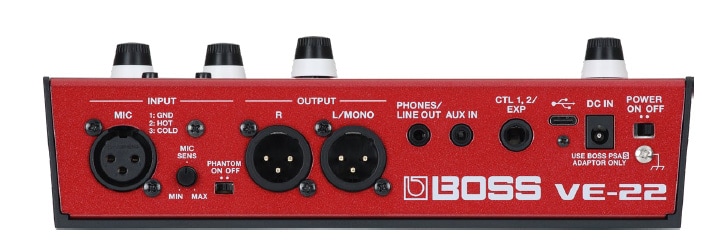

●Connection terminal INPUT terminal: XLR type, balanced, phantom power (DC 48V, 10mA Max)
OUTPUT L/MONO, R terminal: XLR type (MIC level)
PHONES/LINE OUT terminal: Stereo mini type
AUX IN terminal: Stereo mini type
CTL 1, 2/EXP terminal: TRS standard type
　　　　　　　USB COMPUTER terminal: USB Type-C (R)
DC IN terminal
●Power source: Alkaline batteries (AA size) x 4 or AC adapter (sold separately)
●Current consumption: 260mA (when phantom power is on), 180mA (when phantom power is off)
●Battery life during continuous use: Alkaline battery: Approximately 6 hours (when phantom power is on)
Alkaline battery: Approximately 9 hours (when phantom power is off)
*Depends on battery specifications, capacity, and usage conditions.
●External dimensions: 218 (width) x 143 (depth) 64 (height) mm
●Weight (including battery): 910g
●Accessories: Startup guide, alkaline batteries (AA size) x 4, ""Safety Precautions"" leaflet, warranty card
●Sold separately AC adapter: PSA-100S Foot switch: FS-5U, FS-6, FS-7 Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Carrying bag: CB-VE22
