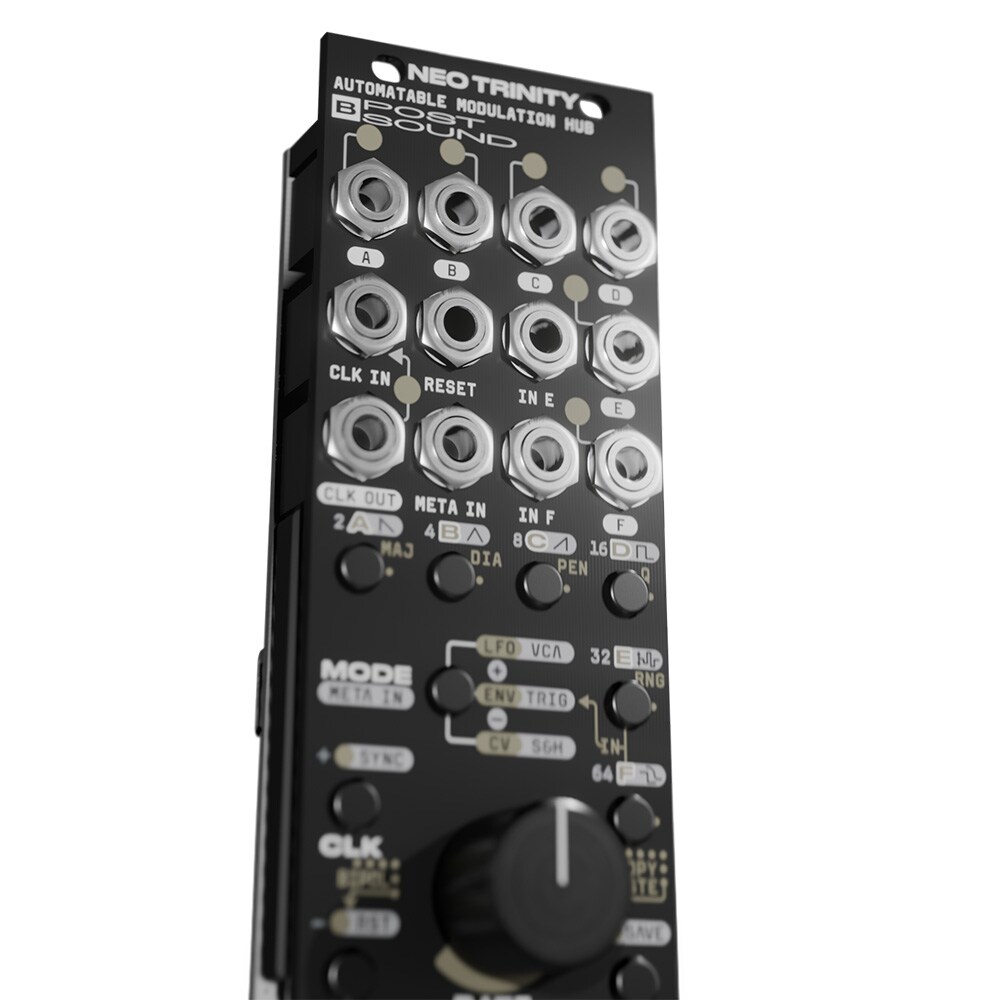

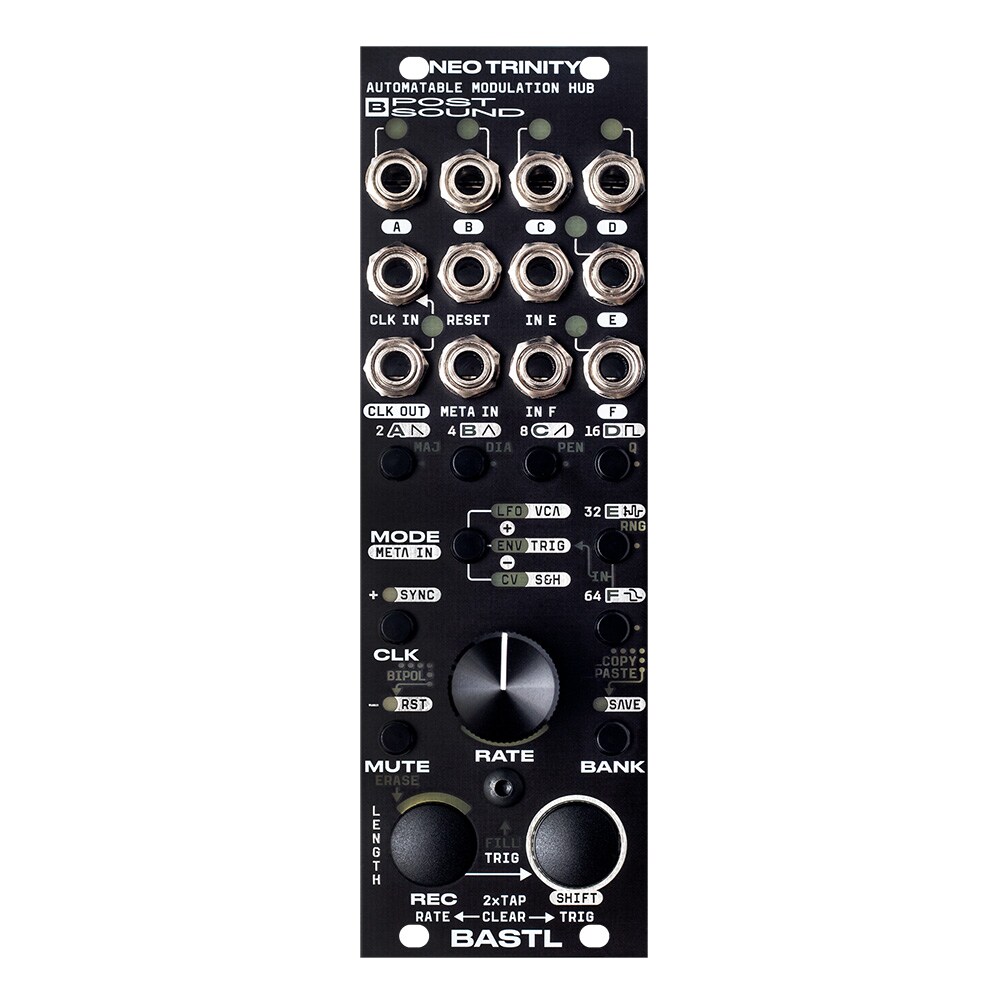

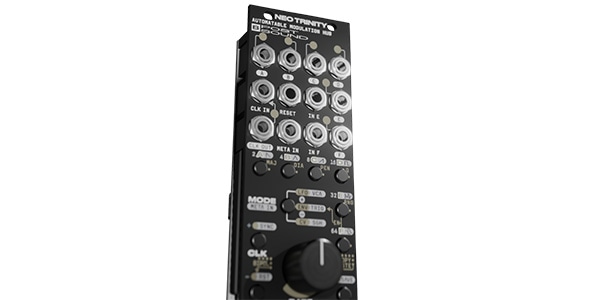

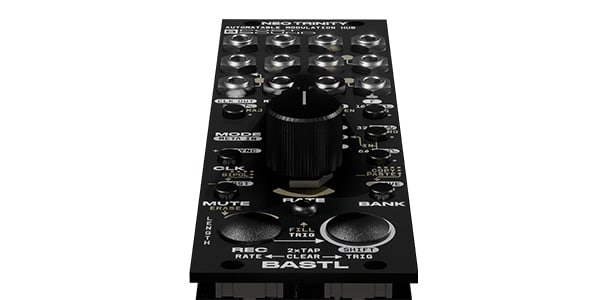

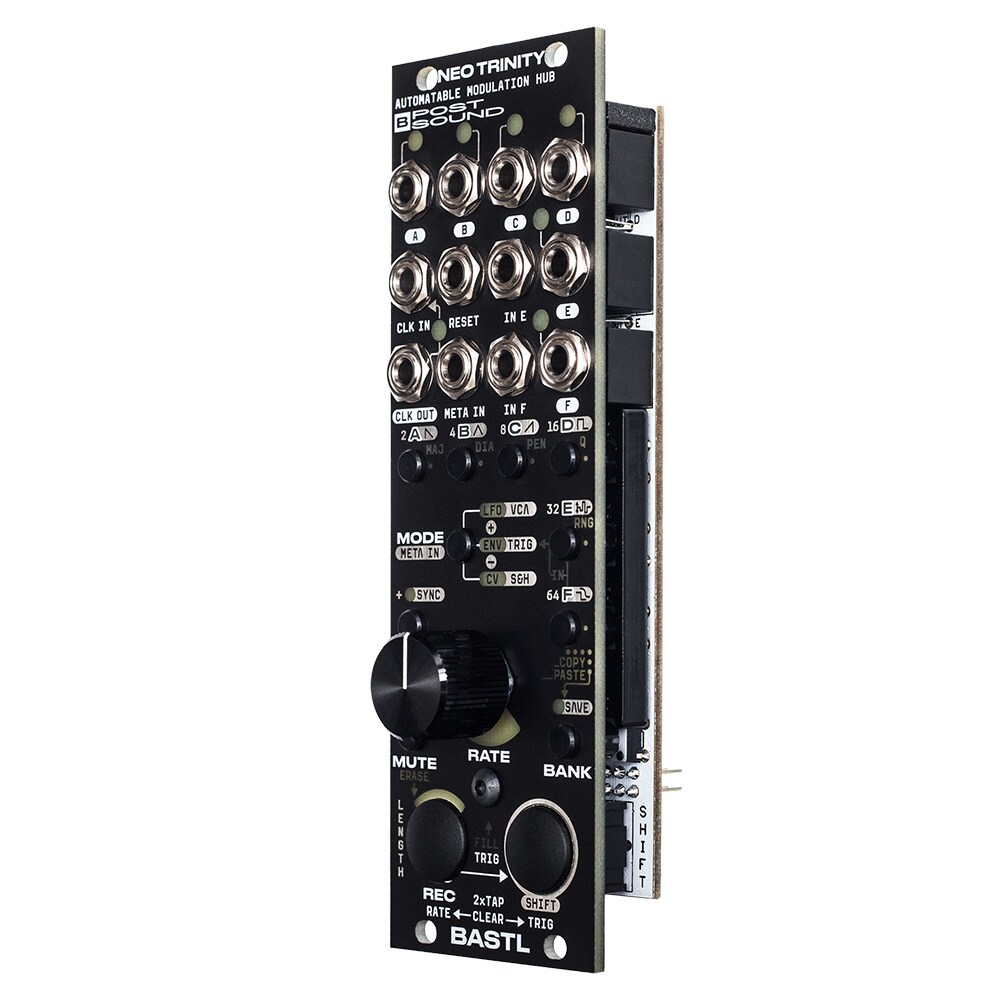

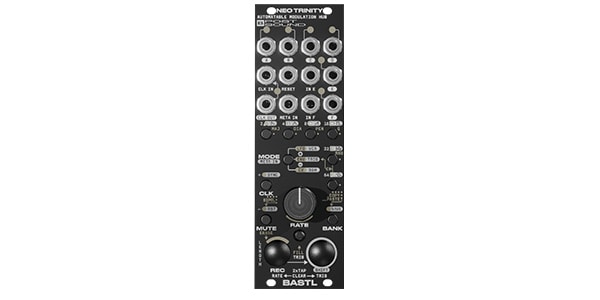

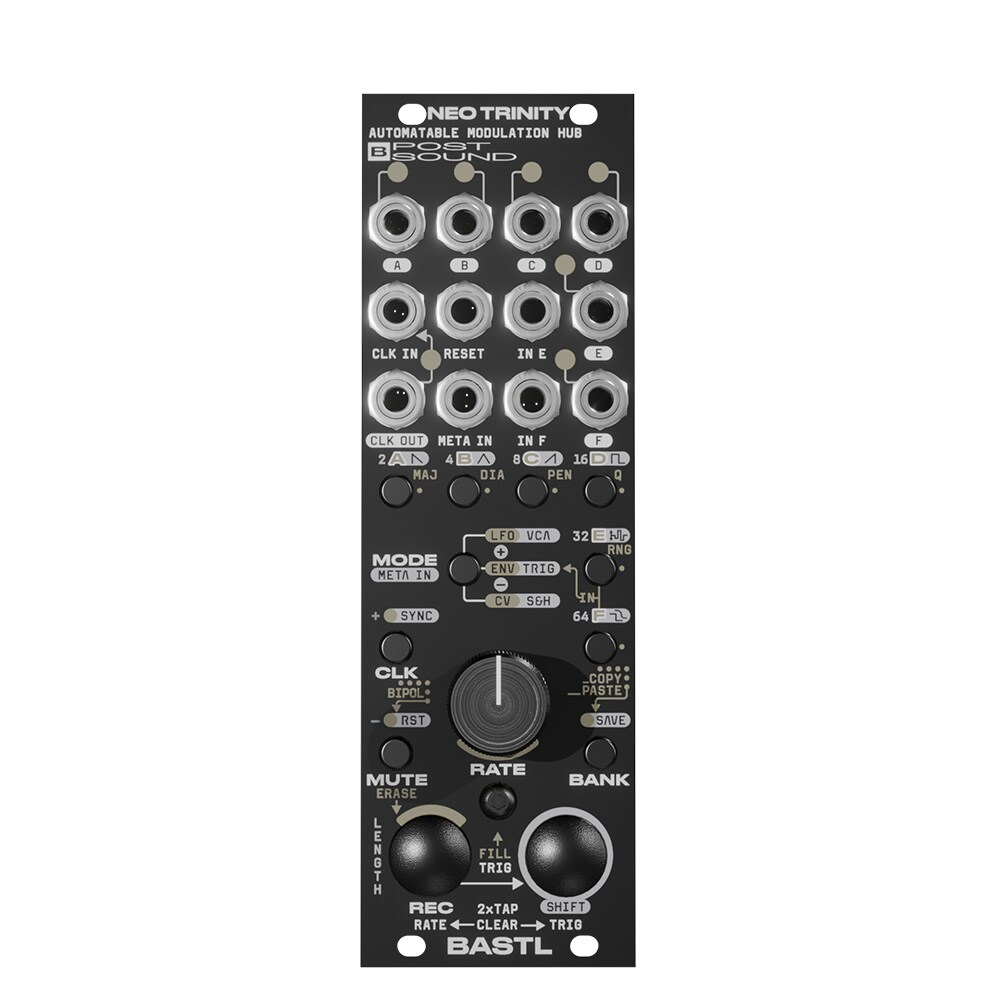

BASTL INSTRUMENTS / NEO TRINITY

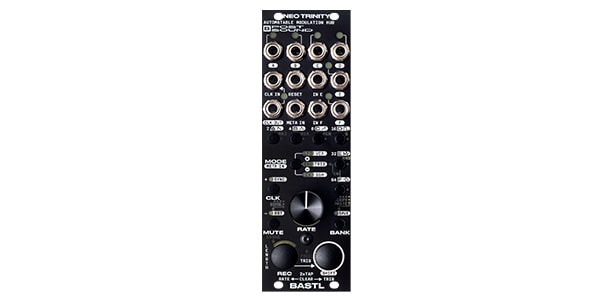

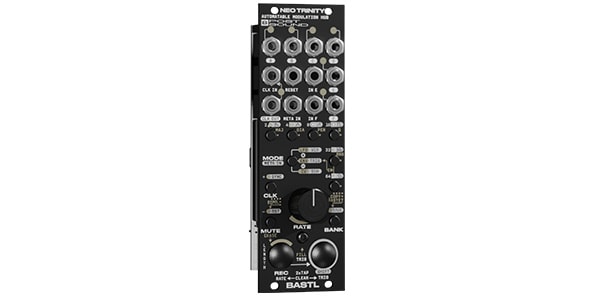

BASTL INSTRUMENTS/NEO TRINITY is a 6-channel, 3-mode (LFO/ENV/CV), 8HP compact modulation hub.

A 6-channel, 3-mode (LFO/ENV/CV) modulation amusement park!

NEO TRINITY is a 6-channel modulation hub. Each channel can be set to an LFO, envelope generator, or CV knob recorder, and the main parameters can be automated with the REC button.

Draw a variety of LFOs and envelopes, and the CV mode is also equipped with a quantizer function. There is a trigger generator with algorithmic fill and recording functions, and you can change the waveform, number of steps, offset, etc., and you can also set the clock synchronization and mute for each channel. Of course, you can save the entire preset as a bank.

The core mechanism of the module is simple, but you can take NEO TRINITY to even more complex behavior by modulating RATE, VCA, TRIG, Sample & Hold from the assignable CV input, utilizing the Reset input, and exploring the possibilities of self-patching.

The best design and design condense all the CV/modulation you want into an 8HP size. A compact masterpiece that will inspire any inspiration and constantly change your polymetric patches.

[Product Specifications]
6-channel CV/modulation hub (each channel can be set to LFO, ENV, or CV)
Unipolar (0-5V) or bipolar (-5V to +5V) can be set for each channel
LFO with smoothing function: SAW, Triangle (Sine), Ramp, Pulse, Random
LFO range: 260s-180Hz
LFO sync (RATE knob can be used as a divider)
ENV shape: Decay, Attack, Variable, Pulse
ENV range: 1ms-8s
ENV retrigger (or no retrigger)
ENV slew limiter mode (or AHR envelope w/gate)
CV mode w/quantize (ON/OFF, 8 scales, 2V or 5V range, smoothing)
Automable RATE knob and trigger sequence (all modes)
Automation length per channel (2-64 steps)
Clock quantization can be enabled or disabled for trigger recording
Algorithmic trigger fill generator (6 algorithms with knob parameters)
Mute function per channel (optimized for performance!)
6 banks of memory (all settings and automation)
Clock reset input for automation (can be turned off per channel)
CLK channel: set tempo, divide/multiply external clock
Internal clock generator: 35 BPM to 420 BPM
CLK IN and CLK OUT terminals
META IN CV input ? CV inputs assignable to individual or all channels
Channels E and F now have dedicated CV inputs
Added adjustments to all CV inputs: positive/negative, attenuated RATE modulation, bipolar VCA on channel outputs, TRIG input (through input), sample and hold (triggered step waveform)

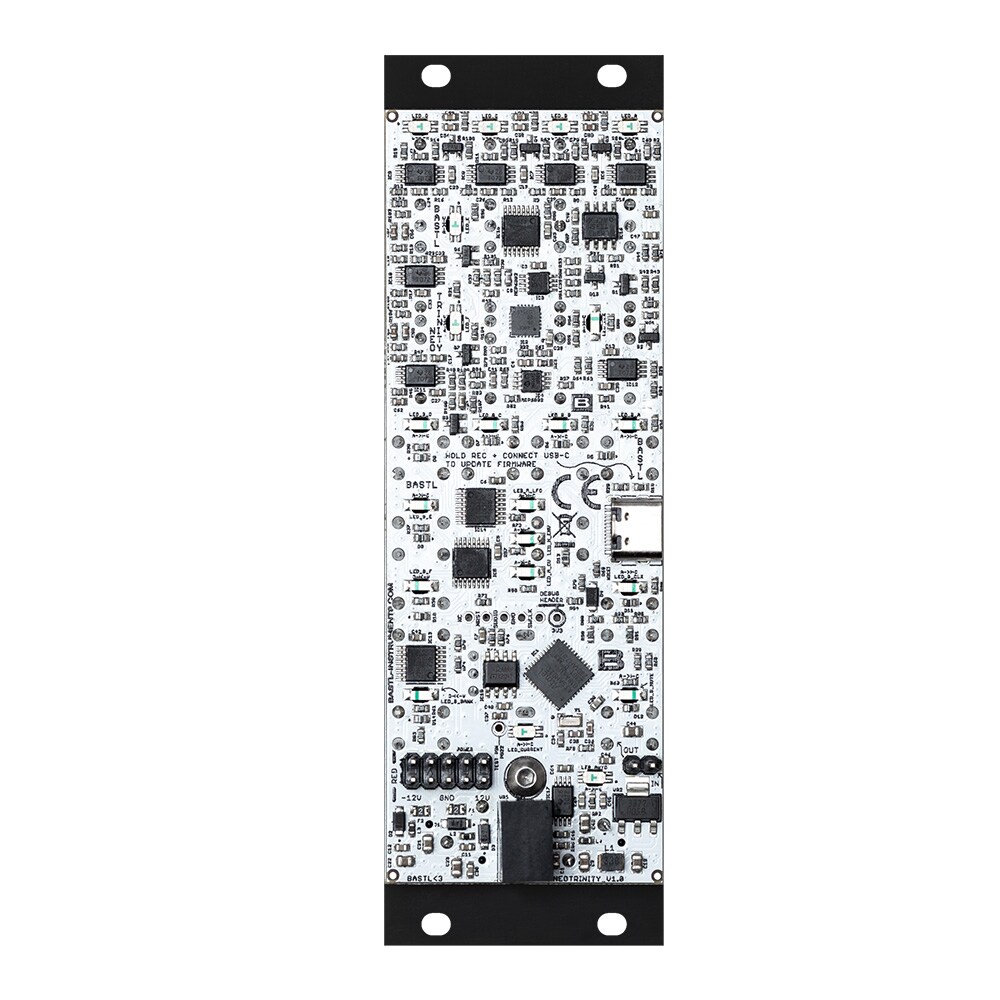

Firmware updateable via USB-C connector
User calibration of outputs and inputs (for quantizer accuracy)
8 HP
10-pin power connector protected by PTC fuse and diode
D=approx. 24 mm
Current consumption: +12 V: <100 mA; -12 V: <35 mA
