BASTL INSTRUMENTS / DARK MATTER

This module is made by Bastl Instruments, a brand of ""handmade electronic instruments."" It freely manipulates feedback to create unprecedented feel and sound.

A processor/signal generator that manipulates feedback to create unprecedented operability and sound.

Developed jointly by BASTL INSTRUMENTS and CASPER ELECTRONICS, ""Dark Matter"" is a high-energy sound processor and signal generator. It unleashes the ferocious power of audio feedback into your Eurorack system.

Inspired by the ""no-input"" mixer feedback technique, Dark Matter allows you to naturally guide your sound beyond the limits of amplifier circuits to complex tones. It's a new type of Eurorack modular synth that utilizes voltage-controlled feedback, making it extremely easy to play and offering a wide range of patching options.

Developed in collaboration with the BASTL development team by Peter Edwards, who moved from New York, USA to Bruno, Czech Republic, and has created numerous masterpieces within the BASTL commune, this product boasts unprecedented features.

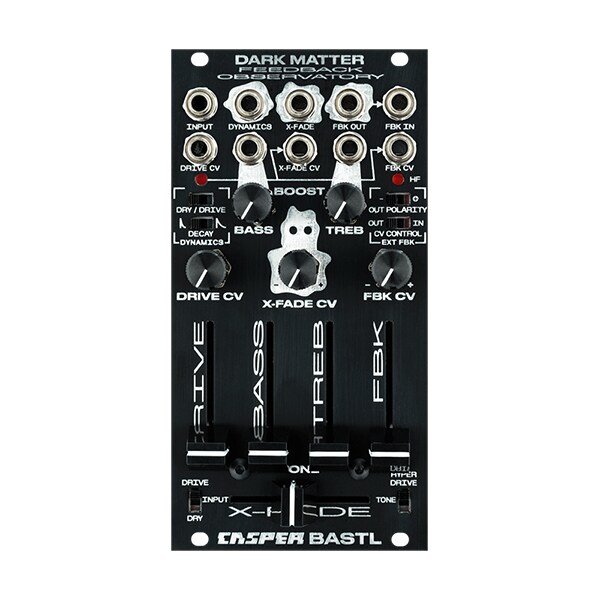

*Aluminum Panel (Black)

THINGS TO DO WITH DARK MATTER:
■ Voltage-controlled overdrive with 4 flavors to guide audio signals to breakpoints
■ Turbocharge percussive hits and drum beats
■ Add sub-octave tones and tonal richness to melodies and basslines
■ 2-band EQ to enhance crunchy overdrive
■ Built-in envelope follower adds signal ducking and gate effects
■ Create meandering loops with feedback techniques utilizing 10 I/O jacks… Repeated feedback of feedback generates unimaginable creative sounds

・Features

DRIVE
■ Input VCA with gain and soft clipping
■ “Hyper Drive” switch (extra punch!)

TONE
■ 2-band equalizer
■ Voltage-controlled bass & treble boost/overdrive

DYNAMICS
■ Generates an envelope from the input signal
■ 0-5V output normalized to FBK CV and X-FADE CV input
■ Decay Time Switch (Low/High)
■ Input pre/post DRIVE Switch
■ LED for monitoring envelope

FEEDBACK
■ Voltage-controlled feedback
■ High-frequency “warning” LED
■ External feedback loop section
■ FBK OUT and FBK IN terminals
■ Output phase inversion switch
■ FBK VCA in/out switch

CROSSFADER
■ Voltage-controlled crossfade function (input and feedback)
■ Input pre/post drive crossfade switch
■ DYNAMICS envelope normalized to mix CV input

・Product Specifications
● 13 HP size
● PTC fuse and diode protection
● Depth = 24 mm
● Power consumption +12V: < 75mA; -12V: <75 mA
