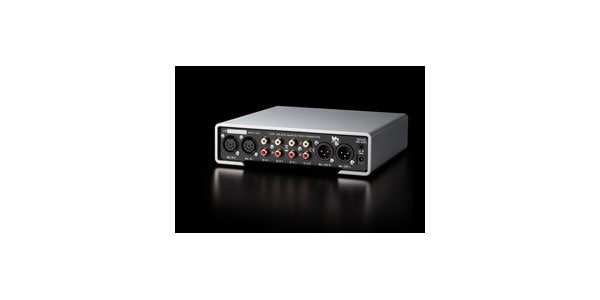

M2TECH / Tosh

M2TECH Tosh is a balanced input/output preamplifier that incorporates a number of cutting-edge technologies.

■Full-balanced configuration that fully employs discrete circuits
■Uses M2TECH's unique dual discrete regulator
■XLR7pin is used for balanced input (3 XLR systems can be input)
■Equipped with detailed setting functions

■Input: 3 RCA lines, 3 XLR lines (XLR7pin->XLR3pin female x 3 adapter included)
■Output: RCA, XLR each 1 system
■Frequency characteristics: 5-80kHz
■Residual noise: 4uVrms (XLR), 3uVrms (RCA)
■S/N ratio
130dBA(RCA->RCA)
122dBA(RCA->XLR)
111dBA(XLR->RCA)
126dBA(XLR->XLR)

■THD+N
0.005% (RCA->RCA)
0.003% (RCA->XLR)
0.004% (XLR->RCA)
0.003% (XLR->XLR)

■Crosstalk
-104 dB (R->L), -105 dB (L->R) (RCA->RCA)
-101 dB (R->L), -110 dB (L->R) (RCA->XLR)
-94 dB (R->L), -110 dB (L->R) (XLR->RCA)
-106 dB (R->L), -111 dB (L->R) (XLR->XLR)

■Gain
4.30 (12.6 dB ? RCA->RCA)
8.65 (18.7 dB ? RCA->XLR)
2.15 (6.7 dB ? XLR->RCA)
4.30 (12.6 dB ? XLR->XLR)

■Input impedance: 47kOhm (RCA), 20kOhm (XLR)
■Maximum output level: 8.6Vrms (RCA), 17.3Vrms (XLR)
■Power input voltage: 15V (AC adapter)
■Power consumption: 4.5W
■Size: 200 x 50 x 200mm
■Weight: 2.0 kg
