Shanling / ECMINIBK

4.4mm compatible fully balanced portable CD player 4.4mm compatible fully balanced portable CD player

■Compact size, Hi-Fi portable CD player
EC-Mini is a high-quality portable CD player that is a new trend.
Equipped with a fully balanced circuit in a compact body and a large-capacity battery inside, the EC-Mini allows you to enjoy high-quality CD playback and high-level sound regardless of the location or scene.
The EC-Mini, which is not limited by a power source, can be taken with you when you go out or travel, allowing you to have a free musical experience even in the great outdoors.
Equipped with VEHICLE MODE and high vibration damping performance, it can also be used as a car audio source.
*When playing a CD, please use it in a horizontal position.

■Simple & compact design
EC Mini, which uses a round edge design, has a simple and compact design that is about A5 size, achieving portability that allows it to be used in a variety of situations.

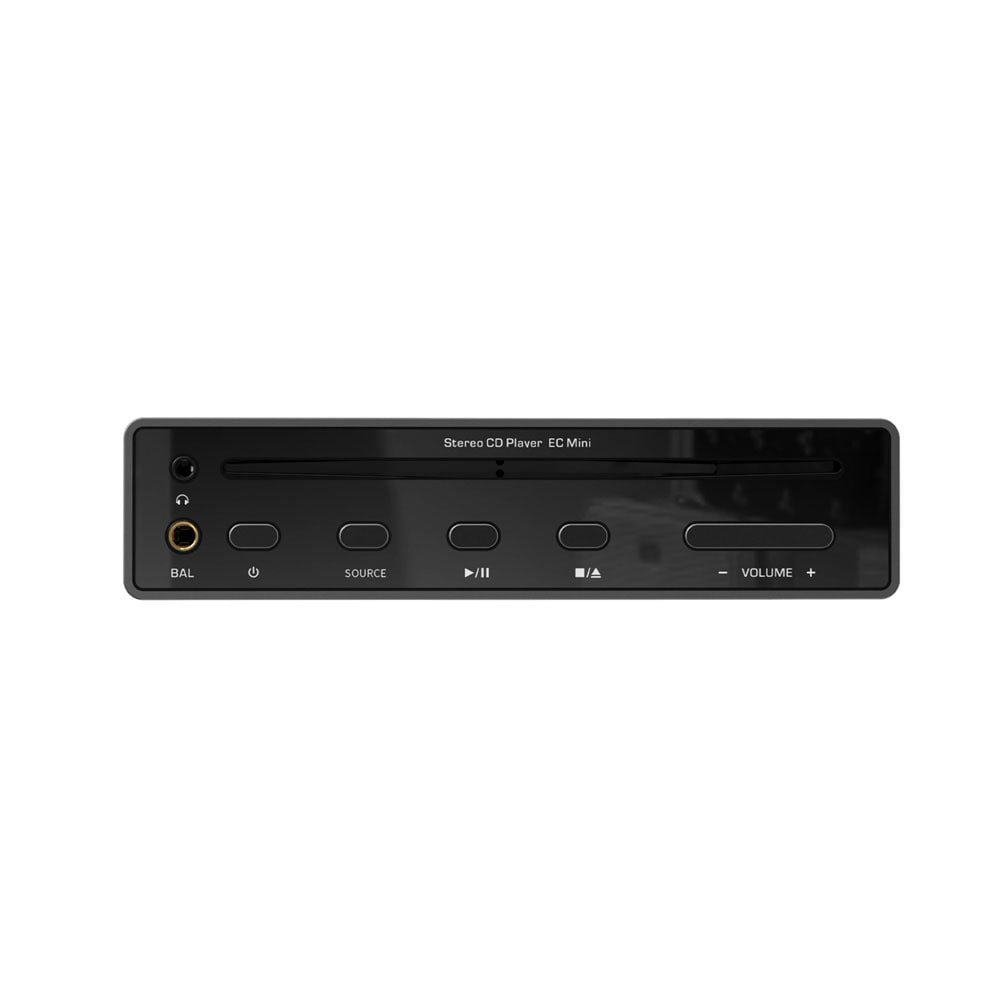

In addition to basic operations such as [play/stop], [music operation], and [volume adjustment], there is an intuitive hardware button such as [CD playback mode button] that allows you to control various functions and settings.
It has a 2.33-inch touchscreen on top that allows you to access your song library.
In addition to simple operability and a compact design, EC Mini allows you to browse your local file library on a single device.
A multi-faceted portable CD player with access to advanced settings changes.

■IngenicX1000 platform multi-function control
The Ingenic platform, which is used in many of SHANLING's small devices, is one of the technologies that supports advanced multi-functions.
With a 2.33-inch touch screen and SHANLING's proprietary MTouch system, you can access all functions and settings with one small touch screen.

■ Inheriting the SHANLING sound that has proven itself in players
It is equipped with a dual configuration of ESS's ES9219MQ, which SHANLING has used many times in the past, and a fully balanced circuit that uses dual RT6863 OPAMPs.
EC Mini realizes CD playback compatible with 4.4mm balanced output, and while inheriting the sound signature of SHANLING, it has a natural sound specialized for CD playback.
It also supports high-resolution sound playback of MQA CDs, and supports up to PCM: 384kHz / 32bit | DSD256 for local file playback.

■Hi-Fi grade audio design
In addition to the RT6863 dual amplifier circuit, KDS crystal oscillators and ELNA SILMIC capacitors, which have been used in pure audio equipment,
High-grade parts such as Panasonic tantalum capacitors are used in EC Mini.
It also has a Pre-Out function that uses LTA8092, and plays the role of a CD player in a home audio system.
It is designed to be both portable and home audio.

■Smooth and high-quality CD playback
EC Mini uses a slot-in CD drive equipped with a Philips CD drive and a Sanyo HD860 laser.
It also supports MQA-CD playback, realizing simple and high-quality playback.
EC Mini uses hardware vibration suppression and an electronically controlled vibration isolation system to prevent skipping.
*Only compatible with 12cm discs

■Equipped with large capacity battery
Equipped with two 18650 batteries, EC Mini has a large battery capacity of 6800mAh.
Equipped with a battery, it provides stable, high-quality sound without relying on power or the environment.
CD playback: up to 7.5 hours
MicroSD local playback: up to 25 hours
Charging standard: USB Type-C 5V/2A

■Compatible with 4.4mm balance, equipped with abundant outputs
In addition to the standard 3.5mm single-ended output, EC Mini also features a 4.4mm balanced output with a fully balanced audio circuit.
The gain function has two levels, [Low / High], and the maximum output during balanced output is 248mW@32Ω.
It has a pre-out function and can be matched to a home audio system from the RCA analog out terminal on the back.

■BT transmit & receive with 2way Bluetooth function
EC Mini is equipped with a Bluetooth function that supports sending and receiving.
You can enjoy CD sound sources and local file sound sources with Bluetooth earphones and headphones.
Equipped with a Bluetooth receiver mode, it is also possible to pair with a smartphone, tablet, etc. and operate it as a high-quality Bluetooth receiver.
BT receiver function compatible codec: LDAC/AAC/SBC
BT transmission compatible codec: LDAC/aptX/AAC/SBC

■Equipped with input/output compatible USB digital terminal and MicroSD card slot
EC Mini is equipped with a USB-C port that supports input and output, and not only can you use USB digital transport for CDs and local files.
It can also be operated as a DAC/AMP for PCs and smartphones in USB-DAC mode.
Furthermore, it is equipped with a MicroSD card slot that supports local file playback, and can also function as a standalone audio player.

■Supports remote control with SyncLink function
You can use the remote control function by pairing with a smartphone with the dedicated application ""Eddict Player"" installed using the ""SyncLink function"".
You can access various settings of the EC Mini and the music library stored on the SD card from your smartphone, and it also supports [play/stop] and [song forward/backward] in CD playback mode.


■Size: 155×190×35mm
■Weight: Approximately 1.2kg
■Screen: 2.33 inch LCD touch screen
■MicroSD card compatible format
DSD ("".iso"","".dsf"","".dff"") / DXD / APE / FLAC / WAV / AIFF / AIF / DTS / MP3
WMA/AAC/OGG/ALAC/MP2/M4A/AC3/OPUS/TAK/CUE
*ISO format DST encoding is not supported.
■Supported sampling rate: 384kHz/32bit, DSD256
■MicroSD card: Supports up to 2TB
■DAC configuration: ES9219MQ×2
■Bluetooth:Ver 5.0
■Bluetooth compatible codec
Bluetooth receiver: LDAC/AAC/SBC
Bluetooth transmission: LDAC/aptX/AAC/SBC
■Battery: 6,800mAh
■Continuous playback time:
CD playback: up to 7.5 hours
MicroSD local playback: up to 25 hours
*Varies depending on playback format and operating conditions

■RCA output terminal
Output level: max. 2.1Vrms
Frequency characteristics: 20Hz -40kHz(-0.1dB)
THD+N：0.0005%
Channel separation: 110dB
Dynamic range: 114dB
S/N ratio: 114dB

■3.5mm output terminal
Output level: 140mW @32Ω
Frequency characteristics: 20Hz -40kHz(-0.1dB)
THD+N：0.0006%
Channel separation: 76dB
Dynamic range: 120dB
S/N ratio: 120dB
Noise level: >113 dB
Output impedance: <1Ω

■4.4mm output terminal
Output level: 248mW @32Ω
Frequency characteristics: 20Hz -40kHz(-0.1dB)
THD+N：0.0005%
Channel separation: 115dB
Dynamic range: 123dB
S/N ratio: 123dB
Noise level: ＞110dB
Output impedance: <1Ω

■Accessories
USB A to USB Type-C cable x 1
Rubber feet x 4
Product warranty x 1
Quick start guide x 1
