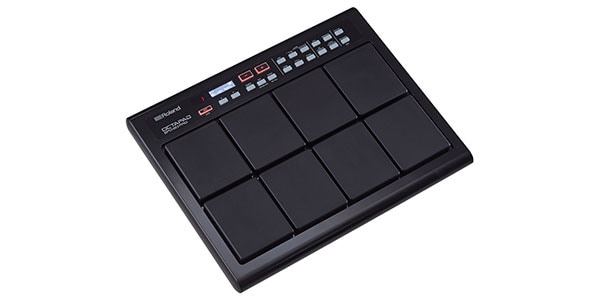

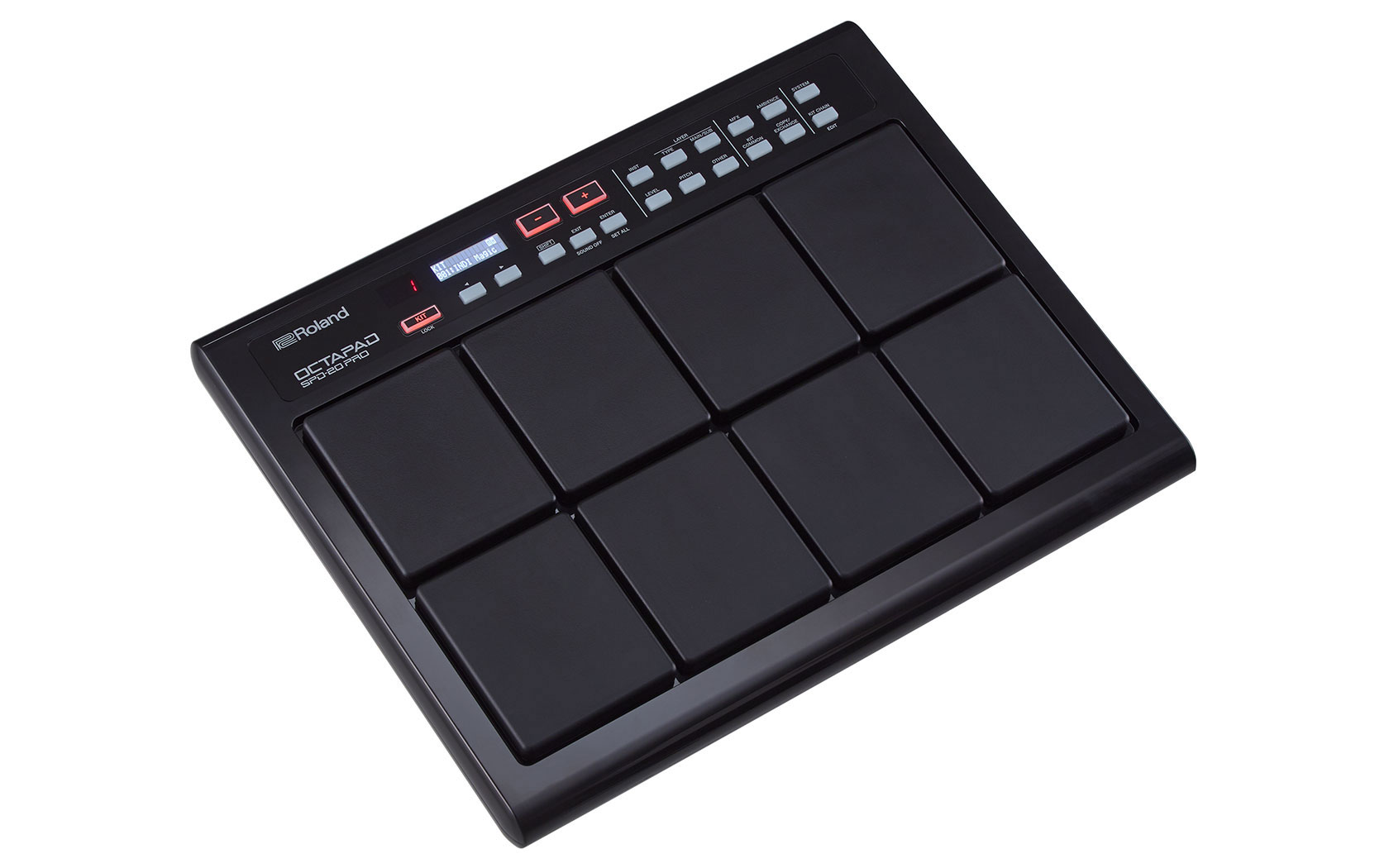

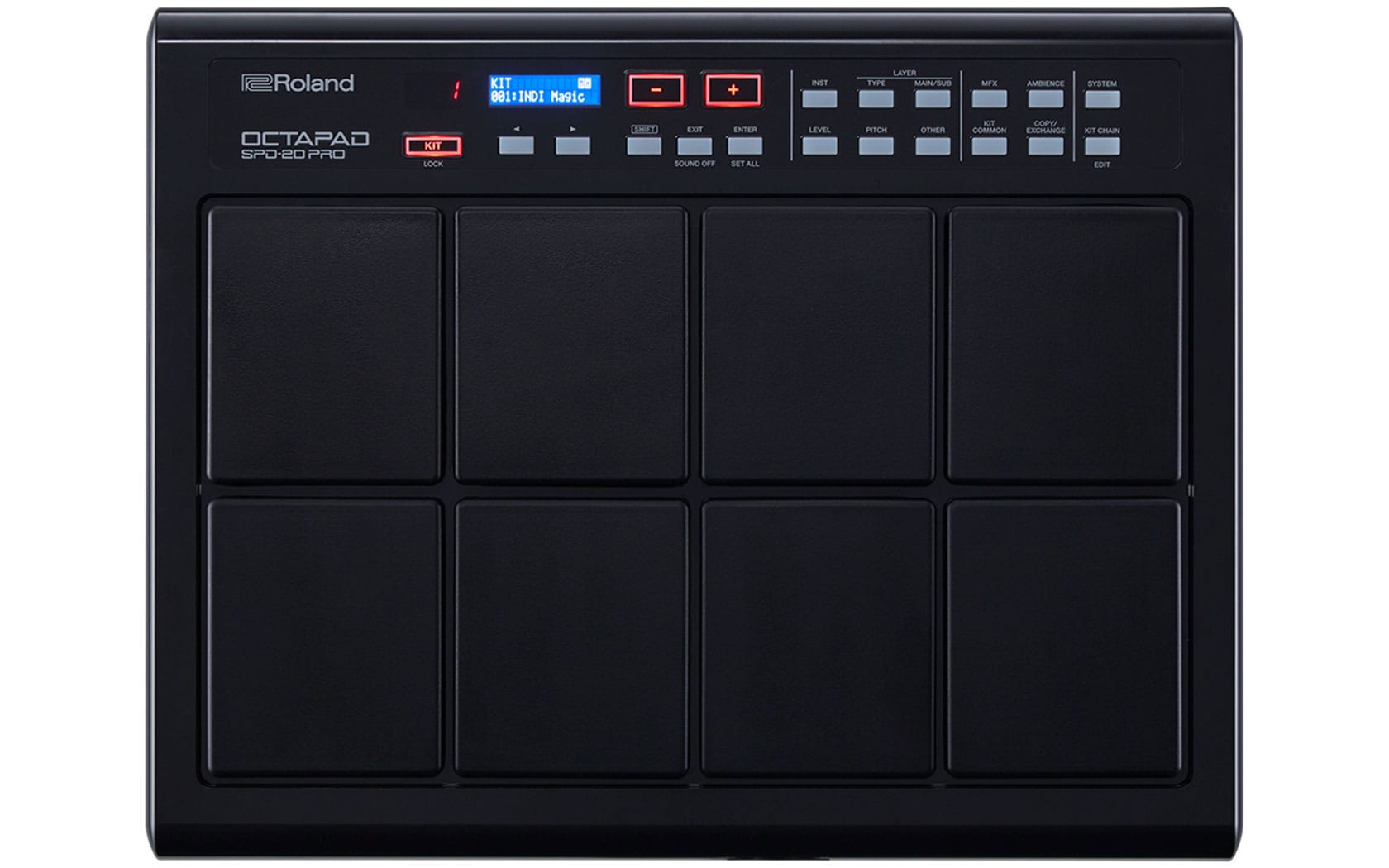

ROLAND / SPD-20 PRO BK OCTAPAD

The Roland SPD-20PRO is a percussion pad that combines a wide range of sounds with easy operation. The dedicated buttons allow you to quickly select sounds, adjust volume and pitch, and more. Using the trigger input terminal, you can also build a compact drum set.

Main Specifications
Pads: Built-in pads = 8
Up to 4 external pads (sold separately) can be connected.
Number of tones: Instruments = over 900
Number of kits: 200 (preset: 100)
Kit chain: 16 chains (16 steps/1 chain)
■Number of layers: 2 layers/1 pad, 2 layers x 2 (head/rim)/1 external trigger
Instrument parameters: Volume, Curve, Course Tune, Fine Tune, Pedal Bend, Decay, Output, Layer Equalizer, Pad Compressor, Pad Mute Group, Pad-Link
Kit Effects: Ambience (5 types), Kit Equalizer, Kit Compressor, Multi-effect = 3 systems, 38 types
■Display: 16 characters x 2 lines (LCD with backlight), 7-segment 3-digit (LED)

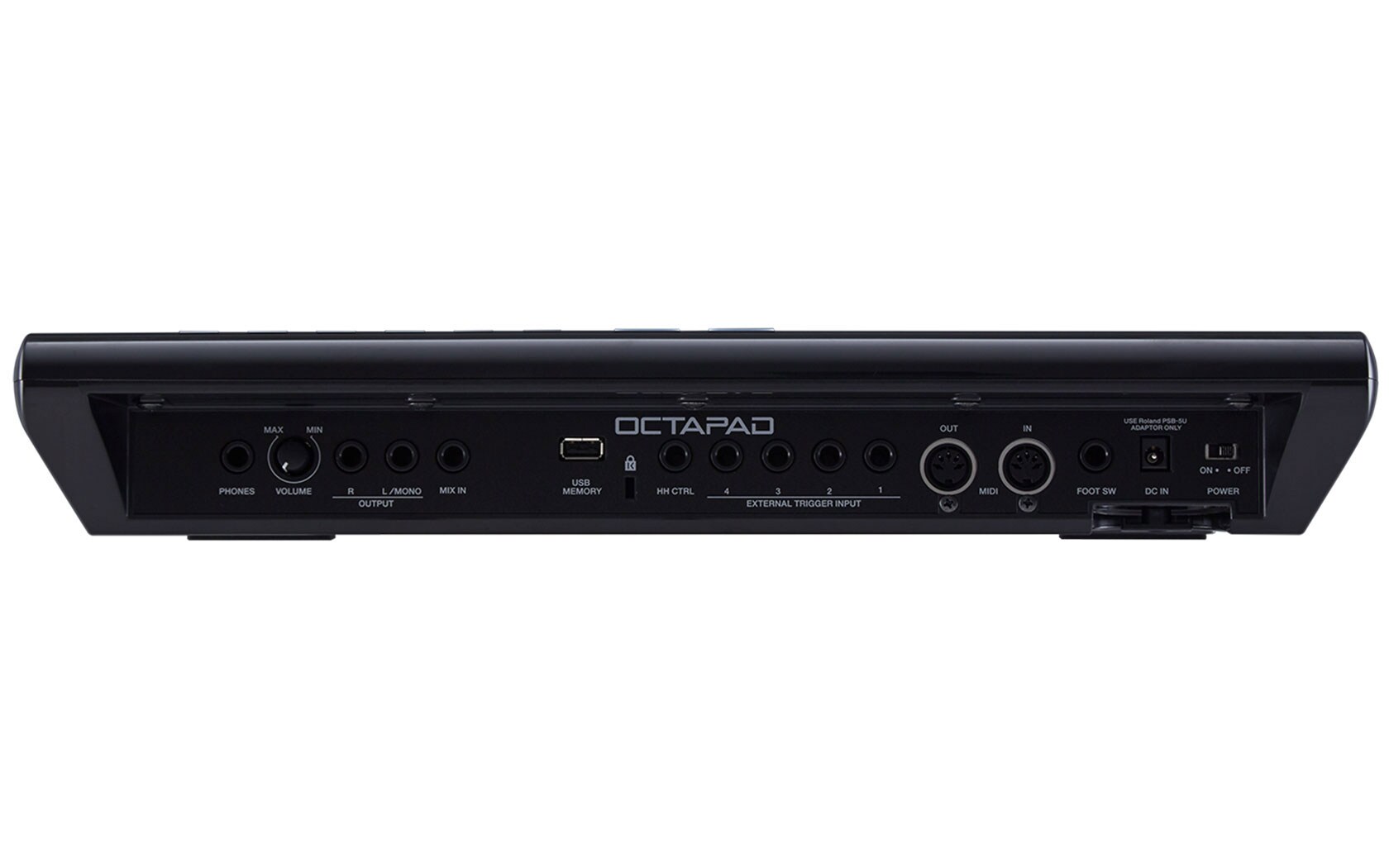

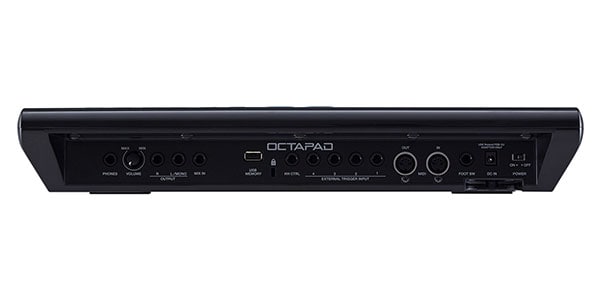

■Connection terminals: PHONES jack = stereo standard type, OUTPUT (L/MONO, R) jacks = standard type, MIX IN jack = stereo standard type, EXTERNAL TRIGGER INPUT (external trigger input) jacks = TR S standard type x 4, HH CTRL (Hi-Hat Control) terminal = standard type, FOOT SW (foot switch) terminal = TRS standard type, MIDI (IN, OUT) terminal, USB MEMORY terminal = USB A type
Power supply: AC adapter (DC12V)
Current consumption: 500mA
Accessories: Instruction manual, AC adapter
Optional extras: Pads (PD series, PDX series, BT series), cymbals (CY series), kicks (KD series, KT series), hi-hats (VH-11/10), hi-hat control pedals (FD series), pad stands (PDS series), all-purpose clamps (APC series), acoustic drum triggers (RT series), foot switches (FS series, excluding latch types), personal drum monitors (PM series)

■External dimensions/weight
・Width: (W) 450 mm
・Depth: (D) 350 mm
・Height: (H) 72 mm
・Weight: 3.7 kg (excluding AC adapter)
