ICON DIGITAL / P1-X

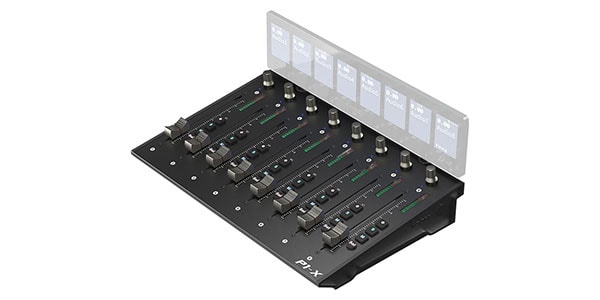

P1-X is a fader expansion part for P1-M. It is equipped with eight 12-bit touch-sensitive motor faders.

DAW Controller
Expansion Parts for P1-M

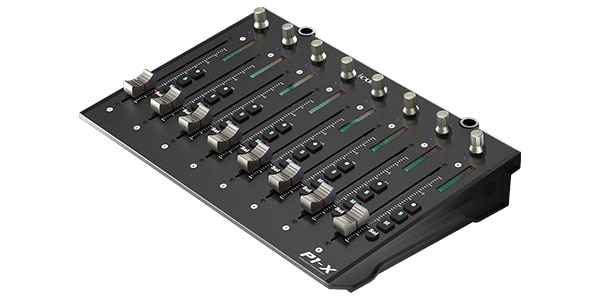

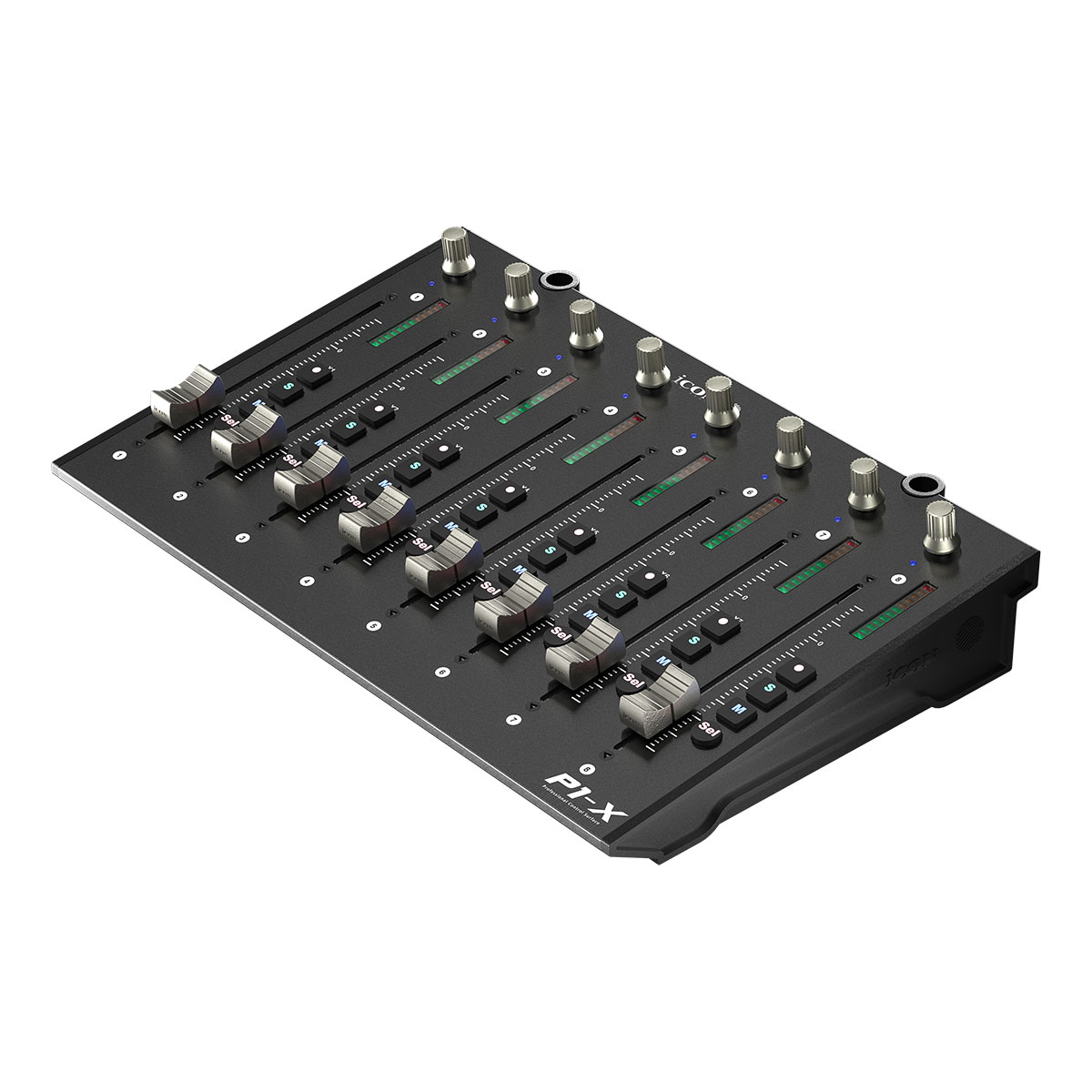

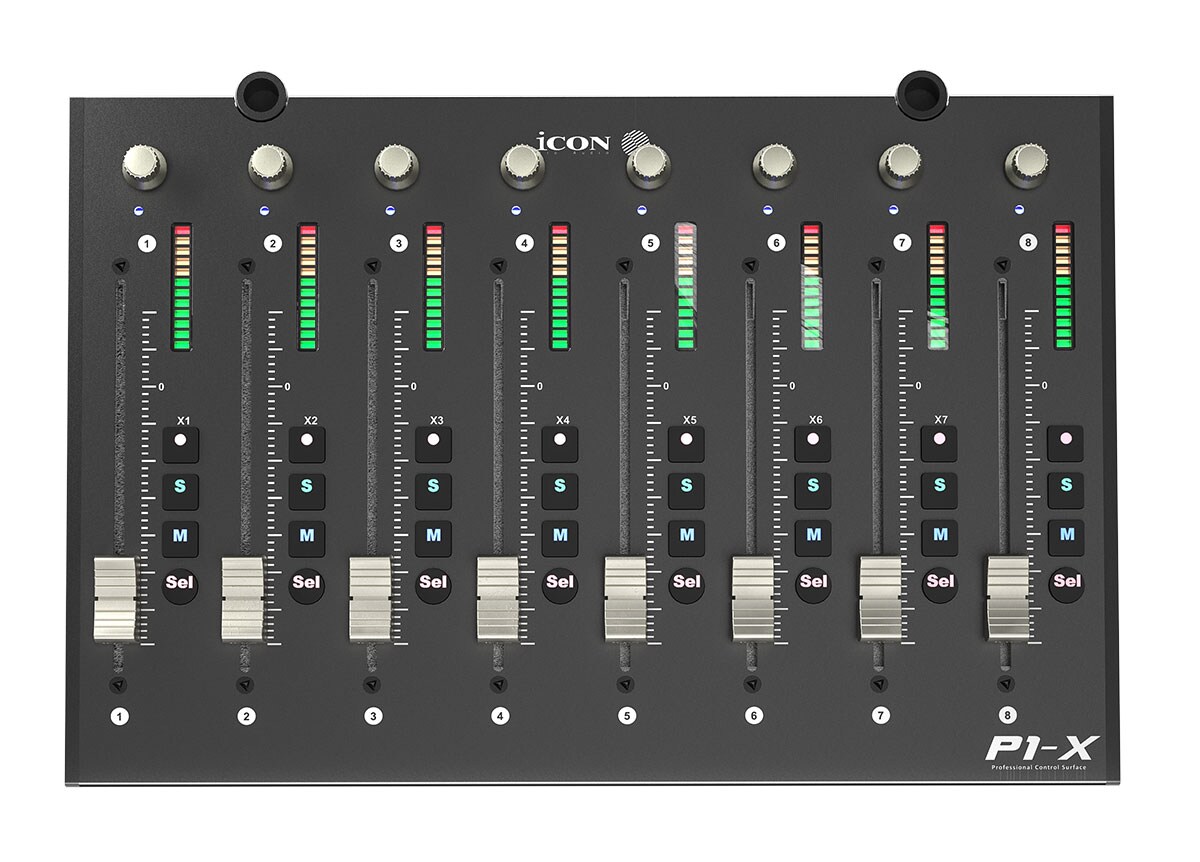

Each P1-X module is equipped with eight 12-bit touch-sensitive motor faders, complemented by eight dual-function encoder knobs and mute, solo, select and record buttons.

Expandability
The P1-X's expandability depends on the DAW's functions. The number of extenders that can be supported is listed in the DAW manual. With the P1-X, unleash a whole new dimension of control.

Set up MIDI commands and DAW control with iMap
Using the dedicated software iMap, you can set up the P1-X to be used as a MIDI controller for virtual instruments and other applications. Multiple DAW presets are available.

■Main Specifications
・Functions as an extender for the P1-M
- 100mm motorized fader with 12-bit resolution and touch-sensitivity
- Accurate, clear LED metering
- Eight smooth-action dual-function encoder knobs
- Illuminated buttons for channel control of mute, solo, record, etc.
- Supports Mackie Control and HUI protocols for seamless integration with compatible music production software
Supports Ableton Live, Adobe Audition, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer 11, FL Studio, Logic Pro X, Harrison Mixbus 32C, Pro Tools, Reaper, Reason, Samplitude, Studio One, Tracktion, Universal Audio Luna*
High-speed USB 3.0 connection (when using a USB hub, please use a powered hub)
- Firmware upgrades possible via the included USB-C cable connection and iMap software

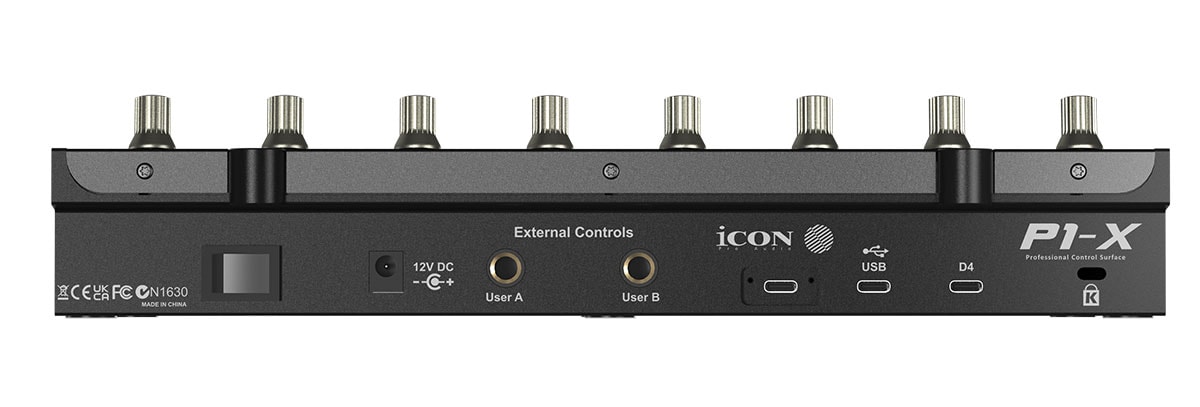

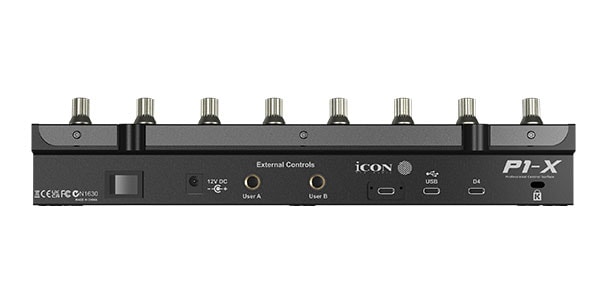

- Two freely assignable footswitch jacks (1/4” TS, limited compatibility with DAWs)

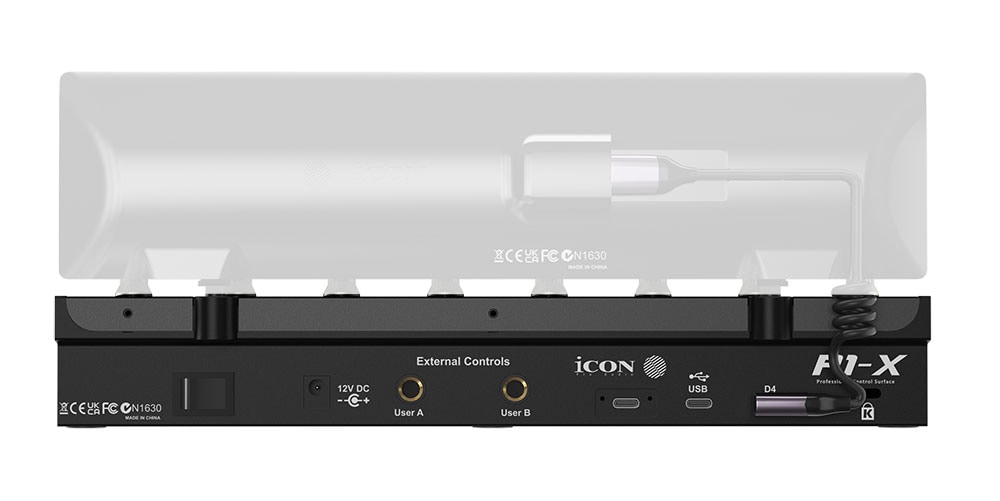

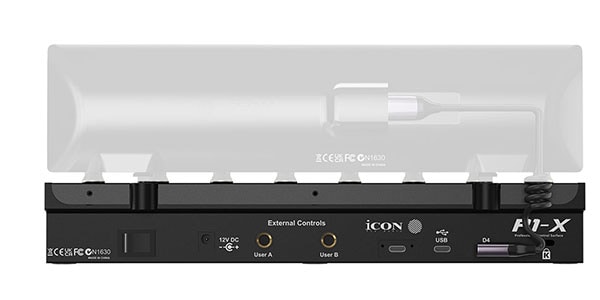

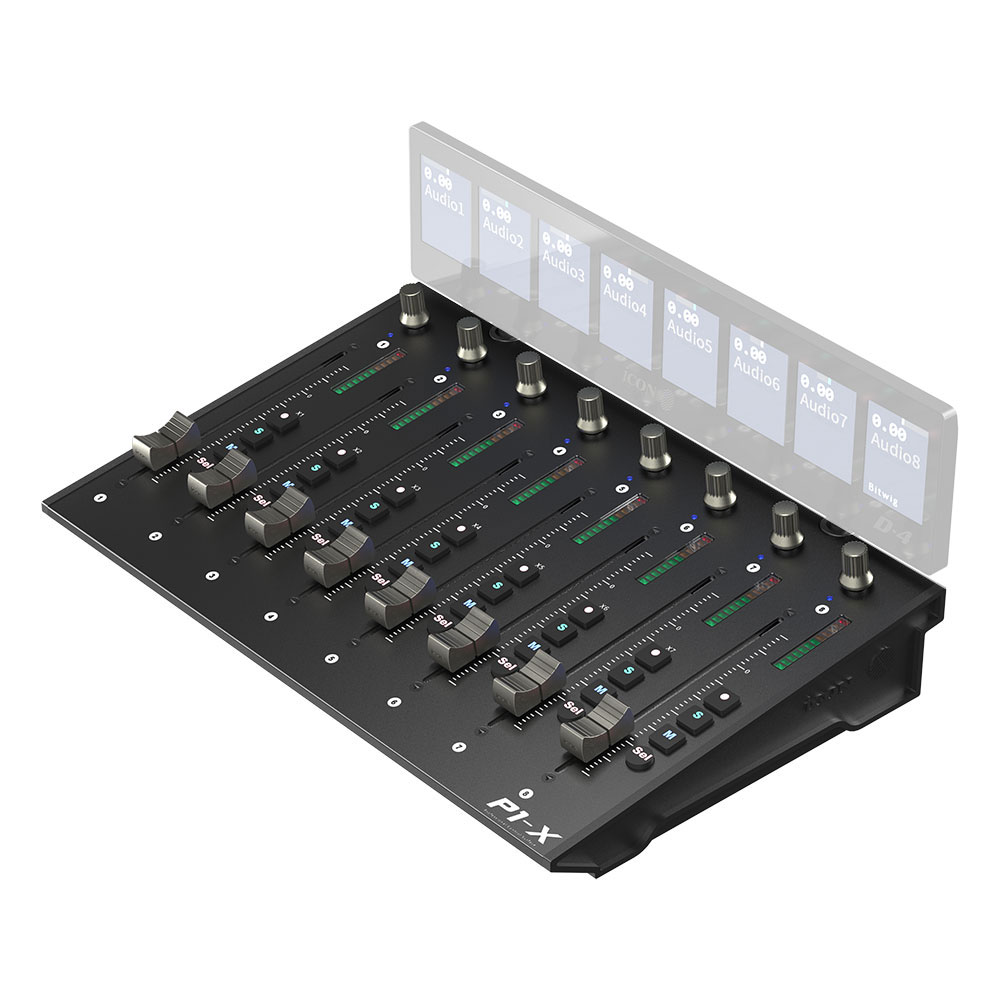

- Optional D4 OLED display shows channel names, control values, channel colors, etc. (DAW-dependent)
- Robust metal casing with high quality and Kensington lock port
Dimensions: 300 mm x 204 mm x 61 mm
Weight: 1509 g
Compatible OS: MacOS 10.15 or later and Windows 10 or later (class compliant)
* Depending on the version of the DAW, not all parameters may be available.
* (When using Logic Pro) The meters on the P1-M side may not be fully compatible.
* When connecting this unit to a PC or Mac, be sure to use the included USB cable.

Specifications are subject to change without notice.
