ICON DIGITAL / V1-X

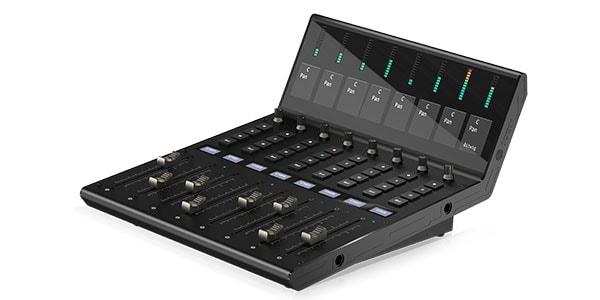

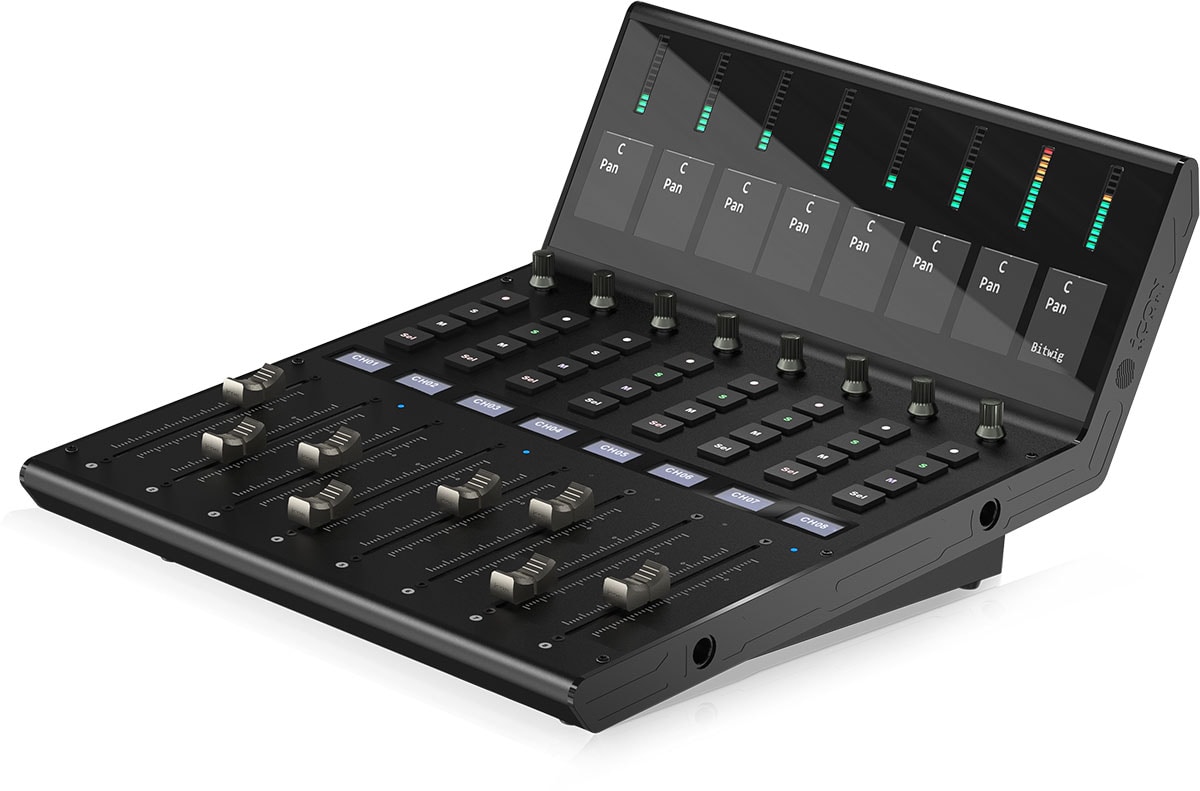

V1-X is a module that allows V1-M to be expanded to a maximum of 64 channels.

DAW controller
Expansion parts for V1-M

Main specifications
Functions as an extender for V1-M

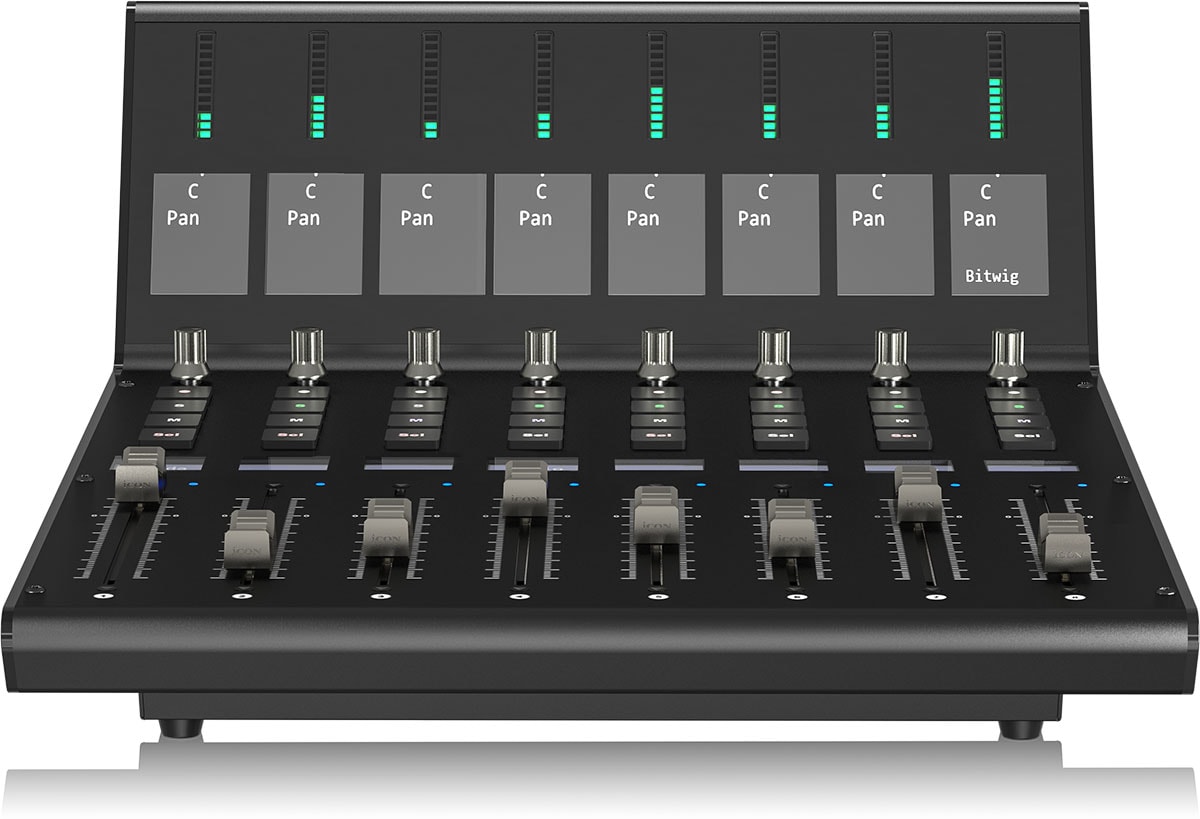

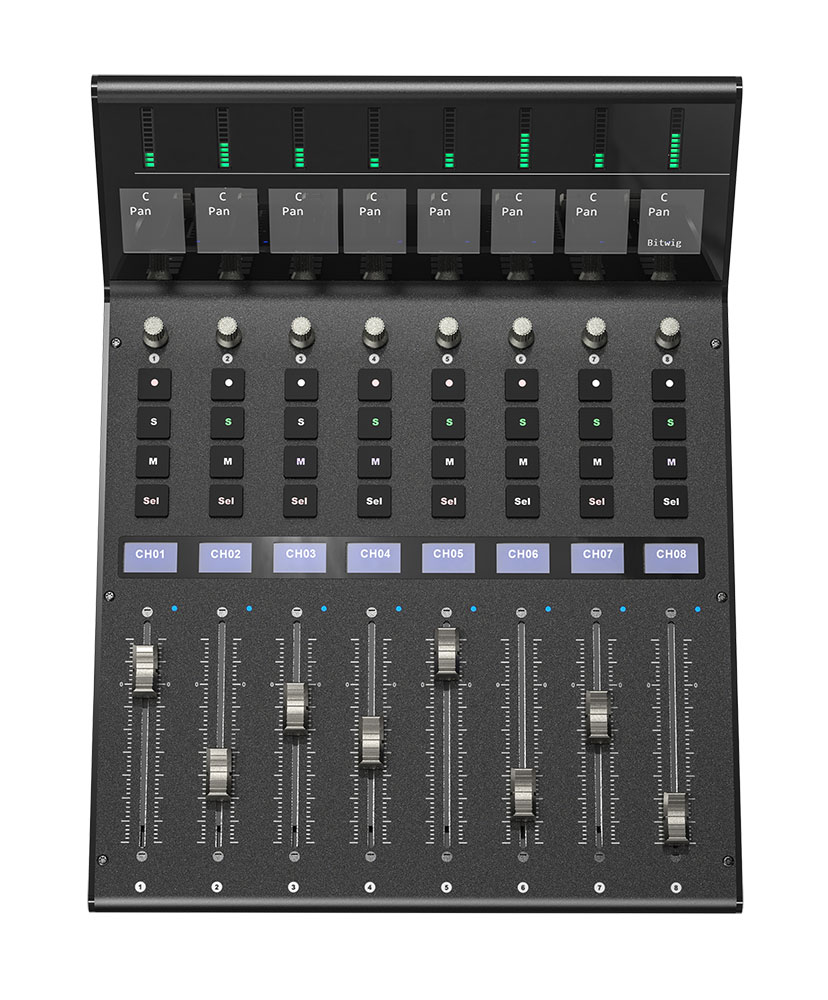

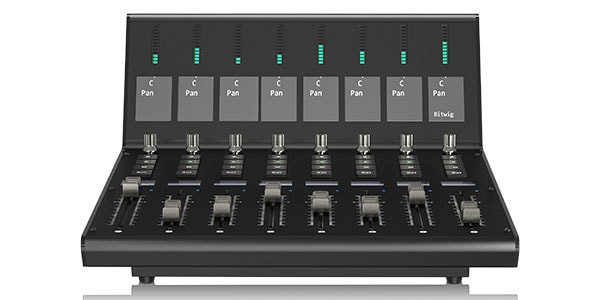

Eight 12-bit touch-sensitive 100mm motorized faders
Equipped with an OLED display that shows channel names, control values, channel colors, etc. (depending on the DAW)
- Each channel has a 1.1-inch TFT display (some DAWs incorporate additional information display functions)
- Accurate, clear LED meters
- Eight smooth-action dual-function encoder knobs
- Smooth-action jog wheel shuttle for fast search, scrub, and control
- Illuminated buttons for channel control, including mute, solo, and record
- Supports Mackie Control and HUI protocols for seamless integration with compatible music production software
- Supports Ableton Live, Adobe Audition, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer 11, FL Studio, Logic Pro X, Harrison Mixbus 32C, Pro Tools, Reaper, Reason, Samplitude, Studio One, Tracktion, Universal Audio Luna*

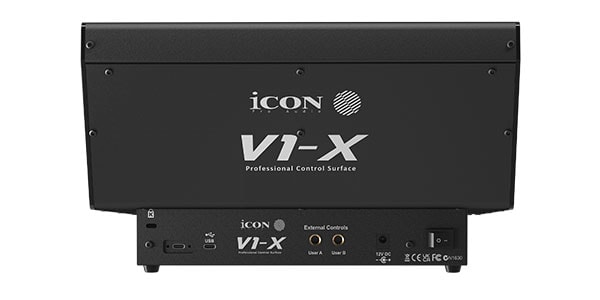

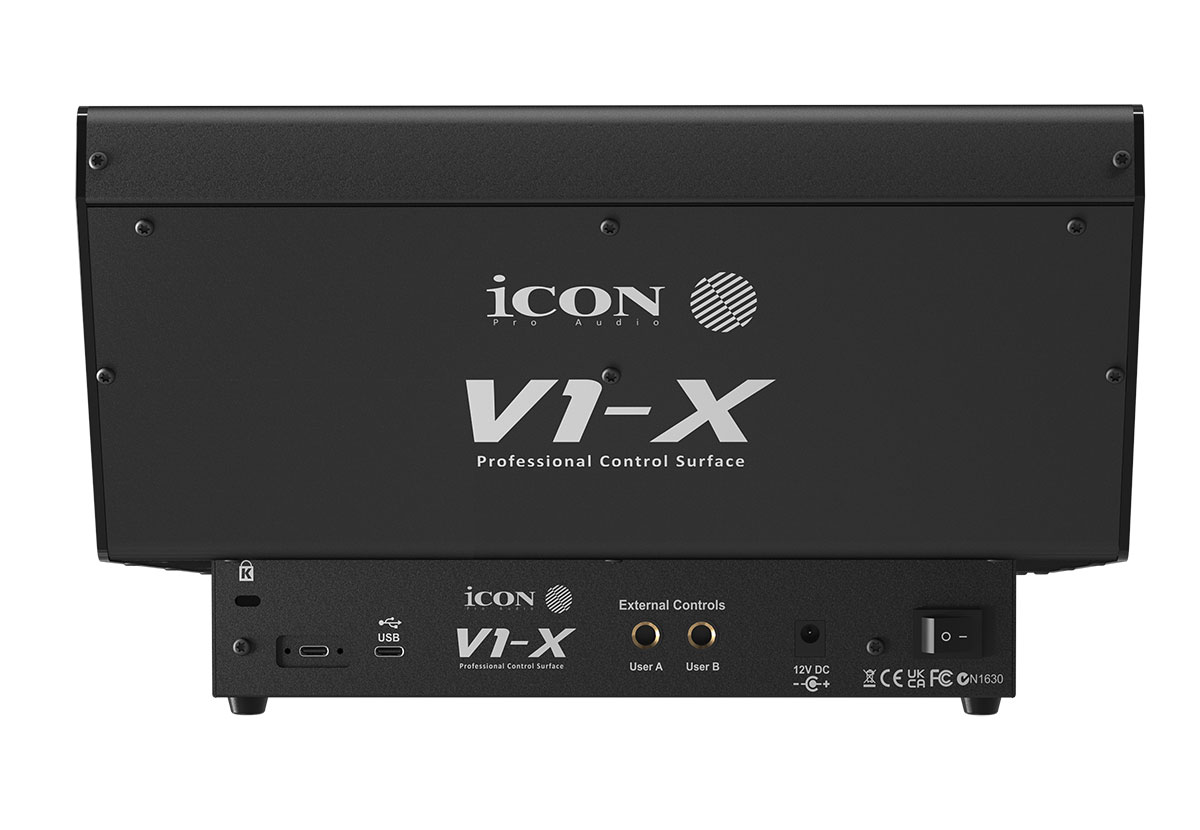

High-speed connection via USB 3.0 (when using a USB hub, please use a powered hub)
The firmware upgrade is possible via the included USB-C cable connection and iMAP software.
Two freely configurable footswitch terminals (1/4” TS, limited to compatible DAWs)
Robust metal casing with high quality and Kensington lock port
Power supply 12V DC

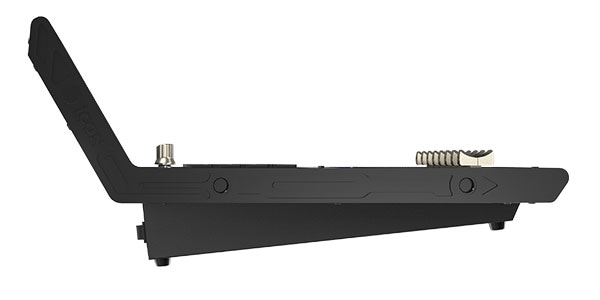

Dimensions: 309 mm x 384.5 mm x 178 mm
Weight: 3615 g
Compatible OS: MacOS 10.15 or later and Windows 10 or later (class compliant)
* Not all parameters can be handled depending on the version of the DAW.
* (When using Logic Pro) The meters on the P1-M side may not be fully compatible.
* When connecting this unit to a PC or Mac, be sure to use the included USB cable.

Specifications are subject to change without notice.
