ICON DIGITAL / V1-M

V1-M is a powerful DAW controller that enables intuitive control. It streamlines your workflow and helps you complete your projects more quickly.

DAW Controller

Hands-on Control

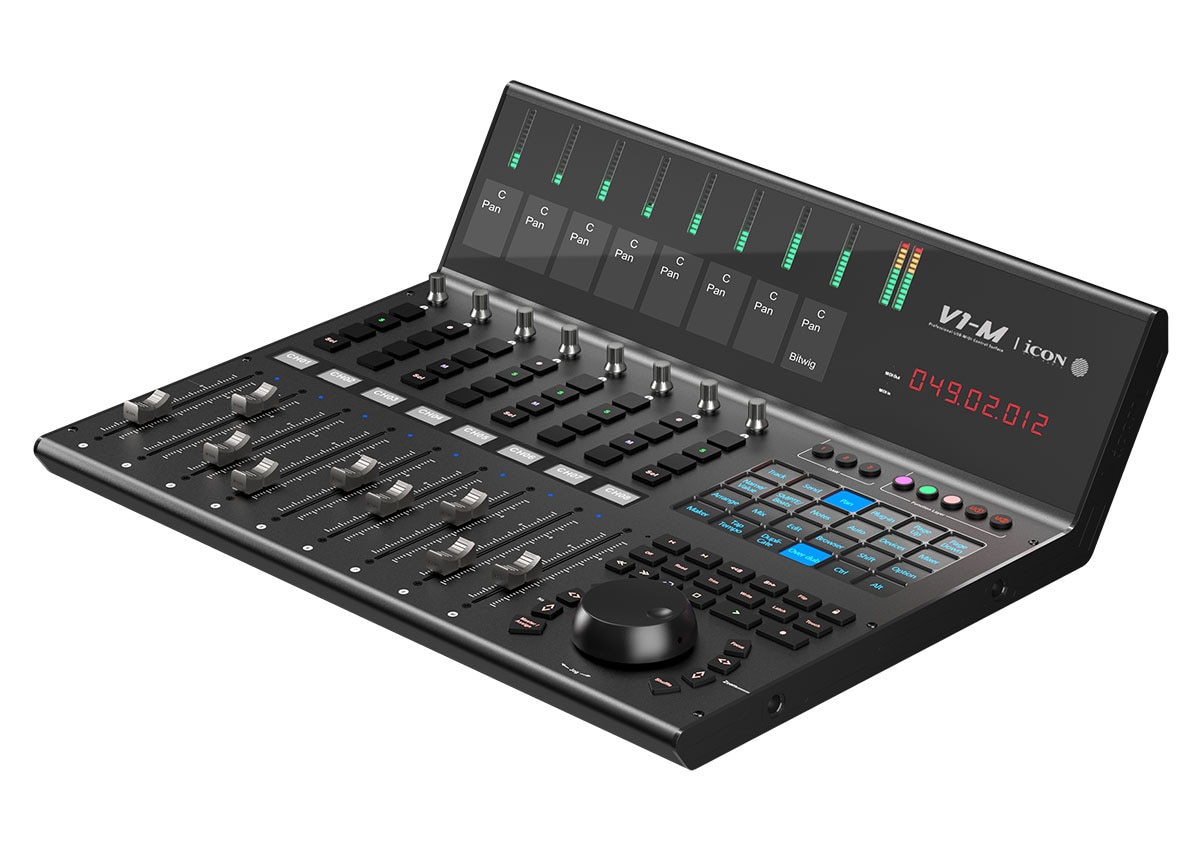

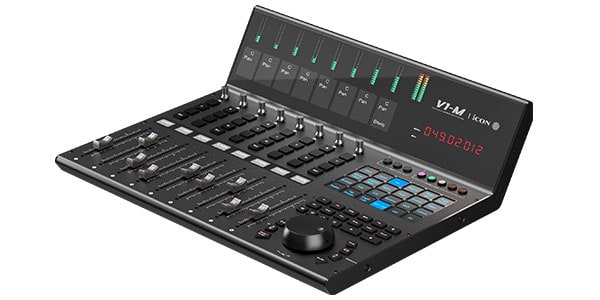

The V1-M has nine motorized faders, and by adding the optional V1-X (sold separately), it can be expanded to a maximum of 64 channels (the maximum expansion number varies depending on the DAW). This allows you to freely control the mix, even for complex projects.

Customizable Touchscreen

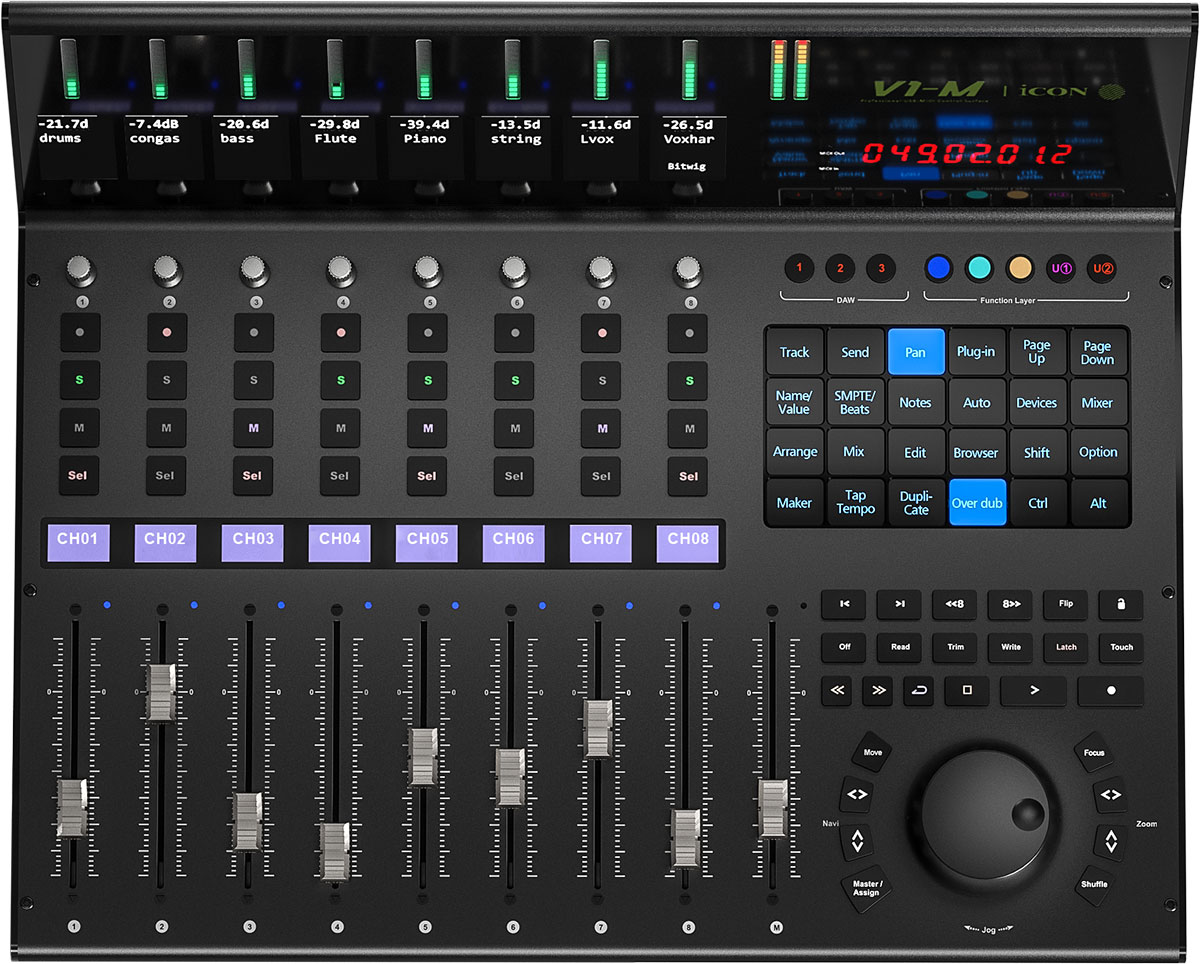

The V1-M features a 24(4x6) touchscreen display that can be configured with up to five command layers, allowing it to adapt to any workflow. With the touch of a button, you can quickly access the controls you need.

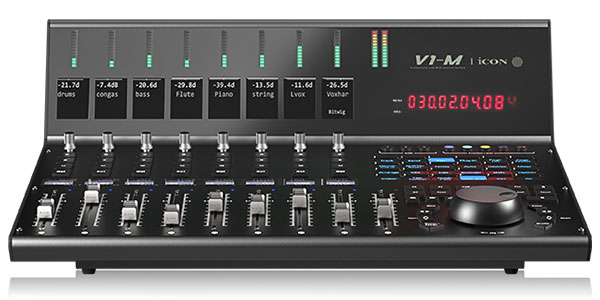

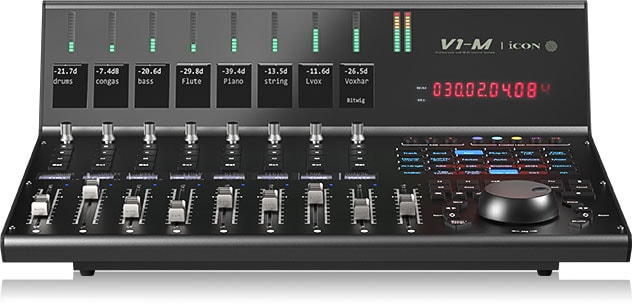

OLED display and meter bridge
The large LED display and meter bridge show information such as levels, pan, etc. This makes it easy to keep track of the mix without having to look at a computer monitor.

Seamless DAW integration
With V1-M, you can connect and switch between up to three DAWs at once without interrupting your workflow. You can control many popular DAWs, including Bitwig, Cubase / Nuendo, Logic Pro X, Ableton Live, Pro Tools, and LUNA.

Multiple DAW presets provided
The dedicated software iMAP is a powerful tool for making the most of the V1-M. It provides multiple DAW presets.

■Main specifications
・9 12-bit resolution 100mm motorized faders with touch-sensitivity
・7-inch 24-panel digital touch display that can be assigned to any command (up to 120 different displays and operations are possible by switching between five layer modes)
・Using the free “iMAP” app for settings, which can be downloaded, it is possible to assign various functions of the DAW to the 24-panel touchscreen using drag-and-drop operations
・It is possible to instantly switch between three different DAWs using the DAW selection buttons
- Accurate, clear LED meters
- 2-inch TFT display showing channel names, control values, channel colors, etc. (depending on the DAW)
- 1.14-inch TFT display on each channel (some DAWs have a function that displays additional information on this screen)
- 8 smooth-action dual-function encoder knobs
- Smooth-action jog wheel shuttle for fast search and scrub control
- Illuminated function buttons for “Read,” “Write,” “Touch,” “Latch,” “Trim,” and “Off” that can be enabled/disabled according to the DAW (enabled/disabled according to the requirements of the DAW)
- Illuminated buttons for channel control, such as mute, solo, and record
- Illuminated transport buttons for playback, stop, record, rewind, fast forward, and loop
- Flip the button to switch the function of the fader
- Master/Assign button for quickly switching the master fader from the master channel to a pre-assigned track
- Illuminated zoom buttons with two directional keys (up/down and left/right)
- Focus buttons light up to allow you to use the jog wheel to make “focused” adjustments to plug-ins, EQ parameters, etc.
- Two illuminated track buttons for selecting individual channels
- Two illuminated bank buttons that allow you to shift eight channels at a time
- Supports Mackie Control and HUI protocols for seamless integration with compatible music production software
Supports Ableton Live, Adobe Audition, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer 11, FL Studio, Logic Pro X, Harrison Mixbus 32C, Pro Tools, Reaper, Reason, Samplitude, Studio One, Tracktion, Universal Audio Luna*

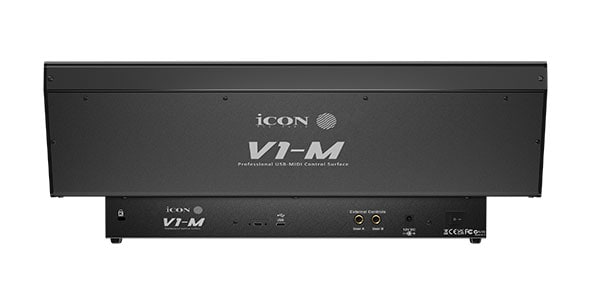

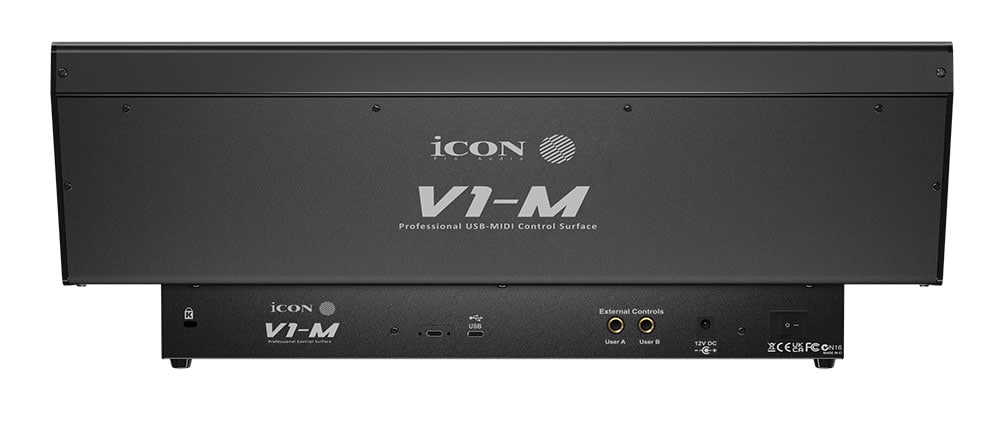

High-speed USB 3.0 connection (when using a USB hub, please use a powered hub)
Firmware upgrades possible via the included USB-C cable connection and iMAP software
Two freely configurable footswitch terminals (1/4” TS, limited to compatible DAWs)
Expandable with V1-X extender units (8 channels per unit)
Robust metal casing with excellent quality and Kensington lock port
Power supply: 12V DC center positive
External dimensions: 485(W) x384.5(D) x 178(H) mm
Weight: 5600 g
Compatible OS: MacOS 10.15 or later and Windows 10 or later (class compliant)
* Depending on the version of the DAW, not all parameters may be available.
* (When using Logic Pro) The meters on the P1-M side may not be fully compatible.
* When connecting this unit to a PC or Mac, be sure to use the supplied USB cable.

Specifications are subject to change without notice.
