HAYAKUMO / IZARAI

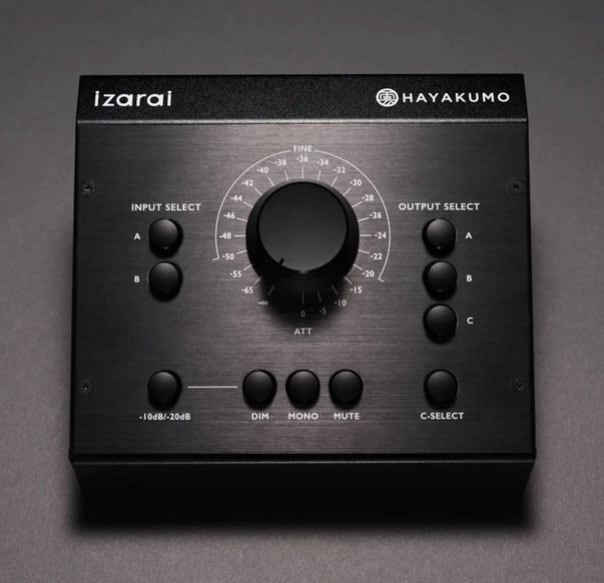

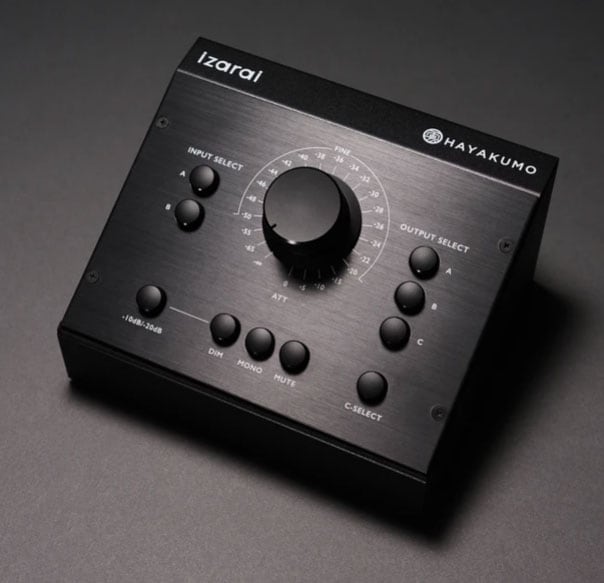

HAYAKUMO / izarai is a passive monitor controller for studio use that uses high quality parts made in Japan.

■Monitor controller, input x, output x3

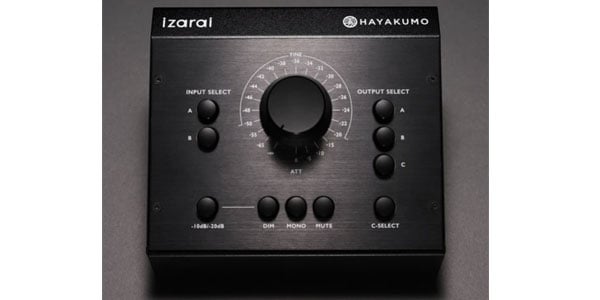

izarai
Minimal appearance, pure expression

izarai is a passive monitor controller for studio use that uses high quality parts made in Japan.

The biggest advantage of passive is that it has a simple structure and no electronic circuit.

This means that you can play and control the sound without introducing unnecessary changes to the original sound.

This is a very important point for engineers and creators who deal with sound every day and pursue minute nuances.

We focused on this point and achieved a higher level of fidelity of the original sound by using high-quality parts manufactured in Japan and a simple circuit design. The exterior design also visualizes the sound quality characteristics, giving it a high-end look and feel.

Furthermore, iZARAI does not require a power source, freeing you from the various stresses that surround you and creating the best space for you to face the sound.

●Made in Japan
The attenuator that is the core of izarai uses a 4-circuit, 23-contact switch made by Tokyo Keizoku Kiki, which has been manufacturing rotary switches for over 60 years.

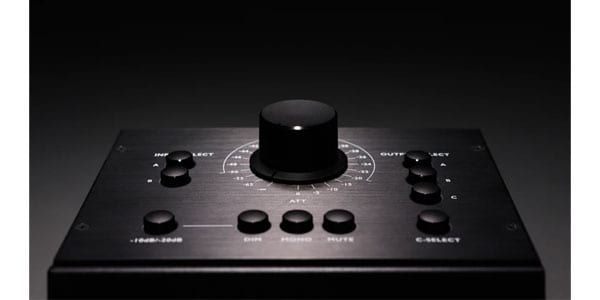

The iconic aluminum knobs and push buttons are specially designed, machined from aluminum in Japan, and processed multiple times to create a more sophisticated texture.

The high reliability of Made in Japan dramatically improves the quality of your studio.

●Functions from the user's perspective

We collaborated in development with Gregory Germen, a recording and mix engineer who is active on the front lines, and pursued specifications from the perspective of the field.

The attenuator uses an irregular step with practicality in mind. ""C-SELECT"" allows OUTPUT C to be always ON regardless of the OUTPUT button. This is useful when connecting a subwoofer, etc. Also, ""DIM"" can be switched between -10/-20dB.

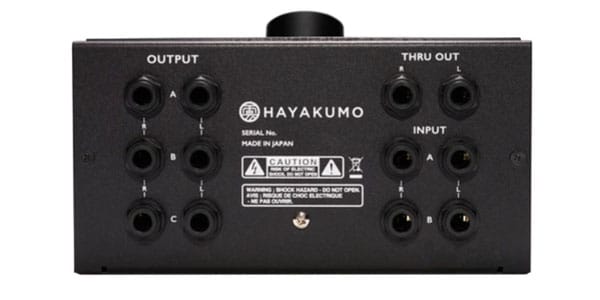

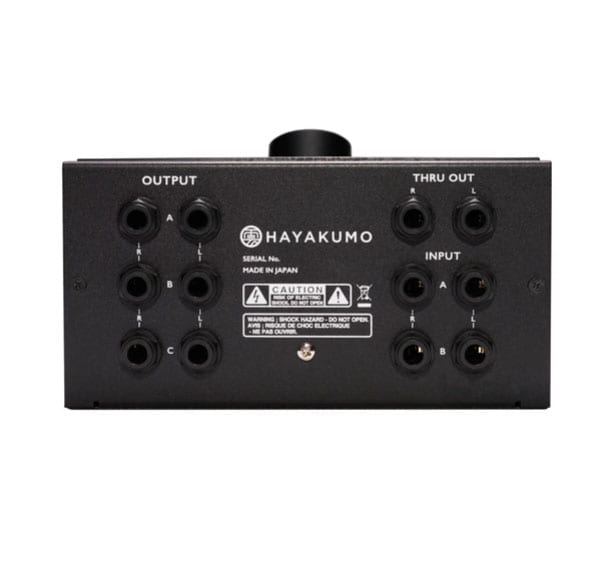

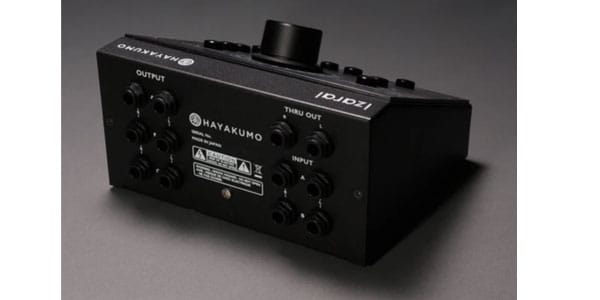

There are 2 stereo inputs, 3 stereo outputs, and a THRU OUT that can be used when connecting a VU meter.

It also includes other necessary functions such as MONO and MUTE switches, making it suitable for use in a variety of sites.

■Features
-Uses a 4-circuit, 23-contact rotary switch made in Japan.

- Fidelity to the original sound unique to passive

・Exclusive machined aluminum knob and push button

・C-SELECT function makes it easy to connect subwoofers, etc.

・-10/-20dB switchable DIM

・THRU OUT convenient for connecting VU meters

・Irregular step attenuator considering practicality

・MONO, MUTE switch

■Specifications

Input/output connector: Instruction manual, warranty card

Attenuator: φ6.3TRS phone jack

Attenuator resistance: 4 circuits, 23 stages rotary switch type

Maximum allowable input level: Tolerance 1%

Input impedance: +30dBu: 2kΩ

Recommended load: 5kΩ or more (5kΩ or more when not using C-SELECT, 10kΩ or more when using C-SELECT)

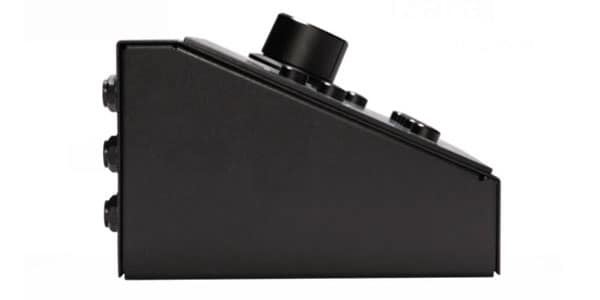

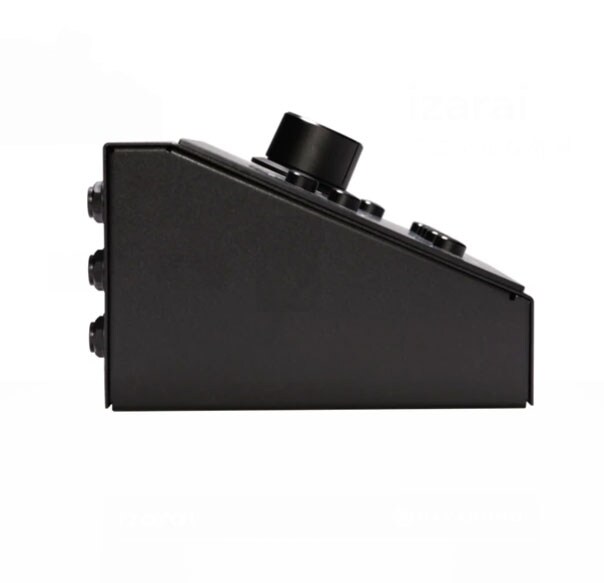

External dimensions: Width 162 x height 98 x depth 138 mm (including protrusions)

Mass: Approx. 1,040g

*As this is basically a made-to-order item, we cannot accept cancellations or returns after the order has been placed.
*Please contact us in advance for the order delivery date.
